KA2IR510LA1AC750 Portable Router and Charger

Version 1.01 | 12/18/2013 DIR-510L User Manual Wi-Fi AC750 Portable Router and Charger i D-Link DIR-510L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United Stat es or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. a nd other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.Copyright © 2013 by D-Link Corporation, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission fr om D-Link Corporation, Inc. Revision Date Description 1.0 7 November, 2013 t
Initial release for Revision A1 1.01 18 December, 2013 t
Update to Revision A1 Preface ii D-Link DIR-510L User Manual Table of Contents Preface ................................................................................. i Manual Revisions ........................................................................... iTrademarks ...................................................................................... i Product Overview .............................................................. 1 Package Contents ......................................................................... 1System Requirements ................................................................. 2Introduction ................................................................................... 3Features ............................................................................................ 4Hardware Overview ..................................................................... 5 Installation ......................................................................... 7 Wireless Installation Considerations ...................................... 7Connection Diagrams ................................................................. 8 Broadband Router Setup ................................................... 8 Mobile Router Setup ........................................................... 9Wi-Fi Hotspot Setup ...........................................................10LAN Sharing Setup .............................................................11 Setting Up Your DIR-510L ........................................................12 Connecting Your Equipment ..........................................13 Connecting to Your DIR-510L .........................................14 Sharing Files ..................................................................... 16 Using the mydlink SharePort app for iPad®, iPhone®, and iPod touch® ...................................................................................16 Main Menu ............................................................................20Documents ............................................................................21 Pictures ...................................................................................23Videos .....................................................................................25Music .......................................................................................27Folders ....................................................................................30Favorites .................................................................................33 Using the mydlink SharePort app for Android™ ..............34 Main Menu ............................................................................38Documents ............................................................................39Pictures ...................................................................................41Videos .....................................................................................43Music .......................................................................................45Folders ....................................................................................48Favorites .................................................................................52 Using SharePort Mobile for Windows® 8/RT .....................53 Main Menu ............................................................................56Documents ............................................................................57Pictures ...................................................................................58Movies .....................................................................................60Music .......................................................................................62Folder ......................................................................................65Favorite ...................................................................................68 Using SharePort Web Access ..................................................69 Music .......................................................................................71Pictures ...................................................................................72Videos .....................................................................................73Documents ............................................................................74 Table of Contents iii D-Link DIR-510L User Manual Table of Contents Configuration ................................................................... 75 Home ......................................................................................…

Text truncated - open the document above for the full version.

D-Link Corporation No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Attestation FCC ID：KA2IR510LA1 Product: AC750 Portable Router and Charger Model : DIR-510L Statements: We, the undersigned, hereby certify that when connecting a RF device to this port (see the attached photo), it will not operate. Sincerely yours, _________________________ Shinglin Chung / Associate Vice President D-Link Corporation

Page 1 of 15 Antenna Test Report (DIR-510) V1.03 Document Number NE3-13026 1 st Released Date 04/03/2013 Last Released Date 05/14/2013 Author Andy Hung Review by Byron Chang Page 2 of 15 Revised History Date Version Revised Record 04/03/13 1.00 新測試。 04/24/13 1.01 天線修改及組裝位置異動。 04/24/13 1.02 改為垂直擺放測試。 05/14/13 1.03 修改2G1 & 2G2天線，進行水平擺置測試 Page 3 of 15 Electrical Specification Rough description None Item Initial Specification Dimensions None Impedance 50Ω Test environment With Housing Spectrum Ant 1 & 2- 802.11bg Ant 3 - 802.11a Freq. Range Ant 1 & 2- 2.4~2.5GHz Ant 3 - 4.9~5.825GHz Antenna type Ant 1 & 2- PIFA Ant 3 - Dipole type Gain(Peak Gain) Ant 1- 0.91dBi Ant 2- 3.20dBi Ant 3- 4.88dBi VSWR 1.92：1 Radiation Omni Polarization Linear HPBW / H None HPBW / E None Rad. efficiency None Connector type MHF Cable type ψ1.13 Cable length Ant 1- 150mm Ant 2- 150mm Ant 3- 150mm Isolation -20dB Page 6 of 15 【Ant 2】 【Ant 3】 Page 7 of 15 2.2 Isolation test results 【Ant 1 & Ant 2】 【Ant 1 & Ant 3】 Page 8 of 15 【Ant 2 & Ant 3】 Page 9 of 15 3. Gain & Patterns test results 3.1 Lab information NFC-500S 3D Chamber Coordinate System Definition Configuration of NFC-500S 3D Chamber AUT X Y Page 10 of 15 3.2 Measurement setting XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left AUT X Y Z Up(+Z) Down Front Back(+Y) Left Right (+X) AUT Page 11 of 15 3.3 2D Patterns 3.3.1 Ant 1 2400MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 2450MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 2500MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) Page 12 of 15 3.3.2 Ant 2 2400MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 2450MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 2500MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) Page 13 of 15 3.3.3 Ant 3 4900MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 5150MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 5350MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) Page 14 of 15 5725MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 5825MHz X-Z Plane (E-total) Y-Z Plane (E-total) X-Y Plane (E-total) 4. Summary 4.1 Return Loss Frequency Antenna 1 Antenna 2 2400MHz -15.4 -12.7 2450MHz -18.2 -14.3 2500MHz -16.5 -11.6 Frequency Antenna 3 4900MHz -12.7 5150MHz -10.3 5350MHz -14.0 5725MHz -24.6 5825MHz -19.0 Page 15 of 15 4.2 Isolation test results Frequency Ant 1 & Ant 2 Ant 1 & Ant 3 Ant 2 & Ant 3 2400MHz -26.0 -23.1 -31.8 2450MHz -28.2 -23.3 -27.3 2500MHz -32.6 -27.5 -26.1 4900MHz -51.4 -45.6 -25.6 5150MHz -36.0 -35.8 -30.0 5350MHz -36.6 -38.8 -27.3 5725MHz -40.9 -40.2 -26.0 5825MHz -38.3 -39.5 -25.8 4.3 3D total Peak Gain & Efficiency Antenna 1 Antenna 2 Frequency Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400MHz 0.78 48.5 2.54 60.1 2450MHz 0.91 51.9 3.20 61.4 2500MHz 0.18 44.1 3.04 53.2 Antenna 3 Frequency Peak Gain (dBi) Efficiency (%) 4900MHz 2.66 51.0 5150MHz 4.88 67.8 5350MHz 4.77 66.8 5725MHz 4.11 56.2 5825MHz 3.82 53.6

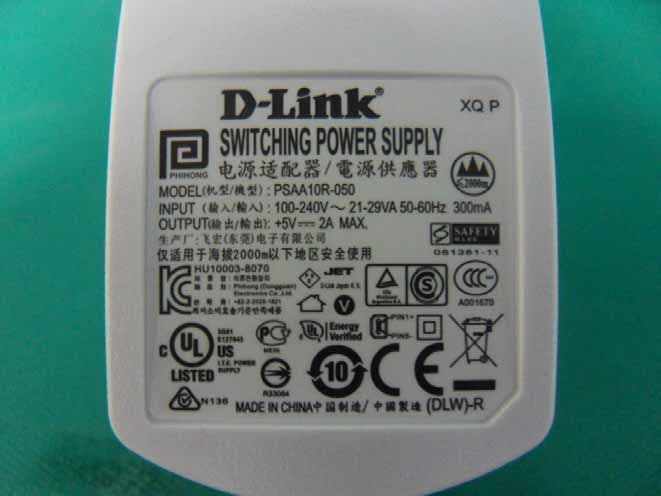

Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A1 / 14 External Photo (DIR-510L) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A2 / 14 Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A3 / 14 Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A4 / 14 Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A5 / 14

Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A6 / 14 Internal Photo (DIR-510L) Ant 2- 2.4G (3.2dBi) Ant 3- 5G (4.88dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A7 / 14 Ant 2- 2G (3.2dBi) Ant 3- 5G (4.88dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A8 / 14 Ant 1- 2.4G (0.91dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A9 / 14 Ant 1- 2.4G (0.91dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A10 / 14 Ant 2- 2.4G (3.2dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A11 / 14 Ant 3- 5G (4.88dBi) Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A12 / 14 Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A13 / 14 Compliance Certification Services Inc. Report No.T130909N91 Date of IssueOctober 18, 2013 Page A14 / 14

Compliance Certification Services Inc. FCC ID: KA2IR510LA1 Report No: T130909N91-SF_Rev1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 43 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62 FCC TEST REPORT For AC750 Portable Router and Charger Trade Name: D-Link Model: DIR-510L Issued to D-Link Corporation No.289 , Sinhu 3rd Rd. , Neihu District , Taipei City 114, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: 2013/12/19 Compliance Certification Services Inc. FCC ID: KA2IR510LA1 Report No: T130909N91-SF_Rev1 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2013/12/19 Initial Issue ALL Scott Hsu Compliance Certification Services Inc. FCC ID: KA2IR510LA1 Report No: T130909N91-SF_Rev1 Page 3 Rev. 00 Table Of Contents 1 Certificate of Compliance (SAR Evaluation) ............................................................... 5 2 Description of Equipment Under Test ....................................................................... 6 3 Requirements for Compliance Testing Defined .......................................................... 7 3.1 Requirements for Compliance Testing Defined by the FCC ........................................................................ 7 4 Dosimetric Assessment System ................................................................................ 8 4.1 Measurement System Diagram ....................................................................................................................... 9 4.2 System Components ........................................................................................................................................ 10 5 Evaluation Procedures ........................................................................................... 13 6 SAR Measurement Procedures ............................................................................... 15 6.1 Normal SAR Test Procedure ........................................................................................................................... 15 7 Device Under Test ................................................................................................. 17 7.1 Band Interface .................................................................................................................................................. 17 7.2 Simultaneous Transmission ............................................................................................................................ 18 8 Summary of Test Configurations ............................................................................ 19 8.1 Standalone SAR Test Exclusion Calculations ................................................................................................ 19 8.2 SAR Exclusion Calculations for Wi-Fi Antenna < 50mm from the User ................................................... 20 8.3 SAR Exclusion Calculations for Wi-Fi Antenna > 50mm from the User ................................................... 20 9 Measurement Uncertainty ..................................................................................... 21 10 Exposure Limit ...................................................................................................... 22 11 Tissue Dielectric Properties .................................................................................... 23 11.1 Test Liquid Confirmation ................................................................................................................................. 23 11.2 Typical Composition of Ingredients for Liquid Tissue Phantoms .............................................................. 24 11.3 Simulating Liquids Parameter Check Results ............................................................................................... 25 12 System Performance Check .................................................................................... 27 12.1 System Performance Check Results .............................................................................................................. 28 13 RF Output Power Measurement ............................................................................. 29 13.1 Wi-Fi (2.4 GHz Band) ........................................................................................................................................ 29 13.2 Wi-Fi (5 GHz Band) ........................................................................................................................................... 30 14 SAR Measurements Results ................................................................................... 32 14.1 Summary of Highest SAR Values .................................................................................................................... 35 15 Simultaneous Transmission SAR Analysis ................................................................ 36 15.1 Sum of the SAR for Simultaneous Transmission Analysis .......................................................................... 37 15.1.1 Sum of the 1g SAR for Body Exposure Condition ........................................................................................ 37 15.1.2 SAR to Peak Location Separation Ratio (SPLSR) for WiFi 2.4GHz ............................................................. 38 15.1.3 SAR to Peak Location Separation Ratio (SPLSR) for WiFi 5.2GHz ............................................................. 38 Compliance Certification Services Inc. FCC ID: KA2IR510LA1 Report No: T130909N91-SF_Rev1 Page 4…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130909N91-SF Setup Photos Front Side position Front Side position 10mm 10mm Edge1 position Edge2 position Edge3 position 10mm 10mm 10mm 10mm Edge4 position 10mm EUT Photos

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/02 20131002_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.5C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5200 MHz; σ = 5.13 S/m; ε r = 48.64; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(4.44, 4.44, 4.44); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/5200MHz,Pin=100mW,d=10mm/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 17.5 W/kg Body/5200MHz,Pin=100mW,d=10mm/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 64.584 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 27.4 W/kg SAR(1 g) = 6.86 W/kg; SAR(10 g) = 1.98 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 16.4 W/kg 0 dB = 16.4 W/kg = 12.15 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/02 20131002_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1 Body/5200MHz,Pin=100mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 17.0 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/03 20131003_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.5C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5200 MHz; σ = 5.057 S/m; ε r = 46.948; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(4.44, 4.44, 4.44); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/5200MHz,Pin=100mW,d=10mm/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 14.9 W/kg Body/5200MHz,Pin=100mW,d=10mm/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 61.070 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 7.05 W/kg; SAR(10 g) = 2.02 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 16.1 W/kg 0 dB = 16.1 W/kg = 12.07 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/03 20131003_System check_Diple5GHzv2 SN1004 Frequency: 5200 MHz; Duty Cycle: 1:1 Body/5200MHz,Pin=100mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 17.9 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/16 20131016_System check_Diple5GHzv2 SN1004 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.5C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5800 MHz; σ = 5.787 S/m; ε r = 46.159; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(4.38, 4.38, 4.38); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/5800MHz,Pin=100mW,d=10mm/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 18.5 W/kg Body/5800MHz,Pin=100mW,d=10mm/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 63.869 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 33.9 W/kg SAR(1 g) = 7.21 W/kg; SAR(10 g) = 2.06 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 18.2 W/kg 0 dB = 18.2 W/kg = 12.60 dBW/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/16 20131016_System check_Diple5GHzv2 SN1004 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5800MHz,Pin=100mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 19.1 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/17 20131017_System check_Diple5GHzv2 SN1004 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.5C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5800 MHz; σ = 6.004 S/m; ε r = 46.902; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(4.38, 4.38, 4.38); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Body/5800MHz,Pin=100mW,d=10mm/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 19.4 W/kg Body/5800MHz,Pin=100mW,d=10mm/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 64.310 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 34.6 W/kg SAR(1 g) = 7.45 W/kg; SAR(10 g) = 2.12 W/kg Info: Inter…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.895 S/m; ε r = 54.256; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(7.4, 7.4, 7.4); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Rear/Rear Touch/802.11b/Main Ant/CH11_10mm/Area Scan (9x7x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.173 W/kg Rear/Rear Touch/802.11b/Main Ant/CH11_10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.466 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.221 W/kg SAR(1 g) = 0.118 W/kg; SAR(10 g) = 0.068 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.175 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used: f = 2462.2 MHz; σ = 1.937 S/m; ε r = 54.365; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(7.4, 7.4, 7.4); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Front/Front Touch/802.11b/Main Ant/CH11_10mm/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.854 W/kg Front/Front Touch/802.11b/Main Ant/CH11_10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.934 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.611 W/kg; SAR(10 g) = 0.283 W/kg Maximum value of SAR (measured) = 1.00 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used: f = 2462.2 MHz; σ = 1.937 S/m; ε r = 54.365; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(7.4, 7.4, 7.4); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Edge/Edge2/802.11b/Main Ant/CH11/Area Scan (7x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0882 W/kg Edge/Edge2/802.11b/Main Ant/CH11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.118 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.145 W/kg SAR(1 g) = 0.061 W/kg; SAR(10 g) = 0.039 W/kg Maximum value of SAR (measured) = 0.102 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used: f = 2462.2 MHz; σ = 1.937 S/m; ε r = 54.365; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(7.4, 7.4, 7.4); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Edge/Edge3/802.11b/Main Ant/CH11/Area Scan (7x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.399 W/kg Edge/Edge3/802.11b/Main Ant/CH11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.515 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.518 W/kg SAR(1 g) = 0.274 W/kg; SAR(10 g) = 0.147 W/kg Maximum value of SAR (measured) = 0.416 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2462 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used: f = 2462.2 MHz; σ = 1.937 S/m; ε r = 54.365; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(7.4, 7.4, 7.4); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1056 Edge/Edge4/802.11b/Main Ant/CH11/Area Scan (7x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0830 W/kg Edge/Edge4/802.11b/Main Ant/CH11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.112 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.0930 W/kg SAR(1 g) = 0.049 W/kg; SAR(10 g) = 0.034 W/kg Maximum value of SAR (measured) = 0.0835 W/kg Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/23 WiFi 2.4GHz Band Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.5C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.895 S/m; ε r = 54.256; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Service Inc. SAR Lab 01 Date: 2013/10/02 WiFi 5.2GHz Band Frequency: 5200 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.5C; Liquid Temperature: 24.0C Medium parameters used (interpolated): f = 5200 MHz; σ = 5.13 S/m; ε r = 48.64; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn877; Calibrated: 2013/03/12 - Probe: EX3DV4 - SN3665; ConvF(4.44, 4.44, 4.44); Calibrated: 2013/05/07; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - …
