KA2IR513AA1Wireless N300 Mini Router

Quick Installation Guide Wireless N300 Mini Router DIR-513A Mini Router +Portable +D-link One-Touch App Support +Three modes support (Router/AP/Repeater) +USB Power Supply Repeater mode setting Search for the SSID which you want to extend and click to select. Enter the wireless password. Repeater mode setting Finish the setting and confirm the network configuration. D-link One Touch App available DIR-513A support D-link One-Touch App for setting easily.You should search the key of "D-link One-Touch" from Google Play Market and App Store to download the software. DIR-513A mode LED Indicators: Blue:Repeater mode Red:Router mode Green:AP mode Repeater mode: DIR-513A would relay your wireless signal to extend your wireless. Router mode: DIR-513A would make a local network to share your Internet access. AP mode: DIR-513A would change your Ethernet signal to be wireless signal for your mobile devices. Repeater mode Setting Insert the DIR-513A into the power socket. Wait for about 10 seconds. Click this ico from your mobile devices and open the D-link One-Touch App Click to Set. Find and click the SSID of the "dlink-513a-z" AP/Router mode Setting Insert the DIR-513A into the power socket. Wait for about 10 seconds. Click this ico from your mobile devices and open the D-link One-Touch App Click to Set. Find and click the SSID of the "dlink-513a-z" Repeater Setting Find and set the D-link DIR-513A. Set the device password which is used to control DIR-513A. Change the mode to the Repeater mode. AP mode Setting Set the device password which is used to control DIR-513A . Change the mode to the AP mode. Enter the wireless name and Encryption Key. Select the Encryption mode which you want to. Please keep the picture of setting profile for future using. AP mode setting Finish the setting and confirm the network configuration. Please keep the picture of setting profile for future using. Software upgrade mode Click the software upgrade.Find and set D-link DIR-513A. Software upgrade mode TECHNICAL SUPPORTTECHNICAL SUPPORT Show the rate of upgrade progress. Finish the software upgrade. Enter in the user name and password. Start download. Router mode setting Set the device password which is used to control DIR-513A . Change the mode to the Router mode. Select the connection type such as DHCP,PPPoE or Static. Router mode setting Enter the wireless name and Encryption Key. Select the Encryption mode which you want to. Router mode setting Please keep the picture of setting profile for future using. Finish the setting and confirm the network configuration. COUNTRIES IN WHICH D-LINK LIMITED WARRANTY APPLIES PAÍSES NOS QUAIS A GARANTIA LIMITADA DA D-LINK SE APLICA LIMITED HARDWARE WARRANTY GARANTIA LIMITADA GARANTIA DE HARDWARE LIMITADA GARANTIA LIMITADA DO SOFTWARE O QUE NÃO ESTÁ COBERTO AVISO DE ISENÇÃO DE RESPONSABILIDADE O QUE VOCÊ DEVE FAZER PARA O SERVIÇO DE GARANTIA LIMITED SOFTWARE WARRANTY WHAT YOU MUST DO FOR WARRANTY SERVICE WHAT IS NOT COVERED DISCLAIMER LIMITATION OF LIABILITY GOVERNING LAW LIMITED HARDWARE WARRANTY WARRANTY & SAFETY INFORMATION LIMITED PRODUCT WARRANTY INFORMAÇÕES DE GARANTIA For better service, please register your product online at http://register.dlink.com D-Link provides Limited Warranty for its product only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor. D-Link will fulfill the warranty obligations according to the local warranty policy of the country where you purchased your D-Link product. The warranty period starts on the date of purchase from D-Link or its authorized reseller or distributor. You may be required to provide a proof of purchase as a condition of receiving a warranty service. Your sales or delivery receipt, showing the date of purchase of the product, is your proof of purchase. You are entitled to warranty service if required within the warranty period under the terms and conditions of this document. Warranty Period Table The warranty periods stated in this table supersede and replace the warranty periods stated in the user’s manuals for relevant products. The Limited Warranty terms herein apply to countries in Asia, Oceania, Latin America and Africa, with exception to following countries, a. For Estonia, Latvia, Lithuania, Israel and Turkey, the general warranty period shall be two (2) years. b. For Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Armenia, Azerbaijan, Moldova, Turkmenistan, Tajikistan and Kyrgyzstan, please refer to the last pages of this hardcopy warranty booklet in Russian. c. For Mongolia, please refer to the detail warranty in English at www.dlink.ru/mn. d. For the countries above, the Limited Lifetime Warranty information of DFL series firewalls, managed and smart switches can be seen at www.dlink.ru. For a detailed country list, please see D-Link website http://warranty.dlink. com. For the countries not on the list, please refer to local D-Link websites. Product Type Warranty Period Unmanaged Switch: DES-1008F/1008P/1016D/1018DG/1024D, DES-1026G/1048/1050G, DGS-1016D/1024D Limited Lifetime Warranty a. The listed products are covered under warranty for five (5) years after the product is discontinued. b. Internal fans and internal power supplies are included. c. External power supplies are excluded. d. Limited Lifetime Warranty covers the listed products purchased on or after Oct. 1, 2009. e. Please register your D-Link product online at http:// register.dlink.com within thirty (30) days of purchase. EasySmart Switch: DES-1100 series Web Smart Switch: DES-1200/1210 series, DGS-1200/1210 series Entry-Level Managed Switch: DES-3000 series, DGS-3100 series, DES-3028/3028P/3052/3052P X-STACK™ Managed Switch: DGS-3200/3400/3420/3600/3620 series, DES-3500/3528/3552/3800/3810 series, DES-3200-10/16/26/28 Unified Wired/Wireless Switch: DWS-3000/4000 series Switch Expansion Module: DEM-201F/201FL/301G/301T/410X/410CX Unified Wireless AP DWL-3500AP/8500AP/8600AP AirPremier Wirele…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA MT7620N 20MHz XTAL 2.4GHz TX1/RX1 10/100 Transformer 2.4GHz TX0/RX0 RJ45x1 USB I/F x1 USB Connector x1 Antenna Connector Antenna Connector 5V3.3V Step-Down Regulator SOC_1.5VDSwitching Circuit RESET SDRAM 32Mx16 / 16Mx16 SPI 4MB 2.5V/3.3V BJT 1.2V for digital part LDO 1.2V O/Ps from internal LDOs 1.2V for PLL 1.2V for RF core 1.2V for ADC 3.3V SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD C 1515Wednesday, August 06, 2014 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD C 1515Wednesday, August 06, 2014 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD C 1515Wednesday, August 06, 2014 0 11n 2.4G AP-MT7620N

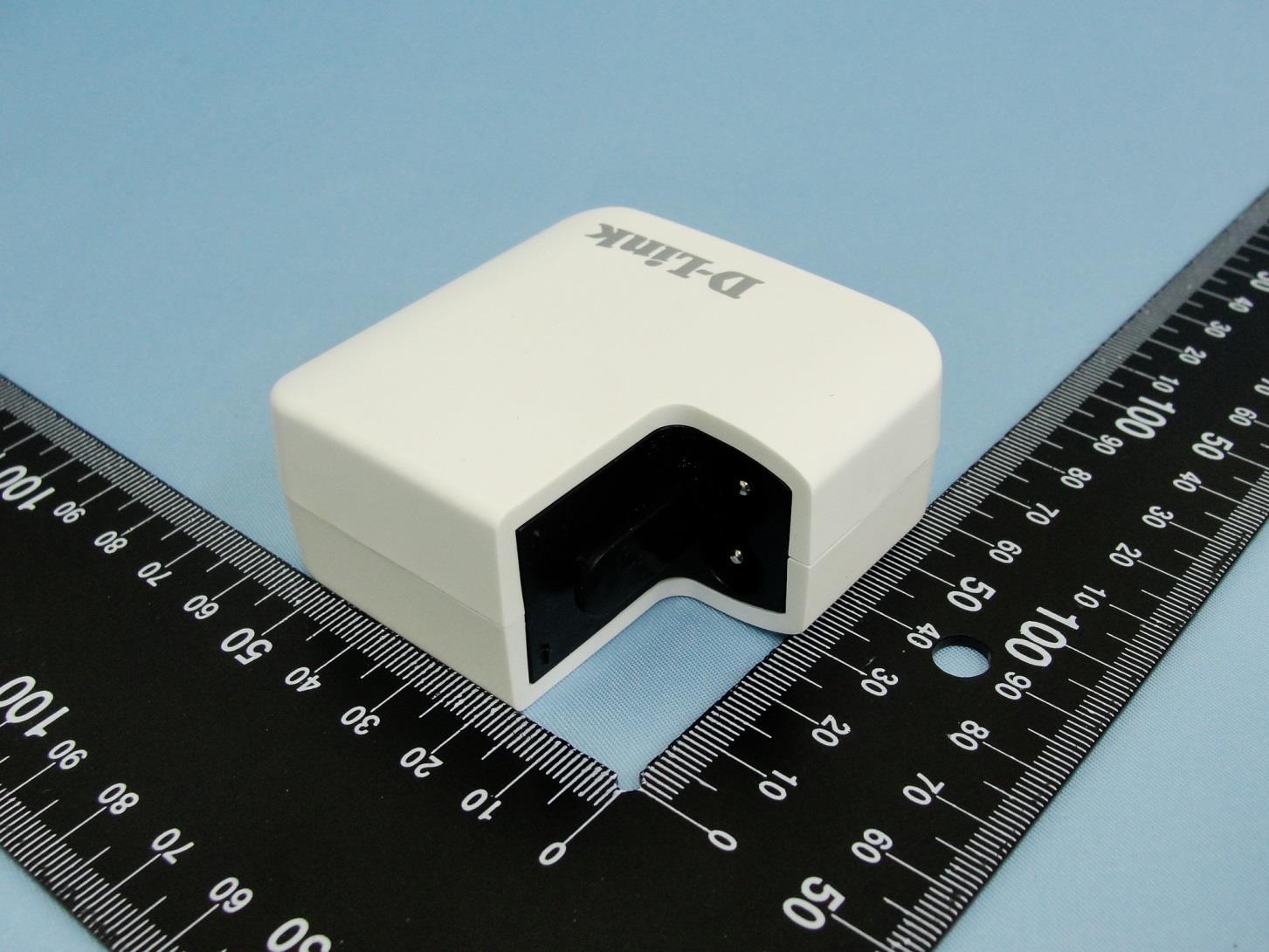

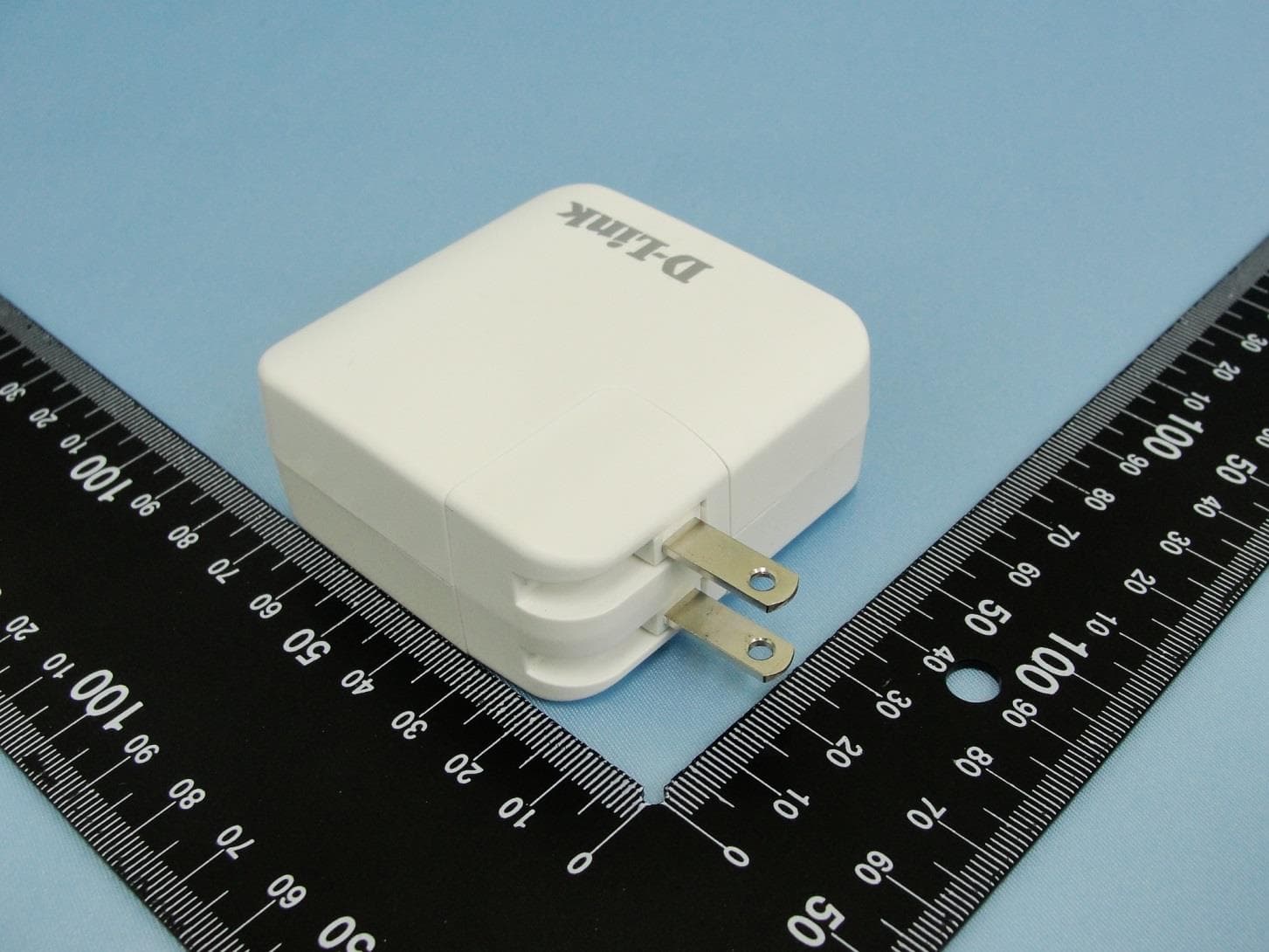

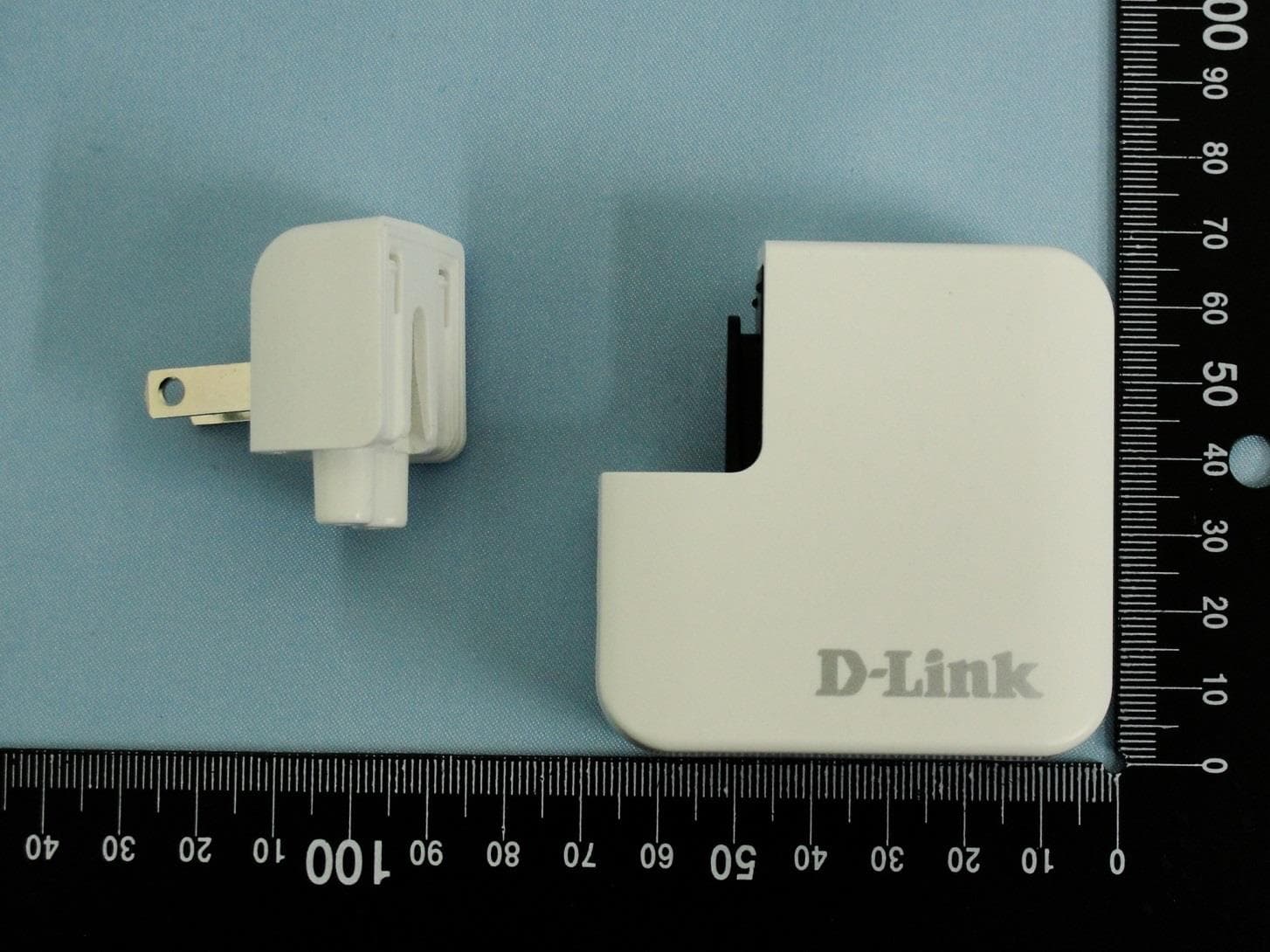

Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 1 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 2 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 3 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 4 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 5 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 6 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 Specification of Accessory AC Adapter Brand Name KUANTEN Model Name SSO051F050100MT Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 7 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 8 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 AC Adapter Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 9 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510

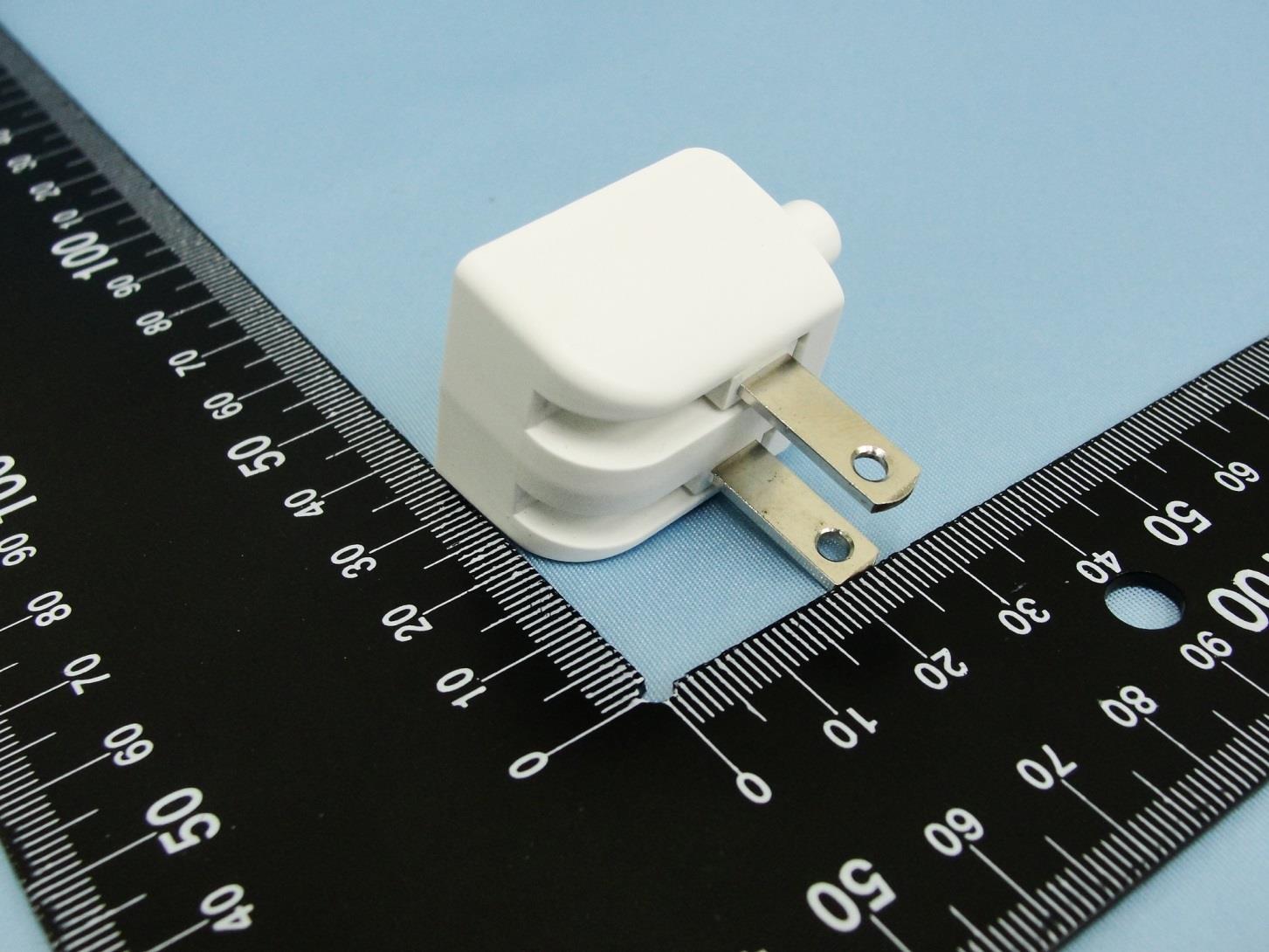

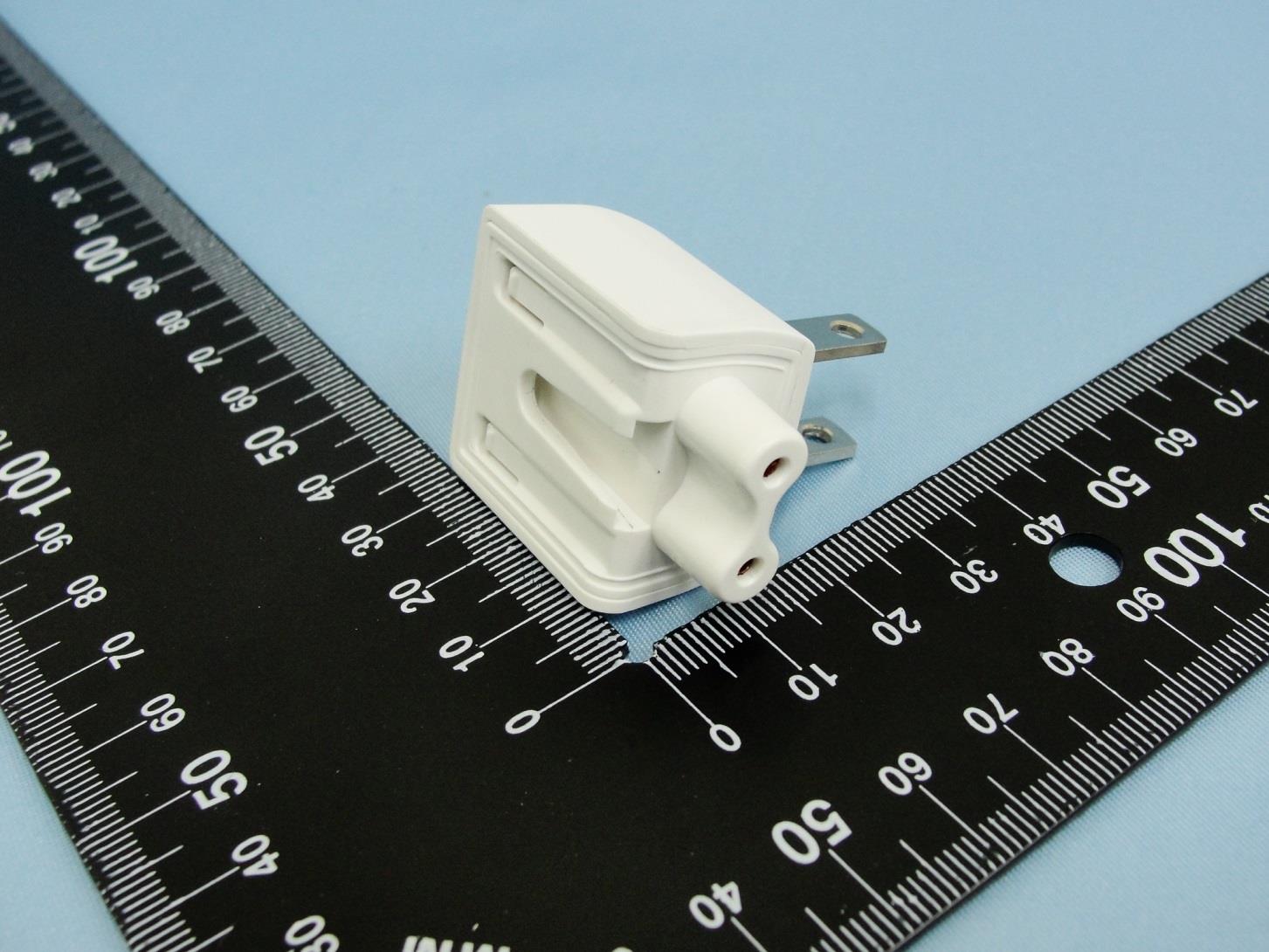

Plug Bottom of the EUT

Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 10 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 11 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 12 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 13 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 14 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 15 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 16 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 17 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 18 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 19 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 WLAN Antenna 1 Photographs of EUT Report No.: EP480567 Brand Name: D-Link / Model Name: DIR-513A SPORTON INTERNATIONAL INC. Page Number : 20 of 20 TEL : 886-3-327-3456 Report Issued Date : Oct. 20, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 720510 WLAN Antenna 2

DIR-513A operation description This device integrates the WiFi chipset. The compact size and iPhone charging of this design Make it a multi-functional portable WiFi electronic products. The WiFi chipset includes an integrated, RF front-end (Power Amplifier, Low-Noise Amplifier, and RF switch) and high-frequency reference clock, enabling low-cost designs with minimal external components. Advanced architecture and protocol techniques save power during sleep, stand-by, and active states. WiFi operation: The chipset is compliant with IEEE 802.11 b/g/n standards. The device adapts direct sequence spread spectrum modulation. The modulation implemented includes DQPSK, DBPSK, CCK, and OFDM, and the crystal frequency of the WLAN RF circuitry is 20 MHz. In addition, its standard compliance ensures that it can communicate with any 802.11 b/g/n network. The country code selection ability is disabled for products marketed in the United States and Canada. The device supports the WiFi operation frequency range as outlined below, and does not support Ad-Hoc and hotspot capability on non-US operational frequency. Frequency Range Mode Type of Modulation 2412-2462 MHz 802.11b DSSS (DBPSK/DQPSK/CCK) 2412-2462 MHz 802.11g 802.11n HT20/HT40 OFDM (BPSK/QPSK/16QAM/64QAM) Frequency Range Scanning Plan Ad Hoc Mode capability Access point capability WiFi Direct Group Owner WiFi Direct Group Client 2412-2462 MHz Active Yes Yes Yes Yes

BOM多级展开英文版本 SMT BOM Sub item codeName of commoditySpecificationsCompanyptionPosition number 01.C1.1009J72B2 Chip high frequency capacitance CAP MLCC 10pF NPO ±5% 50V 0402(GRM1555C1H100JA01D)(muRata)PCS10 C14,C18,C22,C28,C85,C31,C48,C68 ,C84,C97 01.C1.1011J72C0 Chip ceramic capacitor CAP MLCC 100pF NPO ±5% 50V 0402PCS1C6 01.C1.1023K72C0 Chip ceramic capacitor CAP MLCC 1nF X7R ±10% 50V 0402PCS3C42,C44,C71 01.C1.1023KK5C0 Chip ceramic capacitorCAP MLCC 1nF X7R ±10% 2KV 1206PCS2C194、C162 01.C1.1033K72C0 Chip ceramic capacitoCAP MLCC 10nF X7R ±10% 50V 0402PCS3C16,C112,C127 01.C1.1042K42C0 Chip ceramic capacitor CAP MLCC 0.1uF X5R ±10% 16V 0402PCS44 C1,C12,C30,C32,C36,C37,C38,C39, C40,C43,C46,C53,C54,C55,C56,C57 ,C59,C60,C61,C62,C63,C67,C69,C7 0,C72,C73,C74,C75,C76,C79,C96,C 98,C99,C100,C116,C234,C109,C111 ,C114,C124,C125,C117,C118,C119 01.C1.1052K32C0 Chip ceramic capacitor CAP MLCC 1uF X5R ±10% 10V 0402PCS6C3,C23,C26,C33,C4,C130 01.C1.1062K33C0 Chip ceramic capacitor CAP MLCC 10uF X5R ±10% 10V 0603PCS5C45,C52,C129,C108,C123 01.C1.1501J72C0 Chip ceramic capacitorCAP MLCC 15pF NPO ±5% 50V 0402PCS2C78,C91 01.C1.1509J72B2 Chip ceramic capacitorCAP MLCC 15pF NPO ±5% 50V 0402(GRM1555C1H150JA01D)(muRata)PCS2C7,C10 01.C1.1R29B72B2 Chip high frequency capacitanceCAP MLCC 1.2pF NPO ±0.1pF 50V 0402(GRM1555C1H1R2BA01D)(muRata)PCS6C8,C11,L6,L7,L8,L9 MT-G3R-X82N-V3.0 Page 1 BOM多级展开英文版本 01.C1.1R59C72B2 Chip high frequency capacitance CAP MLCC 1.5pF NPO ±0.25pF 50V 0402(GRM1555C1H1R5CA01D)(muRata) PCS3C5,C13,C9 01.C1.2262K45C0Chip CAPCAP MLCC 22uF X5R ±10% 16V 1206PCS2C113,C115 01.C1.2262M24C0Chip CAPCAP MLCC 22uF X5R ±20% 6.3V 0805PCS3C49,C110,C126 01.C1.3301J72C0Chip CAPCAP MLCC 33pF NPO ±5% 50V 0402PCS1C27 01.C1.4711J72C0Chip CAPCAP MLCC 470pF NPO ±5% 50V 0402PCS1C161 01.C1.4752K33C0Chip CAPCAP MLCC 4.7uF X5R ±10% 10V 0603PCS7C15,C29,C35,C47,C423,C2,C128 01.C1.4752K34C0Chip CAPCAP MLCC 4.7uF X5R ±10% 10V 0805PCS1C77 01.C1.5R09C72B2 Chip high frequency capacitance CAP MLCC 5.0pF NPO ±0.25pF 50V 0402(GRM1555C1H5R0CA01D)(muRata) PCS1R6 02.R1.0000J22C0Chip RESRES 0Ω ±5% 1/16W SMD 0402PCS15 R9,R11,R23,R69,R87,R94,R95,R41, R46,R47,R78,R100,R102,R8,R93 02.R1.0101F22C0Chip RESRES 100Ω ±1% 1/16W SMD 0402PCS1R2 02.R1.0102J22C0Chip RESRES 1KΩ ±5% 1/16W SMD 0402PCS1R10 02.R1.0103J22C0Chip RESRES 10KΩ ±5% 1/16W SMD 0402PCS5SR1,R21,R40,R58,R66 02.R1.0104F22C0Chip RESRES 100KΩ ±1% 1/16W SMD 0402PCS1R60 02.R1.0121F22C0Chip RESRES 120Ω ±1% 1/16W SMD 0402PCS1R3 02.R1.0154F22C0Chip RESRES 150KΩ ±1% 1/16W SMD 0402PCS2R67,R59 02.R1.0203J22C0Chip RESRES 20KΩ ±5% 1/16W SMD 0402PCS1R188 02.R1.0220F22C0Chip RESRES 22Ω ±1% 1/16W SMD 0402PCS2R7,R189 02.R1.0243F22C0Chip RESRES 24KΩ ±1% 1/16W SMD 0402PCS1R1 02.R1.0331J22C0Chip RESRES 330Ω ±5% 1/16W SMD 0402PCS6R72,R79,R84,R191,R194,R196 02.R1.0333F22C0Chip RESRES 33KΩ ±1% 1/16W SMD 0402PCS1R71 02.R1.0472J22C0Chip RESRES 4.7KΩ ±5% 1/16W SMD 0402PCS13 R20,R30,R55,R63,R192,R25,R27,R2 9,R32,R34,R36,R37,R39 02.R1.0750F33C0Chip RESRES 75Ω ±1% 1/10W SMD 0603PCS1R250 02.R1.0753F22C0Chip RESRES 75KΩ ±1% 1/16W SMD 0402PCS2R90,R92 02.R1.0822F22C0Chip RESRES 8.2KΩ ±1% 1/16W SMD 0402PCS1R12 02.R1.4993F22C0Chip RESRES 49.9KΩ ±1% 1/16W SMD 0402PCS2R89，R91 02.R1.6192F22C0Chip RESRES 6.19KΩ ±1% 1/16W SMD 0402PCS1R15 03.L1.1011N03C0SMD beads CBWCHIP Ferrite Bead CBG 100Ω ±25% 200mA 0603PCS1R183 03.L2.1011N02C0SMD beads CBWCHIP Ferrite Bead CBW 100Ω ±25% 450mA 0402PCS7R18,R19,R49,R48,R85,R97,R98 03.L2.1011N04C0SMD beads CBWCHIP Ferrite Bead CBW 100Ω ±25% 2A 0805PCS7R17,R57,R65,R68,L13,R53,L11 Page 2 BOM多级展开英文版本 03.L2.6011N04C0SMD beads CBWCHIP Ferrite Bead CBW 600Ω ±25% 1.5A 0805PCS1R88 03.L8.1R54S02BJ High frequency inductanceCHI CHIP Hifreq Inductor 1.5nH ±0.3nH 400mA 0402 (CLH1005T-1N5S-S) Chilisin"qi li xing" PCS2L2,L5 03.L8.2R24S02BJ CHIP Hifreq Inductor 2.2nH ±0.3nH 400mA 0402 (CLH1005T-2N2S-S) Chilisin"qi li xing" PCS2C19,C24 03.L82R24S02BACHIP Hifreq Inductor 2.2nH ±0.3nH 400mA 0402 03.L8.2R74S02BJ High frequency inductanceCHI CHIP Hifreq Inductor 2.7nH ±0.3nH 400mA 0402 (CLH1005T-2N7S-S) Chilisin "qi li xing" PCS2L3,L4 03.L8.3R94S02BJ CHIP Hifreq Inductor 3.9nH ±0.3nH 400mA 0402 (CLH1005T-3N9S-S) Chilisin "qi li xing" PCS2L1,L10 03.L83R94S02BACHIP Hifreq Inductor 3.9nH ±0.3nH 400mA 0402 03.L9.4R72M6LBHPOWER IND CPI2520NHL4R7M 4.7uH ±20% 1A 2520 samwha"san he"PCS2L15,L16 03.L94R72M6LBMPOWER IND WLPQH252010F4R7ME 4.7uH ±20% 1A 2520 wiwintech 04.D1.0603ZB0C0LED LAMPLED Ultra Bright BLUE SMD 0603PCS1D14 04.D1.08050D0C0LED LAMP LED (R/G) Under the Green on Red Left and right are negative Red and green SMD 0805 PCS1D15 05.T1.11889C5B6TRANSISTOR PNP 2SB1188T100R 32V 2A SOT-89-3L JIANGSUPCS1U3 TRANSISTOR PNP 2SB1188 32V 2A SC-62 KEXIN 06.X1.2000245C0XTAL 20MHZ 10ppm 15pF 3.2*2.5mm SMDPCS1X2 "jing bao" 06.X1.2000245B7XTAL 20MHZ 10ppm 15pF 3.2*2.5mm SMD TKD"qing jing" 07.T1.16A0115BCTRANSFORMER 10/100BASE BT16A09 SMD 16PINPCS1U22 "ming tai"铭泰 "jin wei da"经纬达 "luo wei"诺威 08.A3.122560TBLICIC SDRAM M12L2561616A-6TG 256Mbit 166MHz TSOP-54P 400mil ESMTPCS1U5 08.A3.2532F0SAA IC FLASH SPI W25Q32FVSSIG 32Mbit 104MHz SOIC-8 208mil WINBOND华 邦 PCS1U4 KH25L3206EM2I-12G 08.A4.1722PMSCBIC DC/DC up1722PMA5-00 1.5M 1.3A SOT23-5L uPIPCS2U9,U11 IC DC/DC ZTP7106T 1.5MHz Single Output 1A SOT23-5 ZILLTEK 08.A6.7620F0DA2ICIC WLAN AP/GAGEWAY CNTRLR MT7620N DR-QFN148 RalinkPCS1U1 08.A9.7809S0SCZICIC RST VOLT/DET PT7M7809STEX 2.93V Delay 140ms SOT23-3 PTPCS1U24 10.CE.B1C0021B1 CONN RJ45 8P8C 1*1 5J-S-SMT-8C SMD R/A Fully Shielded w/o EMI Tab GLG PCS1P2 润韬"run tao" 13.P4.G3R82N423PCB MT-G3R-X82N-V3.0 L4 FR4 52*55.5*1.0mm(Single plate size) Gold technology surface sink Substrate disable KB，"yong long"，Eiso PCS1 Network filter RJ45 Triode IC IC High frequency inductanceCHI High frequency inductanceCHI Crystal The power of laminated inductancePI Page 3 BOM多级展开英文版本 中京"zhongjing" 景旺"jin wang" 卓穗"zhou sui" 宝悦嘉"bao yue jia" DIP BOM Sub item codeName of commoditySpecifications Compa ny Consump tion Position number 09.C1.01025C1C0PinPin…

Text truncated - open the document above for the full version.

Maximum Target power of WLAN/ BT TX Power Setting - Each product is programmed with the pre-defined RF parameters - Each product RF power level is measured to ensure the power level not exceeding the target power level, in a fully calibrated setup. - The user has no possibility to change these settings later on Please find below the Maximum Transmit Power for production units: Band / Frequency (MHz) IEEE 802.11 Average Power (dBm) Ant 0 Ant 1 Ant 0+1 11b 11g HT20 HT40 11b 11g HT20 HT40 11b 11g HT20 HT40 2.4GHz Band 2412 12.5 15 13 12.5 14.5 13 15.5 18 16.5 2422 8 11.5 14.5 2437 12.5 16.5 16.5 15 12.5 15.5 16.5 14.5 15.5 20 21 18 2452 10.5 11.5 14.5 2462 12.5 15 13 12.5 14.5 13 15.5 18 16.5 Power unit: dBm The maximum output power, after for manufacturing tolerances, in production units will not exceed the value listed in the table above. Production units are all within (+0 , -3 dB) of this value.

SPORTON INTERNATIONAL INC. Page Number : 1 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 RF Exposure Evaluation Report APPLICANT : D-Link Co. EQUIPMENT : Wireless N300 Mini Router BRAND NAME : D-Link MODEL NAME : DIR-513A FCC ID : KA2IR513AA1 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 5 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 6 5.1. Standalone Power Density Calculation ............................................................................................. 6 SPORTON INTERNATIONAL INC. Page Number : 3 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA480567 Rev. 01 Initial issue of report Oct. 13, 2014 SPORTON INTERNATIONAL INC. Page Number : 4 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 1. Administration Data 1.1. Testing Laboratory Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name D-Link Co. Address No. 289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan Manufacturer Company Name SHENZHEN MTN ELECTRONIC CO., LTD Address MTN Industrial Park, No. 9, Futai Road, Pingxi conmmunity, Pingdi Street, Longgang District, Shenzhen, China 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Wireless N300 Mini Router Brand Name D-Link Model Name DIR-513A FCC ID KA2IR513AA1 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz Mode •802.11b/g/n HT20/HT40 Antenna Type FPC antenna HW Version A1 SW Version 1.00 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 5 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 3. Maximum RF average output power among production units Band / Frequency (MHz) IEEE 802.11 Average Power (dBm) Ant 0 Ant 1 Ant 0+1 11b 11g HT20 HT40 11b 11g HT20 HT40 11b 11g HT20 HT40 2.4GHz Band 2412 12.5 15 13 12.5 14.5 13 15.5 18 16.5 2422 8 11.5 14.5 2437 12.5 16.5 16.5 15 12.5 15.5 16.5 14.5 15.5 20 21 18 2452 10.5 11.5 14.5 2462 12.5 15 13 12.5 14.5 13 15.5 18 16.5 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in §1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 ퟒ훑퐑 ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna SPORTON INTERNATIONAL INC. Page Number : 6 of 6 TEL : 886-3-327-3456 Report Issued Date : Oct. 13, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR513AA1 RF Exposure Evaluation Report Report No. : FA480567 5. Radio Frequency Radiation Exposure Evaluation 5.1. Standalone Power Density Calculation Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Maximum EIRP (dBm) Maximum EIRP (W) Average EIRP (mW) Power Density at 20cm (mW/cm^2) Limit (mW/cm^2) 2.4GHz WLAN 2412.0 1.53 21.0 22.530 0.179 179.061 0.036 1.000 Note: For conservativeness, the lowest uplink frequency of each band is used to determine the MPE limit of that band. Conclusion: According to 47 CFR §2.1091, the RF exposure analysis concludes that the RF Exposure is FCC compliant.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA Filename: AP-MT7620N-V16-SPI-DDR1-2L-2X2-121004.DSN ANT_TRNB ANT_TRN CLK_N TXOP3 LINK0 ANT_TRN CLK_P TXOM3 TXOP2 DDR_CSN SPI_CLK RXIM3DDR_CASN TXOP0 CPURST_N TXOM2 TXOP1 LINK4 LINK1 ANT_TRNB MADDR[0:12] DDR_MCKE RXIP2 LINK2 UART_TX RXIP0 RXIM4 RXIM2 RXIP3 RXIP4 TXOP4 TXOM0 RFOUT_G1 DDR_RASN LINK3 MDATA[0:15] DDR_WEN SPI_MISO RXIM1 DDR_MDQM[0:1] RFOUT_G0 TXOM4 DDR_MDQS[0:1] TXOM1 RXIM0 SPI_MOSI DDR_BA[0:1] SPI_CS0 RXIP1 WLAN_LED WDT_RST_N RST_PBC WLAN_LED SPI_HOLD SPI_WP SPI_HOLD SPI_WP GPIO0 SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 115Tuesday, October 22, 2013 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 115Tuesday, October 22, 2013 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 115Tuesday, October 22, 2013 0 11n 2.4G AP-MT7620N 6-LED 6-LED LINK0 LINK1 LINK2 LINK3 LINK4 WPS_PBC WLAN_LED RST_PBC SPI_WP SPI_HOLD 1-CPU-MT7620N SPI_CLK DDR_WEN DDR_CSN CLK_P SPI_CS0 DDR_RASN MADDR[0:12] MDATA[0:15] TXOM4 TXOP4 RXIM4 RXIP4 ANT_TRN ANT_TRNB CPURST_N RFOUT_G0 RFOUT_G1 LINK3 LINK2 LINK0 LINK1 LINK4 RXIM3 RXIP0 RXIP1 RXIP2 RXIP3 RXIM0 RXIM1 RXIM2 TXOP0 TXOP1 TXOP2 TXOP3 TXOM0 TXOM1 TXOM2 TXOM3 WPS_PBC DDR_MDQS[0:1] DDR_MDQM[0:1] CLK_N DDR_CASN DDR_BA[0:1] DDR_MCKE SPI_MOSI SPI_MISO UART_TX WLAN_LED WDT_RST_N RST_PBC SPI_HOLD SPI_WP GPIO0 2-MEMORY 2-MEMORY SPI_CLK DDR_CSN DDR_WEN CLK_P SPI_CS0 DDR_RASN MADDR[0:12] MDATA[0:15] DDR_MDQS[0:1] DDR_MDQM[0:1] CLK_N DDR_CASN DDR_BA[0:1] DDR_MCKE SPI_MOSI SPI_MISO ANT_TRNB ANT_TRN UART_TX WLAN_LED SPI_HOLD SPI_WP GPIO0 3-WLAN 3-WLAN RFOUT_G0 RFOUT_G1 4-ETHERNET 4-ETHERNET TXOM4 TXOP4 RXIM4 RXIP4 RXIM3 RXIP3 TXOM3 TXOP3 TXOM2 TXOP2 RXIM2 RXIP2 RXIM1 RXIP1 TXOM1 TXOP1 TXOM0 TXOP0 RXIM0 RXIP0 5-POWER 5-POWER CPURST_N WDT_RST_N 5 5 4 4 3 3 2 2 1 1 DD CC BB AA Decouple cap by layout place reserve C5，C13贴与不贴影响很大，不贴不稳定，大于1.5P，EVM变好，功率变差；小于1.5P，EVM变差； L3，L9从1.5NH到3.9NH，EVM都极不稳定，换为电容，12P最佳，但偏大或偏小等都不理想； C7/C10，在22P以下时，容值增加，可提高功率及EVM，不可上O ohm或电感，因RF输出线内部与3.3V短路 L2、L5，往小调制1.8NH时，对功率及EVM稍有改善 C9对EVM稳定性非常重要，不贴时相当不稳定，贴了0.8P后，EVM非常良好 ANT_TRN ANT_TRNB WLAN_LED 3.3VD_RF0_PA1 3.3VD_RF1_PA1 3.3VD_RF0_PA2 3.3VD_RF1_PA2RF_XO RF_XI PLL_VC_CAP XTAL_V12A BG_RES_12K SOC_1.5VD_LDO RF1_PA_OUTNRF1_PA_OUTN RFOUT_G0 RFOUT_G1PA1_OUT+RF1_PA_OUTPRF1_PA_OUTP RF0_PA_OUTN RF0_PA_OUTPPA0_OUT+ PA0_OUT- PA1_OUT- RF1_PA_OUTPRF1_PA_OUTP RF1_PA_OUTNRF1_PA_OUTN 3.3VD_BG 3.3VD_PLL_LDO ANT_TRN[10] ANT_TRNB[10] WLAN_LED[10,14] RFOUT_G1[11] RFOUT_G0[11] 3.3VD GND GND GND 3.3VD 3.3VD GND GND GND GND GND 3.3VD GND GND GND SOC_1.5VD GND GND SOC_1.5VD 3.3VD GND GND GND GND GND 3.3VD GND GND GND GND GND GND GND SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 215Wednesday, October 23, 2013 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 215Wednesday, October 23, 2013 0 11n 2.4G AP-MT7620N SizeRev Date:Sheetof SHEN ZHEN MTN ELECTRONICS CO,. LTD B 215Wednesday, October 23, 2013 0 11n 2.4G AP-MT7620N C3 1uF C3 1uF 1 2 C4 1 uF C4 1 uF 12 L10 3.9nH L10 3.9nH 1 2 C22 10pF C22 10pF 12 2.5x3.2 X2 XTAL/3.2x2.5/20MHz/NI 2.5x3.2 X2 XTAL/3.2x2.5/20MHz/NI 1 2 4 3 C8 1.2pF C8 1.2pF 12 C17 1.8pF/NI C17 1.8pF/NI 1 2 L5 1.8nH L5 1.8nH 12 L6 1.2pF L6 1.2pF 1 2 C2 4.7uF/NI C2 4.7uF/NI 1 2 R110R110 12 R690R690 12 C23 1uF C23 1uF 1 2 C29 4.7uF C29 4.7uF 1 2 C5 1.5pF C5 1.5pF 1 2 C11 1.2pF C11 1.2pF 1 2 C21 1pF/NI C21 1pF/NI 1 2 R2100R2100 12 L2 1.8nH L2 1.8nH 1 2 C18 10pF C18 10pF 12 C15 4.7uF C15 4.7uF 1 2 L1 3.9nH L1 3.9nH 1 2 C31 10pF C31 10pF 1 2 C19 2.2nH C19 2.2nH 12 R1 24K 1% R1 24K 1% 1 2 C14 10pF C14 10pF 1 2 L8 1.2pF L8 1.2pF 12 U1A MT7620N U1A MT7620N RF1_OUTP 4 ANT_TRN 142 ANT_TRNB 69 WLED_N 81 RF0_OUTP 75 RF1_PA1_V33A 80 RF1_PA2_V33 79 PA_PE_G1 68 PA_PE_G0 141 RF0_OUTN 76 RF1_OUTN 5 RF1_VX_LDO 3 RF0_VX_LDO 148 BG_EXTR 74 BG_V33A 147 PLL_VC_CAP 73 PLL_VX_LDO 146 XTAL_V12A 72 XTAL_XI 145 XTA…
