KA2IR524A1Wireless N 150 Router

———————————————————————————————————————————————————————————— D-Link DIR-524 User Manual Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.  Manual Revisions RevisionDateDescription 1.0August, 2010• Updated for revision  Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2009 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Table of Contents    Package Contents.........................................1 System Requirements....................................1 Features.....................................................2 Hardware Overview.......................................3 Connections............................................3 Hardware Overview.......................................4 LEDs......................................................4 Installation...................................................5 Before you Begin......................................5 Wireless Installation Considerations..................6 Network Diagram...........................................7 Connect to Cable/DSL/Satellite Modem.............8 Connect to Another Router..............................9 Getting Started.............................................11 Configuration...............................................12 Web-based Configuration Utility......................12 Internet Connection Setup Wizard..............13 Manual Configuration...............................19 Static IP............................................19 Dynamic IP (DHCP).............................20 PPPoE (username/password)................21 Wireless Basic Settings.............................22 Wireless Security Settings..........................23 WDS Setting............................................25 Network Settings......................................26 Advanced configuration................................27 Port Forwarding.....................................27 Application Rules....................................28 Access Control......................................29 Website Filters..........................................30 Firewall Settings.......................................31 Advanced Wireless Settings........................32                     ———————————————————————————————————————————————————————————— D-Link DIR-524 User Manual    Wireless MAC Filter................................33 Advanced Network.................................34 Static Routing........................................35 tools.........................................................36 Administrator Settings.............................36 Time Settings........................................37 System................................................38 Firmware.............................................39 DDNS..................................................40 PING TEST..........................................41 LOG SETTINGS....................................42 Status......................................................43 Device Information.................................43 LOGS.................................................................44 Traffic Statistics......................................45 Wireless...............................................46 Support................................................47 Wireless Security........................................48 What is WPA?...............................................48 Configure WPA-Personal (PSK).................49 Connect to a Wireless Network......................50 Using Windows Vista®............................50 Configure WPA/WPA2.............................51 Using Windows® XP....................................53 Troubleshooting..........................................54 Wireless Basics..........................................58 Wireless Modes.....................................62 Networking Basics.......................................63 Technical Specifications...............................65   ———————————————————————————————————————————————————————————— D-Link DIR-524 User Manual Section 1 – Product Overview Package Contents • D-Link DIR-524 Wireless Router • Power Adapter • Ethernet Cable • Manual and Warranty on CD Note: Using a power supply with a different voltage rating than the one included with the DIR-524 will cause damage and void the warranty for this product. The product must be used with the power adapter included with the device. Note: Always attach the power cord plug to the power supply, before inserting the power cord and connected power supply to the wall outlet.  System Requirements  • Ethernet-based Cable or DSL Modem • Computers with Windows , Macintosh , or Linux-based operating systems with an installed Ethernet adapter • Internet Explorer 6 or Firefox 2.0 or above (for coniguration) ———————————————————————————————————————————————————————————— D-Link DIR-524 User Manual 1 Section 1 – Product Overview ———————————————————————————————————————————————————————————— D-Link DIR-524 User Manual 2 Features • Faster Wireless Networking - The DIR-524 provides up to 150Mbps* wireless connection with other 802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio. • Compatible with 802.11g Devices - The DIR-524 is still fully compatible with the IEEE 802.11g standard, so it can connect with existing 802.11g PCI, USB and Cardbus adapters. • Advanced Firewall Features - The Web-based user interf…

Text truncated - open the document above for the full version.

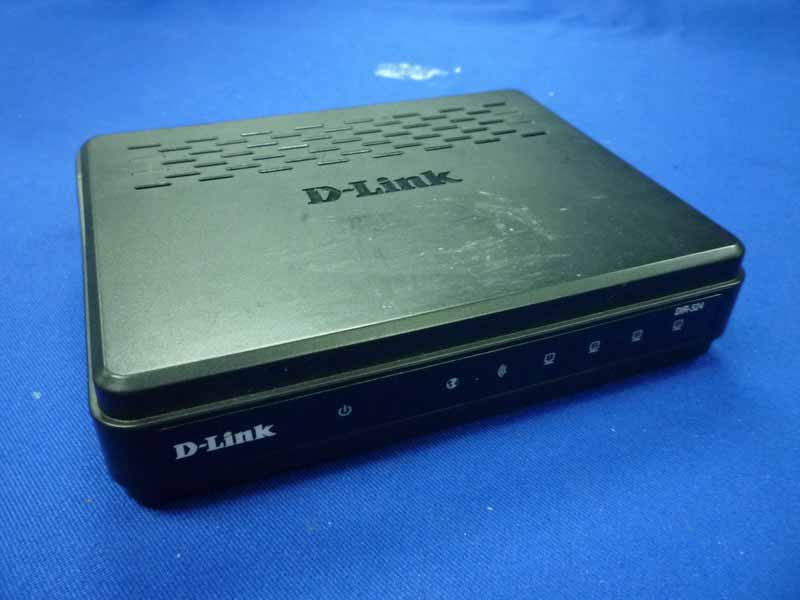

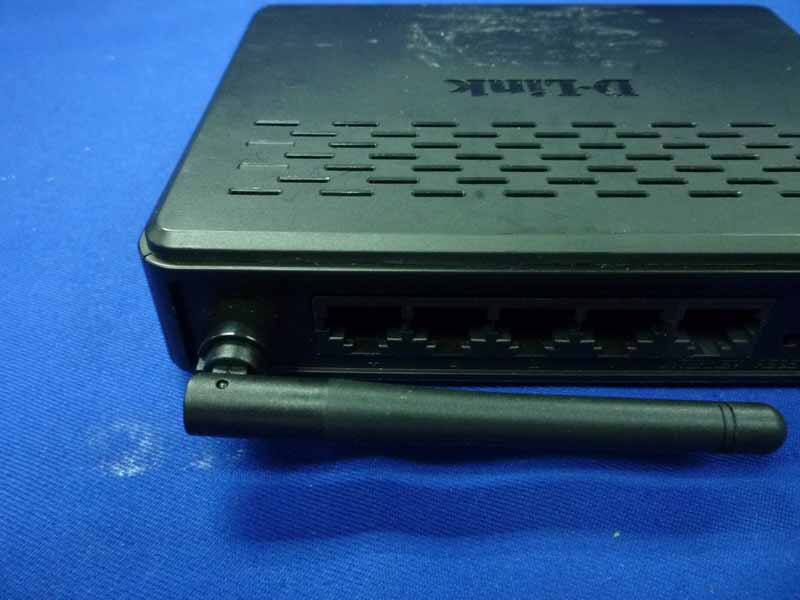

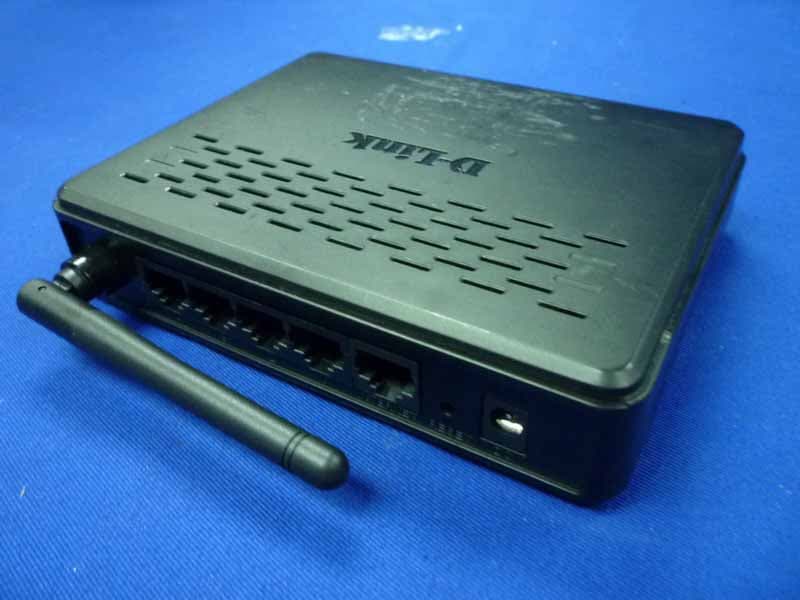

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 13-1 13. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 13-2 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT

59()*39.3（）*倒角R2.5 Label location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 13-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 13-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 13-5 Figure 9 Adapter

MPE ESTIMATION 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 1 2412 23.46 221.82 2 1.58 0.0700 6 2437 23.39 218.27 2 1.58 0.0689 11b 11 2462 23.59 228.56 2 1.58 0.0721 1 2412 20.98 125.31 2 1.58 0.0395 6 2437 22.34 171.40 2 1.58 0.0541 11g 11 2462 20.85 121.62 2 1.58 0.0384 1 2412 20.72 118.03 2 1.58 0.0372 6 2437 21.89 154.53 2 1.58 0.0487 11n HT20 11 2462 20.64 115.88 2 1.58 0.0366 1 2422 15.14 32.66 2 1.58 0.0103 4 2437 18.92 77.98 2 1.58 0.0246 11n HT40 7 2452 15.23 33.34 2 1.58 0.0105 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of D-Link Corporation Wireless N 150 Router Model Number: DIR-524 FCC ID: KA2IR524A1 Prepared for : D-Link Corporation 17595 Mt. Hermann, Fountain Valley, CA92708 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10269 Date of Test ： Sep.11~15, 2010 Date of Report ： Sep.19, 2010 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-2 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-2 2.5. Test Facility ......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit ...................................................................................................... 4-2 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ......................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7-1 7.4. Test Results ................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 12-1 12. PHOTOGRAPH OF TEST 12.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 12-2 12.2.Photos of Radiated Emission Test (30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524A1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10269 12-3 (Above 1000MHz)
