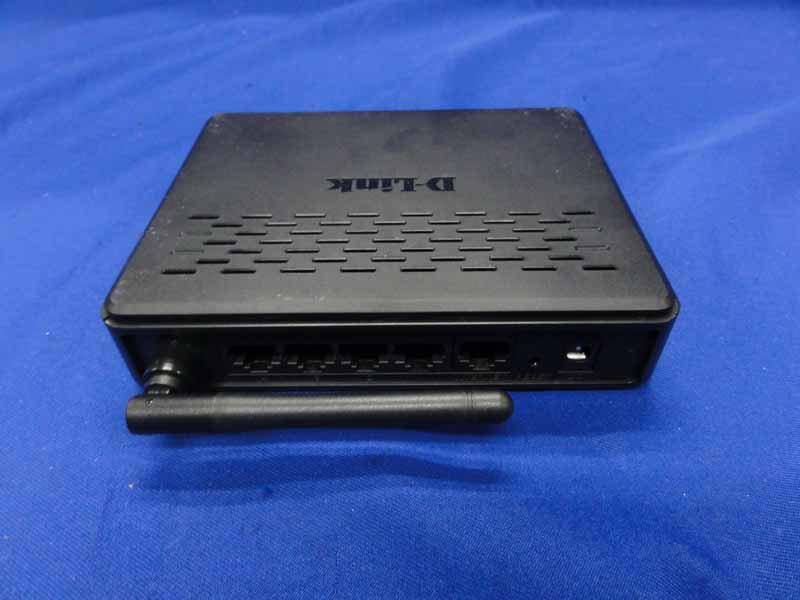

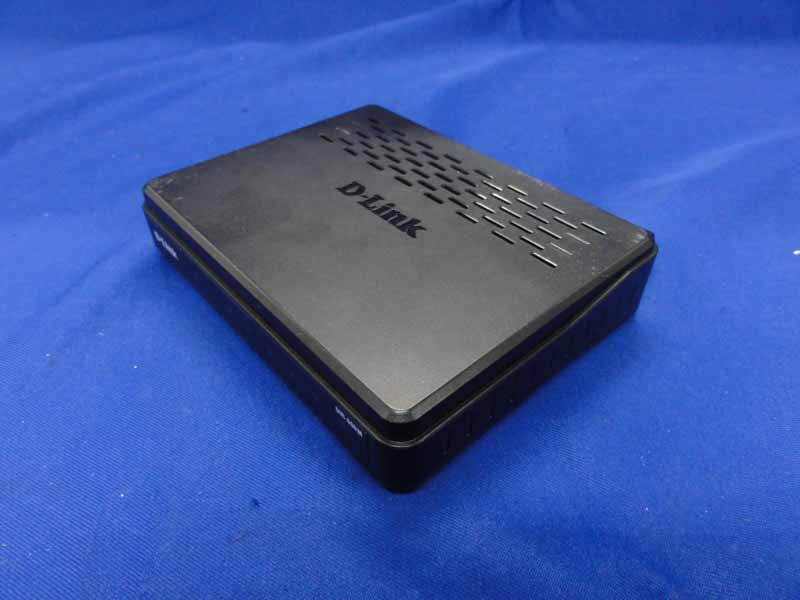

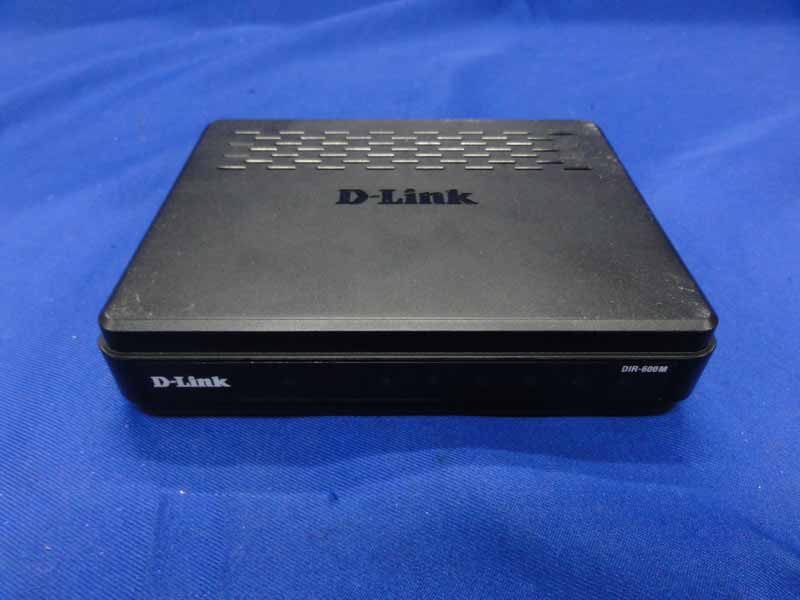

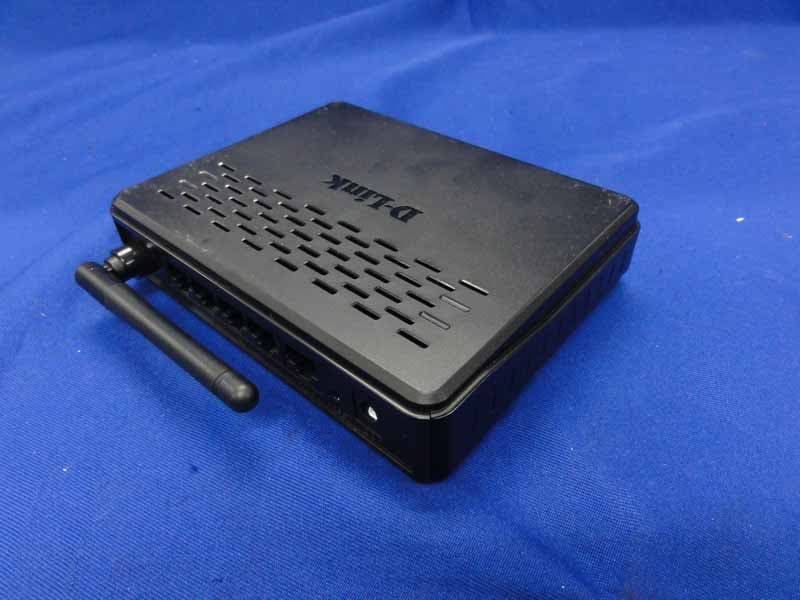

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-2 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT

FCC ID: KA2IR524B1 5 DIR-524 Wu fangqing 2012.04.18 5 铭牌 DLK13210061701 Cheng hailing 2012.04.18 Mao zhigao 2012.04.18 59 3 9 . 3 4*R2.5 FCC ID由KA21R524A1更改为KA21R524B1

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-4 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-5 Figure 9 (D-Link, F05W-050100SPAU) Adapter Figure 10 (D-Link, F05W-050100SPAU) Label of the Adapter R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 14-6 Figure 11 (D-Link, AMS47-0501000FU) Adapter Figure 12 (D-Link, AMS47-0501000FU) Label of the Adapter

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 11-2 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2. Estimation Result EUT: Wireless N 150 Router M/N: DIR-524 Test date: 2012-05-25 Pressure: 100.3 kpa Humidity: 52.9% Tested by: Leo-Li Test site: RF Site Temperature：25.4°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 2 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 17.25 53.09 2 1.58 0.0167 CH6 2437 17.29 53.58 2 1.58 0.0169 11b CH11 2462 17.08 51.05 2 1.58 0.0161 CH1 2412 15.09 32.28 2 1.58 0.0102 CH6 2437 15.55 35.89 2 1.58 0.0113 11g CH11 2462 15.67 36.90 2 1.58 0.0116 CH1 2412 14.41 27.61 2 1.58 0.0087 CH6 2437 14.58 28.71 2 1.58 0.0091 11n HT20 CH11 2462 14.19 26.24 2 1.58 0.0083 CH1 2422 13.04 20.14 2 1.58 0.0064 CH4 2437 13.89 24.49 2 1.58 0.0077 11n HT40 CH7 2452 13.56 22.70 2 1.58 0.0072 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of D-Link Corporation Wireless N 150 Router Model Number: DIR-524 FCC ID: KA2IR524B1 Prepared for : D-Link Corporation 17595 Mt. Hermann, Fountain Valley, CA92708 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12119 Date of Test ： May.18~24, 2012 Date of Report ： Jun.05, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-2 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-2 2.5. Test Facility ......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit...................................................................................................... 4-2 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test....................................................................................................... 7-34 7.1. Test Equipment ..................................................................................................................7-34 7.2. Limit................................................................................................................................... 7-34 7.3. Test Procedure.................................................................................................................... 7-34 7.4. Test Results .....................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-11 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-13 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-15 Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-16 Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-18 Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-20 Test CH4: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-22 Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 5-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-1 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Agilent E4446A US44300459 May.08, 12 1 Year 2. Amp HP 8449B 3008A08495 May.08, 12 1 Year 3. Antenna EMCO 3115 9510-4580 May.31, 11 1Year 4. HF Cable Hubersuhne Sucoflex104 - May.08, 12 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upperband-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz ;Sweep=AUTO (b) AVERAGE: RBW=1MHz ;VBW=10Hz ; Sweep=AUTO 6.4. Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-4 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-5 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-7 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-9 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-13 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-15 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-16 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-18 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-20 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 6-21 R AUDIX Technology (Shenzhen) Co., …

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 13-2 13.2.Photos of Radiated Emission Test (30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:KA2IR524B1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12119 13-3 (Above 1000MHz)
