KA2IR555A1HSUPA 3G VPN Router

D-Link Corporation
HSUPA 3G VPN Router - FCC ID KA2IR555A1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 27, 2011
Application Purpose
Original Equipment
Date of Application
Jan 27, 2011
Equipment Note
HSUPA 3G VPN Router
Frequency Range
2422.00000000 - 2452.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

iD-Link DWR-555 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2010 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Preface iiD-Link DWR-555 User Manual Table of Contents Preface...........................................................................i Trademarks ..............................................................i Product Overview ........................................................1 Package Contents ...................................................1 System Requirements .............................................1 Introduction ..............................................................2 Hardware Overview .................................................3 Rear Panel .........................................................3 Front Panel ........................................................4 LEDs ..................................................................5 Installation ....................................................................6 Connect to Your Network ........................................6 Connect a Telephone ..............................................7 Wireless Installation Considerations ........................8 Configuration ...............................................................9 Web-based Configuration Utility ..............................9 Setup Wizard .........................................................10 Internet Connection Setup Wizard ...................10 Manual Internet Connection Setup ..................14 Internet Connection .........................................15 Internet Connection Type ................................15 Dynamic IP (DHCP) .........................................16 PPPoE .............................................................17 PPTP ...............................................................18 L2TP ................................................................19 2G ....................................................................20 Static IP ...........................................................21 GRE Settings ...................................................22 Wireless Settings .............................................23 Network Settings ..............................................25 Router Settings ............................................25 DHCP Server Settings .................................26 VPN Settings ...................................................27 Tunnel 1 - IKE ..............................................29 Tunnel 1 - Manual Key .................................33 Tunnel 1 - Manual Key .................................35 Message Service .............................................38 Virtual Server ...................................................40 Application Rules .............................................41 QoS Engine .....................................................42 MAC Address Filter ..........................................43 URL Filter .........................................................44 Outbound Filter ................................................45 Inbound Filter ...................................................46 SNMP ..............................................................47 Routing ............................................................48 Advanced Wireless ..........................................49 Advanced Network ...........................................50 Admin ...............................................................51 Time .................................................................52 Table of Contents iiiD-Link DWR-555 User Manual Table of Contents Syslog ..............................................................53 E-mail Settings .................................................54 System .............................................................55 Firmware ..........................................................56 Dynamic DNS ..................................................57 System Check ..................................................58 Schedules ........................................................59 Device Information ...........................................60 Logs .................................................................61 Statistics ..........................................................62 Wireless ...........................................................63 Support ............................................................64 Wireless Security.......................................................65 What is WEP? .......................................................65 Configure WEP ......................................................66 What is WPA? .......................................................67 Configure WPA-PSK .............................................68 Configure WPA (RADIUS) .....................................69 Connect to a Wireless Network ................................70 Using Windows Vista ™ .............................................................................70 Configure Wireless Security ............................71 Using Windows ® XP ...............................................73 Configure WEP ................................................74 Configure WPA-PSK ........................................76 Troubleshooting ........................................................78 Wireless Basics .....................................…

Text truncated - open the document above for the full version.

Users Manual

FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

External Photos

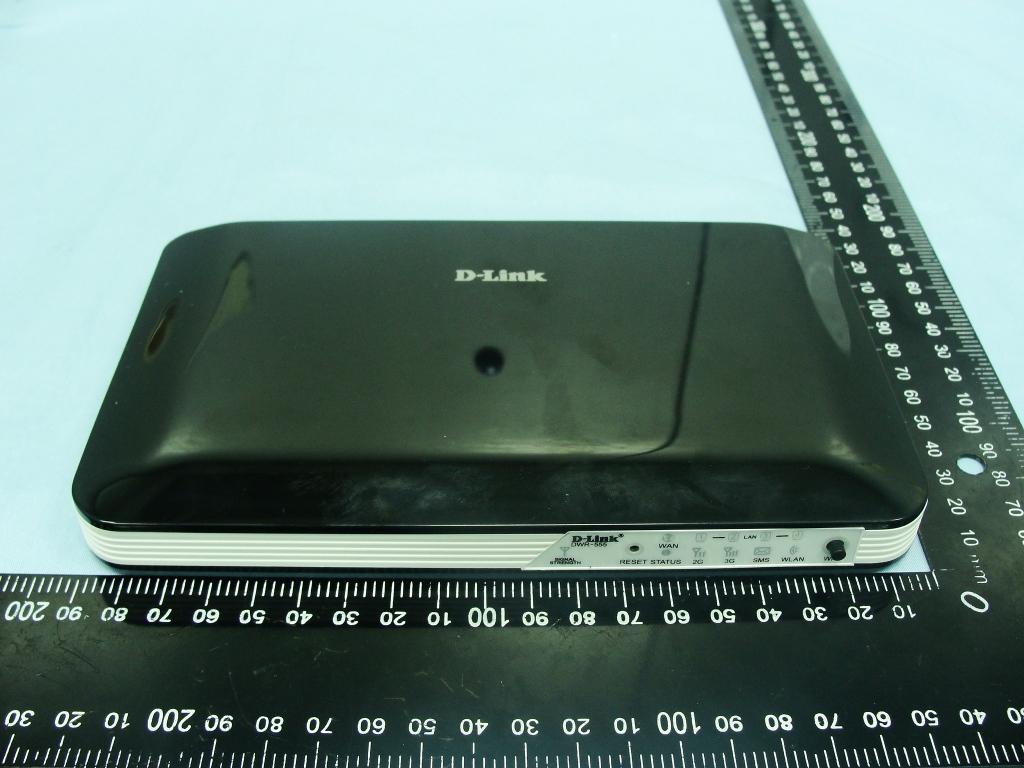

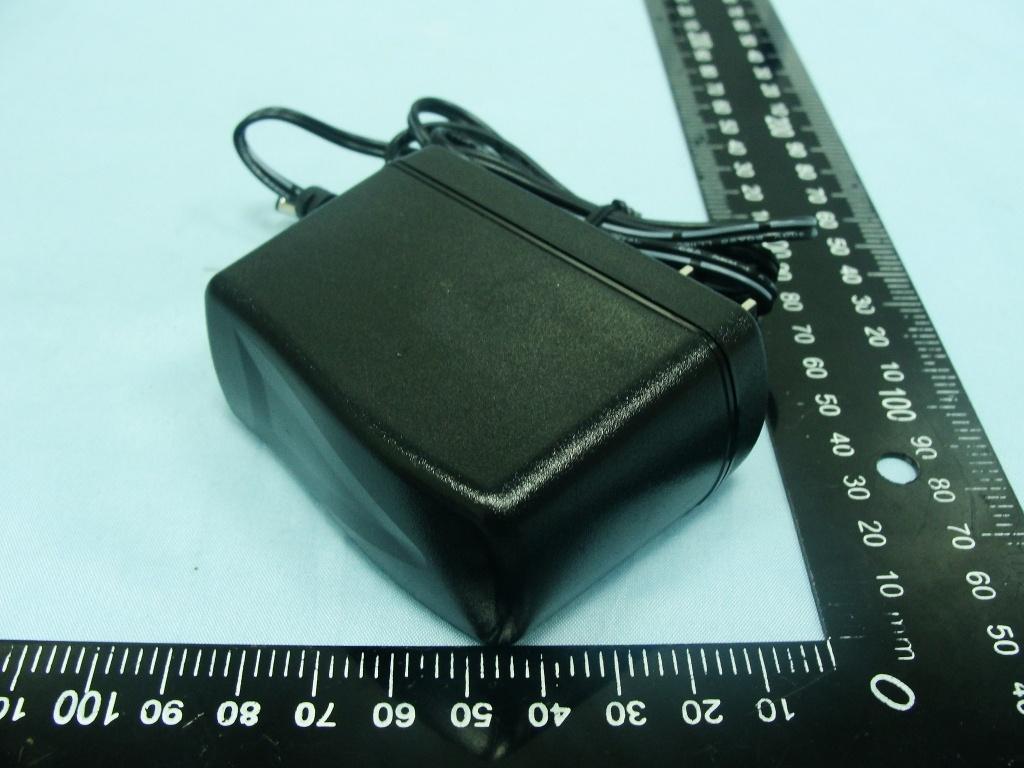

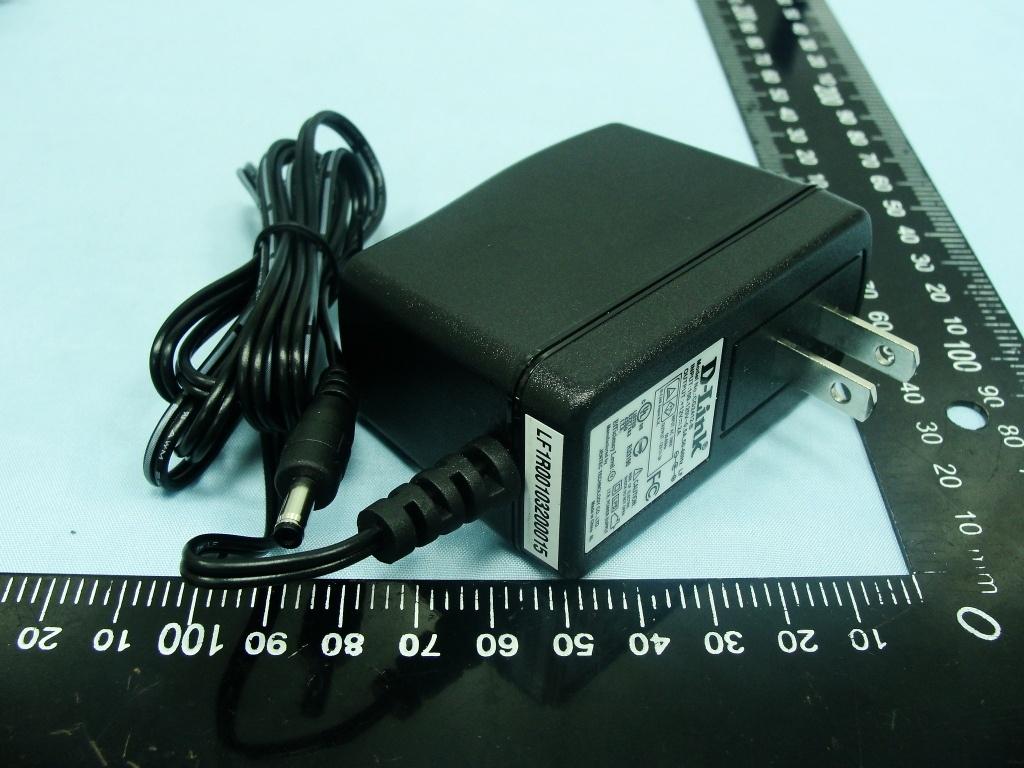

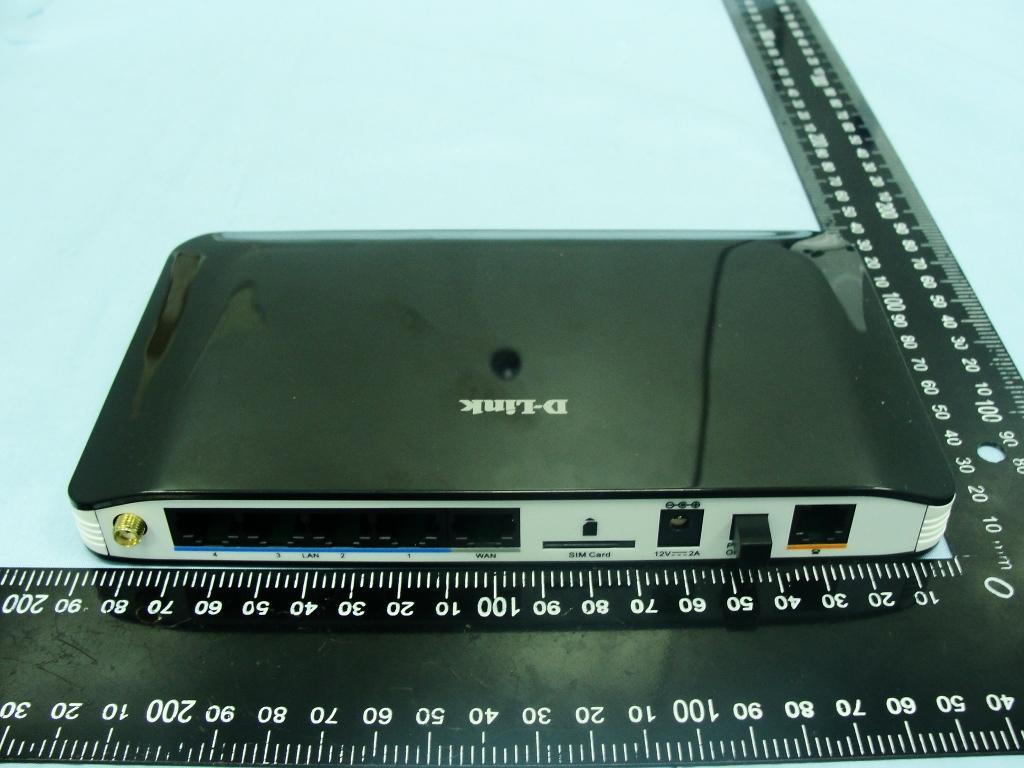

Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 1 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) 1. External Photograph of EUT Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 2 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 3 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 4 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) 720510 Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 5 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) List of Accessory: Specification of Accessory AC Adapter Brand Name D-Link Model Name CG2412-B Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 6 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 7 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module)

ID Label/Location Info

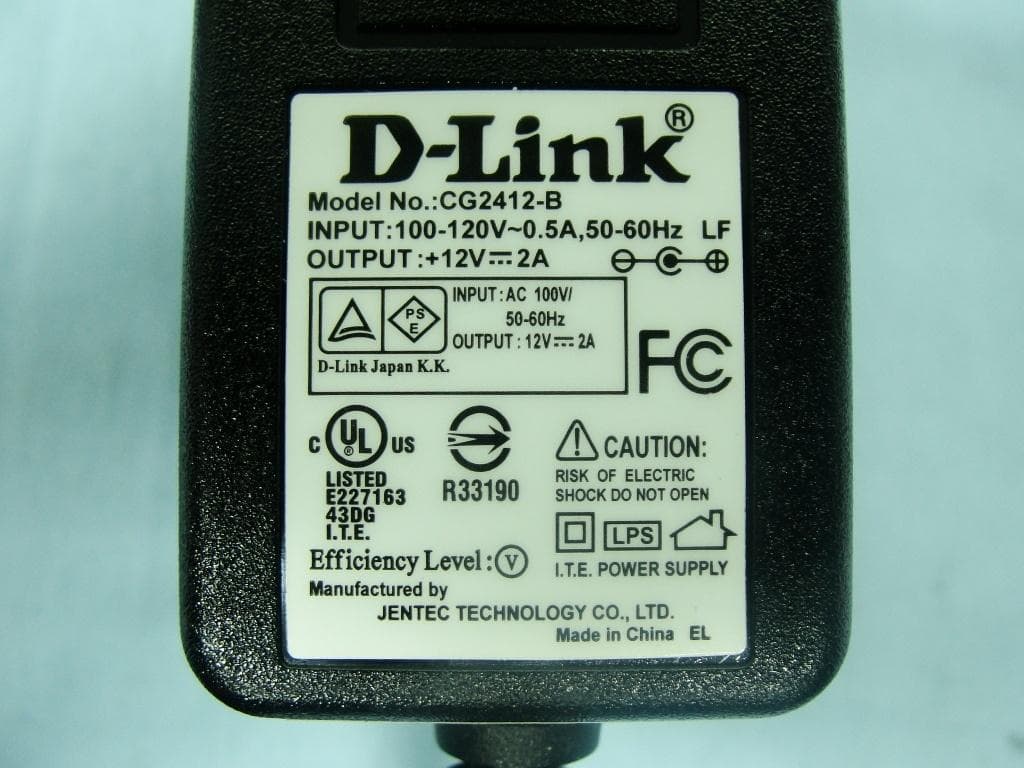

Label Location FCC ID: KA2IR555A1 Bottom of the device Label Location

Internal Photos

Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) 720510 Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) WWAN Aux. Antenna <Rx> Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) WLAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) WLAN Aux. Antenna <Rx>

Internal Photos

Photographs of EUT Report No.: EP0O0725 Brand Name: D-Link / Model Name: DWR-555 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1, Q78-ZTEMF210V (Contain WWAN Module) Antenna location Antenna Distance WWAN Main Antenna to WLAN Main Antenna 8 cm WLAN Aux. Antenna (Rx) WWAN Main Antenna (Tx / Rx) WWAN Aux. Antenna (Rx) WLAN Main Antenna (Tx / Rx)

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 RF Exposure Evaluation Report Report No. : FA0O0725 RF Exposure Evaluation Report APPLICANT : D-Link Co. EQUIPMENT : HSUPA 3G VPN Router BRAND NAME : D-Link MODEL NAME : DWR-555 FCC ID : KA2IR555A1 Q78-ZTEMF210V (CONTAIN WWAN MODULE) FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 RF Exposure Evaluation Report Report No. : FA0O0725 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 RF Exposure Evaluation Report Report No. : FA0O0725 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA0O0725 Rev. 01 Initial issue of report Jan. 24, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 RF Exposure Evaluation Report Report No. : FA0O0725 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 RF Exposure Evaluation Report Report No. : FA0O0725 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exp…

Text truncated - open the document above for the full version.

Test Report

SPORTON INTERNATIONAL INC. Page Number : 1 of 86 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 FCC RF Test Report APPLICANT : D-Link Co. EQUIPMENT : HSUPA 3G VPN Router BRAND NAME : D-Link MODEL NAME : DWR-555 FCC ID : KA2IR555A1 Q78-ZTEMF210V (Contain WWAN Module) STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Oct. 07, 2010 and completely tested on Jan. 18, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Anderson Chiu / Deputy Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 86 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Power ........................................................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 RF Utility .......................................................................................................................................... 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 6dB Bandwidth Measurement ......................................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 20 3.3 Band Edges Measurement .............................................................................................................. 22 3.4 Spurious Emission Measurement .................................................................................................... 32 3.5 Power Spectral Density Measurement ............................................................................................ 45 3.6 AC Conducted Emission Measurement........................................................................................... 54 3.7 Radiated Emission Measurement .................................................................................................... 58 3.8 Antenna Requirements .................................................................................................................... 83 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 84 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 85 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 86 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR0O0725 Rev. 01 Initial issue of report Jan. 24, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 86 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output ≤ 30dBm Pass - 3.3 15.247(d) A8.5 Frequency Band Edges ≤ 20dBc Pass - 3.4 15.247(d) A8.5 Spurious Emission < 20 dBc Pass - 3.5 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm Pass - 3.6 15.207 Gen 7.2.2 AC Conducted Emission 15.207(a…

Text truncated - open the document above for the full version.

Test Setup Photos

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 Appendix B. Setup Photographs <Conducted Emission> Mode 2 SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2IR555A1 FCC RF Test Report Report No. : FR0O0725 <Radiated Emission>

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz134.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined peak conducted output power as indicated in the filing. This device must be installed/operated with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter otherwise documented in this filing. End-users and installers must be provided with the transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz.
