KA2IR600B5WIRELESS N 150 HOME ROUTER

WIRELESS N 150 HOME ROUTER iD-Link DIR-600 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2010 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0December 10, 2010DIR-600 Revision B5 Preface iiD-Link DIR-600 User Manual Table of Contents Preface..................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Product.Overview...............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Features ............................................................................................3 Hardware Overview .....................................................................4 Connections ...........................................................................4 LEDs ...........................................................................................5 Installation..........................................................................6 Before you Begin ...........................................................................6 Wireless Installation Considerations ......................................7 Wall Mounting Your Device.......................................................8 Connect to Cable/DSL/Satellite Modem ..............................9 Connect to Another Router ....................................................10 Getting Started ............................................................................12 Configuration....................................................................13 Web-based Configuration Utility ..........................................13 Setup ...............................................................................................14 Internet ...................................................................................14 Internet Connection Setup Wizard ...............................15 Manual Internet Connection Setup .............................22 Static IP ..............................................................................23 Dynamic IP (DHCP) ........................................................24 PPPoE (Username/Password) ....................................25 PPTP ....................................................................................27 L2TP ....................................................................................29 Russia PPTP (Dual Access) ...........................................31 Russia PPPoE (Dual Access) ........................................33 Wireless Settings .................................................................35 Manual Wireless Settings .................................................36 802.11n/b/g (2.4GHz) ...................................................36 Network Settings ................................................................37 Router Settings ...............................................................38 DHCP Server Settings ...................................................39 DHCP Reservation .........................................................40 Advanced ......................................................................................41 Virtual Server ........................................................................41 Port Forwarding ..................................................................43 Application Rules ................................................................44 QoS Engine............................................................................45 Network Filter.......................................................................46 Website Filter ........................................................................47 Firewall Settings ..................................................................48 Firewall Rules ...................................................................49 Routing ...................................................................................51 Advanced Wireless Settings ............................................52 802.11n/b/g (2.4GHz) ...................................................52 Wi-Fi Protected Setup (WPS) ..........................................53 Table of Contents iiiD-Link DIR-600 User Manual Table of Contents Advanced Network ............................................................55 UPnP ...................................................................................55 Internet Ping Block ........................................................55 Internet Port Speed .......................................................55 Multicast Streams ..........................................................55 IPv6 ..........................................................................................56 Static IPv6 .........................................................................57 Link-local Only ................................................................58 Static IPv6 (Stateless) ....................................................59 Static IPv6 (Stateful) ......................................................60 Autoconfiguration(Stat…

Text truncated - open the document above for the full version.

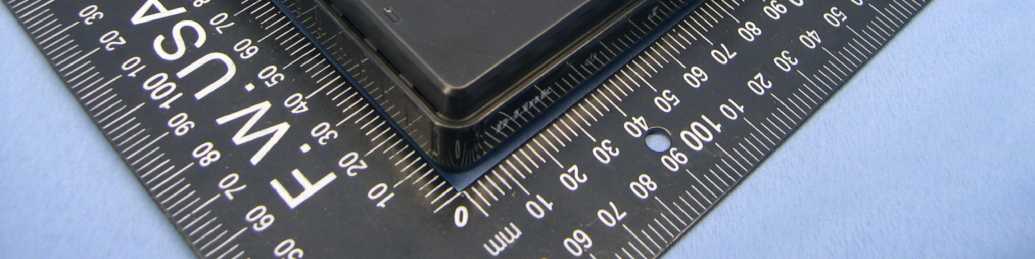

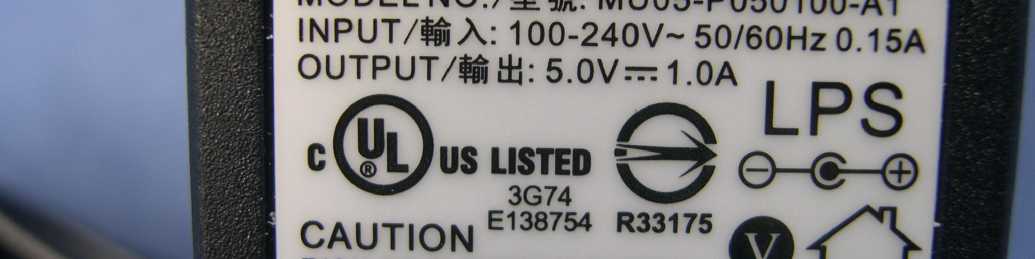

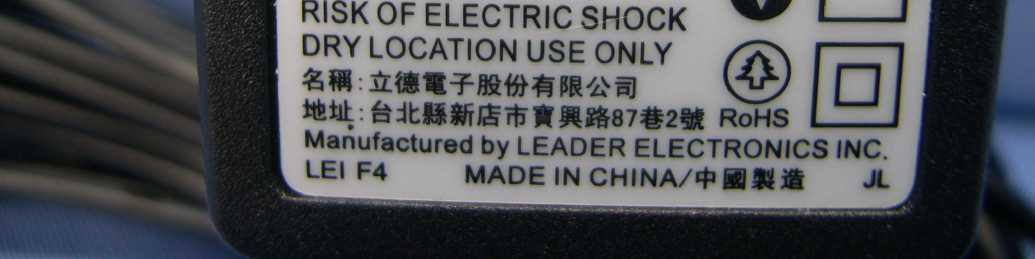

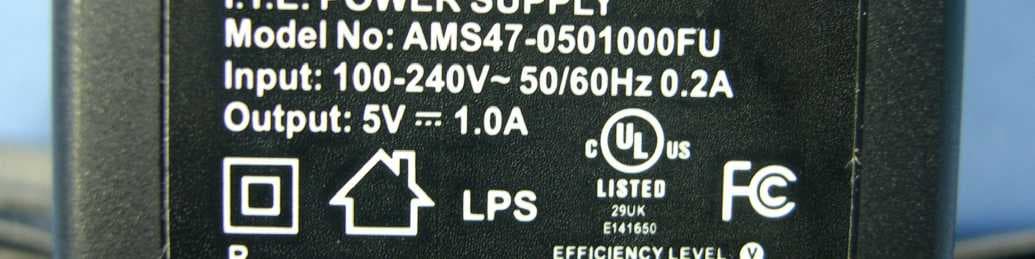

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Model No.: MU05-P050100-A1 Page 3 Page 4 Model No.: AMS47-0501000FU Page 5

LABEL Location FCC ID： KA2IR600B5

Page 6 Page 7 Page 8

FCC ID: KA2IR600B5 Report No.: RF991215E06 Operational Description This device is a Wireless router, which operates in 2.4GHz band; the maximum data rate could be up to 150Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered from the adapter. The antenna is dipp;e antenna with reverse SMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA991215E06 Report Format Version 4.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA991215E06 MODEL NO.: DIR-600 FCC ID: KA2IR600B5 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991215E06 Report Format Version 4.0.0. 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jan. 25, 2011 Report No.: SA991215E06 Report Format Version 4.0.0. 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 24.6 2 20 0.091 1.00 ---END---

Report No.: RF991215E06 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF991215E06 MODEL NO.: DIR-600 FCC ID: KA2IR600B5 RECEIVED: Dec. 15, 2010 TESTED: Dec. 22, 2010 to Jan. 05, 2011 ISSUED: Jan. 25, 2011 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF991215E06 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS (MODE 1)..................................................................................20 4.1.8 TEST RESULTS (MODE 2)..................................................................................22 4.2 RADIATED EMISSION MEASUREMENT.............................................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................24 4.2.2 TEST INSTRUMENTS..........................................................................................25 4.2.3 TEST PROCEDURES..........................................................................................27 4.2.4 DEVIATION FROM TEST STANDARD.................................................................27 4.2.5 TEST SETUP.......................................................................................................28 4.2.6 EUT OPERATING CONDITIONS.........................................................................28 4.2.7 TEST RESULTS...................................................................................................29 4.3 6dB BANDWIDTH MEASUREMENT....................................................................58 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................58 4.3.2 TEST INSTRUMENTS..........................................................................................58 4.3.3 TEST PROCEDURE.............................................................................................58 4.3.4 DEVIATION FROM TEST STANDARD.................................................................58 4.3.5 TEST SETUP.......................................................................................................58 4.3.6 EUT OPERATING CONDITIONS.........................................................................58 4.3.7 TEST RESULTS...................................................................................................59 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................63 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................63 4.4.2 INSTRUMENTS....................................................................................................63 Report No.: RF991215E06 3 Report Format Version 4.0.0 4.4.3 TEST PROCEDURES..........................................................................................63 4.4.4 DEVIATION FROM TEST STANDARD.................................................................63 4.4.5 TEST SETUP.......................................................................................................63 4.4.6 EUT OPERATING CONDITIONS.............................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (MODE 1) 2 CONDUCTED EMISSION TEST (MODE 2) 3 RADIATED EMISSION TEST
