KA2IR600LA1WIRELESS N 150 CLOUD ROUTER

WIRELESS N 150 ROUTER DIR-600L QUICK INSTALLATION GUIDE Руководство по быстРой установке Guía de InstalacIón RápIda GuIa de Instalação RápIda 快速安裝指南 petunjuk pemasanGan cepat DIR-600L 2 ENGLISH CONTENTS OF PACKAGING CONTENTS POWER ADAPTER adapteR If any of these items are missing from your packaging contact your reseller WIRELESS N 150 ROUTER dIR-600l DIR-600L 3 ENGLISH PRODUCT SETUP INSTALL YOUR ROUTER step 1 position your router close to your modem and the computer that is already online. place this router in an open area of your intended work area for better wireless coverage. step 2 unplug the ethernet cable from your modem that is connected to your computer. plug it into the lan port labeled 1 on the back of your router. the router is now connected to your computer. step 3 Find another ethernet cable and plug the of end of this cable into the port labeled InteRnet on the back of the router. plug the other end of this cable into the ethernet port on your modem. step 4 connect the supplied power adapter into the power port on the back of the router and then plug int o a power outlet or surge protector. Verify the power light is lit. Below is a basic network setup. DIR-600L 4 ENGLISH PRODUCT SETUP RUN EASY SETUP WIZARD AND mydlink SERVICE step 1 From the computer you connected to the router, open a web browser and enter http://192.168.0.1 or http://dlinkrouter then, press enter and you will be directed to the d-link setup Wizard page, which detects InteRnet connection type. step 2 according to the detection result, follow the on-screen instructions to configure your InteRnet setting. If your I nteRnet setting is dHcp, the wizard will bring you to the page of "cuRRent netWoRk settInG". DIR-600L 5 ENGLISH PRODUCT SETUP RUN EASY SETUP WIZARD AND mydlink SERVICE step 3 In the page of "cuRRent netWoRk settInG", you will see the InteRnet status is "connected". step 4 If you have not registered a mydlink account, please click "configure" In the section "mydlink account' and complete the registration form. click "Register" DIR-600L 6 ENGLISH PRODUCT SETUP RUN EASY SETUP WIZARD AND mydlink SERVICE step 5 now you can see the hint that a verification e-mail has been sent out. open a new browser to login your e-mail account for receiving the verification mail. once the account verification phase is complete, click "configure" In the section "mydlink account' and login mydlink account. click "login" DIR-600L 7 ENGLISH step 6 now the router has successfully connected to mydlink service. You can download the app "mydlink lite" from android market or apple store to start enjoy mydink service! PRODUCT SETUP RUN EASY SETUP WIZARD AND mydlink SERVICE DIR-600L 8 ENGLISH TROUBLESHOOTING SET-UP AND CONFIGURATION PROBLEMS 1. HOW DO I CONFIGURE MY DIR-600L ROUTER, OR CHECK MY WIRELESS NETWORK NAME (SSID) AND WIRELESS ENCRYPTION KEY? - connect your pc to the router using an ethernet cable. - open a web browser and enter the address http:// dlinkrouter or http://192.168.0.1 - the default username is ‘admin’. the default password is ‘’ (leave the field blank). - If you have changed the password and can not remember it, you will need to reset the router to set the password back to ‘’ (leave the field blank). 2. HOW DO I RESET MY DIR-600L ROUTER TO FACTORY DEFAULT SETTINGS? - ensure the router is powered on. - press and hold the reset button on the rear of the device for 20 seconds. note: Resetting the router to factory default will erase the current configuration settings. to re- configure your settings, log into the router as outlined in question 1, then run the setup Wizard. 3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY? - every pc that needs to connect to the router wirelessly, you will need to ensure you use the correct Wireless network name (ssId) and encryption key. - use the web based user interface (as described in question 1 above) to check or choose your wireless settings. - make sure you write down these settings so that you can enter them into each wirelessly connected pc. You will find a dedicated area on the back of this document, this important information for future use. 4. WHY CAN I NOT GET AN INTERNET CONNECTION? - For adsl users please contact your Isp to make sure the service has been enabled/connected by your Isp and that your Isp username and password is correct. DIR-600L 9 ENGLISH TECHNICAL SUPPORT Australia: tel: 1300-766-868 24/7 technical support Web: http://www.dlink.com.au e-mail: [email protected] India: tel: +91-22-27626600 toll Free 1800-22-8998 Web: www.dlink.co.in e-mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: singapore - www.dlink.com.sg thailand - www.dlink.co.th Indonesia - www.dlink.co.id malaysia - www.dlink.com.my philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: tel : +82-2-2028-1810 monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr e-mail : [email protected] New Zealand: tel: 0800-900-900 24/7 technical support Web: http://www.dlink.co.nz e-mail: [email protected] South Africa and Sub Sahara Region: tel: +27 12 661 2025 08600 dlInk (for south africa only) monday to Friday 8:30am to 9:00pm south africa time Web: http://www.d-link.co.za e-mail: [email protected] Saudi Arabia (KSA): tel: +966 01 217 0008 Fax: +966 01 217 0009 saturday to Wednesday 9.30am to 6.30pm t hursdays 9.30am to 2.00 pm e-mail: [email protected] D-Link Middle East - Dubai, U.A.E. plot no. s31102, jebel ali Free Zone south, p.o.Box 18224, dubai, u.a.e. tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 technical support: +971-4-8809033 General Inquiries: [email protected] tech support: [email protected] Egypt 1, makram ebeid street - city lights Building nasrcity - cairo, egypt Floor 6, office c2 tel.: +2 02 26718375 - +2 02 26717280 technical support: +2 02 26738470 General Inquiries: [email protected] tech support: support.eg@dlink-m…

Text truncated - open the document above for the full version.

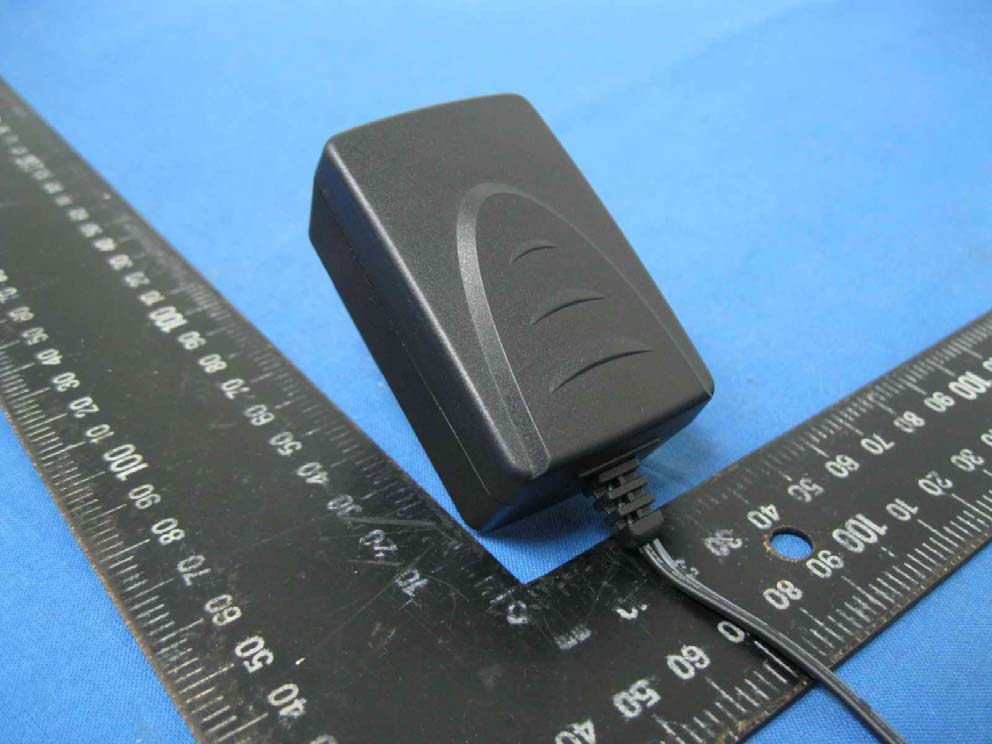

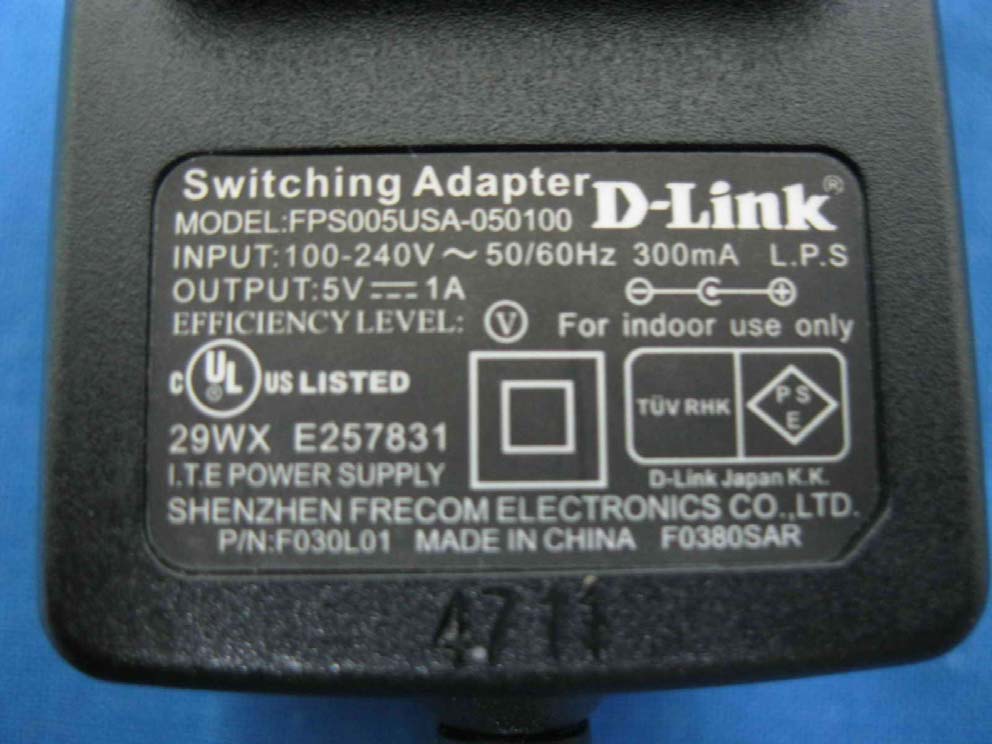

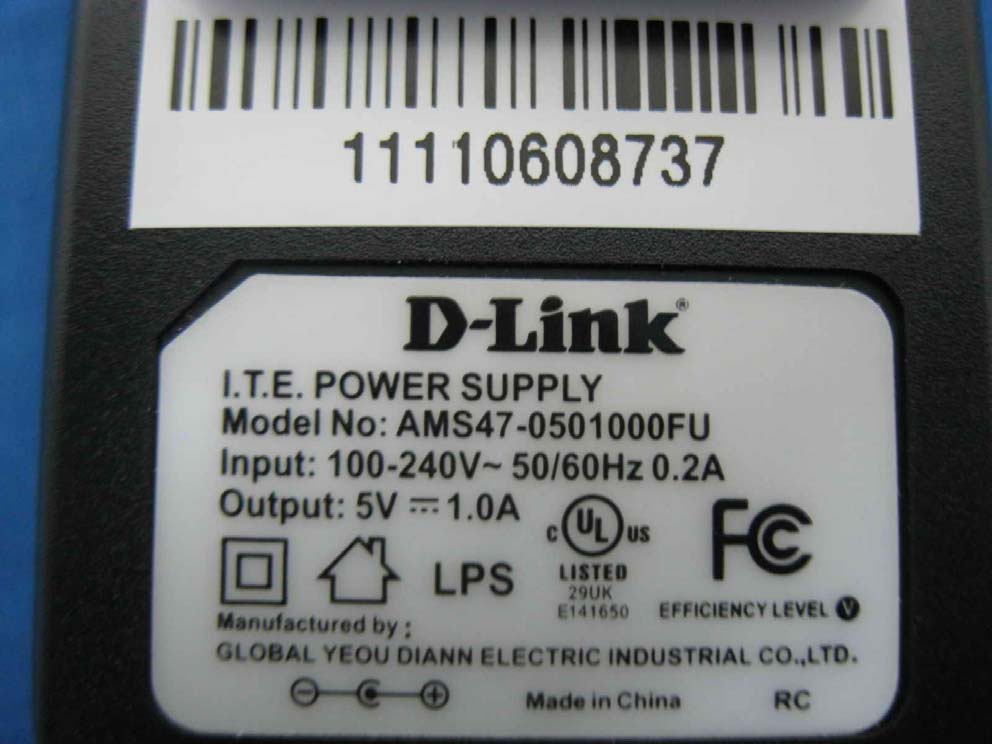

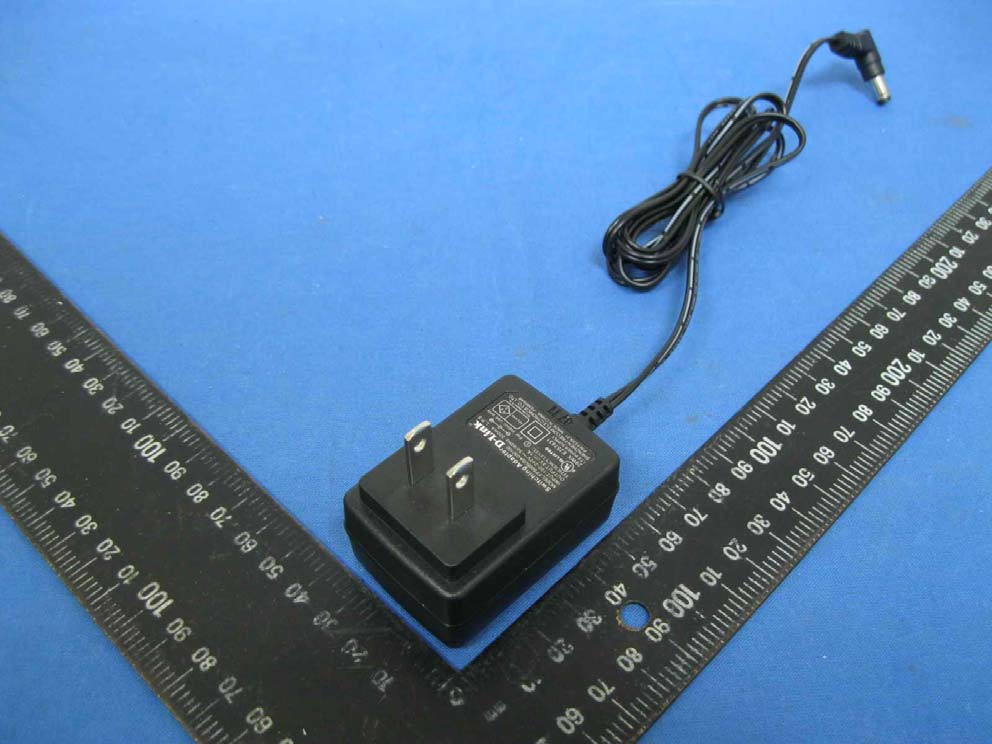

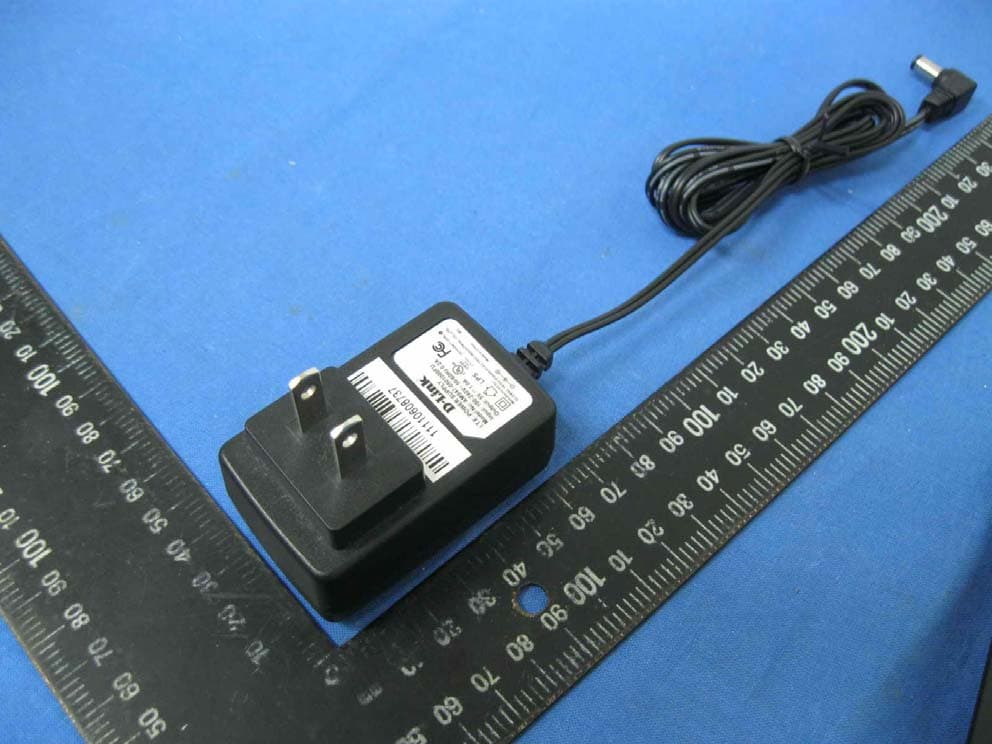

Report No.：T111219304 Page 1 of 13 External Photo Report No.：T111219304 Page 2 of 13 Report No.：T111219304 Page 3 of 13 Power Adapter Photo (Model : AMS47-0501000FU) Report No.：T111219304 Page 4 of 13 Report No.：T111219304 Page 5 of 13 Power Adapter Photo (Model :FPS005USA-050100) Report No.：T111219304 Page 6 of 13

Label location Label here

Joan Huang 2011/12/14 DIR-600L Device Label 注意： 1.公差容許外形下料及沖孔尺寸:+-0.15mm Outline and aperture Cut Tooling Tolerence:+-0.15mm 2.請參考產品結構 Please refer to the material construction. Color: Background: Black PET霧膜/ Matte transparent PET film for Laminating 白亮特多龍/White PET film Alice Chiu Alice Chiu 2011/12/14 2011/12/14 970000011753G 8.0 mm 6.0 mm 5V 1A

Report No.：T111219304 Page 7 of 13 Internal Photo Report No.：T111219304 Page 8 of 13 Report No.：T111219304 Page 9 of 13 Report No.：T111219304 Page 10 of 13 Report No.：T111219304 Page 11 of 13 Report No.：T111219304 Page 12 of 13 Report No.：T111219304 Page 13 of 13 Antenna Photo

Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 98 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 99 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 4.00 20.0 19.30 2.51 1.00 0.042532 IEEE 802.11g 4.00 20.0 19.38 2.51 1.00 0.043323 IEEE 802.11n HT204.00 20.0 19.31 2.51 1.00 0.042630 IEEE 802.11n HT404.00 20.0 18.74 2.51 1.00 0.037387 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 1 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For WIRELESS N 150 CLOUD ROUTER Model : DIR-600L Data Applies To : DIR-900L Trade Name : D-Link Issued for D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: December 26, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 2 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 12/26/2011 Initial Issue All Page 103 Kelly Tsai Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 3 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6-7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12-21 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 22-32 7.3 AVERAGE POWER ............................................................................................... 33-35 7.4 POWER SPECTRAL DENSITY............................................................................. 36-46 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 47-55 7.6 RADIATED EMISSION........................................................................................... 56-90 7.7 CONDUCTED EMISSION ...................................................................................... 91-97 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE ..................................................... 98-99 APPENDIX II SETUP PHOTOS .......................................................................................100-103 Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 4 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST REPORT CERTIFICATION Applicant ： D-Link Corporation Address ： No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Equipment Under Test ： WIRELESS N 150 CLOUD ROUTER Model ： DIR-600L Data Applies To ： DIR-900L Trade Name ： D-Link Tested Date ： July 16 ~ August 06, 2010 ; December 19 ~ 23, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 5 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Name WIRELESS N 150 CLOUD ROUTER Model Number DIR-600L Data Applies To DIR-900L Identify Number T111219304 Received Date July 16, 2010 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 19.30dBm (0.0851W) IEEE 802.11g : 19.38dBm (0.0867W) IEEE 802.11n HT20 : 19.31dBm (0.0853W) Transmit Power IEEE 802.11n HT40 : 18.74dBm (0.0748W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 72.2, 65, 58.5, 57.8, 52, 43.3, 39, 28.9, 26, 21.7, 19.5, 14.4, 13, 7.2, 6.5 Mbps Transmit Data Rate IEEE 802.11n HT40 : 150, 135, 121.5, 120, 108, 90, 81, …

Text truncated - open the document above for the full version.

Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 100 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP Below 1 GHz Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 101 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1 GHz Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 102 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Refer No. ：T100716302 FCC ID：KA2IR600LA1 Report No.：T111219304-RP1 Page 103 of 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. CONDUCTED EMISSION SETUP
