KA2IR600MC1Wireless Router

D-LINK CORPORATION Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. D-LINK CORPORATION would like the following documents regarding this submission for FCC ID: KA2IR600MC1 to be kept confidential. 1. Schematics 2. Block diagram 3. Operation description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Contact person: Shinglin Chung, Director Date: 2013-7-25

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE&ICA -1-1304C169 Date of Issue: May. 09, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless Router Model Name DIR-600M+; DIR-600M; DIR-610 Brand Name D-Link Applicant D-LINK Corporation Address No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 (2009) The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE&ICA-1-1304C169) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1304C169 Page 2 of 8 Neutron Engineering Inc. Project No.: 1304C169 Page 3 of 8 Neutron Engineering Inc. Project No.: 1304C169 Page 4 of 8 Neutron Engineering Inc. Project No.: 1304C169 Page 5 of 8

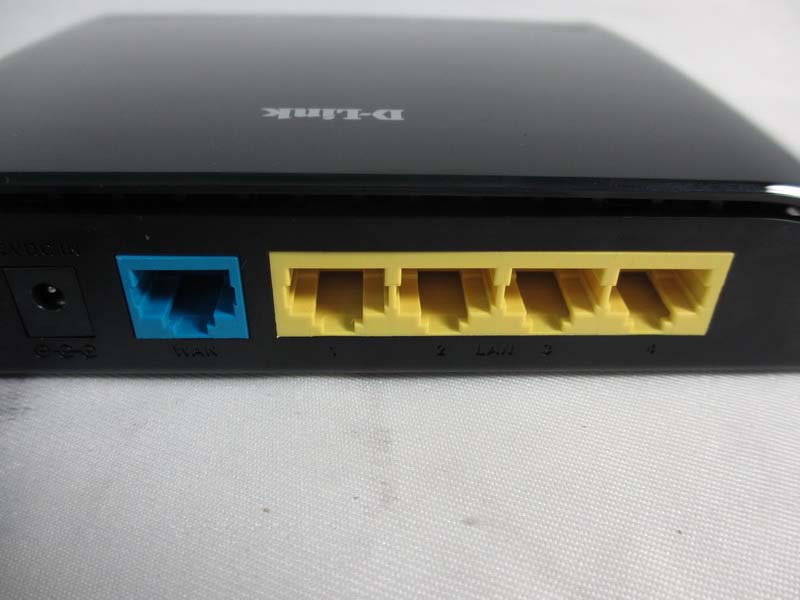

6080000XXXXX 20130606 徐志娟 陈朵红 A0 Bottom label DIR-600M PANTONE Process Yellow C PANTONE Process Black C 哑膜 matte 3 9 . 5 85.5 RESET WAN 4 3 LAN 21 彩色印刷 (Color Printing C0 M0 Y0 K40 Editor Description Remark Date 3. 原材料及后处理工艺均能满足我司《环保技术标准》要求. (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) 刘燕 R1.0 FCC ID:KA2IR600MC1 IC:4216A-IR600MC1

Neutron Engineering Inc. Project No.: 1304C169 Page 6 of 8 Neutron Engineering Inc. Project No.: 1304C169 Page 7 of 8 Neutron Engineering Inc. Project No.: 1304C169 Page 8 of 8

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: KA2IR600MC1 Project No. : 1304C169 Equipment : Wireless Router Model : DIR-600M+; DIR-600M; DIR-610 Applicant : D-LINK CORPORATION Address : No. 289, Sinhu 3rd Rd., Neihu District, Taipei Cit y 114, Taiwan, P.O.C According: : FCC Guidelines for Human Exposure IEEE C95.05.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 800000000237 Dipole N/A 5.05 Neutron Engineering Inc. TEST RESULTS EUT： Wireless Router Model Name ： DIR-600M+ Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.05 3.1989 16.78 47.6431 0.030335441 Complies 5.05 3.1989 16.69 46.6659 0.029713261 Complies 5.05 3.1989 16.90 48.9779 0.031185331 Complies EUT： Wireless Router Model Name ： DIR-600M+ Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.05 3.1989 21.55 142.8894 0.090980931 Complies 5.05 3.1989 21.93 155.9553 0.099300261 Complies 5.05 3.1989 21.43 138.9953 0.088501451 Complies Neutron Engineering Inc. EUT： Wireless Router Model Name ： DIR-600M+ Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20MHz MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.05 3.1989 24.10 257.0396 0.163662951 Complies 5.05 3.1989 23.72 235.5049 0.149951351 Complies 5.05 3.1989 23.12 205.1162 0.130602161 Complies EUT： Wireless Router Model Name ： DIR-600M+ Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40MHz MODE CH03/CH06/CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.05 3.1989 23.55 226.4644 0.144195061 Complies 5.05 3.1989 23.49 223.3572 0.142216631 Complies 5.05 3.1989 23.41 219.2805 0.139620881 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 1 of 135 FCC&IC Radio Test Report FCC ID: KA2IR600MC1 IC: 4216A-IR600MC1 This report concerns (check one): Original Grant Class II Change Issued Date : May. 09, 2013 Project No. : 1304C169 Equipment : Wireless Router Model Name : DIR-600M+; DIR-600M; DIR-610 Applicant : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Manufacturer : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 17, 2013 Date of Test: Apr. 17, 2013 ~ May. 08, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 2 of 135 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 3 of 135 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 22 4.2.1 RADIATED EMISSION LIMITS 22 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 23 4.2.3 TEST PROCEDURE 24 4.2.4 DEVIATION FROM TEST STANDARD 24 4.2.5 TEST SETUP 25 4.2.6 EUT OPERATING CONDITIONS 26 4.2.7 TEST RESULTS (9K~ 30MHZ) 27 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 28 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 41 5 . BANDWIDTH TEST 89 5.1 APPLIED PROCEDURES / LIMIT 89 5.1.1 MEASUREMENT INSTRUMENTS LIST 89 5.1.2 TEST PROCEDURE 89 5.1.3 DEVIATION FROM STANDARD 89 5.1.4 TEST SETUP 89 5.1.5 EUT OPERATION CONDITIONS 89 5.1.6 TEST RESULTS 90 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 4 of 135 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 98 6.1 APPLIED PROCEDURES / LIMIT 98 6.1.1 MEASUREMENT INSTRUMENTS LIST 98 6.1.2 TEST PROCEDURE 98 6.1.3 DEVIATION FROM STANDARD 98 6.1.4 TEST SETUP 98 6.1.5 EUT OPERATION CONDITIONS 98 6.1.6 TEST RESULTS 99 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 101 7.1 APPLIED PROCEDURES / LIMIT 101 7.1.1 MEASUREMENT INSTRUMENTS LIST 101 7.1.2 TEST PROCEDURE 101 7.1.3 DEVIATION FROM STANDARD 101 7.1.4 TEST SETUP 101 7.1.5 EUT OPERATION CONDITIONS 101 7.1.6 TEST RESULTS 102 8 . POWER SPECTRAL DENSITY TEST 122 8.1 APPLIED PROCEDURES / LIMIT 122 8.1.1 MEASUREMENT INSTRUMENTS LIST 122 8.1.2 TEST PROCEDURE 122 8.1.3 DEVIATION FROM STANDARD 122 8.1.4 TEST SETUP 122 8.1.5 EUT OPERATION CONDITIONS 122 8.1.6 TEST RESULTS 123 9 . EUT TEST PHOTO 131 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 5 of 135 1. CERTIFICATION Equipment : Wireless Router Brand Name : D-Link Model Name : DIR-600M+; DIR-600M; DIR-610 Applicant : D-Link Technologies Co., Ltd. Factory : 1) Shenzhen Gongjin Electronics Co., Ltd. 2) TAICANG T&W Electronics Co., Ltd. Address : 1) No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R. China 2) Jiangnan Road 89, Ludu Town, Taicang, Jiangsu, 215412, P.R. China Date of Test : Apr. 17, 2013 ~ May. 08, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1304C169) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 6 of 135 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS-210: 2010 …

Text truncated - open the document above for the full version.

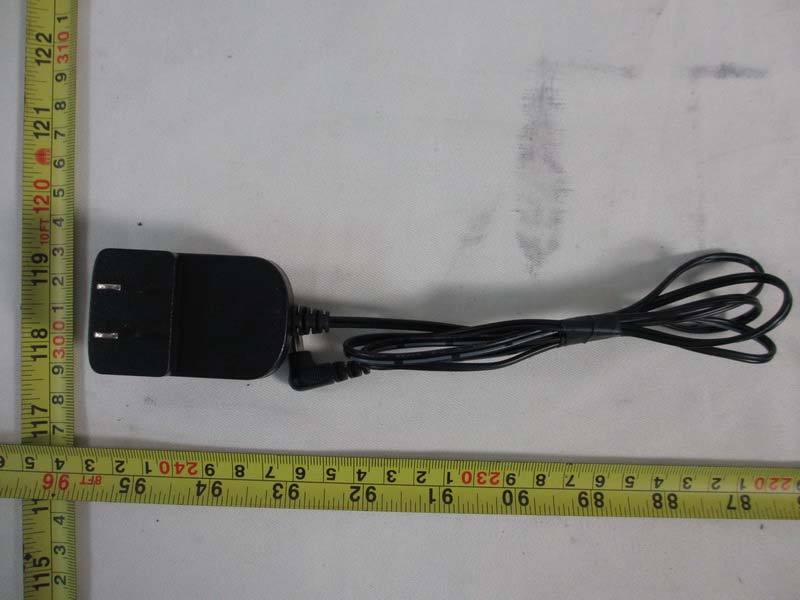

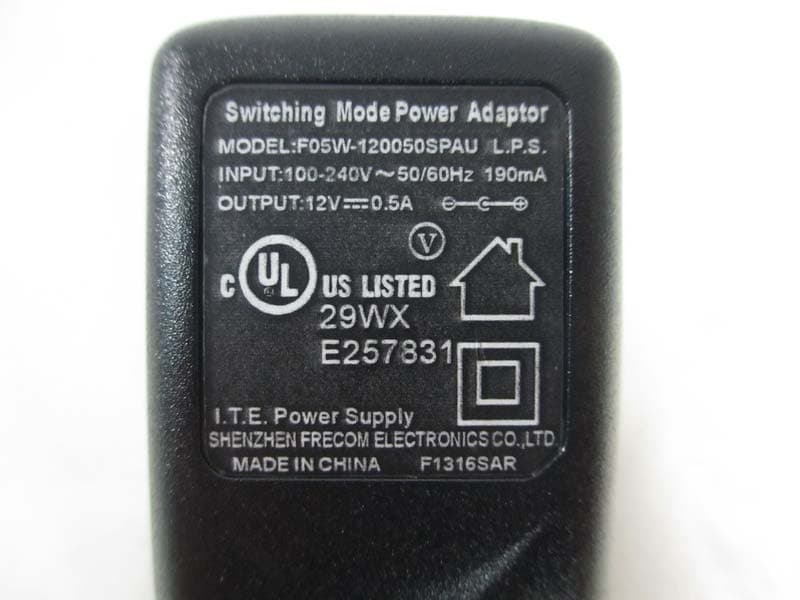

Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 131 of 135 9. EUT TEST PHOTO Conducted Measurement Photos Adapter: S06A22-120A050-PB Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 132 of 135 Conducted Measurement Photos Adapter: F05W-120050SPAU Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 133 of 135 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 134 of 135 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C169 Page 135 of 135 Radiated Measurement Photos Above 1000MHz
