DIR-601L Wireless N150 Cloud Router D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Preface Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2012 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Section 1 - Product Overview Product Overview Package Contents DIR-601L Wireless N150 Cloud Router Power Adapter Ethernet Cable Quick Installation Guide Check for the supplied accessories below: Note: Using a power supply with a different voltage rating than the one included with the product, will cause damage and void the warranty for this product. Section 1 - Product Overview System Requirements Network.Requirements • An Ethernet-based Cable or DSL modem • IEEE 802.11n or 802.11g wireless clients • 10/100 Ethernet Web-based.Configuration. Utility.Requirements Computer.with.the.following: • Windows®, Macintosh, or Linux-based operating system • An installed Ethernet adapter Browser .Requirements: • Internet Explorer 6.0 or higher • Chrome 2.0 or higher • Firefox 3.0 or higher • Safari 3.0 or higher (with Java 1.3.1 or higher) Windows® .Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version. CD .Installa tion .Wizard. Requirements C omputer .with.the.follo wing: • Windows® 7, Vista®, or XP with Service Pack 2 • An installed Ethernet adapter Section 1 - Product Overview Features • Internet Connectivity - In conjunction with a DSL or Cable Modem, this device provides high-speed Internet connectivity to your local network for up to four wired devices. • Wireless LAN functionality - This router supports features like WMM, RF Output Level Control, WPS, and much more. • Networking - This router comes with one WAN port and four LAN ports that enable up to four computers on your local network to be connected. • Wireless Distribution System (WDS) mode- The router supports WDS where it can extend the network coverage from another router. • Advanced Security - The router also supports a range of security features like Network Filtering, Access Co ntrol, Website Filtering, Inbound Filtering, and SPI. • IPv6 - This router supports local IPv6 support and IPv6 Internet Connection. • User-friendly Setup Wizard - your router qickly and conveniently. The DIR-601L’s easy-to-use Web-based user interface lets you manage and congure Section 2 - Hardware Installation Wireless Installation Considerations The router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or office. The key to maximizing the wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum. Each wall or ceiling can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters.) Position your devices so that the number of walls and/or ceilings is minimized. 2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. 3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance. Large objects such as fish tanks, mirrors, file cabinets, metal doors and aluminum studs may also have a negative effect on range. 4. Keep your product at least 3 to 6 feet (1-2 meters) away from electrical devices or appliances that generate RF noise. 5. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling fans, fluorescent lights, and home security systems may dramatically degrade wireless connectivity. Section 2 - Hardware Installation Connect to Cable/DSL/Satellite Modem If you are connecting the router to a Cable/DSL/Satellite Modem, please follow the steps below: 1. Place the router in an open and central location. Do not plug the power adapter into the router. 2. Turn the power off on your modem. If there is no on/off switch, unplug the modem’s power adapter. Shut down your computer. 3. Unplug the E thernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the router. 4. Plug an Ethernet cable into one of the LAN ports on the router. Plug the other end into the Ethernet port on your computer. 5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds). 6. Plug the power adapter into the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot up. 7. Turn on your computer. 8. Verify that the Power LED on the router is lit. If the Power LED does not light up, make sure your computer, modem, and router are powered, on and verify that the cables connected correctly. 9. In a lat…

Text truncated - open the document above for the full version.

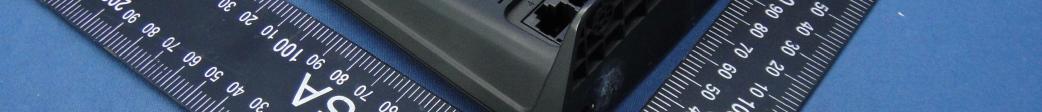

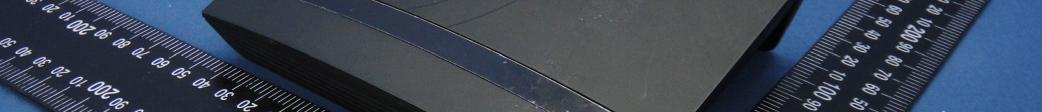

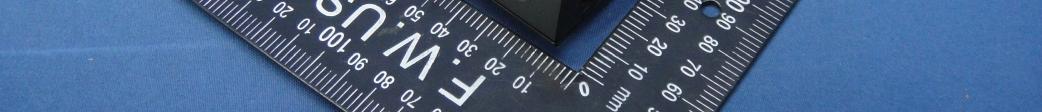

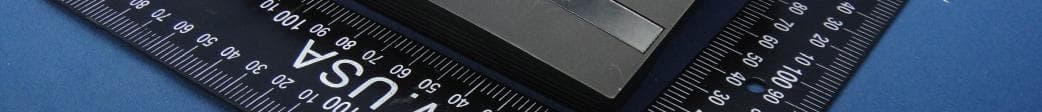

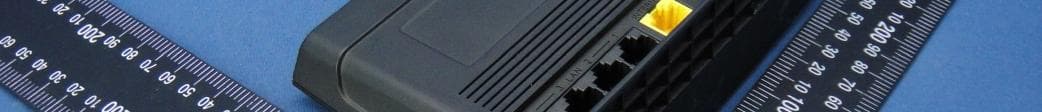

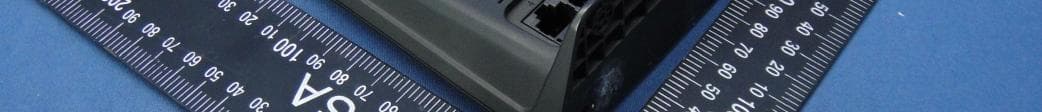

Report No.: 120418E09 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120418E09 Page 2 Adapter: AMS47-0501000FU \ Report No.: 120418E09 Page 3

LABEL DRAWING The label will be permanently affixed at a conspicuous location on the device. Label Location

LABEL DRAWING The label will be permanently affixed at a conspicuous location on the device. Label Location

Report No.: 120418E09 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 120418E09 Page 2

Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 1 RF EXPOSURE REPORT REPORT NO.: SA120418E09 MODEL NO.: DIR-601L FCC ID: KA2IR601LA1 RECEIVED: Apr. 18, 2012 TESTED: May 10, 2012 ISSUED: May 30, 2012 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120418E09 Original release May 30, 2012 Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 4 1. CERTIFICATION PRODUCT: Wireless N 150 Cloud Router BRAND NAME: D-Link MODEL NO.: DIR-601L TEST SAMPLE: MASS-PRODUCTION APPLICANT: D-Link Corporation TESTED DATE: May 10, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: DIR-601L) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 30, 2011 ( Elsie Hsu, Specialist ) APPROVED BY : , DATE: May 30, 2011 ( May Chen, Deputy Manager ) Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120418E09 Report Format Version 4.0.0 Cancels and replaces the report No.: SA110718E01 dated Aug. 19, 2011 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 15.247(2.4GHz) FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 204.174 1.83 20 0.062 1.00 ---END---
