KA2IR603A1Wireless N 150 Home Router

iD-Link DIR-603 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2010 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0 May 25th, 2010• First release version Preface iiD-Link DIR-603 User Manual Table of Contents Preface ...............................................................i Manual Revisions ...............................................................i Trademarks ........................................................................i Product Overview ...................................................1 Package Contents ..............................................................1 System Requirements .......................................................1 System Requirements .......................................................2 Features .............................................................................3 Hardware Overview............................................................4 Connections ................................................................4 LEDs ...........................................................................5 Installation ...........................................................6 Before you Begin ...............................................................6 Wireless Installation Considerations ..................................7 Connect to Cable/DSL/Satellite Modem .............................8 Connect to Another Router ................................................9 Configuration ......................................................11 Web-based Configuration Utility ......................................11 Easy Setup Wizard ....................................................12 Manual Configuration ................................................15 Dynamic (Cable) ...................................................15 Dynamic IP Address (DHCP) .................................16 PPPoE (DSL).........................................................17 Static IP Address ..................................................18 Wireless Settings ......................................................19 Manual Wireless Network Setup ...........................20 Network Settings .......................................................22 DHCP Server Settings ...........................................23 DHCP Reservation .................................................24 Virtual Server ............................................................25 Port Forwarding ........................................................27 Traffic Control ...........................................................28 Network Filters ..........................................................29 Website Filters ..........................................................30 Firewall Settings ........................................................31 Advanced Wireless Settings ......................................32 Advanced Network Settings ......................................33 UPnP .....................................................................33 Internet Ping Block................................................33 Internet Port Speed ...............................................33 Multicast Streams .................................................33 Administrator Settings ..............................................34 Time Settings ............................................................35 E-mail Settings ..........................................................36 System Settings ........................................................37 Update Firmware .......................................................38 DDNS ........................................................................39 System Check ...........................................................40 Device Information ....................................................41 Log ............................................................................42 Stats ..........................................................................43 Internet Sessions ......................................................44 Table of Contents iiiD-Link DIR-603 User Manual Table of Contents Wireless ....................................................................45 Support .....................................................................46 Wireless Security .................................................47 What is WPA? .................................................................47 Wireless Connection Setup Wizard ..................................48 Configure WPA-Personal (PSK) ......................................51 Connect to a Wireless Network .................................52 Using Windows 7 ............................................................52 Configure WPA/WPA2 ...............................................53 Using Windows ® XP ........................................................55 Configure WPA-PSK .................................................56 Troubleshooting ...................................................58 Wireless Basics ...................................................62 What is Wireless? ............................................................63 Tips .................................................................................65 Wireless Modes ...............................................................66 Networking Basics ......…

Text truncated - open the document above for the full version.

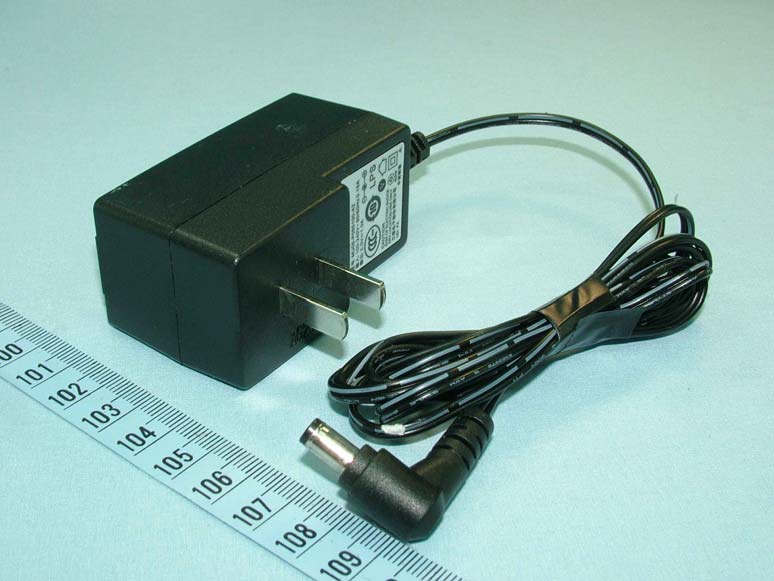

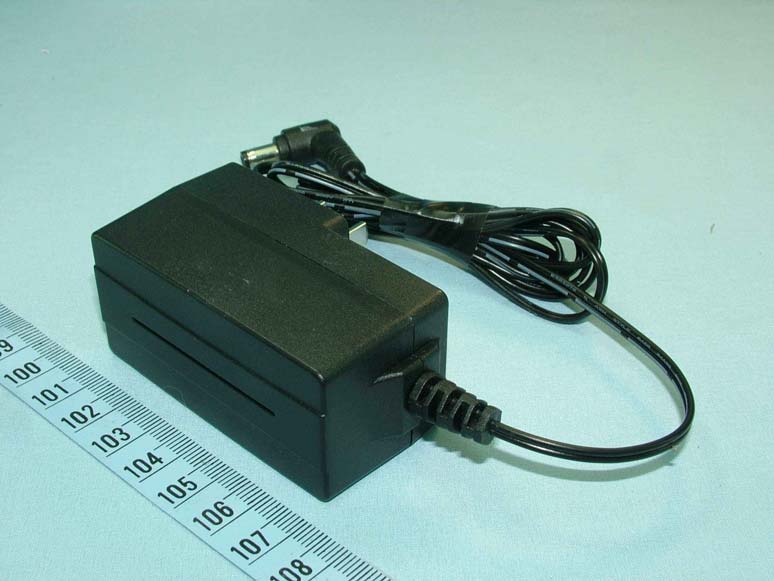

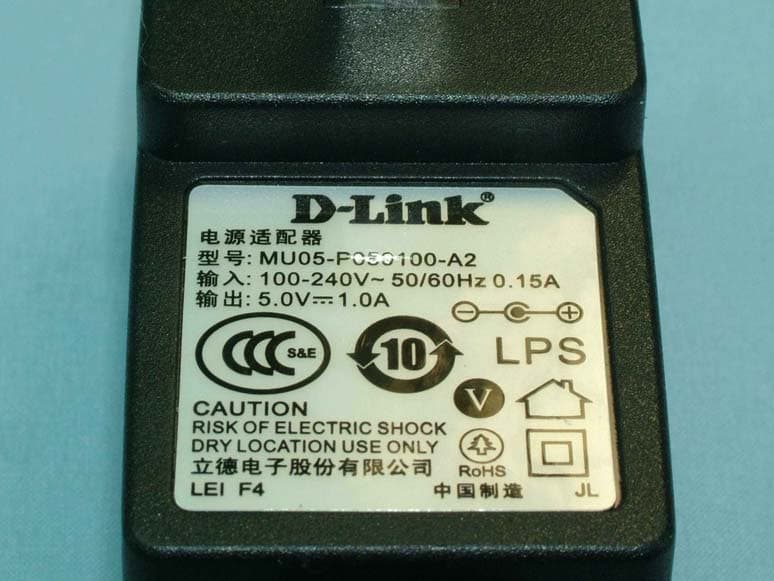

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Made in China 40 x 30 mm http://dlinkrouter http://192.168.0.1 or FCC ID: KA2IR603A1 IC: 4216A-IR603A1 DIR-603A1

Label location

Page 4 Page 5 Page 6

FCC ID: KA2IR603A1 Report No.: RF990921C09 Operational Description This device is a Wireless N 150 Home Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by ac adapter The antenna is dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990921C09 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990921C09 MODEL NO.: DIR-603 FCC ID: KA2IR603A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA990921C09 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.2 2 20 0.131 1.00

Report No.: RF990921C09 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990921C09 MODEL NO.: DIR-603 FCC ID: KA2IR603A1 RECEIVED: Sep. 08, 2010 TESTED: Sep. 30 ~ Nov. 03, 2010 ISSUED: Nov. 05, 2010 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF990921C09 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION..........................................................................................................4 2. SUMMARY OF TEST RESULTS .................................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................................5 3. GENERAL INFORMATION ..........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................6 3.2 DESCRIPTION OF TEST MODES ..............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.4 DESCRIPTION OF SUPPORT UNITS ......................................................................10 4. TEST TYPES AND RESULTS ................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................... 11 4.1.2 TEST INSTRUMENTS...............................................................................................12 4.1.3 TEST PROCEDURES ...............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD......................................................................13 4.1.5 TEST SETUP.............................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ..............................................................................14 4.1.7 TEST RESULTS ........................................................................................................15 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................28 4.2.2 TEST INSTRUMENTS...............................................................................................28 4.2.3 TEST PROCEDURES ...............................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD......................................................................29 4.2.5 TEST SETUP.............................................................................................................30 4.2.6 EUT OPERATING CONDITIONS ..............................................................................30 4.2.7 TEST RESULTS ........................................................................................................31 4.3 6dB BANDWIDTH MEASUREMENT.........................................................................33 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT......................................................33 4.3.2 TEST INSTRUMENTS...............................................................................................33 4.3.3 TEST PROCEDURE..................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD......................................................................33 4.3.5 TEST SETUP.............................................................................................................34 4.3.6 EUT OPERATING CONDITIONS ..............................................................................34 4.3.7 TEST RESULTS ........................................................................................................35 4.4 MAXIMUM OUTPUT POWER ...................................................................................39 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT....................................39 4.4.2 INSTRUMENTS .........................................................................................................39 4.4.3 TEST PROCEDURE..................................................................................................39 4.4.4 DEVIATION FROM TEST STANDARD......................................................................40 4.4.5 TEST SETUP.............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ..............................................................................40 Report No.: RF990921C09 3 Report Format Version 3.0.1 4.4.7 TEST RESULTS ........................................................................................................41 4.5 POWER SPECTRAL DENSITY MEASUREMENT ....................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
