KA2IR605LA1Wireless N 300 Cloud Router

User Manual Wireless N 300 Cloud Router i D-Link DIR-605L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2011 by D-Link Systems, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Revision Date Description 1.0 December 02, 2011 • First release version Preface ii D-Link DIR-605L User Manual Table of Contents Preface ................................................................................. i Manual Revisions ........................................................................... i Trademarks ...................................................................................... i Package Contents .............................................................. 1 System Requirements ................................................................. 1Features ............................................................................................ 2 Hardware Overview ..................................................................... 3 Connections ........................................................................... 3LEDs ........................................................................................... 4 Installation ......................................................................... 5 Before you Begin ........................................................................... 5 Wireless Installation Considerations ...................................... 6Connect to Cable/DSL/Satellite Modem .............................. 7 Configuration ..................................................................... 8 Web-based Configuration Utility ............................................ 8 Internet Setup ......................................................................13 Static (assigned by ISP) ................................................13Dynamic ............................................................................14PPPoE ................................................................................15 PPTP ....................................................................................16 L2TP ....................................................................................17 Wireless Setup ......................................................................18 LAN Setup ..............................................................................23DHCP Server Settings ........................................................24Time and Date ......................................................................25Parental Control ..................................................................26Port Forwarding ..................................................................27Application Rules ................................................................28Access Control .....................................................................29Traffic Control .......................................................................30Setup Wizard ........................................................................31Firewall & DMZ .....................................................................32Advanced Wireless .............................................................33Advanced Network ............................................................34Routing ...................................................................................35Device Administration ......................................................36Save and Restore .................................................................37Firmware Update ................................................................38DDNS Setting .......................................................................39System Check .......................................................................40Schedules ..............................................................................41Log Settings ..........................................................................42Device Info ............................................................................43Log ...........................................................................................44Traffic Statistics ....................................................................45 Table of Contents iii D-Link DIR-605L User Manual Table of Contents Active Session .....................................................................45Wireless ..................................................................................46Help .........................................................................................47 Wireless Security ............................................................. 48 What is WEP? ................................................................................48 Configure WEP .............................................................................49 What is WPA? ................................................................................50 Configure WPA-PSK and WPA2-PSK .....................................51Configure WPA/WPA2-PSK ......................................................52Configure WPA, WPA2, and WPA/WPA2 (RADIUS) ...........53 Connect to a Wireless Network ....................................... 54 Using Windows ® XP ....................................................................54 Configure WEP .............................................................................55 Configure WPA-PSK ..........…

Text truncated - open the document above for the full version.

1 D-Link DIR-605L User Manual Section 1 - Product Overview • D-Link DIR-605L Wireless N 300 Cloud Router• Power Adapter• Quick Installation Guide System Requirements • Ethernet-based Cable or DSL Modem• Computers with Windows ® , Macintosh ® , or Linux-based operating systems with an installed Ethernet adapter • Internet Explorer 8 or Firefox 2.0 or above (for configuration) Package Contents Note: Using a power supply with a different voltage rating than the one included with the DIR-605L will cause damage and void the warranty for this product.Note: Always attach the power cord plug to the power supply, before inserting the power cord and connected power supply to the wall outlet. 2 D-Link DIR-605L User Manual Section 1 - Product Overview • Faster Wireless Networking - The DIR-605L provides up to 300Mbps* wireless connection with other 802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio. • Compatible with 802.11b and 802.11g Devices - The DIR-605L is still fully compatible with the IEEE 802.11b and IEEE 802.11g standard, so it can connect with existing 802.11b and IEEE 802.11g PCI, USB and Cardbus adapters. • Cloud Service - The DIR-605L features a new cloud service that pushes information such as firmware upgrade notifications, user activity, and intrusion alerts, to the mydlink app on android and apple mobile devices. to insure that your router is up-to-date with the latest features, mydlink will notify you when an update is available for your router. You can monitor a user’s online activity with real-time website browsing history, maintaining a safe and secure environment, especially for children at home. • Easy Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-605L lets you control what information is accessible to those on the wireless network, whether from the Internet or from your company’s server. Configure your router to your specific settings within minutes. * Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throug hput rate. Environmental conditions will adversely affect wireless signal range. Features 3 D-Link DIR-605L User Manual Section 1 - Product Overview Pressing the Reset Button restores the router to its original factory default settings. Receptor for the Power Adapter. The Auto MDI/MDIX WAN port is the connection for the Ethernet cable to the Cable or DSL modem. LAN PortsConnect Ethernet devices such as computers, switches, and hubs. Hardware Overview Connections 4 D-Link DIR-605L User Manual Section 1 - Product Overview O v e rvi ew Hardware Overview LEDs INTERNET A solid light indicates connection on the WAN port. This LED blinks during data transmission. WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. Local Network LEDs A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission. Power LED A solid light indicates a proper connection to the power supply. 5 D-Link DIR-605L User Manual Section 2 - Installation Before you Begin Installation This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage. Please configure the router with the computer that was last connected directly to your modem. Also, you can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the WAN port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet). If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Ethernet 300 from your computer or you will not be able to connect to the Internet. 6 D-Link DIR-605L User Manual Section 2 - Installation Wireless Installation Considerations The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, howe ver, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. 2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception. 3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. 4. Keep your product away (at least 3-6 feet or 1…

Text truncated - open the document above for the full version.

41 D-Link DIR-605L User Manual Section 3 - Configuration Schedules Enter a name for the new schedule rule.Choose the desired day(s), either All Week or Select Days. If the latter is selected, please use the checkboxes directly below to specify the individual days.Tick this check box if the new schedule rule applies to the full 24-hour period.If the new schedule rule does not apply to the full 24-hour period, untick the previous checkbox and then enter a specific beginning and ending time. Name: Day(s): All Day - 24 hrs: Start Time/ End Time: The Router allows the user the ability to manage schedule rules for various firewall and parental control features on this windo w. Once you have finished configuring the new schedule rule, click the Save Settings button at the top of the window.  42 D-Link DIR-605L User Manual Section 3 - Configuration Log Settings Click on the Save button link on this window to save the log file to your local hard drive.click the checkbox to save the log in the log server in the LAN side.Click the checkbox(es) of the type of log information requested: “System, Firewall & Security, Router Status, Critical, Warning and Information”Enter the your SNTP server name(or IP address) and enter your mail address before sending your system log by mail. Save Log File: Syslog Server: Log Type & Level: Send by Mail: The system log displays chronological event log data specified by the router user. You may also save a simple text file containin g the log to your computer. Click the Save button and follow the prompts to save the file.  43 D-Link DIR-605L User Manual Section 3 - Configuration Device Info This window displays the current information for the DIR-605L. It will display the LAN, WAN, and Wireless information.If your WAN connection is set up for a Dynamic IP address then a DHCP Release button and a DHCP Renew button will be displayed. Use DHCP Release to disconnect from your ISP and use DHCP Renew to connect to your ISP. If your WAN connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection. Displays the MAC address and the private (local) IP settings for the router.Displays the MAC address and the public IP settings for the router.Displays the wireless MAC address and your wireless settings such as SSID, Channel, and Encryption status. LAN: WAN: Wireless 802.11N:  44 D-Link DIR-605L User Manual Section 3 - Configuration Log First Page: Last Page: Previous: Next: Clear: Link to Log Settings: View the first page of the log.View the last page of the log.View the previous page.View the next page.Clear the log.Click this button to go directly to the Log Settings window ( Maintenance > Log Settings ). This window allows you to view a log of activities on the Router. This is especially helpful detecting unauthorized network usa ge.  45 D-Link DIR-605L User Manual Section 3 - Configuration Traffic Statistics Active Session The window below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DIR-605L on both the WAN and the LAN ports. The traffic counter will reset if the device is rebooted.The NAPT Active Session table displays a list of all active conversations between WAN computers and LAN computers.   46 D-Link DIR-605L User Manual Section 3 - Configuration Wireless The wireless client table displays a list of current connected wireless clients. This table also displays the connection time a nd MAC address of the connected wireless client.  47 D-Link DIR-605L User Manual Section 3 - Configuration Help Click the desired hyperlink to get more information about how to use the Router.  48 D-Link DIR-605L User Manual Section 4 - Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DIR-605L offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) • WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key) • WEP (Wired Equivalent Privacy) What is WEP? WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily. 49 D-Link DIR-605L User Manual Section 4 - Security Configure WEP It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.1. Log into the web-based configuration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Wireless Setup on the left side. 2. Next to Security Mode , select Enable WEP Wireless Security (basic) . 3. Next to Authentication , select either Shared Key or Open . Shared Key is recommended as it provides greater security when WEP is enabled. 4. Select either 64Bit or 128Bit encryption from the drop-down menu next to WEP Encryption . 5. Next to Default Key Type , select WEP Key 1 and enter a WEP key that you create. M…

Text truncated - open the document above for the full version.

Date: 2011/12/22 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir, I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: D-Link / DIR-605L, DIR-905L FCC ID: KA2IR605LA1 Product Name: Wireless N 300 Cloud Router

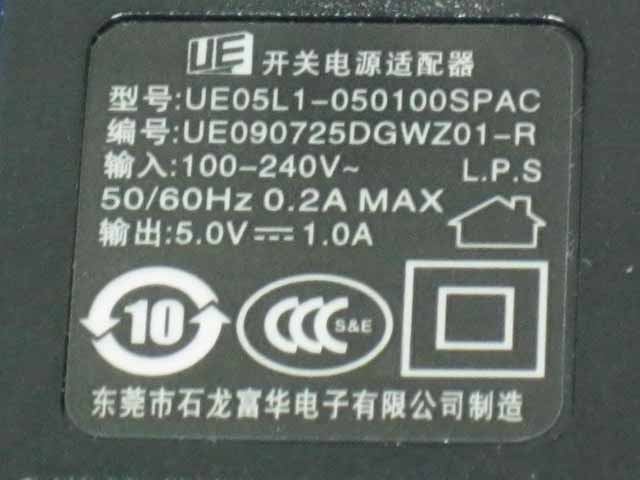

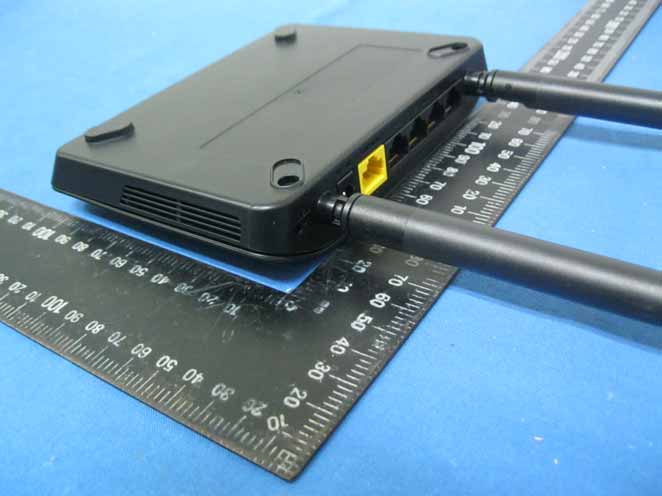

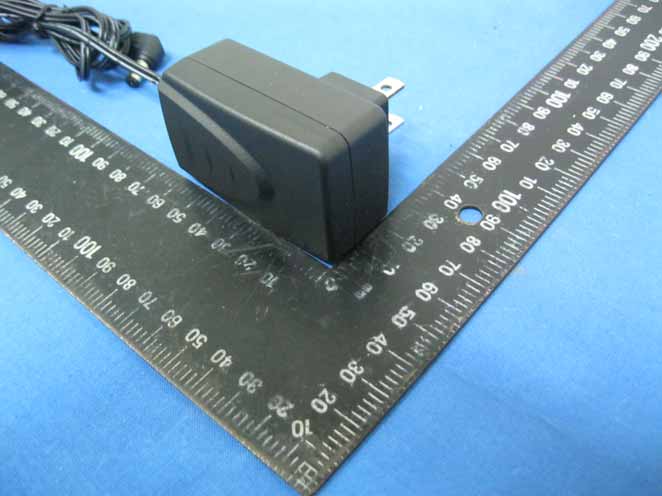

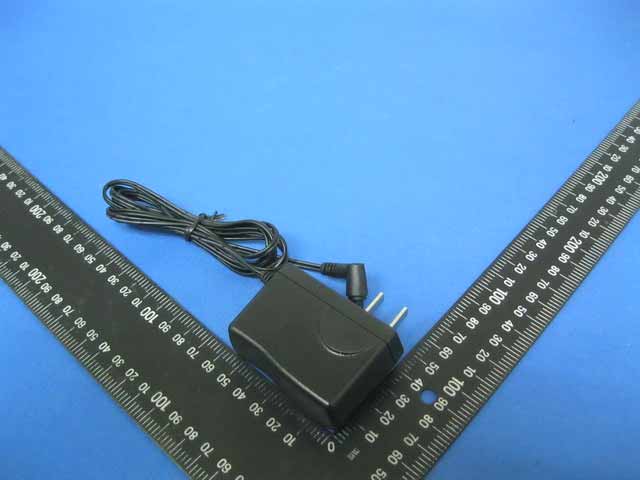

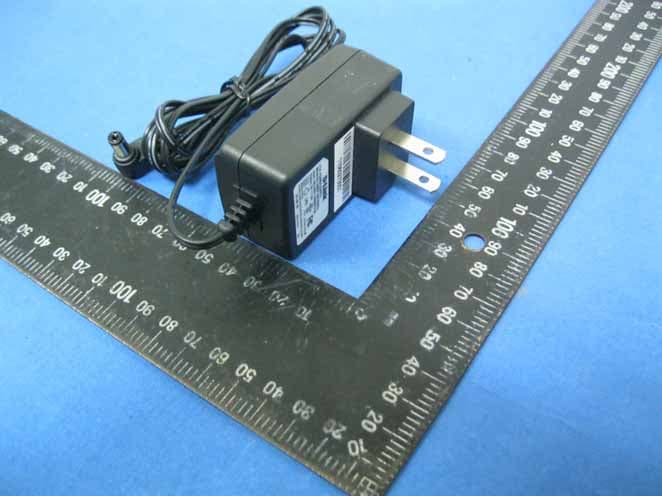

Report No.T111109302 Page 1 of 12 External Photo Report No.T111109302 Page 2 of 12 Report No.T111109302 Page 3 of 12 Power Adapter Photo (Model : UE05L1-050100SPAC) Report No.T111109302 Page 4 of 12 Report No.T111109302 Page 5 of 12 Power Adapter Photo (Model : AMS47-0501000FU) Report No.T111109302 Page 6 of 12

Label Here

Report No.T111109302 Page 7 of 12 Internal Photo Report No.T111109302 Page 8 of 12 Report No.T111109302 Page 9 of 12 Report No.T111109302 Page 10 of 12 Report No.T111109302 Page 11 of 12 Report No.T111109302 Page 12 of 12 Antenna Photo

Refer No. T100602303 FCC IDKA2IR605LA1 Report No.T111109302-RP1 Page 1 / 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For Wireless N 300 Cloud Router Model : DIR-605L Data Applies To : DIR-905L Trade Name : D-Link Issued for D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: December 12, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Refer No. T100602303 FCC IDKA2IR605LA1 Report No.T111109302-RP1 Page 2 / 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 12/12/2011 Initial Issue All Page 125 Cindy Pon 01 12/21/2011 Revised Series Model , Power Limit and Test Equipment Page 1, 4, 5, 6, 27, 80 Cindy Pon Refer No. T100602303 FCC IDKA2IR605LA1 Report No.T111109302-RP1 Page 3 / 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6-7 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES............................................................................................................ 8 5.2 ACCREDITATIONS................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 10-11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH ..................................................................................................12-25 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 26-40 7.3 AVERAGE POWER ............................................................................................... 41-43 7.4 POWER SPECTRAL DENSITY............................................................................. 44-58 7.5 CONDUCTED SPURIOUS EMISSION.................................................................. 59-77 7.6 RADIATED EMISSION........................................................................................... 78-112 7.7 CONDUCTED EMISSION ...................................................................................... 113-119 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 120-121 APPENDIX SETUP PHOTOS .......................................................................................... 122-125 Refer No. T100602303 FCC IDKA2IR605LA1 Report No.T111109302-RP1 Page 4 / 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant D-Link Corporation Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Equipment Under Test Wireless N 300 Cloud Router Model DIR-605L Data Applies To DIR-905L Trade Name D-Link Tested Date June 02 ~ August 09, 2010 ; November 09 ~ 11, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Refer No. T100602303 FCC IDKA2IR605LA1 Report No.T111109302-RP1 Page 5 / 125 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Wireless N 300 Cloud Router Model Number DIR-605L Data Applies To DIR-905L Identify Number T111109302 Received Date June 02, 2010 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 21.19 dBm (0.1315W) IEEE 802.11g : 21.97 dBm (0.1574W) IEEE 802.11n HT20 : 22.23 dBm (0.1672W) Transmit Power IEEE 802.11n HT40 : 21.48 dBm (0.1406W) Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11b/g : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 144.4, 130, 117, 115.6, 104, 8…
