KA2IR605LB2Wireless N 300 Cloud Router

D-Link Corporation
Wireless N 300 Cloud Router - FCC ID KA2IR605LB2 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 14, 2014
Application Purpose
Original Equipment
Date of Application
Sep 11, 2014
Equipment Note
Wireless N 300 Cloud Router
Frequency Range
2412.00000000 - 2462.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless N 300 Cloud Router Model Name DIR-605L;DIR-905L Brand Name D-Link Applicant D-Link Corporation Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Standard(s) FCC Part 15, Subpart B: 2013 ANSI C63.4-2009 Report(s) BTL-FCCE&ICA-1-1408C090 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

External Photos

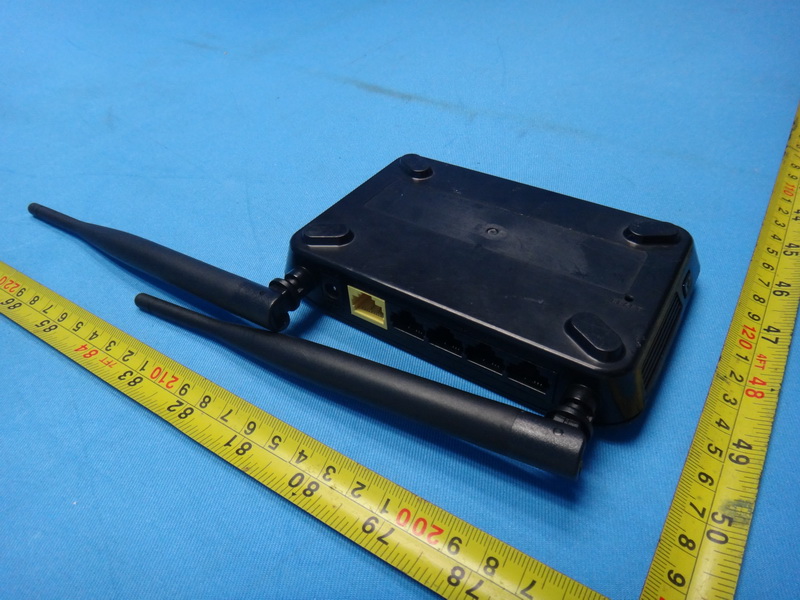

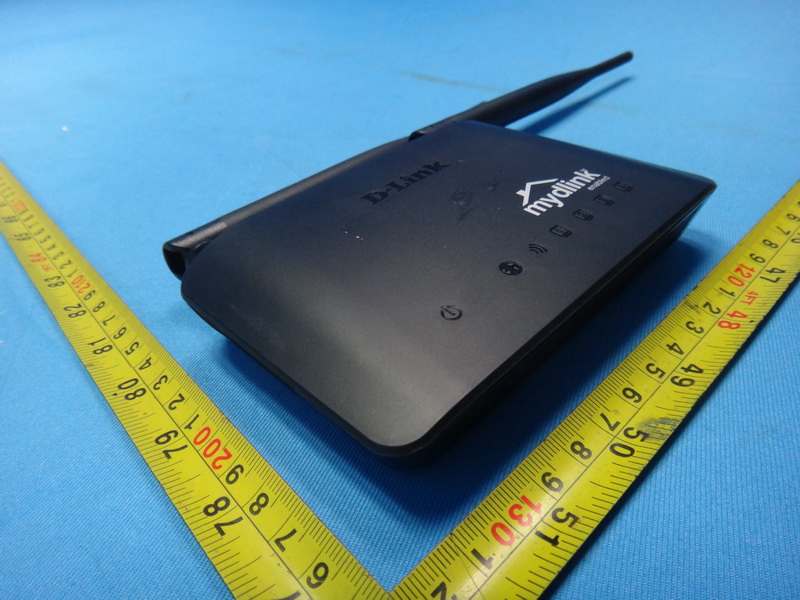

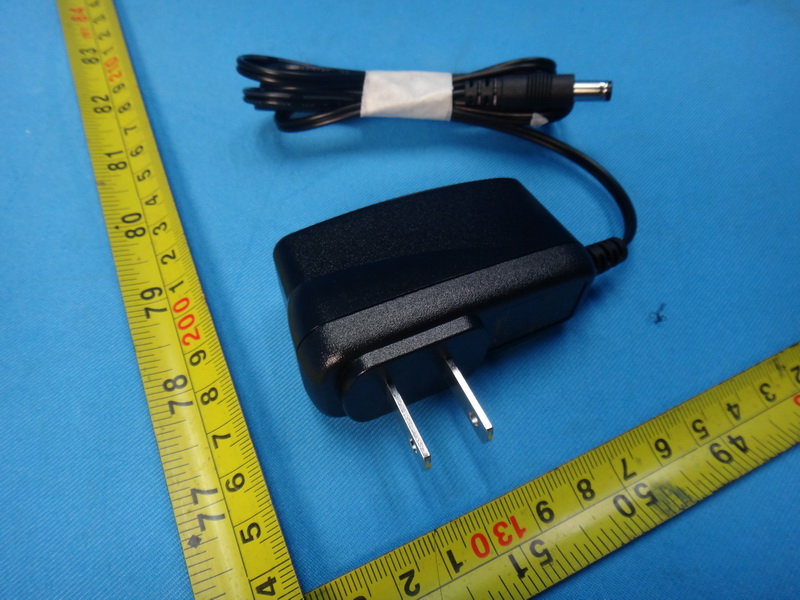

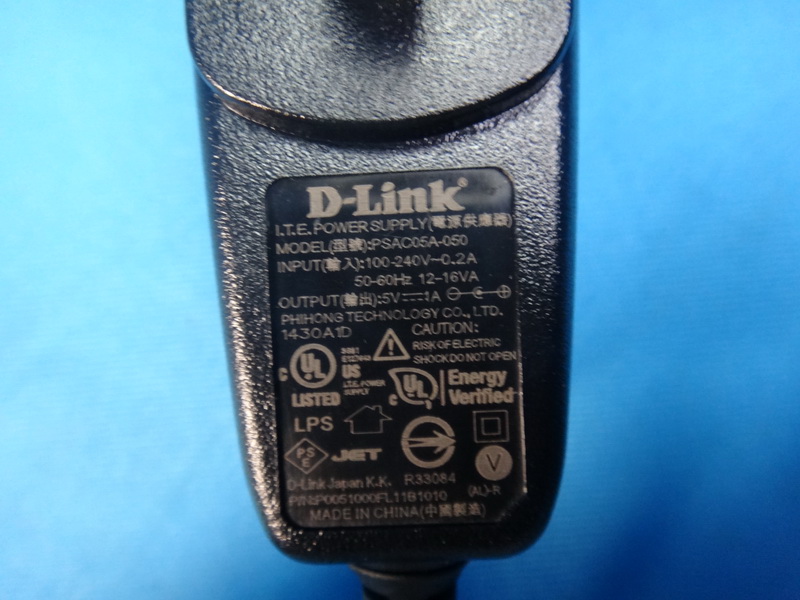

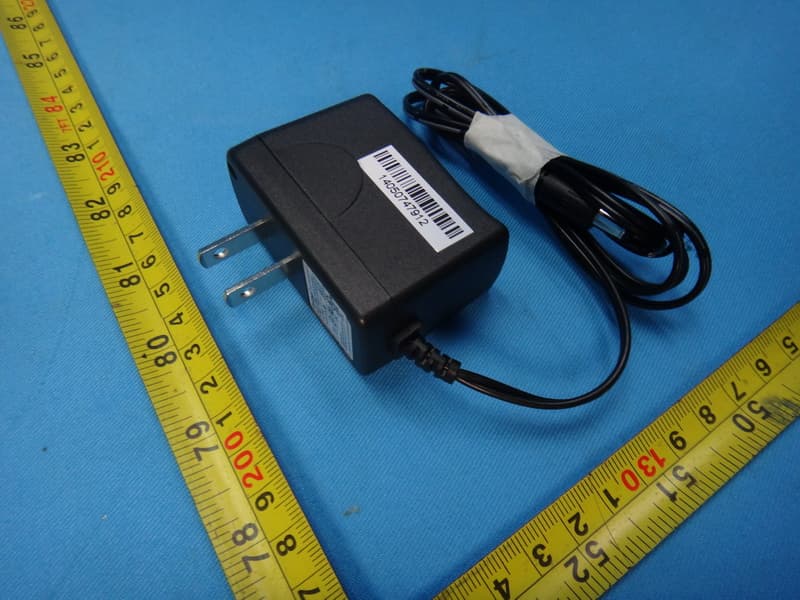

Report No.: BTL-FCCP-1-1408C090 Page 157 of 16 0 10. EUT PHOTO Report No.: BTL-FCCP-1-1408C090 Page 158 of 16 0 Report No.: BTL-FCCP-1-1408C090 Page 159 of 16 0 Adapter: PHIHONG / PSAC05A-050 Report No.: BTL-FCCP-1-1408C090 Page 160 of 16 0 Adapter: YEOU DIANN / AMS20-0501000FU2

ID Label/Location Info

Colors: White Black Background Texts and logos Date: 2014/8/7 Date: 2014/8/7 Date: 2014/8/7 Date: 2014/8/7 Title: DIR-905L Device Label Material: 50μ白特多(PET) Glossy White Polyester Film Modified drawing Drawn by: Joan Huang Checked by: Hilary Su Approved by: Hilary Su Coated: 25μ霧面特多(PET) Matte Clear Polyester Film Unit: mm Cutting and Printing Tolerance: ±0.3mm Contents Tolerance: ±0.25mm Adhesive: 克力 Acrylic Scale: 1:1 Part No. 970000012804G Task ID: 4648 Original drawing 尺寸圖 outline dimension 刷 for printing Rev.: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Default router settings: http://192.168.0.1 or http://dlinkrouter.local./ Username: “admin” Password: “ ”(leave the field blank) DIR-905L FCC ID: KA2IR605LB2 Made In China ODEHOORFDWLRQ

Internal Photos

Project No.: 1408C090 Page 2 of 4 Project No.: 1408C090 Page 3 of 4 Project No.: 1408C090 Page 4 of 4

RF Exposure Info

Proj Equ Mod App Add Ac c FC ject No. uipment del plicant dress cording: CC RF FC : 1408C0 : Wireless : DIR-605 : D-Link C : No.289, R.O.C : FCC G C95.1 N TEL: 0 F EXP CC ID: 090 s N 300 Clo 5L;DIR-905 Corporation , Sinhu 3rd Guideline B No.3, Jinsh Dalang To 0769-8318- Pa POSU : KA2I oud Router L n Rd., Neihu es for Hu BTL IN hagang 1st own, Dong -3000 FA age 1 of 4 URE R IR605L District, Tai uman Ex NC. t Road, Sh gguan, Chin AX: 0769-8 REPO LB2 ipei City 114 xposure I ixia, na. 8319-6000 ORT 4, Taiwan, IEEE M P Table f Ant 1 2 PE CALC Calculat where: S = pow e P = powe G = powe R = distan for Filed An . B CULATI ion Method er density er input to th er gain of th nce to the c ntenna Brand ION ME of RF Safe he antenna e antenna i center of rad Model N NYS07 NYS07 P a ETHOD: ety Distance in the direct diation of th Name Ant 794 795 age 2 of 4 : e: tion of intere he antenna tenna Type Dipole Dipole est relative Connector N/A N/A to an isotro Gain(dBi) 5.23 5.07 opic radiator Note TX/RX TX/RX r TEST EUT: Te m p e ra Te s t Vo lt Te s t M od Antenna Gain (dBi) 5.23 5.23 5.23 EUT: Te m p e ra Te s t Vo lt Te s t M od Antenna Gain (dBi) 5.23 5.23 5.23 T RESU ature: tage : de : a Antenna (nume 3.334 3.334 3.334 ature: tage : de : a Antenna (nume 3.334 3.334 3.334 ULTS Wireless N 25 °C AC 120V/6 TX B MOD a Gain eric) Pe Pow 43 43 43 Wireless N 25 °C AC 120V/6 TX G MOD a Gain eric) Pe Pow 43 43 43 N 300 Cloud 60Hz DE /CH01, C ak Output wer (dBm) 21.25 22.27 21.36 N 300 Cloud 60Hz DE /CH01, C ak Output wer (dBm) 25.15 26.68 25.26 Pa d Router M R H06, CH11 Peak Out p Power (mW 133.3521 168.6553 136.7729 d Router M R CH06, CH11 Peak Outp Power (mW 327.3407 465.5861 335.7376 age 3 of 4 Model Name Relative Hu put W) Po w Densi (mW / 1 0.0885 3 0.1119 9 0.0907 Model Name Relative Hu put W) Po w Densi (mW / 7 0.2172 1 0.3089 6 0.2228 e : DIR midity: 55 wer ty (S) /cm 2 ) Lim D e (m 50145 93100 77168 e : DIR midity: 55 wer ty (S) /cm 2 ) Lim D e (m 24529 99423 81805 R-605L % it of Power ensity (S) mW/cm 2 ) 1 1 1 R-605L % it of Power ensity (S) mW/cm 2 ) 1 1 1 Te s t Result Complies Complies Complies Te s t Result Complies Complies Complies EUT: Tempera Te s t Vo lt Te s t M od Antenna Gain (dBi) 5.23 5.23 5.23 EUT: Tempera Te s t Vo lt Te s t M od Antenna Gain (dBi) 5.23 5.23 5.23 Note: th e ature: tage : de : a Antenna (nume 3.334 3.334 3.334 ature: tage : de : a Antenna (nume 3.334 3.334 3.334 e calculated Wireless N 25 °C AC 120V/6 TX N-20M a Gain eric) P e Pow 43 43 43 Wireless N 25 °C AC 120V/6 TX N-40M a Gain eric) Pe Pow 43 43 43 d distance is N 300 Cloud 60Hz MODE_ To eak Output wer (dBm) 25.01 26.65 25.06 N 300 Cloud 60Hz MODE_Tot ak Output wer (dBm) 24.4 24.96 23.99 s 20 cm. Pa d Router M R otal /CH01, Peak Outp Power (mW 316.9567 462.3810 320.6269 d Router M R tal /CH03, C Peak Outp Power (mW 275.4229 313.3286 250.6109 age 4 of 4 Model Name Relative Hu CH06, CH1 put W) Po w Densi (mW/ 7 0.2103 0 0.3068 9 0.2127 Model Name Relative Hu CH06, CH0 put W) Po w Densi (mW / 9 0.1827 6 0.2079 9 0.1663 e : DIR midity: 55 11 wer ity (S) /cm 2 ) Li m De (m 35380 86713 78959 e : DIR midity: 55 9 wer ty (S) /cm 2 ) Lim D e (m 78913 94590 32226 R-605L % mit of Power ensity (S) mW/cm 2 ) 1 1 1 R-605L % it of Power ensity (S) mW/cm 2 ) 1 1 1 Te s t Result Complies Complies Complies Te s t Result Complies Complies Complies

Test Report

Report No.: BTL-FCCP-1-1408C090 Page 1 of 16 0 FCC Radio Test Report FCC ID: KA2IR605LB2 This report concerns (check one): Original Grant Class II Change Project No. : 1408C090 Equipment : Wireless N 300 Cloud Router Model Name : DIR-605L;DIR-905L Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : Aug. 13, 2014 Date of Test : Aug. 13, 2014 ~ Aug. 20, 2014 Issued Date : Aug. 22, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1408C090 Page 2 of 16 0 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1408C090 Page 3 of 16 0 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1408C090 Page 4 of 16 0 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 ATTACHMENT A - CONDUCTED EMISSION 27 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 31 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 34 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 102 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 108 ATTACHMENT H - POWER SPECTRAL DENSITY 138 10 . EUT PHOTO 157 Report No.: BTL-FCCP-1-1408C090 Page 5 of 16 0 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1- 1408C090 Original Issue. Aug. 22, 2014 Report No.: BTL-FCCP-1-1408C090 Page 6 of 16 0 1. CERTIFICATION Equipment : Wireless N 300 Cloud Router Brand Name : D-Link Model Name : DIR-605L;DIR-905L Applicant : D-Link Corporation Date of Test : Aug. 13, 2014 ~ Aug. 20, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1- 1408C090) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1408C090 Page 7 of 16 0 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C: 2013 Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 An…

Text truncated - open the document above for the full version.

Test Report

Report No.: BTL-FCCP-1-1408C090 Page 81 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 82 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 83 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1408C090 Page 84 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Report No.: BTL-FCCP-1-1408C090 Page 85 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 86 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 87 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-1-1408C090 Page 88 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Report No.: BTL-FCCP-1-1408C090 Page 89 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 90 of 16 0 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Report No.: BTL-FCCP-1-1408C090 Page 91 of 16 0 Radiated Measurement Photos Above 1000MHz Report No.: BTL-FCCP-1-1408C090 Page 92 of 16 0 ATTACHMENT E - BANDWIDTH Report No.: BTL-FCCP-1-1408C090 Page 93 of 16 0 Test Mode : TX B Mode_CH01/06/11 6dB Bandwidth 99% Occupied BW Min. Limit (MHz)(MHz)(kHz) 241210.1215.20500Complies 243710.1215.25500Complies 246210.1215.15 500Complies Frequency (MHz) Test Result TX CH01 Report No.: BTL-FCCP-1-1408C090 Page 94 of 16 0 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1408C090 Page 95 of 16 0 Test Mode: TX G Mode_CH01/06/11 6dB Bandwidth 99% Occupied BW Min. Limit (MHz)(MHz)(kHz) 241216.5616.50500Complies 243716.6116.60500Complies 246216.6416.40 500Complies Frequency (MHz) Test Result TX CH01 Report No.: BTL-FCCP-1-1408C090 Page 96 of 16 0 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1408C090 Page 97 of 16 0 Test Mode : TX N-20MHz Mode_CH01/06/11 6dB Bandwidth 99% Occupied BW Min. Limit (MHz)(MHz)(kHz) 241217.8117.70500Complies 243717.8117.70500Complies 246217.6617.70 500Complies Frequency (MHz) Test Result TX CH01 Report No.: BTL-FCCP-1-1408C090 Page 98 of 16 0 TX CH06 TX CH11 Report No.: BTL-FCCP-1-1408C090 Page 99 of 16 0 Test Mode : TX N-40MHz Mode_CH03/06/09 6dB Bandwidth 99% Occupied BW Min. Limit (MHz)(MHz)(kHz) 242236.3136.20500Complies 243736.5136.30500Complies 245236.5136.30 500Complies Frequency (MHz) Test Result TX CH03 Report No.: BTL-FCCP-1-1408C090 Page 100 of 16 0 TX CH06 TX CH09 Report No.: BTL-FCCP-1-1408C090 Page 101 of 16 0 Bandwidth Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 102 of 16 0 ATTACHMENT F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-1-1408C090 Page 103 of 16 0 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 241221.250.133430.001.00Complies 243722.270.168730.001.00Complies 246221.360.136830.001.00Complies Test Mode : TX B Mode Report No.: BTL-FCCP-1-1408C090 Page 104 of 16 0 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 2412 21.06 0.127630.001.00Complies 2437 23.16 0.207030.001.00Complies 2462 21.85 0.153130.001.00Complies Test Mode: TX G Mode_ANT 1 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 2412 23.00 0.199530.001.00Complies 2437 24.13 0.258830.001.00Complies 2462 22.61 0.182430.001.00Complies Test Mode: TX G Mode_ANT 2 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 241225.150.327230.001.00Complies 243726.680.465830.001.00Complies 246225.260.335530.001.00Complies Test Mode: TX G Mode_Total Report No.: BTL-FCCP-1-1408C090 Page 105 of 16 0 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Ma x. Limit (Watt) Result 241221.210.132130.001.00Complies 243723.170.207530.001.00Complies 246222.020.159230.001.00Complies Test Mode : TX N-20M Mode_ANT 1 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Ma x. Limit (Watt) Result 241222.660.184530.001.00Complies 243724.070.255330.001.00Complies 246222.080.161430.001.00Complies Test Mode : TX N-20M Mode_ANT 2 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 241225.010.316630.001.00Complies 243726.650.462830.001.00Complies 246225.060.320730.001.00Complies Test Mode : TX N-20M Mode_Total Report No.: BTL-FCCP-1-1408C090 Page 106 of 16 0 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Ma x. L imit (Watt) Result 242221.260.133730.001.00Complies 243721.930.156030.001.00Complies 245220.650.116130.001.00Complies Test Mode : TX N-40M Mode_ANT 1 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Max. Limit (Watt) Result 242221.520.141930.001.00Complies 243721.970.157430.001.00Complies 245221.280.134330.001.00Complies Test Mode : TX N-40M Mode_ANT 2 Frequency (MHz) Conducted Power (dBm) Conducted Power (Watt) Max. Limit (dBm) Ma x. L imit (Watt) Result 242224.400.275630.001.00Complies 243724.960.313430.001.00Complies 245223.990.250430.001.00Complies Test Mode : TX N-40M Mode_Total Report No.: BTL-FCCP-1-1408C090 Page 107 of 16 0 Output Power Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 108 of 16 0 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION Report No.: BTL-FCCP-1-1408C090 Page 109 of 16 0 Test Mode : TX B Mode Report No.: BTL-FCCP-1-1408C090 Page 110 of 16 0 TX B mode CH01 TX B mode CH11 Report No.: BTL-FCCP-1-1408C090 Page 111 of 16 0 TX B mode CH01 (10 Harmonic of the frequency) TX B mode CH06 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1408C090 Page 112 of 16 0 TX B mode CH11 (10 Harmonic of the frequency) Report No.: BTL-FCCP-1-1408C090 Page 113 of 16 0 Test Mode : TX G Mode_ANT 1 Report No.: BTL-FCCP-1-1408C090 Page 114 of 16 0 TX G mode CH01 TX G mode CH11 Report No.: BTL-FCCP…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: BTL-FCCP-1-1408C090 Page 30 of 16 0 Conducted Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 33 of 16 0 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1408C090 Page 41 of 16 0 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1408C090 Page 91 of 16 0 Radiated Measurement Photos Above 1000MHz Report No.: BTL-FCCP-1-1408C090 Page 101 of 16 0 Bandwidth Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 107 of 16 0 Output Power Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 137 of 16 0 Antenna Conducted Spurious Emission Measurement Photos Report No.: BTL-FCCP-1-1408C090 Page 156 of 16 0 Power Spectral Densidy Measurement Photos

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Technical Contact

BTL Inc.Steven Lu
86-769-83183000

China

Non-Technical Contact

BTL Inc.Cathy Wang
86-769-83183000

Test Firm

BTL Inc.Daisy Dai
[email protected]8676983183000Fax: +8676983196000

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz470.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This equipment uses 20/40 MHz bandwidth modes.
