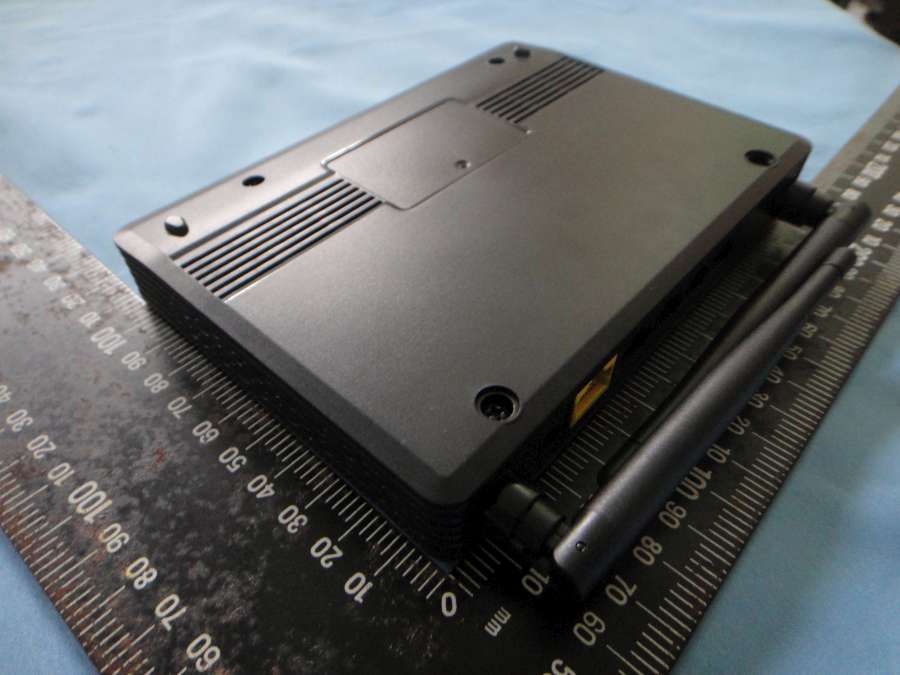

Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A1 / 6 External Photo (DIR-614) Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A2 / 6 Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A3 / 6

Diagram Label location Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A4 / 6 Internal Photo (DIR-614) Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A5 / 6 Compliance Certification Services Inc. Report No.：T120116N01 Date of Issue: January 31, 2012 Page A6 / 6

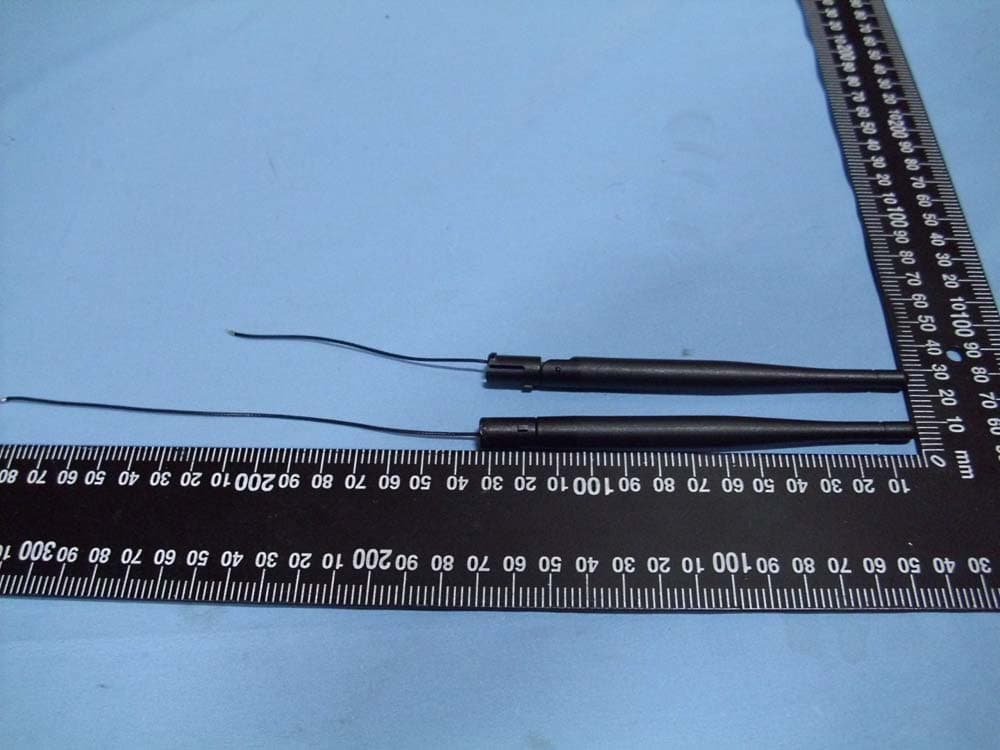

規格承認書 Specification for Approval 客 戶： 永 洋 Customer 品 名: 2.4GHz 2.35dBi ANTENNA WHITE ANT-WIFI-2.35dBi-C:驊陞,剝皮鍍錫,Cable=160mm,白色 GY111HT467-012 Part name 料 號：GY111HT467-012 Part No. 客戶料號：11320Y11065A1 Customer Part No. Rev.(版本): 01 客戶承認印 CUSTOMER APPROVED BY APPROVAL CHIEF SUPERVISOR Approval No. Model Part No. CHIEF SALES R&D DESIGN Andy Teri Tseng Ta mmy River Date: 2010/10/18 Date: 2010/10/18 驊 陞 科 技 股 份 有 限 公 司 WIESON TECHNOLOGIES CO., LTD. 表格編號：324012 版本: 第四版 WIESON TECHNOLOGIES CO., LTD. SPECIFICATION LIST TYPE OF PRODUCT ANTENNA ITEM INDEX PAGE 1. THE PRODUCT SPECIFICATION LIST.......................................................... 1 2. DRAWING OF PRODUCT.............................................................................. 2 3. SPECIFICATION OF CABLE.......................................................................... 3 4. SPECIFICATION OF PLASTIC....................................................................... 4~6 5. SPECIFICATION OF COPPER TUBE............................................................ 7 6. TEST REPORT............................................................................................ 8~15 7. GUARANTEE OF HAZARDOUS SUBSTANCES................................................. 16 8. WIESON CERTIFICATE............................................................................... 17~18 Approvals Rev Date Description Edited by Prepared : River 01 2010/10/18 ISSUE River Checked : Tammy 02 2011/02/08 ADD CHAMBER TEST RESULT Jerry Approved : Andy Issued No : Sheet : 1 OF 18 No part of the information shown of this document may be used in any way without office stamp or written consent of WIESON TECHNOLOGIES CO., LTD. Panlite L-1250Z 100 CategoryUnitTest MethodCondition L-1250Z 100 Melt volume flow rate cm 3 /10min ISO 1133300deg.C load 1.2kg8 Density kg/m 3 ISO 1183-1200 Water absorption rate%ISO 62in water 23deg.C 24h0.2 Light transmission%ASTM D 1003thickness 3mm88 Refractive index-ASTM D 542-1.585 Tensile modulusMPa1mm/min2400 Tensile stress at yieldMPa50mm/min61 Tensile strain at yield%50mm/min6 Nominal tensile strain at break %50mm/min>50 Flexural modulusMPa2mm/min2350 Flexural strengthMPa2mm/min93 unnotchedNB notched76 1.80MPa129 0.45MPa142 Vicat softening tem perature deg.CISO 30650deg.C/h 50N149 parallel0.5-0.7 vertical0.5-0.7 parallel0.7 vertical0.7 -100Hz3.1 -1MHz3 ×10 -4 100Hz10 ×10 -4 1MHz90 Volume resistivityohm-mIEC 60093- >1×10 13 Surface resistivityohmIEC 60093- >1×10 15 Withstand voltageMV/mIEC 60243-1short time test30 Tracking resistance-IEC 60112-250 electric 1.47mmt125 impact 1.47mmt115 non-impact 1.47mmt125 * The values listed are specification values, not certified values. ISO 527-1 and ISO 527-2 ISO 178 Charpy impact strength kJ/m 2 ISO 179 Heat deflection temperature deg.C ISO 75-1 and ISO 75-2 Mold shrinkage% In-house method Coefficient of linear expansion ×10 -4 /k ISO 11359-2 Specific inductive capacity IEC 60250 Dielectric loss tangentIEC 60250 Flammability-UL 94 V-2(0.40mm) HB(1.5mm) - Temperature indexdeg.CUL 746B NOV-12-2007 12 : 17PM FROM-TA I WAN YOSON 70-1 AC I -D G, YmU-SI , JEOLLANAM-DO. KOREA HTTP: I/ w M.GN%I~E.CU -- r,. ;. Fax : (001 )680-8070 & '71.: a Te l : (061 ) 686--1669,15B4 , - 8 b, .. RTl F l GATE OF AwU 1 I 1 Customer I YOSON I NERhIAT I ONAL CO . , LTD Product /Grade I Tast I tsrn I Test Method 1 PEIT KEYFLEX ET1063D 25KG BAG Remark I Unit I Sp~e IRBSUI~SI Lot No. Quantity(Kg1 AT11631 I QOM.0W 2007.11 .O9 2021 6745 Low Temp I mp' ASN D256 Mln.3.0 I I I I 5 .€I Melt Flow Index (ASMD1238( 2:K)ExZ.IBkg _I/l~min) 21.00-27.00 1 26.29 1 I I-. 'I Date of Iswe Shore Hardness ASTM 02240 stye-D I 59.0-84.. 0 60.9 1 I Shlpment No. Flexural Modulus 3270 C 211 -0717.0 213.4 Yield strength YIE HEREBY CERT l FY THAT ABOVE-MENT I ONED TEST FIESULTS AqE CORRECT AND MEET OUR SPEC IF I CAT IONS. - a- . - - - YMSU SPECIALTY POLYMERS PLANT O.A. MANAGER 'ASTM I3338 250 mmlmln I E:g / crn* 180-240 189 WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 3/10 I. SUMMARY This report to account for the measurement setup and result of the Antenna. 1. The measurement setup includes s-parameter, pattern, and gain measurement. 2. The measured data for Antenna are presented and analysis. II. S-PARAMETER MEASUREMENT A. Reflection coefficient : (a) InstrumentNetwork Analyzer. (b) Setup (1) Calibrate the Network Analyzer by one port calibration using O.S.L. calibration kits. (2) Connect the antenna under test to the Network Analyzer. (3) Measure the S11(reflection coefficient) shown in Fig. 1. (4) Generally, the S11 is less than –10dB to ensure the 90% power into antenna and only less than 10% power back to system. Fig.1 Antenna measured in Network Analyzer WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 4/10 III. S-PARAMETER TEST RESULT Antenna Retune Loss (a) Antenna Frequency Sample 2.4GHz 2.45GHz 2.4835GHz 1 -17.837dB-30.28dB -28.058dB WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 5/10 IV. THE TEST INFORMATION IN ANECHOIC CHAMBER A. Scope This statement of work defines the requirements of a far-field antenna measurement range, which includes (1) One 325 cm (W) x 285 cm (H) x 640 cm (L) Antenna Measurement Anechoic Chamber, detailed requirements refer section 2.0 . (2) One Far-field Antenna Measurement System with spinning linear CP measurement capabilities, detailed requirement refer section 3.0 . (3) One broad-band transmitted antenna, detailed requirements refer section 8.0 . (4) Three NRL-4433 standard gain antennas, detailed requirements refer section 9.0 . B. Antenna Measurement Anechoic Chamber Fully anechoic chamber with dimension 325 cm in width, 285 cm in height and 640 cm in length. The quiet zone of this Chamber shall be greater than WIESON TECHNOLOGIES CO., LTD. MEASUREMENT AND PERFORMANCE PAGE : 6/10 70 cm @ 0.9 GHz, 50 cm @1.8 GHz, 44 cm @2.4 GHz, 28 cm @5.8 GHz, 16 cm @18 GHz. Contractor should be aware of this anechoic chamber is going to be used for perform…

Text truncated - open the document above for the full version.

Reference No.: T110816402-RP1 FCC ID：KA2IR614B1 Report No.：T120116N01-RP1 Page 1 / 137 FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For Wireless N Home Router Model Number: DIR-614 Brand Name: D-Link Issued for D-Link Corporation No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: February 22, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T110816402-RP1 FCC ID：KA2IR614B1 Report No.：T120116N01-RP1 Page 2 / 137 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 January 31, 2012 Initial Issue ALL Sunny Chang 01 February 22, 2012 Add KDV No: KDB558074 & ANSI C63.4 and KDB913591 Page 86; 112 Sunny Chang Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 3 / 137 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 6 4. TEST METHODOLOGY............................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS.................................................................................... 7 5.1 FACILITIES............................................................................................................................................7 5.2 EQUIPMENT..........................................................................................................................................7 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................8 6. CALIBRATION AND UNCERTAINTY..................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................9 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT..................................................................................................10 7.2 SUPPORT EQUIPMENT.....................................................................................................................11 7.3 EUT OPERATING CONDITION.........................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................28 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................32 8.4 POWER SPECTRAL DENSITY..........................................................................................................34 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................53 8.6 RADIATED EMISSIONS......................................................................................................................82 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................129 9. ANTENNA REQUIREMENT...................................................................................................... 133 9.1 STANDARD APPLICABLE..................................................................................................................133 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................133 APPENDIX SETUP PHOTOS........................................................................................................ 134 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 4 / 137 1. TEST REPORT CERTIFICATION Applicant D-Link Corporation Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Manufacturer Advance Multimedia Internet Technology Inc. Address No.28, Lane 31, Sec. 1, Huandong Rd., Sinshih District, Tainan City 74146, Taiwan Equipment Under Test Wireless N Home Router Model Number DIR-614 Brand Name D-Link Date of Test August 31, 2011 ~ September 02, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2008 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 5 / 137 2. EUT DESCRIPTION Product Name Wireless N Home Router Model Number DIR-614 Brand Name D-Link Received Date January 16, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz2452MHz Transmit Power IEEE…

Text truncated - open the document above for the full version.

Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 82 / 137 8.6 RADIATED EMISSIONS 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 83 / 137 § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz, However, operation within these frequency bands is permitted under other sections of this Part, e-g, Sections 15.231 and 15.241. § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 84 / 137 TEST EQUIPMENTS The following test equipments are utilized in making the measurements contained in this report. Open Area Test Site # 6 Name of Equipment Manufacturer Model Serial Number Calibration Due TYPE N COAXIAL CABLE SUHNER CHA9513 6 NOV. 15, 2012 BI-LOG Antenna Sunol JB1 A070506-2 OCT. 03, 2012 LOOP ANTENNA EMCO 6502 8905-2356 JUN. 10, 2012 Pre-Amplifier HP 8447F 2944A03817 NOV. 23, 2012 EMI Receiver R&S ESVS10 833206/012 MAY 31, 2012 RF Cable SUHNER SUCOFLEX104PEA 20520/4PEA NOV. 10, 2012 Horn Antenna Com-Power AH-118 071032 DEC. 27, 2012 Spectrum Analyzer R&S FSEK 30 835253/002 SEP. 29, 2012 Pre-Amplifier MITEQ AFS44-00108650-42-10 P-44 1205908 NOV. 23, 2012 3116 Double Ridge Antenna (40G) ETS-LINDGREN EMCO-003 00078 NOV. 14, 2012 Turn Table Yo Chen 001 ---------- N.C.R. Antenna Tower AR TP1000A 309874 N.C.R. Controller CT SC101 ---------- N.C.R. RF Swicth E-INSTRUMENT TELH LTD ERS-180A EC1204141 N.C.R Power Meter Anritsu ML2487A 6K00003888 MAY 30, 2012 Power Sensor Anritsu MA2491A 33265 MAY 30. 2012 Temp./Humidity Chamber K.SON THS-M1 242 AUG. 09, 2012 Signal Generator HP 8673C 2938A00663 SEP. 12, 2012 Test S/W e-3 (5.04303e) Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 85 / 137 TEST SETUP The diagram below shows the test setup that is utilized to make the measurements for emission from 30 to 1GHz. 3m EUT & PERIPHERALS PERIPHERALS Antenna Elevation Variable The diagram below shows the test setup that is utilized to make the measurements for emission above 1GHz. 3m EUT & PERIPHERALS PERIPHERALS Antenna Elevation Variable Reference No.: T110816402-RP1 FCC ID：KA2IR614B1 Report No.：T120116N01-RP1 Page 86 / 137 TEST PROCEDURE Reference FCC document : KDB558074 & ANSI C63.4 a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. White measuring the radiated emission below 1GHz, the EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. White measuring the radiated emission above 1GHz, the EUT was set 3 meters away from the interference-receiving antenna c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarization of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10 dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10 dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. NOTE： 1. T…

Text truncated - open the document above for the full version.

Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 134 / 137 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 135 / 137 RADIATED RF MEASUREMENT SETUP Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 136 / 137 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T110816402-RP1 FCC IDKA2IR614B1 Report No.T120116N01-RP1 Page 137 / 137 CONDUCTED EMISSION SETUP
