KA2IR615E3D-Link DIR-615 Wireless N Router

1D-Link DIR-615 User Manual Section 1 - Product Overview Product Overview Note: Using a power supply with a different voltage rating than the one included with the DIR-615 will cause damage and void the warranty for this product. Package Contents D-Link DIR-615 Wireless N Router Power Adapter Ethernet Cable CD-ROM D-Lnk DIR-615 User Manual Secton 1 - Product Overvew Network.Requirements • An Ethernet-based Cable or DSL modem • IEEE 802.11n-draft/g wireless clients • 10/100 Ethernet Web-based.Configuration. Utility.Requirements Computer.with.the.following: • Windows ® , Macintosh, or Linux-based operating system • An installed Ethernet adapter Browser.Requirements: • Internet Explorer 6 or higher • Mozilla 1.7.12 or higher • Firefox 3.0 or higher • Safari 3 or higher • Flock 0.7.14 or higher • Opera 6.0 or higher Windows ® .Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version. CD.Installation.Wizard. Requirements Computer.with.the.following: • Windows ® XP with Service Pack 2 or Vista ® • An installed Ethernet adapter • CD-ROM drive System Requirements D-Lnk DIR-615 User Manual Secton 1 - Product Overvew •. Faster.Wireless.Networking - The DIR-615 provides up to 300Mbps* wireless connection with other 802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio. •. Compatible.with.802.11g.Devices - The DIR-615 is still fully compatible with the IEEE 802.11g standard, so it can connect with existing 802.11g PCI, USB and Cardbus adapters. •. Advanced.Firewall.Features - The Web-based user interface displays a number of advanced network management features including: • Content.Filtering - Easily applied content filtering based on MAC Address, URL, and/or Domain Name. • Filter.Scheduling - These filters can be scheduled to be active on certain days or for a duration of hours or minutes. • Secure.Multiple/Concurrent.Sessions - The DIR-615 can pass through VPN sessions. It supports multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-615 can securely access corporate networks. •. User-friendly.Setup.Wizard - Through its easy-to-use Web-based user interface, the DIR-615 lets you control what information is accessible to those on the wireless network, whether from the Internet or from your company’s server. Configure your router to your specific settings within minutes. * Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. Features 4D-Link DIR-615 User Manual Section 1 - Product Overview Hardware Overview Connections Power Receptor Receptor for the supplied power adapter. LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs. Reset Pressing the Reset button restores the router to its original factory default settings. Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem. 5D-Link DIR-615 User Manual Section 1 - Product Overview WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission. Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission. Power LED A solid light indicates a proper connection to the power supply. Local Network LEDs A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission. Hardware Overview LEDs 6D-Lnk DIR-615 User Manual Secton  - Installaton Before you Begin This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage. • Please configure the router with the computer that was last connected directly to your modem. • You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet). • If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet. • When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is connected to the Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect your computer back to the modem and make sure you are online. Installation D-Lnk DIR-615 User Manual Secton  - Installaton Wireless Installation Considerations The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1 . Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. 2 . Be aware of the direct …

Text truncated - open the document above for the full version.

1D-Lnk DIR-615 User Manual Secton  - Configuraton Access Control Check the Enable.Access.Control check box and click the Add. Policy button to start the Access.Control.Wizard. Add Policy: The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games. Click Next to continue with the wizard. Access Control Wizard D-Lnk DIR-615 User Manual Secton  - Configuraton Enter a name for the policy and then click Next to continue. Access Control Wizard (continued) Select a schedule (I.E. Always) from the drop-down menu and then click Next to continue. Enter the following information and then click Next to continue. • Address.Type - Select IP address, MAC address, or Other Machines. • IP.Address - Enter the IP address of the computer you want to apply the rule to. D-Lnk DIR-615 User Manual Secton  - Configuraton Select the filtering method and then click Next to continue. Access Control Wizard (continued) Enter the rule: Enable - Check to enable the rule. Name - Enter a name for your rule. Dest.IP.Start - Enter the starting IP address. Dest.IP.End - Enter the ending IP address. Protocol - Select the protocol. Dest.Port.Start - Enter the starting port number. Dest.Port.End - Enter the ending port number. To enable web logging, click Enable. Click Save to save the access control rule. D-Lnk DIR-615 User Manual Secton  - Configuraton Select Deny or Allow computers access to only these sites. Click to delete all entries in the list. Enter the keywords or URLs that you want to allow or deny. Configure Website Filter Below: Clear the list below: Website URL/ Domain: Website Filters Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through the network. To use this feature select to Allow or Deny, enter the domain or website and click Add, and then click Save.Settings. You must also select Apply.Web.Filter under the Access Control section (page 40). 5D-Lnk DIR-615 User Manual Secton  - Configuraton Enter a name for the inbound filter rule. Select Allow or Deny. Check to enable rule. Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify an IP range. E n t e r t h e e n d i n g I P a d d r e s s . E n t e r 255.255.255.255 if you do not want to specify and IP range. Click the Save button to apply your settings. You must click Save Settings at the top to save the settings. This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule. Name: Action: Enable: Source IP Start: Source IP End: Save: Inbound Filter Rules List: The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can configure inbound data filtering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote Administration features. Inbound Filters 6D-Lnk DIR-615 User Manual Secton  - Configuraton SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol. Select one of the following for TCP and UDP ports: Endpoint.Independent.- Any incoming traffic sent to an open port will be forwarded to the application that opened the port. The port will close if idle for 5 minutes. Address.Restricted - Incoming traffic must match the IP address of the outgoing connection. Address.+. Port.Restriction - Incoming traffic must match the IP address and port of the outgoing connection. Enable this option to provide protection from certain kinds of “spoofing” attacks. If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer. Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort. Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains its IP address automatically using DHCP, be sure to make a static reservation on the System.>. Network. Settings page so that the IP address of the DMZ machine does not change. Enable SPI: NAT Endpoint Filtering: Enable Anti-Spoof Checking: Enable DMZ Host: IP Address: Firewall Settings A firewall protects your network from the outside world. The D-Link DIR-615 offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world. D-Lnk DIR-615 User Manual Secton  - Configuraton Routing This page allows you to specify custom routes that determine how data is moved around your network. Routing List: Name: Destination IP: Netmask: Gateway: Each Route has a checkbox next to it, check the box of the route you wish to enable. Specify a name for identification of this route. Enter the address of the host or network you wish to access. This field identifies the portion of the destination IP in use. The IP address of the router will be displayed here. D-Lnk DIR-615 User Manual Secton  - Configuraton Set the transmit power of the antennas. Beacons are packets sent by an Access Point to synchronize a wireless network. Specify a value. 100 is the default setting and is recommended. This value should remain at its default setting of 2432. If inconsistent data flow is a problem, only a minor…

Text truncated - open the document above for the full version.

1D-Lnk DIR-615 User Manual Secton  - Configuraton Dynamic Domain Name System is a method of keeping a domain name linked to a changing IP Address. Check the box to enable DDNS. Choose your DDNS provider from the drop down menu. Enter the Host Name that you registered with your DDNS service provider. Enter the Username for your DDNS account. Enter the Password for your DDNS account. Enter a time (in hours). Displays the current connection status to your DDNS server. DDNS: Server Address: Host Name: Username or Key: Password or Key: Timeout: Status: DDNS The DDNS feature allows you to host a server (Web, FTP, Game Server, etc...) using a domain name that you have purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is. D-Lnk DIR-615 User Manual Secton  - Configuraton System Check The Ping Test is used to send Ping packets to test if a computer is on the Internet. Enter the IP Address that you wish to Ping, and click Ping. The results of your ping attempts will be displayed here. Ping Test: Ping Results: D-Lnk DIR-615 User Manual Secton  - Configuraton Enter a name for your new schedule. Select a day, a range of days, or All Week to include every day. Check All.Day.-. 24hrs or enter a start and end time for your schedule. Click Save to save your schedule. You must click Save Settings at the top for your schedules to go into effect. The list of schedules will be listed here. Click the Edit icon to make changes or click the Delete icon to remove the schedule. Name: Days: Time: Save: Schedule Rules List: Schedules D-Lnk DIR-615 User Manual Secton  - Configuraton This page displays the current information for the DIR-615. It will display the LAN, WAN (Internet), and Wireless information. If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP. If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection. See the following page for more information. Device Information 5D-Lnk DIR-615 User Manual Secton  - Configuraton Displays the router’s time and firmware version. Displays the MAC address and the public IP settings for the router. Displays the MAC address and the private (local) IP settings for the router. Displays the wireless MAC address and your wireless settings such as SSID and Channel. Displays computers and devices that are connected to the router via Ethernet and that are receiving an IP address assigned by the router (DHCP). Displays the Multicast Group IP Address. General: WAN: LAN: Wireless LAN: LAN Computers: IGMP Multicast Memberships: 6D-Lnk DIR-615 User Manual Secton  - Configuraton Log What to View: View Levels: Apply Log Settings: Refresh: Clear: Email Now: Save Log: You can select the types of messages that you want to display from the log. Firewall & Security, System, and Router Status messages can be selected. There are three levels of message importance: Informational, Warning, and Critical. Select the levels that you want displayed in the log. Will filter the log results so that only the selected options appear. Updates the log details on the screen so it displays any recent activity. Clears all of the log contents. This option will send a copy of the router log to the e-mail address configured in the Tools. >. Email. Settings screen. This option will save the router to a log file on your computer. The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can define what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log files to a computer on your network that is running a Syslog utility. D-Lnk DIR-615 User Manual Secton  - Configuraton Stats The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DIR-615 on both the Internet and the LAN ports. The traffic counter will reset if the device is rebooted. D-Lnk DIR-615 User Manual Secton  - Configuraton Internet Sessions The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer. Local: NAT: Internet: Protocol: State: Dir: The IP address and, where appropriate, port number of the local application. The port number of the LAN-side application as viewed by the WAN-side application. The IP address and, where appropriate, port number of the application on the Internet. The communications protocol used for the conversation. State for sessions that use the TCP protocol: NO: None -- This entry is used as a placeholder for a future connection that may occur. SS: SYN Sent -- One of the systems is attempting to start a connection. EST: Established -- the connection is passing data. FW: FIN Wait -- The client system has requested that the connection be stopped. CW: Close Wait -- The server system has requested that the connection be stopped. TW: Time Wait -- Waiting for a short time while a connection that was in FIN Wait is fully closed. LA: Last ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed. CL: Closed -- The connection is no longer active but the session is being tracked in case th…

Text truncated - open the document above for the full version.

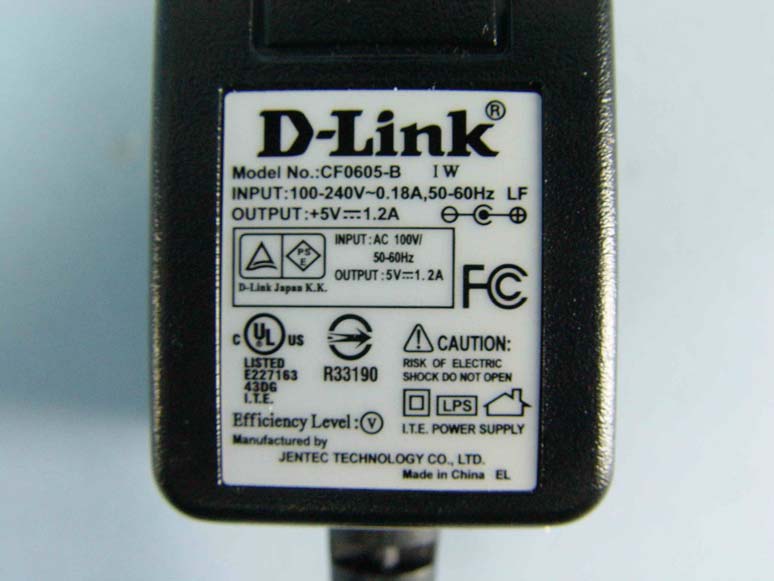

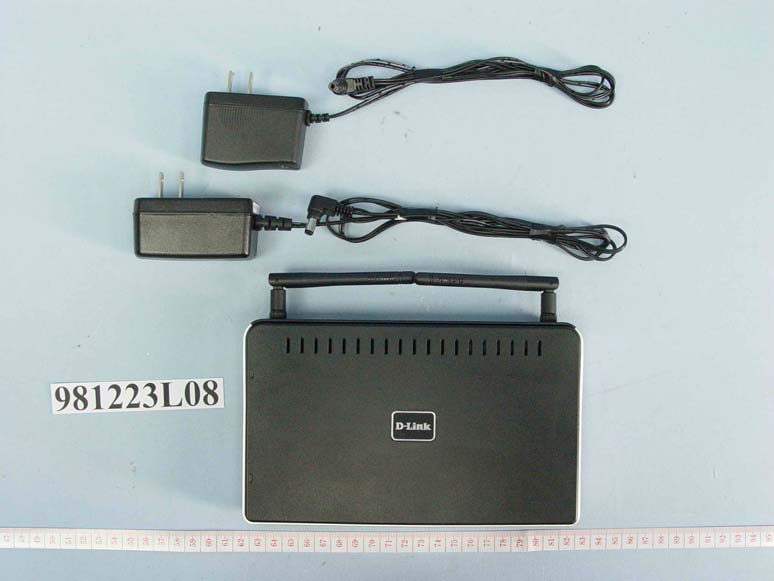

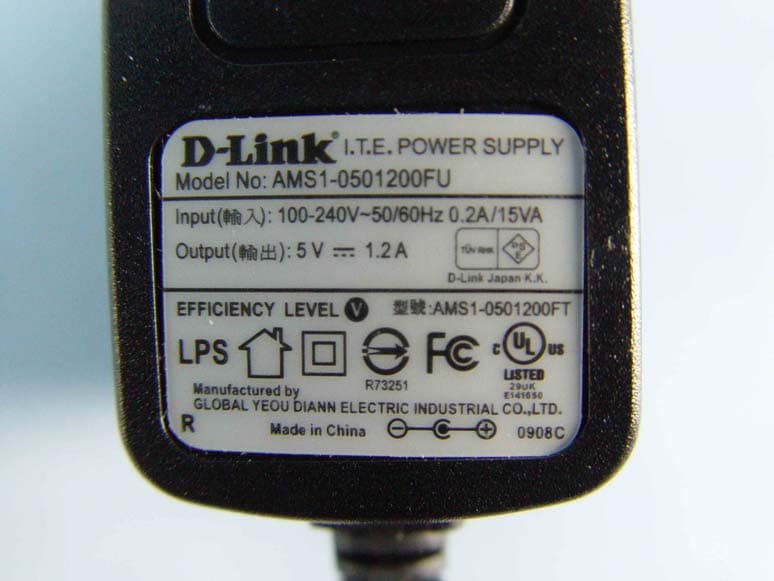

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Fixed antenna Page 2 Page 3 EUT with Detachable antenna Page 4 Page 5

49mm 100.5mm

FCC ID: KA2IR615E3 Label Location

Page 6 EUT with Fixed antenna Page 7 Page 8 Page 9 Page 10 Page 11 EUT with Detachable antenna Page 12 Page 13 Page 14 Page 15

FCC ID: KA2IR615E3 Report No.: RF981223L08 Operational Description This device is a D-Link DIR-615 Wireless N Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is dipole antenna without connector(fixed antenna) or with R-SMA connector(detachable antenna). The other instruction, please have a look at the users manual.

Report No.: SA981223L08 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA981223L08 MODEL NO.: DIR-615 FCC ID: KA2IR615E3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA981223L08 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.9 2 20 0.121 1.00

Report No.: RF981223L08 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF981223L08 MODEL NO.: DIR-615 RECEIVED: Dec. 23, 2009 TESTED: Dec. 28, 2009 ~ Jan. 05, 2010 ISSUED: Jan. 06, 2010 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981223L08 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY........................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4. TEST TYPES AND RESULTS ............................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 13 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 14 4.1.5 TEST SETUP......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 32 4.2.2 TEST INSTRUMENTS........................................................................................... 32 4.2.3 TEST PROCEDURES ........................................................................................... 33 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 33 4.2.5 TEST SETUP......................................................................................................... 34 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 34 4.2.7 TEST RESULTS .................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 43 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 43 4.3.2 TEST INSTRUMENTS........................................................................................... 43 4.3.3 TEST PROCEDURE.............................................................................................. 43 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 43 4.3.5 TEST SETUP......................................................................................................... 44 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 44 4.3.7 TEST RESULTS .................................................................................................... 45 4.4 MAXIMUM OUTPUT POWER ............................................................................... 49 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 49 4.4.2 INSTRUMENTS..................................................................................................... 49 Report No.: RF981223L08 3 Report Format Version 3.0.1 4.4.3 TEST PROCEDURES ........................................................................................... 49 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 50 4.4.5 TEST SETUP......................................................................................................... 50 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 50 4.4.7 TEST RESULTS .................................................................................................... 51 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 52 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 52 4.5.2 TEST INSTRUMENTS...................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A 2 CONDUCTED EMISSION TEST TEST MODE B 3 CONDUCTED EMISSION TEST TEST MODE C 4 CONDUCTED EMISSION TEST TEST MODE D 5 RADIATED EMISSION TEST TEST MODE A 6 RADIATED EMISSION TEST TEST MODE B 7 RADIATED EMISSION TEST TEST MODE C 8 RADIATED EMISSION TEST TEST MODE D
