KA2IR615S1Wireless router

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE&ICA -1-1304C019 Date of Issue: Apr. 23, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless router Model Name DIR-617; GO-RT-N300; DIR-615S1 Brand Name D-Link Applicant D-LINK Corporation Address No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Measurement FCC Part 15, Subpart B: 2012 Standard(s) ANSI C63.4 (2009) The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE&ICA-1-1304C019) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

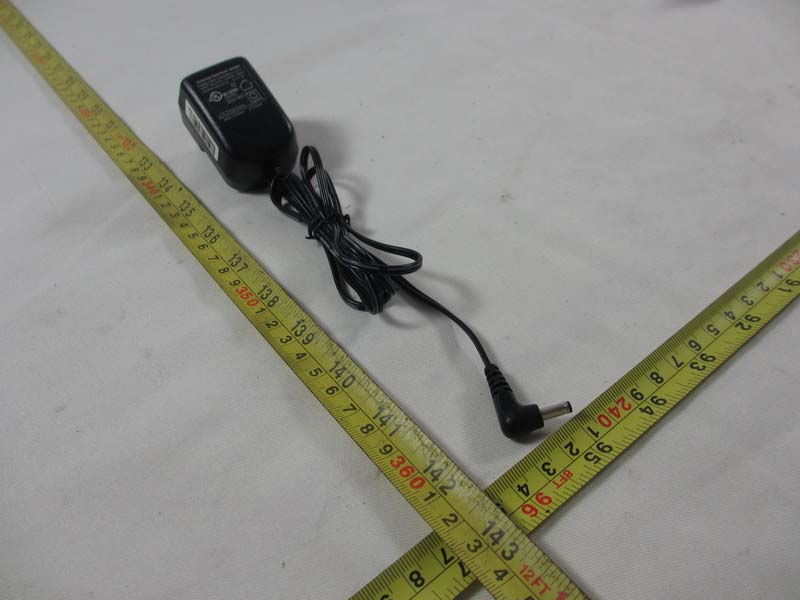

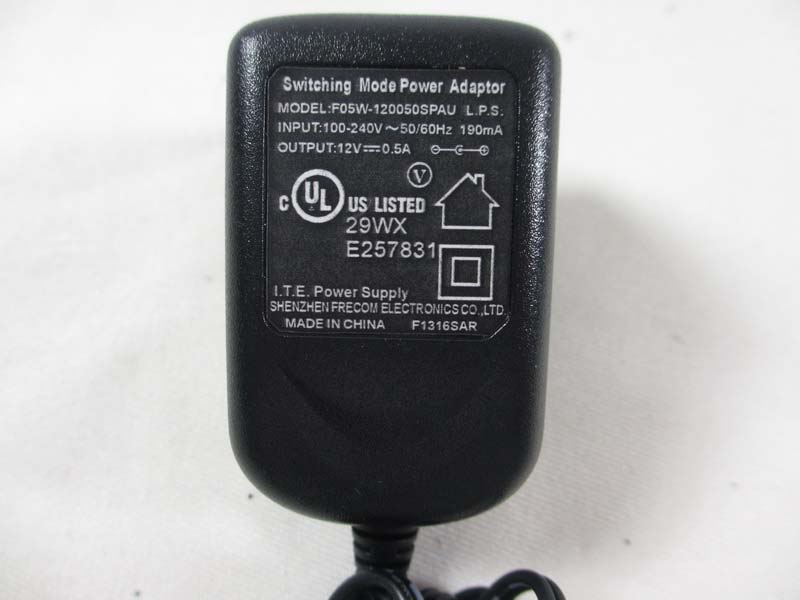

Neutron Engineering Inc. Project No.: 1304C019 Page 2 of 9 Neutron Engineering Inc. Project No.: 1304C019 Page 3 of 9 Neutron Engineering Inc. Project No.: 1304C019 Page 4 of 9 Adapter: F05W-120050SPAU Neutron Engineering Inc. Project No.: 1304C019 Page 5 of 9 Adapter :S06A22-120A050-PB

99.5 2 7 . 5 0- 0 . 2 608000017991 130607 1.以下内容由供应商印刷 MAC ID由客户提供 WPS PIN由MAC生成 默认条码类型：CODE 39 0 -0.2 FCC ID:KA2IR615S1 IC:4216A-IR615S1 DIR-617 DIR-617 99.5 2 7 . 5 0- 0 . 2 608000017991 GO-RT-N300 E 130411 MAC ID由客户提供 WPS PIN由MAC生成 默认条码类型：CODE 39 0 -0.2 FCC ID:KA2IR615S1 IC:4216A-IR615S1 99.5 2 7 . 5 0 0 - 0 . 2 -0.2 DIR-615 608000019484 20130603 FCC ID:KA2IR615S1 IC:4216A-IR615S1 1 2 3 4 A B C D 56 1 2 3 4 56 A B C D 60°~90°/0.5°30°~60°/0.3° 0°~30°/0.1° 0.3 0.1 0.8 C2 0.5 1.3 1.5 0.2 0.1 0.3 0.25 0.5 0.7 C4 0.5 0.2 1.5 1.2 3 4 C3 0.15 0.4 0.9 1.2 1.8 2.5 C1 ANG.TOL± RANGE 0~6 80~180 30~80 6~30 315~500 180~315 DIM TOL± PART NO: MODEL: FINISH MAT'L UNIT'S SHENZHEN GONGJIN ELECTRONICS CO., LTD. VER: SHEET SCALE DRAW CHECK PDE 6080000xxxxx 1 / 1 1:1 A0mm CUSTOMER: TITLE: DATE: 12-07-19 FCC Label 1.80.9 5 3 500~800 N/A DIR-825&815&651 xxxx D-LINK 徐志娟 9 . 0 40.0 +0 -0.2 + 0 - 0 . 2 1. 黑色印刷，无边框, R1.0 2.材料: 80g 铜版纸,背面附胶 3. 材料,印刷原料,印刷工艺均能满足ROHS指令要求. NOTES(技术要求）: (Material:80g copperplate paper,back with glue) (Black printing,no frame,R1.0) (All Materials and process technologies should be compliant with RoHS) 来料方式:卷装 Editor Description Remark Date

Neutron Engineering Inc. Project No.: 1304C019 Page 6 of 9 Neutron Engineering Inc. Project No.: 1304C019 Page 7 of 9 Neutron Engineering Inc. Project No.: 1304C019 Page 8 of 9 Neutron Engineering Inc. Project No.: 1304C019 Page 9 of 9

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: KA2IR615S1 IC: 4216A-IR615S1 Project No. : 1304C019 Equipment : Wireless router Model : DIR-617; GO-RT-N300; DIR-615S1 Applicant : D-LINK CORPORATION Address : No. 289, Sinhu 3rd Rd., Neihu District, Taiwan According: : FCC Guidelines for Human Exposure IEEE C95.05.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Table for Filed Antenna Ant. Brand Model Name Antenna TypeConnector Gain (dBi) Note 1 GONGJIN 800000000106 Integral Antenna N/A 2.5 TX/RX 2 GONGJIN 800000000106 Integral Antenna N/A 2.5 TX/RX Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Neutron Engineering Inc. TEST RESULTS EUT： Wireless Router Model Name ： DIR-617 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 17.01 50.2343 0.017780761 Complies 2.5 1.7783 16.85 48.4172 0.017137611 Complies 2.5 1.7783 17.03 50.4661 0.017862831 Complies EUT： Wireless Router Model Name ： DIR-617 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE CH01/CH06/CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 14.73 29.7167 0.010518421 Complies 2.5 1.7783 14.67 29.3089 0.010374101 Complies 2.5 1.7783 14.68 29.3765 0.010398011 Complies Neutron Engineering Inc. EUT： Wireless Router Model Name ： DIR-617 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N20MHz MODE CH01/CH06/CH11 ANT1 + ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 13.98 25.0035 0.008850141 Complies 2.5 1.7783 14.11 25.7632 0.009119071 Complies 2.5 1.7783 13.94 24.7742 0.008769011 Complies EUT： Wireless Router Model Name ： DIR-617 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1012 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N40MHz MODE CH03/CH06/CH09 ANT1 + ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.5 1.7783 14.07 25.5270 0.009035461 Complies 2.5 1.7783 13.99 25.0611 0.008870551 Complies 2.5 1.7783 14.23 26.4850 0.009374551 Complies Note: the calculation distance is 20cm

Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 1 of 160 FCC&IC Radio Test Report FCC ID: KA2IR615S1 IC: 4216A-IR615S1 This report concerns (check one) : Original Grant Class II Change Issued Date : Apr. 23, 2013 Project No. : 1304C019 Equipment : Wireless router Model Name : DIR-617; GO-RT-N300; DIR-615S1 Applicant : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Manufacturer : D-LINK Corporation Address : No.289, Sinhu 3rd Rd., Neihu District Taipei City 114, Taiwan, R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 01, 2013 Date of Test: Apr. 01, 2013 ~ Apr. 22, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 2 of 160 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 3 of 160 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 26 4.2.1 RADIATED EMISSION LIMITS 26 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 27 4.2.3 TEST PROCEDURE 28 4.2.4 DEVIATION FROM TEST STANDARD 28 4.2.5 TEST SETUP 29 4.2.6 EUT OPERATING CONDITIONS 30 4.2.7 TEST RESULTS (9K~ 30MHZ) 31 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 32 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 45 5 . BANDWIDTH TEST 93 5.1 APPLIED PROCEDURES / LIMIT 93 5.1.1 MEASUREMENT INSTRUMENTS LIST 93 5.1.2 TEST PROCEDURE 93 5.1.3 DEVIATION FROM STANDARD 93 5.1.4 TEST SETUP 93 5.1.5 EUT OPERATION CONDITIONS 93 5.1.6 TEST RESULTS 94 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 4 of 160 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 106 6.1 APPLIED PROCEDURES / LIMIT 106 6.1.1 MEASUREMENT INSTRUMENTS LIST 106 6.1.2 TEST PROCEDURE 106 6.1.3 DEVIATION FROM STANDARD 106 6.1.4 TEST SETUP 106 6.1.5 EUT OPERATION CONDITIONS 106 6.1.6 TEST RESULTS 107 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 110 7.1 APPLIED PROCEDURES / LIMIT 110 7.1.1 MEASUREMENT INSTRUMENTS LIST 110 7.1.2 TEST PROCEDURE 110 7.1.3 DEVIATION FROM STANDARD 110 7.1.4 TEST SETUP 110 7.1.5 EUT OPERATION CONDITIONS 110 7.1.6 TEST RESULTS 111 8 . POWER SPECTRAL DENSITY TEST 141 8.1 APPLIED PROCEDURES / LIMIT 141 8.1.1 MEASUREMENT INSTRUMENTS LIST 141 8.1.2 TEST PROCEDURE 141 8.1.3 DEVIATION FROM STANDARD 141 8.1.4 TEST SETUP 141 8.1.5 EUT OPERATION CONDITIONS 141 8.1.6 TEST RESULTS 142 9 . EUT TEST PHOTO 156 Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 5 of 160 1. CERTIFICATION Equipment : Wireless router Brand Name : D-Link Model Name : DIR-617; GO-RT-N300; DIR-615S1 Applicant : D-Link Technologies Co., Ltd. Factory : 1) Shenzhen Gongjin Electronics Co., Ltd. 2) TAICANG T&W Electronics Co., Ltd. Address : 1) No 2&3 Buildings, Mingwei Factory Area, Songgang Road West, No. A Building, 1#Songgang Road Songgang Sub-District, Shenzhen, Guangdong, 518105, P.R. China 2) Jiangnan Road 89, Ludu Town, Taicang, Jiangsu, 215412, P.R. China Date of Test : Apr. 01, 2013 ~ Apr. 22, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1304C019) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 6 of 160 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C RSS…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 156 of 160 9. EUT TEST PHOTO Conducted Measurement Photos Adapter: S06A22-120A050-PB Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 157 of 160 Conducted Measurement Photos Adapter: F05W-120050SPAU Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 158 of 160 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 159 of 160 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1304C019 Page 160 of 160 Radiated Measurement Photos Above 1000MHz
