KA2IR615Z1Wireless N300 Router

Version 1.00| 08/05/2021 User Manual DIR-615 / DIR-612 Wireless N300 Router i D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store TM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2021 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Preface RevisionDateDescription 1.00August 05, 2021Initial release. iiD-Link DIR-615 User Manual Table of Contents Table of Contents Package Contents .........................................................................1 System Requirements .................................................................2 I ntroduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 LED Indicators ........................................................................5 Back Panel ...............................................................................6 Installation .........................................................................7 Before you Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Completing Setup ........................................................................9 Setup Wizard ........................................................................10 Advanced Settings .............................................................11 Default Settings ..............................................................11 Router Mode ....................................................................12 AP Mode ............................................................................13 R epeater Mode ...............................................................13 Client Mode......................................................................14 WISP Repeater Mode ....................................................14 Configuration ...................................................................15 Home ..............................................................................................16 Internet ...................................................................................16 DIR-615/DIR-612 ...................................................................................17 Wi-Fi Clients ..........................................................................18 Settings ..........................................................................................19 Wizard .....................................................................................19 Internet ...................................................................................19 WAN ....................................................................................19 VLAN ...................................................................................55 DNS .....................................................................................57 WAN Failover ........................................................................59 Wireless network .................................................................60 Network ..................................................................................63 IPv4 .....................................................................................63 IPv6 .....................................................................................66 Functions .......................................................................................68 Firewall ...................................................................................68 Wi-Fi .........................................................................................76 Client management ......................................................76 WPS .....................................................................................77 WMM ..................................................................................78 Client ..................................................................................79 Client Shaping .................................................................81 Additional .........................................................................83 M AC Filter .........................................................................85 Advanced ...............................................................................87 UPnP IGD ...........................................................................87 R emote Access ................................................................88 TR-069 Client ...................................................................92 S tatic Route ......................................................................94 Dynamic DNS ..................................................................96 Bandwidth Control ........................................................97 Ports Settings ..................................................................98 iii D-Link DIR…

Text truncated - open the document above for the full version.

67 Section 4 - Configuration Clients List Clients list:Click the corresponding client(s) on this list to automatically add their information to the Static IP Addresses list. Refresh:Click here to refresh the connected clients list. Click OK to save changes or click the X in the upper right hand corner to cancel changes. Add/Static IP Addresses IP address:Specify the IP address you wish to reserve for the given client. MAC address:Specify the MAC address of the client for which the IP address is reserved. Hostname:Specify the Hostname of the client for which the IP address is reserved. Click OK to save changes or click the X in the upper right hand corner to cancel changes. 68 Section 4 - Configuration Functions IP Filter Firewall Filters Add:Click here to add a new filter to the firewall. For details, see IP Filter Create/Edit on page 69. Delete:If you have a selected one or more filters, click this button to delete the selected filter(s). No:Indicates the number of the filter. Name:Indicates the name of the filter. State:Indicates whether the is enabled or disabled. Action:Indicates the action taken when the filter is triggered. IP version:Indicate to which IP version the filter applies. The IP Filters page manages LAN users' access to the Internet. It is possible to permit access to the Internet for specified IP addresses within your LAN or to restrict access for specified IP addresses. You can also define filters for port access. The currently defined IP filters are displayed in the table. You may define up to 16 IP filtering rules. If you wish to remove a rule, click the corresponding check box to select it and then click Delete. If you wish to create a new rule, click the Add button. DIR-615 FW:1.0.0 69 Section 4 - Configuration IP Filter Create/Edit General Settings Enable rule:Toggle this switch to enable the rule. Name:Specify a name for the rule. This name is for reference only and does not affect functionality. Action:Choose the action to be taken when the rule is triggered. Choose Allow or Deny. Protocol:Choose which protocol to which the rule will apply. Choose from TCP/ UDP, TCP, UDP, ICMP, or <All> IP version:Choose if the rule should apply to IPv4 or IPv6. Destination IP Address Set as:Choose Range or single IP address to enter a specific IP address or ranges for the destination filter. Choose Subnet to specify a subnet only. Start/End IPv4/ IPv6 address: If you have selected Range or single IP address, specify an IP address range for the destination filter. To enter a single address, use only the Start IPv4/IPv6 address field and leave the End IPv4/IPv6 address field blank. Subnet IPv4/IPv6 address: If you have selected Subnet, specify the destination subnet to filter. Protocol:Indicates to which protocol(s) the filter applies. Source IP address:Indicates the IP address range and port(s) to which the filter applies. DIR-615 FW:1.0.0 70 Section 4 - Configuration IP Filter Create/Edit (cont) Source IP Address Set as:Choose Range or single IP address to enter a specific IP address or ranges for the source filter. Choose Subnet to specify a subnet only. Start/End IPv4/ IPv6 address: If you have selected Range or single IP address, specify an IP address range for the source filter. To specify a single address, use only the Start IPv4/IPv6 address field and leave the End IPv4/IPv6 address field blank. Subnet IPv4/IPv6 address: If you have selected Subnet, enter the source subnet to filter. Ports Destination port:Specify the destination port or ports to which the filter will apply. Specify multiple ports by separating them with commas. Specify port ranges by separating the beginning and end of the range with a colon. Set source port manually: Toggle this switch to specify source ports to which the filter will apply. Source port:If Set source port manually has been enabled, specify the source port to which the filter will apply. Specify multiple ports by separating them with commas. Specify port ranges by separating the beginning and end of the range with a colon. Click Apply when you are done. DIR-615 FW:1.0.0 71 Section 4 - Configuration DMZ This Demilitarized Zone (DMZ) feature directly exposes the client to the Internet, and is not recommended in ordinary situations. Enable:Toggle this switch to enable the DMZ feature. Enable NAT Loopback: Toggle this switch to enable NAT Loopback. NAT Loopback allows LAN devices to connect directly to the DMZ host by using the WAN IP address IP Address:If DMZ is enabled, specify the IP address of the DMZ host. Click Apply when you are done. DIR-615 FW:1.0.0 72 Section 4 - Configuration MAC Filter The MAC filter is used to restrict or allow certain types of Ethernet Frames through the gateway based on their source or destination MAC address. These filters are helpful in securing or restricting traffic on your local network. The currently defined MAC filters are displayed in the table. You may define up to 32 MAC filtering rules. If you wish to remove a rule, click the corresponding check box to select it and then click Delete. If you wish to create a new rule, click the Add button. Default Mode:Select Allow to allow all traffic except from MAC addresses in the List of exceptions with the Deny action. Select Deny to allow all traffic except from MAC addresses in the List of exceptions with the Allow action. List of exceptions Add:Click here to add a new filter to the firewall. For details, see Add Rule on page 73. Delete:If you have a selected one or more filters, click this button to delete the selected filter(s). No:If DMZ is enabled, specify the IP address of the DMZ host. Status:Indicates the number of the filter. Action:Indicates the action taken when the filter is triggered. MAC address:Indicates the MAC address to which the filter applies. Hostname:Indicates the hostname of the device to which the filter applies. DIR-615 FW:1.0.0 73 Section 4 - Configuration MAC Filter (cont) Add Rule Allow/Deny:Choose the action to be taken when the ru…

Text truncated - open the document above for the full version.

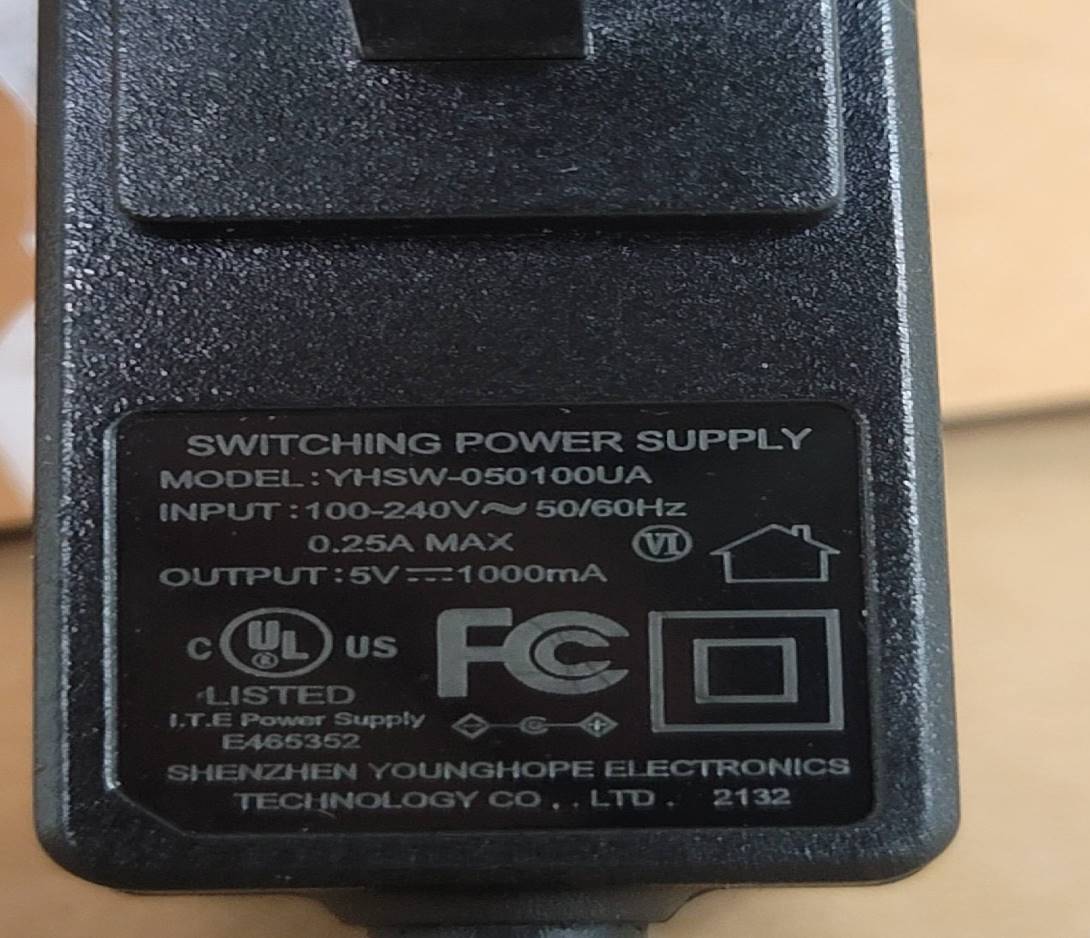

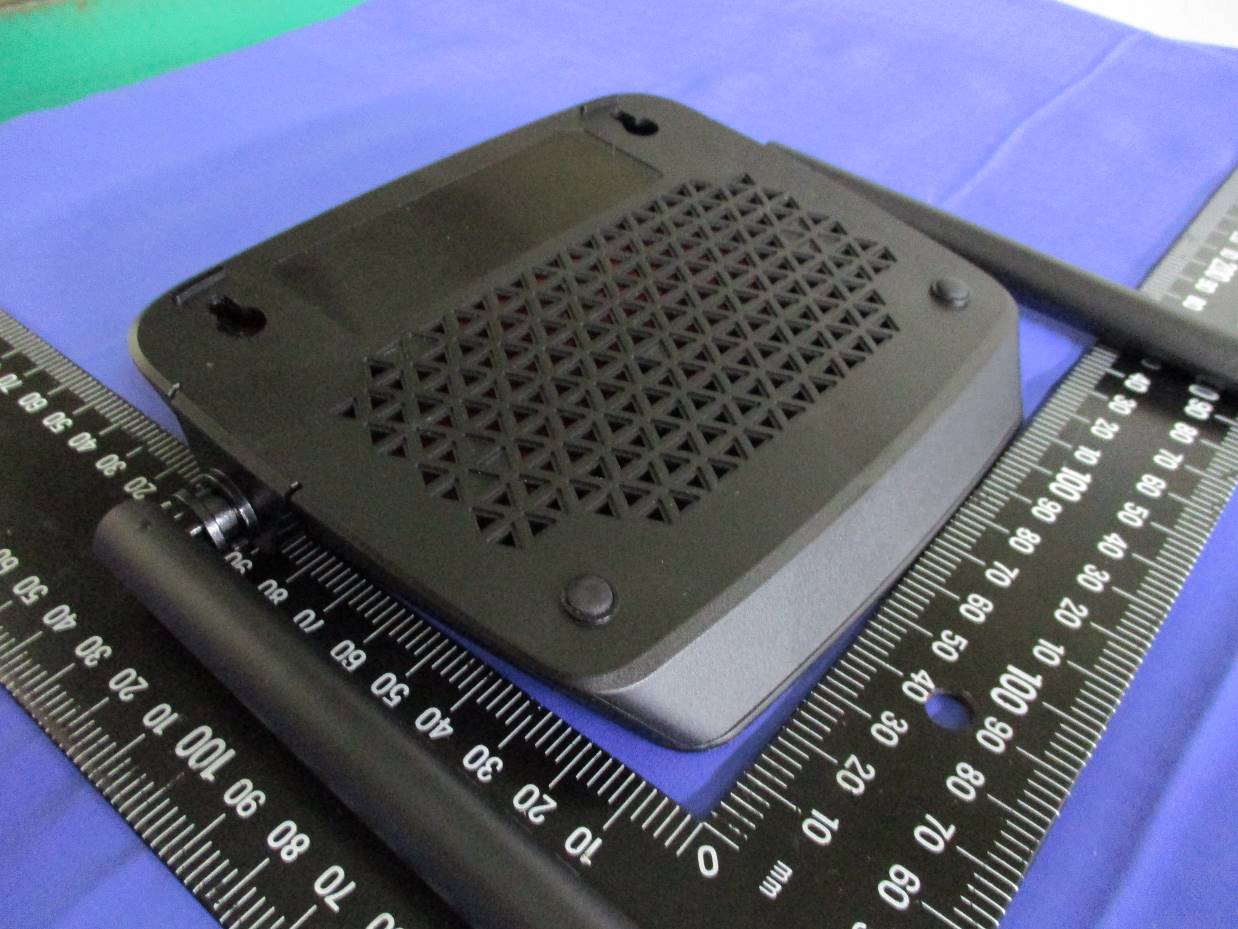

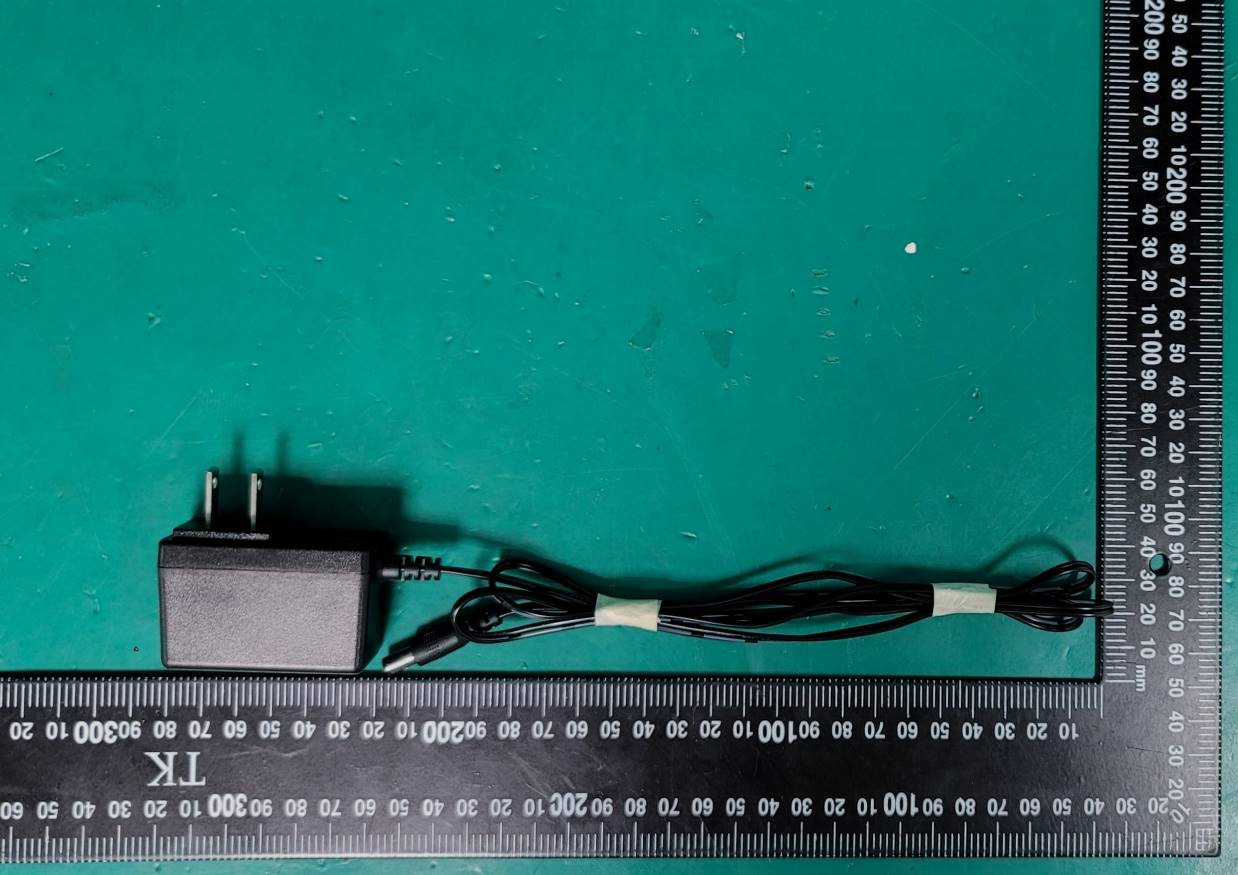

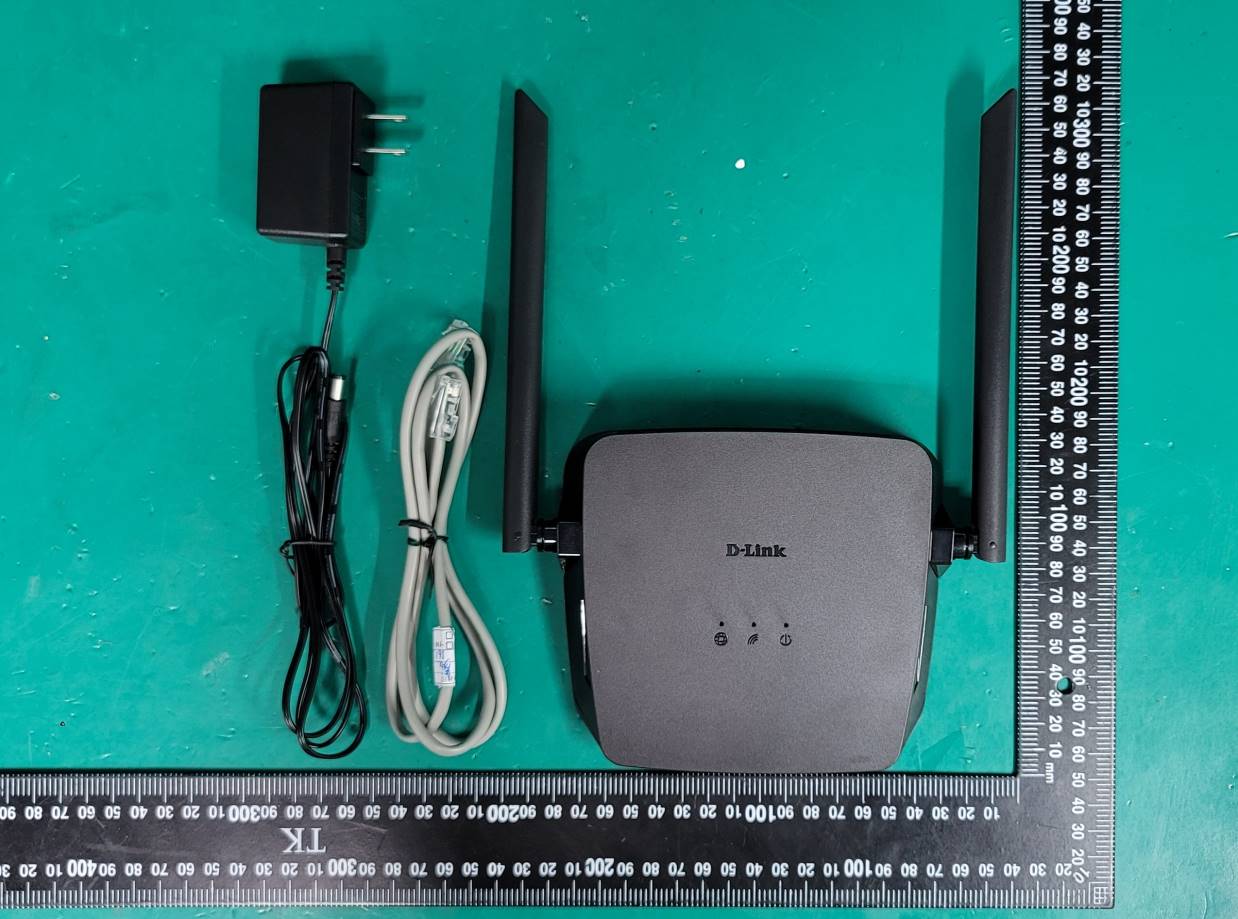

Page 1 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 External Photo (Model: DIR-615) Page 2 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 3 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 4 / 10 Report No.: T210729N01 Ref. No.: Rev. 00

Diagram The information will be placed in the manual (Page 130) and on the device packaging. Label location FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 5 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Internal Photo (Model: DIR-615) Page 6 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 7 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 8 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 9 / 10 Report No.: T210729N01 Ref. No.: Rev. 00 Page 10 / 10 Report No.: T210729N01 Ref. No.: Rev. 00

FCC ID.: KA2IR615Z1 Page: 1 / 8 Report No.: T210729N01-MF Rev.: 03 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Wireless N300 Router Model: DIR-615 Data Applies To: DIR-612 Trade Name: D-Link Issued to D-Link Corporation 14420 Myford Road Suite 100, Irvine, California 92606, United States Issued By Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) Issued Date: January 14, 2022 Page: 2 / 8 Report No.: T210729N01-MF Ref. No.: Rev.: 03 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 14, 2021 Initial Issue ALL Angel Cheng 01 December 24, 2021 See the following note rev.01 ALL Angel Cheng 02 January 10, 2022 See the following note rev.02 ALL Angel Cheng 03 January 14, 2022 See the following note rev.03 ALL Angel Cheng Note: ※ Rev.00 Issue Date: December 14, 2021 Original Report. ※ Rev.01 Issue Date: December 24, 2021 Revise Antenna gain & Numeric gain. ※ Rev.02 Issue Date: January 10, 2022 Revise Average output power & Tune up Power. ※ Rev.03 Issue Date: January 14, 2022 Revise Average output power & Tune up Power. Page: 3 / 8 Report No.: T210729N01-MF Ref. No.: Rev.: 03 TABLE OF CONTENTS 1. LIMIT ........................................................................................................................... 4 2. EUT SPECIFICATION ............................................................................................ 5 3. TEST RESULTS ...................................................................................................... 7 4. MAXIMUM PERMISSIBLE EXPOSURE............................................................ 8 Page: 4 / 8 Report No.: T210729N01-MF Ref. No.: Rev.: 03 1. TEST RESULT CERTIFICATION We hereby certify that: The equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirement of the applicable standards. The test record, data evaluation and Equipment under Test (EUT) configurations represented herein are true and accurate accounts of the measurement of the sample’s RF characteristics under the conditions specified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determining compliance shall be based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. Page: 5 / 8 Report No.: T210729N01-MF Ref. No.: Rev.: 03 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 3. EUT SPECIFICATION EUT Wireless N300 Router Model DIR-615 Data Applies To DIR-612 Brand D-Link RF Module Realtek Model: RTL8192FR Frequency band (Operating) 802.11b/g/n HT20: 2412MHz ~ 2462MHz 802.11n HT40: 2422MHz ~ 2452MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Two antenna (2TX2RX) Antenna 1: Type: RF Antenna Assembly Connector: i-pex Model: RF21C06560A Manufacturer: RenFeng Electronic technology Co., LTD. Gain: 5dBi Length: 150mm Antenna 2: Type: RF Antenna Assembly Connector: i-pex Model: RF21C06561A Manufacturer: RenFeng Electronic technology Co., LTD. Gain: 5dBi Length: 45mm RF Antenna Assembly / Gain: 5.0 dBi (Numeric gain: 3.16) MIMO / Directional Gain (For IEEE 802.11 n): 8.01 dBi (Numeric gain: 6.32) Maximum Average output power IEEE 802.11b Mode : 10.60 dBm (11.482 mW) IEEE 802.11g Mode : 12.92 dBm (19.588 mW) IEEE 802.11n HT20 Mode : 12.26 dBm (16.827 mW) IEEE 802.11n HT40 Mode : 11.31 dBm (13.521 mW) Maximum Tune up Power IEEE 802.11b Mode : 11.00 dBm (12.589 mW) IEEE 802.11g Mode : 13.50 dBm (22.387 mW) IEEE 802.11n HT20 Mode : 12.50 dBm (17.783 mW) IEEE 802.11n HT40 Mode : 12.00 dBm (15.849 mW) Page: 6 / 8 Report No.: T210729N01-MF Ref. No.: Rev.: 03 Evaluation applied MPE Evaluation* SAR Evaluation N/A Received Date July 29, 2021 Reported Date September 28, 2021 Rema…

Text truncated - open the document above for the full version.

FCC ID: KA2IR615Z1 Pa ge: 1 / 132 Report No.: T210729N01-RP1 Rev.: 03 No.8, Jiucengling, Xinhua Dist., Tainan City, Taiwan /台南市新化區礁坑里九層嶺8號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10: 2013 TEST REPORT For Wireless N300 Router Model: DIR-615 Data Applies To: DIR-612 Brand: D-Link Issued for D-Link Corporation 14420 Myford Road Suite 100, Irvine, California 92606, United States Issued by Compliance Certification Services Inc. Tainan Lab. No.8, Jiucengling, Xinhua Dist., Tainan Cit y, Taiwan Issued Date: January 14, 2022 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page: 2 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 14, 2021 Initial Issue ALL Gina Lin 01 December 24, 2021 See the following note rev.01 ALL Gina Lin 02 January 10, 2022 See the following note rev.02 ALL Gina Lin 03 January 14, 2022 See the following note rev.03 ALL Gina Lin Note: ※ Rev.01 Issue Date: December 24, 2021 Update supported equipment, all tables of test data and description of test mode s. ※ Rev.02 Issue Date: January 10, 2022 Update test data of 6dB bandwidth, output power, PPSD, conducted spurious emission and setup photo. ※ Rev.03 Issue Date: January 14, 2022 Revised PPSD limit. Page: 3 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION .............................................................................. 4 2. EUT DESCRIPTION ................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................. 7 4. TEST METHODOLOGY ............................................................................................. 8 5. FACILITIES AND ACCREDITATIONS ....................................................................... 8 5.1 FACILITIES ............................................................................................................................ 8 5.2 EQUIPMENT .......................................................................................................................... 8 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................... 9 6. CALIBRATION AND UNCERTAINTY ...................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................... 10 6.2 MEASUREMENT UNCERTAINTY ...................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST .................................................................. 11 7.1 SETUP CONFIGURATION OF EUT .................................................................................... 11 7.2 SUPPORT EQUIPMENT ..................................................................................................... 12 7.3 EUT OPERATING CONDITION .......................................................................................... 13 8. APPLICABLE LIMITS AND TEST RESULTS .......................................................... 15 8.1 6dB BANDWIDTH ................................................................................................................ 15 8.2 MAXIMUM PEAK OUTPUT POWER ................................................................................... 31 8.3 DUTY CYCLE ...................................................................................................................... 36 8.4 POWER SPECTRAL DENSITY ........................................................................................... 46 8.5 CONDUCTED SPURIOUS EMISSION ................................................................................ 61 8.6 RADIATED EMISSIONS ...................................................................................................... 86 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ..............................................................86 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHZ .............................................................91 8.6.3 TRANSMITTER RADI…

Text truncated - open the document above for the full version.

Page: 70 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 MODE ) ChainA CH Low (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 71 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 72 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH High (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 73 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 Page: 74 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 MODE ) ChainB CH Low (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 75 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 76 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH High (30MHz~26.5GHz) (802.11n HT20 MODE ) Page: 77 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 Page: 78 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) ChainA CH Low (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 79 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 80 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH High (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 81 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 Page: 82 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) ChainB CH Low (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 83 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 84 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 CH High (30MHz~26.5GHz) (802.11n HT40 MODE ) Page: 85 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 Page: 86 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 8.6 RADIATED EMISSIONS 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525 608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475 960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. Page: 87 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 30 - 88 100 ** 3 88 - 216 150 ** 3 216 - 960 200 ** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88 MHz, 174-216 MHz or 470-806 MHz, However, operation within these frequency bands is permitted under other sections of this Part, e-g, Sections 15.231 and 15.241. § 15.209 (b) In the emission table above, the tighter limit applies at the band edges. Page: 88 / 132 Re port No.: T210729N01-RP1 Ref. No.: Rev.: 03 TEST EQUIPMENTS The following test equipments are utilized in making the measurements contained in this report. Chamber Room #966 Name of Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Bilog Antenna With 6dB Attenator SUNOL SCIENCES & EMCI JB1 & AT-N0681 A070506-1 & AT-N0681 09/14/2020 09/13/2021 Cable Suhner SUCOFLEX104PEA 20520/4PEA&O6 01/29/2021 01/28/2022 Double Ridged Guide Horn Ante…

Text truncated - open the document above for the full version.
