  1. Home/
  2. D-Link Corporation/
  3. KA2IR632A1

KA2IR632A1WIRELESS N 8-port ROUTER

D-Link Corporation
WIRELESS N 8-port ROUTER - FCC ID KA2IR632A1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 14, 2010
Application Purpose
Original Equipment
Date of Application
Jun 14, 2010
Equipment Note
WIRELESS N 8-port ROUTER
Frequency Range
2412.00000000 - 2462.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

iD-Link DIR-632 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2010 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0February 22, 2010DIR-632 Revision A1 with firmware version 1.00 Preface iiD-Link DIR-632 User Manual Table of Contents Preface ................................................................................. i Manual Revisions ........................................................................... i Trademarks ...................................................................................... i Product Overview .............................................................. 1 Package Contents ......................................................................... 1 System Requirements ................................................................. 2 Introduction ................................................................................... 3 Features ............................................................................................ 4 Hardware Overview ..................................................................... 5 Connections ........................................................................... 5 LEDs ........................................................................................... 6 Installation ......................................................................... 7 Before you Begin ........................................................................... 7 Wireless Installation Considerations ...................................... 8 Connect to Cable/DSL/Satellite Modem .............................. 9 Connect to Another Router ....................................................10 Getting Started ............................................................................12 Configuration ................................................................... 13 Web-based Configuration Utility ..........................................13 Setup Wizard ........................................................................14 Manual Configuration .......................................................18 Dynamic (Cable) .............................................................18 PPPoE (DSL) ......................................................................19 PPTP ....................................................................................20 L2TP ....................................................................................21 Static (assigned by ISP) ................................................22 Wireless Settings .................................................................23 Manual Wireless Settings .................................................24 Network Settings ................................................................26 DHCP Server Settings ...................................................27 DHCP Reservation .........................................................29 USB Settings .........................................................................30 Virtual Server ........................................................................31 Port Forwarding ..................................................................33 Application Rules ................................................................34 QoS Engine............................................................................35 Network Filters .....................................................................36 Access Control .....................................................................37 Access Control Wizard ..................................................37 Website Filters ......................................................................40 Inbound Filters.....................................................................41 Firewall Settings ..................................................................42 SPI ........................................................................................42 NAT Endpoint Filter .......................................................42 Anti-Spoof Check ...........................................................42 DMZ ....................................................................................42 Routing ...................................................................................43 Advanced Wireless Settings ............................................44 RTS Threshold ..................................................................44 DTIM Interval ...................................................................44 WMM Function ...............................................................44 Advanced Network Settings ...........................................45 Table of Contents iiiD-Link DIR-632 User Manual Table of Contents UPnP ...................................................................................45 WAN Ping Block ..............................................................45 WAN Port Speed .............................................................45 Multicast Streams ..........................................................45 IPv6 ..........................................................................................46 Link-Local Connectivity ...............................................46 Static IPv6 (Stateful) ......................................................47 Static IPv6 (Stateless) ........…

Text truncated - open the document above for the full version.

Users Manual

85D-Link DIR-632 User Manual Section 4 - Security 5. Enter the same security key or passphrase that is on your router and click Ok. It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. 86D-Link DIR-632 User Manual Section 4 - Security Connect to a Wireless Network Using Windows Vista ® Windows Vista users may use the built-in wireless utility. If you are using another company’s utility or Windows 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows Vista utility as seen below. Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select Connect to a network. If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility. or The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 87D-Link DIR-632 User Manual Section 4 - Security Configure Wireless Security It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. 1. Open the Windows Vista ® Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network. 88D-Link DIR-632 User Manual Section 4 - Security 3. Enter the same security key or passphrase that is on your router and click Connect. It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. 89D-Link DIR-632 User Manual Section 4 - Security Connect Using WCN 2.0 The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista. The following instructions for setting this up depends on whether you are using Windows Vista to configure the router or third party software. When you first set up the router, Wi-Fi protection is disabled and unconfigured. To enjoy the benefits of Wi-Fi protection, the router must be both enabled and configured. There are three basic methods to accomplish this: use Windows Vista’s built-in support for WCN 2.0, use software provided by a third party, or manually configure. If you are running Windows Vista, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN button or Reset PIN to Default button. For additional information, please refer to page 79. If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are finished, proceed to the next section to set up the newly-configured router. 90D-Link DIR-632 User Manual Section 5 - Connecting to a Wireless Network Connect to a Wireless Network Using Windows ® XP Windows XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service Pack 2 users. If you are using another company’s utility or Windows 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows XP utility as seen below. Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select View Available Wireless Networks. If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility. or The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 91D-Link DIR-632 User Manual Section 5 - Connecting to a Wireless Network Configure WPA-PSK It is recommended to enable encryption on your wireless router or access point before configuring your wireless adapter. If you are joining an existing network, you will need to know the passphrase being used. 2. Highlight the wireless network (SSID) you would like to connect to and click Connect. 1. Open the Windows ® XP Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 92D-Link DIR-632 User Manual Section 5 - Connecting to a Wireless Network 3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase and click Connect. It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router. 93D-Link DIR-632 User Manual Section 6 - Troubleshooting Troubleshooting This chapter provides solutions to problems that can occur during the installation and operation of the DIR-632. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows ® XP. If you have a different operating system, the screenshots on your computer will look similar to the following examples.) 1. Why can’t I access the web-based configuration utility? Wh…

Text truncated - open the document above for the full version.

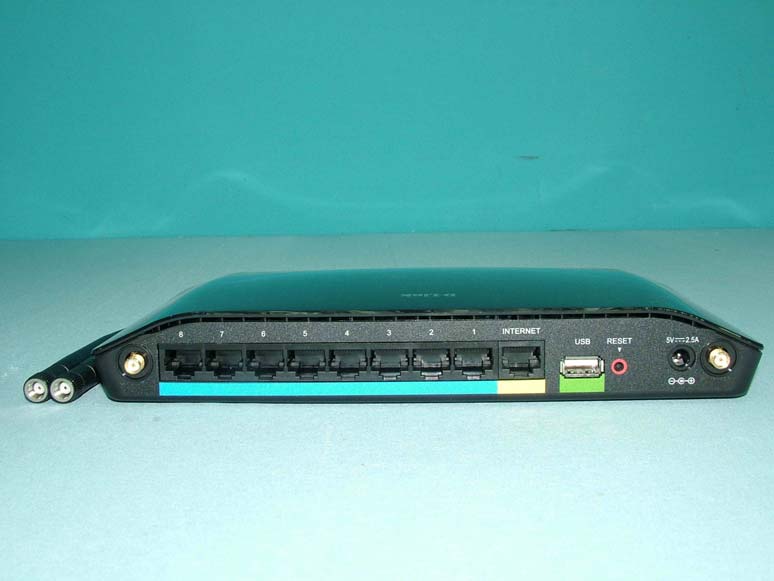

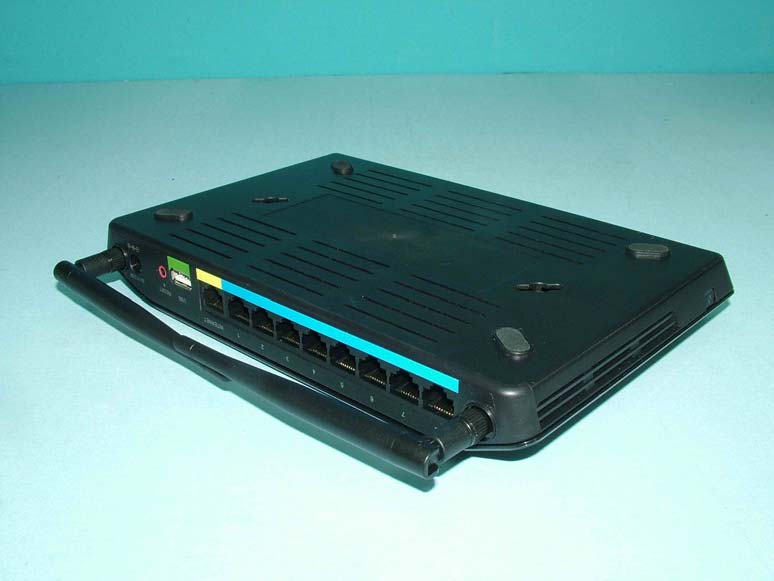

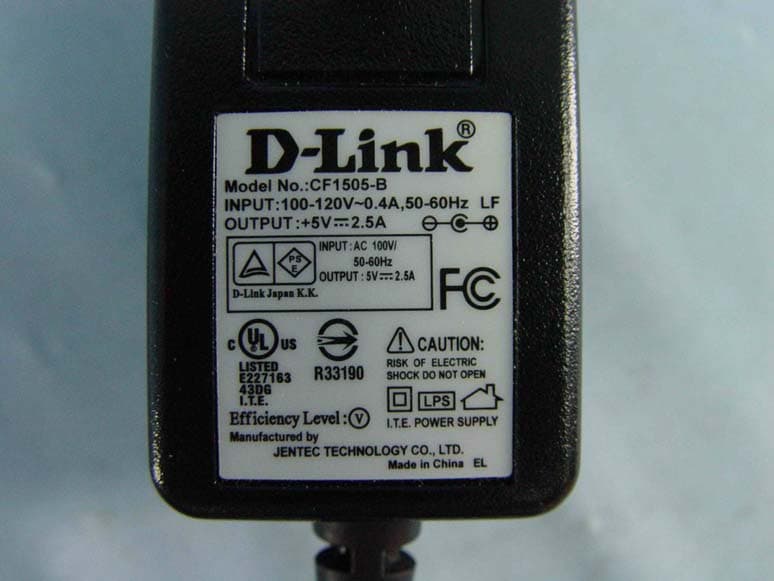

External Photos

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

ID Label/Location Info

Label Location FCC ID: KA2IR632A1

ID Label/Location Info

FCC ID: KA2IR632A1 Type: IR632A1 IC: 4216A-IR632A1

Internal Photos

Page 4 Page 5 Page 6 Page 7 Page 8

Operational Description

FCC ID: KA2IR632A1 Report No.: RF990427C12 Operational Description This device is a WIRELESS N 8-port ROUTER, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

RF Exposure Info

Report No.: SA990427C12 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990427C12 MODEL NO.: DIR-632 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990427C12 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.1 2 20 0.101 1.00

Test Report

Report No.: RF990427C12 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990427C12 MODEL NO.: DIR-632 RECEIVED: Apr. 27, 2010 TESTED: Apr. 30 ~ May 10, 2010 ISSUED: May 12, 2010 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990427C12 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY........................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4. TEST TYPES AND RESULTS ............................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 13 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 14 4.1.5 TEST SETUP......................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 29 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 29 4.2.2 TEST INSTRUMENTS........................................................................................... 29 4.2.3 TEST PROCEDURES ........................................................................................... 30 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 30 4.2.5 TEST SETUP......................................................................................................... 31 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 31 4.2.7 TEST RESULTS .................................................................................................... 32 4.3 6dB BANDWIDTH MEASUREMENT..................................................................... 34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 34 4.3.2 TEST INSTRUMENTS........................................................................................... 34 4.3.3 TEST PROCEDURE.............................................................................................. 34 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 34 4.3.5 TEST SETUP......................................................................................................... 35 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 35 4.3.7 TEST RESULTS .................................................................................................... 36 4.4 MAXIMUM OUTPUT POWER ............................................................................... 40 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT................................ 40 4.4.2 INSTRUMENTS..................................................................................................... 40 Report No.: RF990427C12 3 Report Format Version 3.0.1 4.4.3 TEST PROCEDURES ........................................................................................... 40 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 41 4.4.5 TEST SETUP......................................................................................................... 41 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 41 4.4.7 TEST RESULTS .................................................................................................... 42 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 43 4.5.2 TEST INSTRUMENTS...........................................…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchGary Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchWendy Liao
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz321.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. Device is a draft 802.11bgn router operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
