iD-Link DIR-657 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright Β© 2011 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0February 18, 2011β’ Initial release Preface iiD-Link DIR-657 User Manual Table of Contents Preface..................................................................................................i Manual Revisions ...............................................................................................i Trademarks ..........................................................................................................i Product.Overview...............................................................................1 Package Contents ...........................................................................................1 System Requirements ....................................................................................2 Introduction ......................................................................................................3 Features .....................................................................................................4 Hardware Overview ........................................................................................6 Connections .............................................................................................6 Hardware Overview ........................................................................................7 Front View .................................................................................................7 LEDs ............................................................................................................8 Installation..........................................................................................9 Before you Begin .............................................................................................9 Wireless Installation Considerations ......................................................10 Getting Started ..............................................................................................11 Configuration....................................................................................12 Web-based Configuration Utility .............................................................12 Setup Wizard ..........................................................................................13 Internet Connection ......................................................................13 Wireless Settings .............................................................................13 Manual Configuration ........................................................................17 Dynamic (Cable) ..............................................................................17 Internet Setup .......................................................................................18 PPPoE (DSL) ......................................................................................18 PPTP ....................................................................................................19 L2TP .....................................................................................................20 Static (assigned by ISP) .................................................................21 Wireless Settings ..................................................................................22 Network Settings..................................................................................23 DHCP Server Settings....................................................................24 DHCP Reservation ..........................................................................25 Media Server ..........................................................................................26 IPv6 Internet Connection ..................................................................27 IPv6 Manual Setup ...............................................................................28 Auto Detection ................................................................................28 Static IPv6 (Stateful) .......................................................................29 Static IPv6 (Stateless) ....................................................................30 Autoconfiguration (Stateful) ......................................................31 Autoconfiguration (Stateless) ....................................................32 PPPoE (Stateful) ...............................................................................33 PPPoE (Stateless).............................................................................35 IPv6 in IPv4 Tunneling (Stateful) ...............................................37 IPv6 in IPv4 Tunneling (Stateless) .............................................38 6 to 4 Tunneling (Stateful) ...........................................................39 6 to 4 Tunneling (Stateless) .........................................................40 6rd (Stateless) ..................................................................................41 6rd (Stateful) .....................................................................................42 Link-Local Connectivity ................................................................43 Table of Contents iiiD-Link DIR-657 User Manual Table of Contents Parental Controls .......................................................β¦
Text truncated - open the document above for the full version.

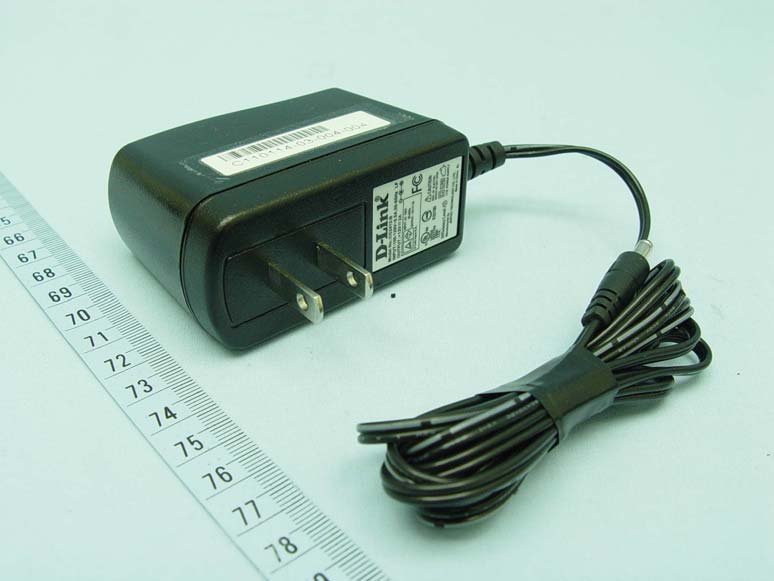

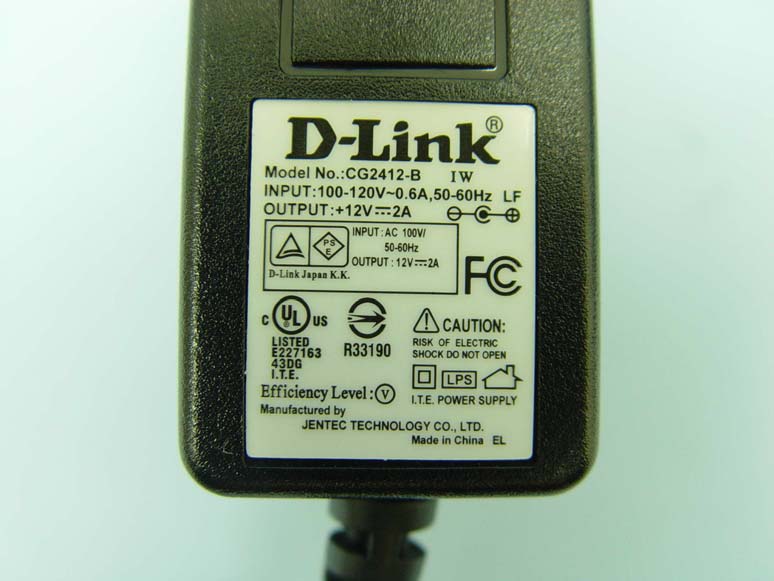

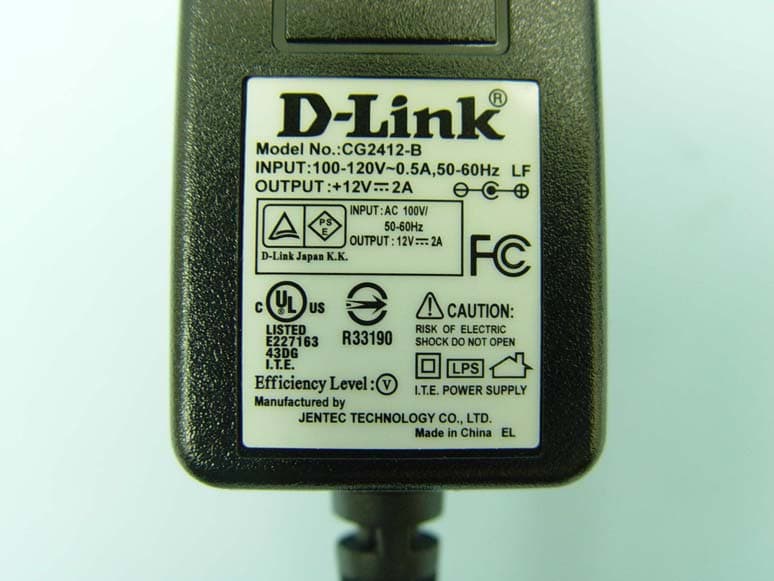

Page 1 CONSTRUCTION PHOTOS OF EUT Adapter Model: CG2412-B (100-120Vac) Page 2 Page 3 Adapter Model: CG2412-B IW (100-120Vac) Page 4 Adapter Model: CG2412-B (100-240Vac) Page 5 Page 6 Adapter Model: CG2412-B IW (100-240Vac) Page 7 Page 8 Page 9
Label Location
Page 10 Page 11 Page 12 Page 13 Page 14
FCC ID: KA2IR657A1 Report No.: RF110125C23 Operational Description This device is a HD Media Router 1000, which operates in 2.4GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc AC adapter. The antenna is PIFA antenna without antenna connector. For more detailed instruction, please take a look at the userβs manual.
Report No.: SA110125C23 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110125C23 MODEL NO.: DIR-657 FCC ID: KA2IR657A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. Report No.: SA110125C23 Report Format Version 4.0.0 2 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 14, 2011 Report No.: SA110125C23 Report Format Version 4.0.0 3 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MODULATION MODE FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 802.11b 2412-2462 24.9 5 20 0.194 1 802.11g 2412-2462 26.5 5 20 0.281 1 802.11n (20MHz) 2412-2462 26.4 2 20 0.138 1 802.11n (40MHz) 2422-2452 25.3 2 20 0.107 1 (802.11 b/g): Directional gain =2dBi + 10log(2)=5dBi
Report No.: RF110125C23 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110125C23 MODEL NO.: DIR-657 FCC ID: KA2IR657A1 RECEIVED: Jan. 14, 2011 TESTED: Jan. 26 ~ Mar. 17, 2011 ISSUED: Mar. 22, 2011 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF110125C23 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD...............................................................................................4 1. CERTIFICATION............................................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................................6 2.1 MEASUREMENT UNCERTAINTY.................................................................................6 3. GENERAL INFORMATION ............................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..............................................................................7 3.2 DESCRIPTION OF TEST MODES ................................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................13 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................14 4. TEST TYPES AND RESULTS .....................................................................................15 4.1 RADIATED EMISSION MEASUREMENT ...................................................................15 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................15 4.1.2 TEST INSTRUMENTS.................................................................................................16 4.1.3 TEST PROCEDURES .................................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD........................................................................17 4.1.5 TEST SETUP...............................................................................................................18 4.1.6 EUT OPERATING CONDITIONS ................................................................................18 4.1.7 TEST RESULTS ..........................................................................................................19 4.2 CONDUCTED EMISSION MEASUREMENT ..............................................................35 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................35 4.2.2 TEST INSTRUMENTS.................................................................................................35 4.2.3 TEST PROCEDURES .................................................................................................36 4.2.4 DEVIATION FROM TEST STANDARD........................................................................36 4.2.5 TEST SETUP...............................................................................................................37 4.2.6 EUT OPERATING CONDITIONS ................................................................................37 4.2.7 TEST RESULTS ..........................................................................................................38 4.3 6dB BANDWIDTH MEASUREMENT...........................................................................46 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................46 4.3.2 TEST INSTRUMENTS.................................................................................................46 4.3.3 TEST PROCEDURE....................................................................................................46 4.3.4 DEVIATION FROM TEST STANDARD........................................................................46 4.3.5 TEST SETUP...............................................................................................................47 4.3.6 EUT OPERATING CONDITIONS ................................................................................47 4.3.7 TEST RESULTS ..........................................................................................................48 4.4 MAXIMUM OUTPUT POWER .....................................................................................52 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT......................................52 4.4.2 INSTRUMENTS ...........................................................................................................52 Report No.: RF110125C23 3 Report Format Version 4.0.0 4.4.3 TEST PROCEDURES .................................................................................................52 4.4.4 DEVIATION FROM TEST STANDARD........................................................................53 4.4.5 TEST SETUP...............................................................................................................53 4.4.6 EUT Oβ¦
Text truncated - open the document above for the full version.
1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A 2 CONDUCTED EMISSION TEST TEST MODE B 3 CONDUCTED EMISSION TEST TEST MODE C 4 CONDUCTED EMISSION TEST TEST MODE D 5 RADIATED EMISSION TEST TEST MODE A 6 RADIATED EMISSION TEST TEST MODE B 7 RADIATED EMISSION TEST TEST MODE C 8 RADIATED EMISSION TEST TEST MODE D
