KA2IR813B1AC750 Dual Band Wi-Fi Router

QUICK INSTALLATION GUIDE AC750 DUAL BAND Wi-Fi ROUTER D I R - 813 КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ GUÍA DE INSTALACIÓN RÁPIDA GUIA DE INSTALAÇÃO RÁPIDA 快速安裝指南 PETUNJUK PEMASANGAN CEPAT D IR - 813 1 ENGLISH CONTENTS OF PACKAGING POWER ADAPTER 5 V / 1 A ETHERNET CABLE (CAT5 UTP) CONNECT THE ROUTER TO YOUR PC DURING SETUP If any of these items are missing from your packaging, contact your reseller. AC750 DUAL BAND Wi-Fi ROUTER DIR-813 CONTENTS D IR - 813 2 ENGLISH PRODUCT SETUP WEB-BASED SETUP Step 1 Position your DIR-813 near your Internet-connected modem and PC. Keep the router in an open area for better wireless coverage. Step 4 Open a browser on the connected computer and go to http://192.168.0.1. Select your Internet connection type (DHCP, PPPoE, or Static IP), and enter the Internet settings obtained from your Internet Service Provider (ISP). Click Connect to save the configuration. Step 2 Unplug the modem Ethernet cable connected to your computer and plug it into the port labeled ‘INTERNET’ on the router. Connect the supplied power adapter to the router and a power outlet, then verify that the power LED is on. Step 3 Plug one end of the supplied Ethernet cable into the port labeled ‘1’ on the back of the router, and the other end into the Ethernet port on your computer. Modem Router PC Modem Router PC Modem Router D IR - 813 3 ENGLISH TROUBLESHOOTING SETUP AND CONFIGURATION PROBLEMS 1. HOW DO I CONFIGURE MY DIR-813 ROUTER MANUALLY? - Connect your PC to the router using an Ethernet cable. - Open a web browser and enter the address 192.168.0.1. - The default username is Admin. The password should be left blank by default. - If you have changed the password and can not remember it, you will need to reset the router to return to an empty password field. 2. HOW DO I RESET MY DIR-813 ROUTER TO FACTORY DEFAULT SETTINGS? - Ensure the router is powered on. - Press and hold the reset button at the bottom of the device for 10 seconds. Note: Resetting the router to factory default will erase the current configuration settings. To re-configure your settings, log into the router as outlined in question 1, then run the Setup Wizard. 3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WI-FI NAME (SSID) OR WI-FI PASSWORD? - For every PC that needs to connect to the router wirelessly, you will need to ensure you use the correct Wi-Fi Name (SSID) and Wi-Fi password. - Use the web-based user interface (as described in question 1 above) to check or choose your wireless settings. - Make sure you write down these settings so that you can enter them for each wirelessly connected PC. The back of this document features an area to record this important information. 4. WHY CAN'T I GET AN INTERNET CONNECTION? - For ADSL users, please contact your ISP to make sure the service has been enabled/connected by your ISP and that your ISP username and password is correct. D IR - 813 4 ENGLISH TECHNICAL SUPPORT Australia: Tel: 1300-766-868 24/7 Technical Support Web: http://www.dlink.com.au E-mail: [email protected] India: Tel: +91-832-2856000 Toll Free 1800-233-0000 Web: www.dlink.co.in E-Mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: Singapore - www.dlink.com.sg Thailand - www.dlink.co.th Indonesia - www.dlink.co.id Malaysia - www.dlink.com.my Philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: Tel : +82-2-2028-1810 Monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr E-mail : [email protected] New Zealand: Tel: 0800-900-900 24/7 Technical Support Web: http://www.dlink.co.nz E-mail: [email protected] South Africa and Sub Sahara Region: Tel: +27 12 661 2025 08600 DLINK (for South Africa only) Monday to Friday 8:30am to 9:00pm South Africa Time Web: http://www.d-link.co.za E-mail: [email protected] D-Link Middle East - Dubai, U.A.E. Plot No. S31102, Jebel Ali Free Zone South, P.O.Box 18224, Dubai, U.A.E. Tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 Technical Support: +971-4-8809033 General Inquiries: [email protected] Tech Support: [email protected] Egypt 1, Makram Ebeid Street - City Light Building - floor 5 Nasrcity - Cairo, Egypt Tel.: +2 02 23521593 - +2 02 23520852 Technical Support: +2 02 26738470 General Inquiries: [email protected] Tech Support: [email protected] Kingdom of Saudi Arabia Office # 84 , Al Khaleej Building ( Mujamathu Al-Khaleej) Opp. King Fahd Road, Olaya Riyadh - Saudi Arabia Tel: +966 1121 70008 Technical Support: +966 1121 70009 General Inquiries: info.sa@ dlinkmea.com Tech Support: support.sa@ dlinkmea.com Pakistan Islamabad Office: 61-A, Jinnah Avenue, Blue Area, Suite # 11, EBC, Saudi Pak Tower, Islamabad - Pakistan Tel.: +92-51-2800397, 2800398 Fax: +92-51-2800399 Karachi Office: D-147/1, KDA Scheme # 1, Opposite Mudassir Park, Karsaz Road, Karachi – Pakistan Phone: +92-21-34548158, 34326649 Fax: +92-21-4375727 Technical Support: +92-21-34548310, 34305069 General Inquiries: [email protected] Tech Support: [email protected] You can find software updates and user documentation on the D-Link website. Tech Support for customers in D IR - 813 5 ENGLISH TECHNICAL SUPPORT Iran Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest St. , Argentine Sq. , Tehran IRAN Postal Code : 1513833817 Tel: +98-21-88880918,19 +98-21-88706653,54 General Inquiries: [email protected] Tech Support: [email protected] Morocco M.I.T.C Route de Nouaceur angle RS et CT 1029 Bureau N° 312 ET 337 Casablanca , Maroc Phone : +212 663 72 73 24 Email: [email protected] Lebanon RMA center Dbayeh/Lebanon PO Box:901589 Tel: +961 4 54 49 71 Ext:14 Fax: +961 4 54 49 71 Ext:12 Email: [email protected] Bahrain Technical Support: +973 1 3332904 Kuwait: Technical Support: + 965 22453939 / +965 22453949 Türkiye Büyükdere Cad. Ferro Plaza No:155 D: 1 K: 1 Zincirlikuyu / Istanbul Tel: +90 (212) 289-56-59 Email: [email protected] ישראל מטלון סנטר 20רח' המגשימים 7060, ת"ד 49348קרית מטלון, פ"ת 03-9215173טל: 073-…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment AC750 Dual Band Wi-Fi Route r Model Name DIR-813 Brand Name D-Link Applicant D-Link Corporation Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Standard(s) FCC Part 15, Subpart B: 2014 ANSI C63.4-2009 Report(s) BTL-FCC&ICA -1-1505C119 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

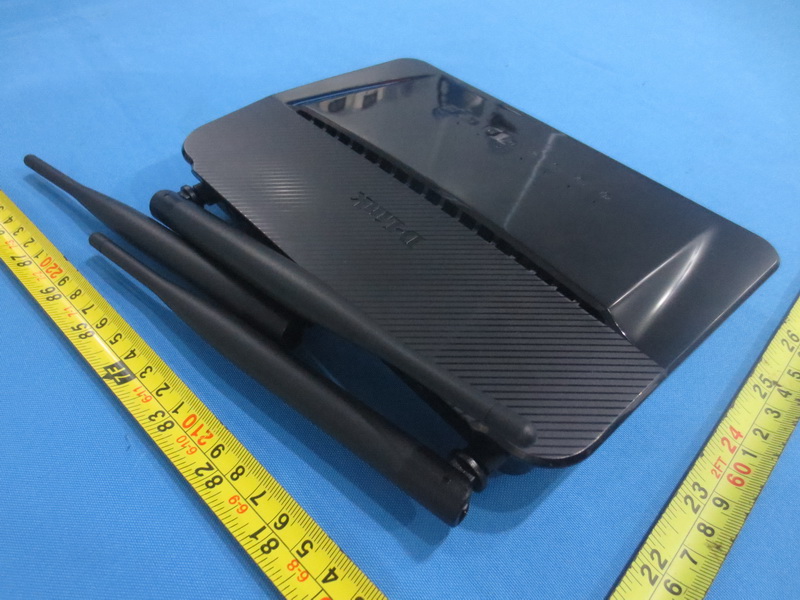

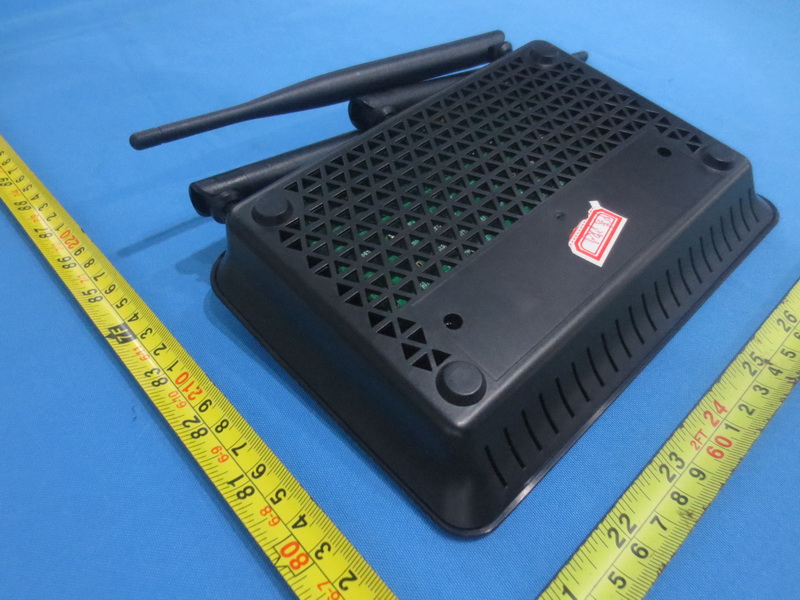

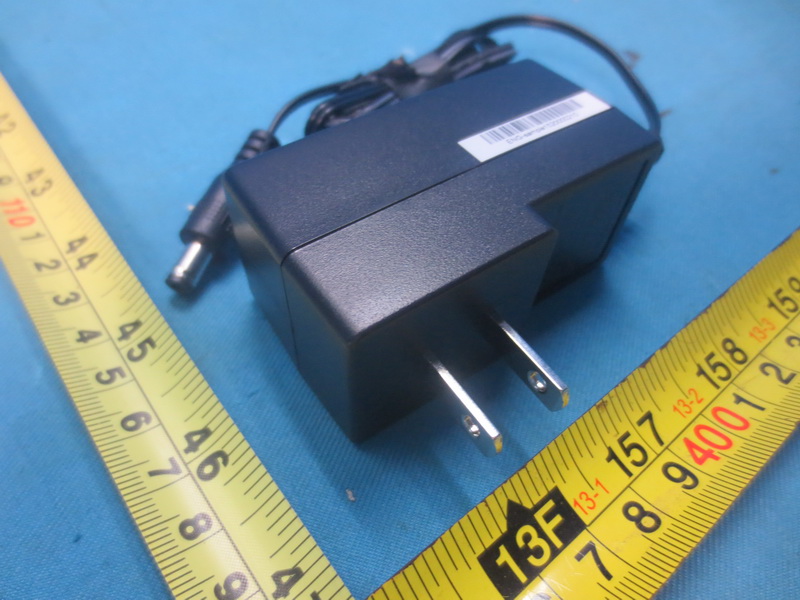

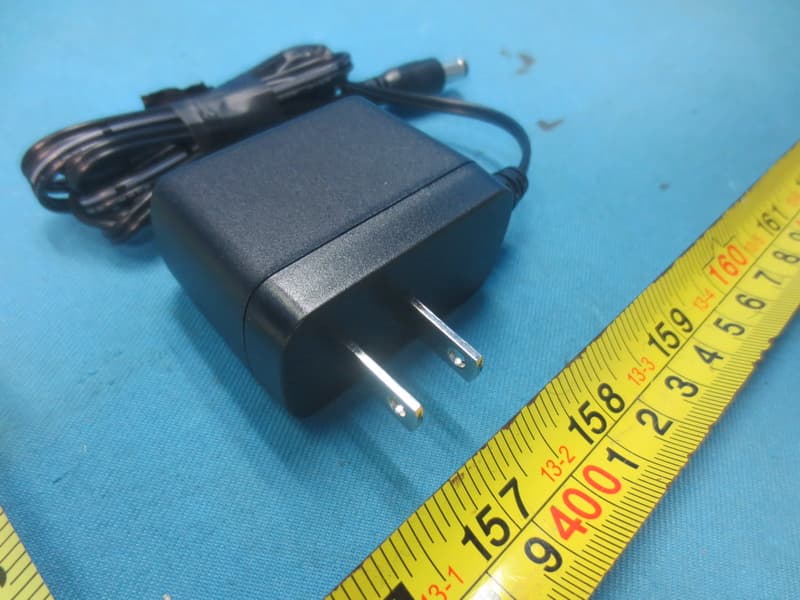

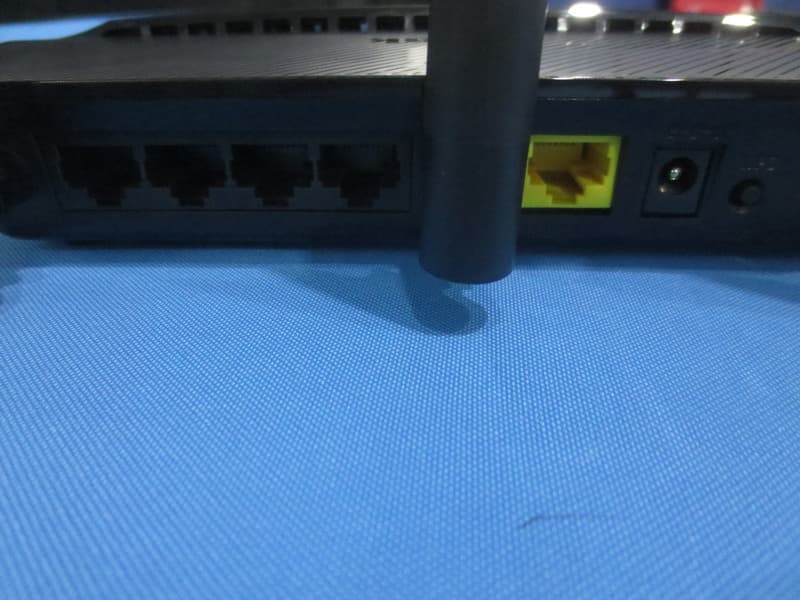

Report No.: BTL-FCCP-2-1505C119 Page 246 of 250 11. EUT PHOTOS Report No.: BTL-FCCP-2-1505C119 Page 247 of 250 Report No.: BTL-FCCP-2-1505C119 Page 248 of 250 Report No.: BTL-FCCP-2-1505C119 Page 249 of 250 Adapter: FRECOM/F05L5-050100SPAU Report No.: BTL-FCCP-2-1505C119 Page 250 of 250 Adapter: LEADER/MU05BS050100-A1

Project No.: 1505C119 Page 2 of 7 Project No.: 1505C119 Page 3 of 7 Project No.: 1505C119 Page 4 of 7 Project No.: 1505C119 Page 5 of 7 Project No.: 1505C119 Page 6 of 7 Project No.: 1505C119 Page 7 of 7

FCC RF EXPOSURE REPORT FCC ID: KA2IR813B1 Project No. : 1505C119 Equipment : AC750 Dual Band Wi-Fi Router Model : DIR-813 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna 2.4G Ant. Brand P/N Antenna Type Length Gain (dBi) Note 1 290-20205 Dipole 185mm 3.68 2.4G 2 290-20174 Dipole 80mm 3.89 2.4G 5G Ant. Brand P/N Antenna Type Length Gain (dBi) Note 1 290-20206 Dipole 120mm 4.60 5G TEST RESULTS 2.4G EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature： 26 °C Relative Humidity: 56 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.89 2.4491 24.3 269.1535 0.131205001 Complies 3.89 2.4491 27.41 550.8077 0.268503761 Complies 3.89 2.4491 24.73 297.1666 0.144860631 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature： 26 °C Relative Humidity: 56 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.89 2.4491 25.46 351.5604 0.171376141 Complies 3.89 2.4491 29.63 918.3326 0.447662141 Complies 3.89 2.4491 24.51 282.4880 0.137705211 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 26 °C Relative Humidity: 56 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.89 2.4491 22.3 169.8244 0.082784761 Complies 3.89 2.4491 29.73 939.7233 0.458089531 Complies 3.89 2.4491 22.45 175.7924 0.085693991 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 26 °C Relative Humidity: 56 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_ Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.89 2.4491 20.35 108.3927 0.052838491 Complies 3.89 2.4491 23.71 234.9633 0.114538201 Complies 3.89 2.4491 20.87 122.1800 0.059559411 Complies Band 1 EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX A MODE /CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 16.7 46.7735 0.026850381 Complies 4.6 2.8840 15.91 38.9942 0.022384651 Complies 4.6 2.8840 15.84 38.3707 0.022026751 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 14.39 27.4789 0.015774311 Complies 4.6 2.8840 15.76 37.6704 0.021624711 Complies 4.6 2.8840 15.75 37.5837 0.021574981 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH38, CH46 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 13.06 20.2302 0.011613161 Complies 4.6 2.8840 18.54 71.4496 0.041015721 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX AC20 MODE /CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 15.54 35.8096 0.020556561 Complies 4.6 2.8840 16.04 40.1791 0.023064841 Complies 4.6 2.8840 15.86 38.5478 0.022128421 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX AC40 MODE_ Total /CH38, CH46 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 12.88 19.4089 0.011141671 Complies 4.6 2.8840 18.47 70.3072 0.040359931 Complies EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX AC80 MODE_ Total /CH42 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 12.85 19.2752 0.011064971 Complies Band 4 EUT： AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Temperature: 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX A MODE /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.6 2.8840 15.68 36.9828 0.021230021 Complies 4.6 2.8840 18.46 70.1455 0.040267101 Complies …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1505C119 Page 1 of 250 FCC Radio Test Report FCC ID: KA2IR813B1 This report concerns (check one): Original Grant Class II Change Project No. : 1505C119 Equipment : AC750 Dual Band Wi-Fi Router Model Name : DIR-813 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Date of Receipt : May 13, 2015 Date of Test : May 13, 2015 ~ Jun. 01, 2015 Issued Date : Jun. 02 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-2-1505C119 Page 2 of 250 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTLshall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-2-1505C119 Page 3 of 250 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 14 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 3.5 DESCRIPTION OF SUPPORT UNITS 16 4 . EMC EMISSION TEST 17 4.1 CONDUCTED EMISSION MEASUREMENT 17 4.1.1 POWER LINE CONDUCTED EMISSION 17 4.1.2 TEST PROCEDURE 17 4.1.3 DEVIATION FROM TEST STANDARD 17 4.1.4 TEST SETUP 18 4.1.5 EUT OPERATING CONDITIONS 18 4.1.6 EUT TEST CONDITIONS 18 4.1.7 TEST RESULTS 18 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 20 4.2.5 EUT OPERATING CONDITIONS 21 4.2.6 EUT TEST CONDITIONS 21 4.2.7 TEST RESULTS (9K TO 30MHz) 22 4.2.8 TEST RESULTS (BETWEEN 30 TO 1000 MHz) 22 4.2.9 TEST RESULTS (ABOVE 1000 MHz) 22 5 . 26dB SPECTRUM BANDWIDTH 23 5.1 APPLIED PROCEDURES / LIMIT 23 5.1.1 TEST PROCEDURE 23 5.1.2 DEVIATION FROM STANDARD 23 5.1.3 TEST SETUP 23 5.1.4 EUT OPERATION CONDITIONS 23 5.1.5 EUT TEST CONDITIONS 23 5.1.6 TEST RESULTS 23 6 . MAXIMUM CONDUCTED OUTPUT POWER 24 Report No.: BTL-FCCP-2-1505C119 Page 4 of 250 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 24 6.1.1 TEST PROCEDURE 24 6.1.2 DEVIATION FROM STANDARD 25 6.1.3 TEST SETUP 25 6.1.4 EUT OPERATION CONDITIONS 25 6.1.5 EUT TEST CONDITIONS 25 6.1.6 TEST RESULTS 25 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 26 7.1 APPLIED PROCEDURES / LIMIT 26 7.1.1 TEST PROCEDURE 26 7.1.2 DEVIATION FROM STANDARD 26 7.1.3 TEST SETUP 26 7.1.4 EUT OPERATION CONDITIONS 26 7.1.5 EUT TEST CONDITIONS 26 7.1.6 TEST RESULTS 26 8 . POWER SPECTRAL DENSITY TEST 27 8.1 APPLIED PROCEDURES / LIMIT 27 8.1.1 TEST PROCEDURE 27 8.1.1 DEVIATION FROM STANDARD 28 8.1.2 TEST SETUP 28 8.1.3 EUT OPERATION CONDITIONS 28 8.1.4 EUT TEST CONDITIONS 28 8.1.5 TEST RESULTS 28 9 . FREQUENCY STABILITY MEASUREMENT 29 9.1 APPLIED PROCEDURES / LIMIT 29 9.1.1 TEST PROCEDURE 29 9.1.2 DEVIATION FROM STANDARD 29 9.1.3 TEST SETUP 30 9.1.4 EUT OPERATION CONDITIONS 30 9.1.5 EUT TEST CONDITIONS 30 9.1.6 TEST RESULTS 30 10 . MEASUREMENT INSTRUMENTS LIST 31 ATTACHMENT A - CONDUCTED EMISSION 33 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 54 ATTACHMENT E - BANDWIDTH 174 ATTACHMENT F - MAXIMUM OUTPUT POWER 198 Report No.: BTL-FCCP-2-1505C119 Page 5 of 250 Table of Contents Page ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 204 ATTACHMENT H - POWER SPECTRAL DENSITY 218 ATTACHMENT I - FREQUENCY STABILITY 242 11. EUT PHOTOS 246 Report No.: BTL-FCCP-2-1505C119 Page 6 of 250 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-2-1505C119 Original Issue. Jun. 02 2015 Report No.: BTL-FCCP-2-1505C119 Page 7 of 250 1. CERTIFICATION Equipment : AC750 Dual Band Wi-Fi Router Brand Name : D-Link Model Name : DIR-813 Applicant : D-Link Corporation Date of Test : May 13, 2015 ~ Jun. 01, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.4: 2009 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01. The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-2-1505C119) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-2-…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1505C119 Page 36 of 250 Conducted Measurement Photos Report No.: BTL-FCCP-2-1505C119 Page 39 of 250 Radiated Measurement Photos 9KHZ to 30MHZ Report No.: BTL-FCCP-2-1505C119 Page 53 of 250 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-2-1505C119 Page 167 of 250 Radiated Measurement Photos Above 1000MHz
