KA2IR815A1Wireless N Dual Band Router

DIR-815 i D-Link DIR-815 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2010 by D-Link Systems, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Revision Date Description 1.0 May 25, 2010 DIR-815 Revision A1 Preface ii D-Link DIR-815 User Manual Table of Contents Preface ................................................................................. i Manual Revisions ........................................................................... i Trademarks ...................................................................................... i Product Overview .............................................................. 1 Package Contents ......................................................................... 1 System Requirements ................................................................. 2 Introduction ................................................................................... 3 Features ............................................................................................ 4 Hardware Overview ..................................................................... 5 Connections ........................................................................... 5 WPS Button ............................................................................. 6 LEDs ........................................................................................... 7 I nstallation ......................................................................... 8 Before you Begin ........................................................................... 8 Wireless Installation Considerations ...................................... 9 Connect to Cable/DSL/Satellite Modem ............................10 Connect to Another Router ....................................................11 Getting Started ............................................................................13 Configuration ................................................................... 1 4 Web-based Configuration Utility ..........................................14 Easy Setup .....................................................................................16 Setup ...............................................................................................20 Internet ...................................................................................20 Internet Connection Setup Wizard ...............................21 Manual Internet Connection Setup .............................28 Static IP ..............................................................................29 Dynamic IP (DHCP) ........................................................30 PPPoE (Username/Password) ....................................31 PPTP ....................................................................................33 L2TP ....................................................................................35 Russia PPTP (Dual Access) ...........................................37 Russia PPPoE (Dual Access) ........................................39 Wireless Settings .................................................................41 Manual Wireless Settings .................................................42 802.11n/b/g (2.4GHz) ...................................................42 802.11n/a (5GHz) ...........................................................43 Network Settings ................................................................44 Router Settings ...............................................................45 DHCP Server Settings ...................................................46 DHCP Reservation .........................................................47 Advanced ......................................................................................48 Virtual Server ........................................................................48 Port Forwarding ..................................................................50 Application Rules ................................................................51 QoS Engine............................................................................52Network Filter.......................................................................53Website Filter ........................................................................54 Firewall Settings ..................................................................55 Firewall Rules ...................................................................56 Routing ...................................................................................58 Table of Contents iii D-Link DIR-815 User Manual Table of Contents Advanced Wireless Settings ............................................59 802.11n/b/g (2.4GHz) ...................................................59 802.11n/a (5GHz) ...........................................................60 Wi-Fi Protected Setup (WPS) ..........................................61 Advanced Network ............................................................63 UPnP ...................................................................................63 Internet Ping Block ........................................................63 Internet Port Speed .......................................................63 Multicast Streams ..........................................................63 IPv6 ......................................................................................…

Text truncated - open the document above for the full version.

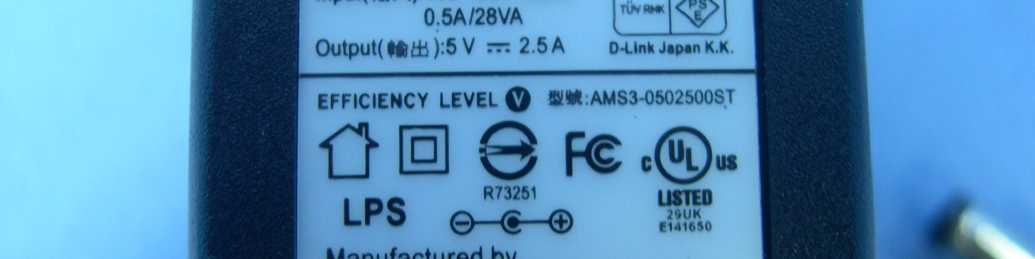

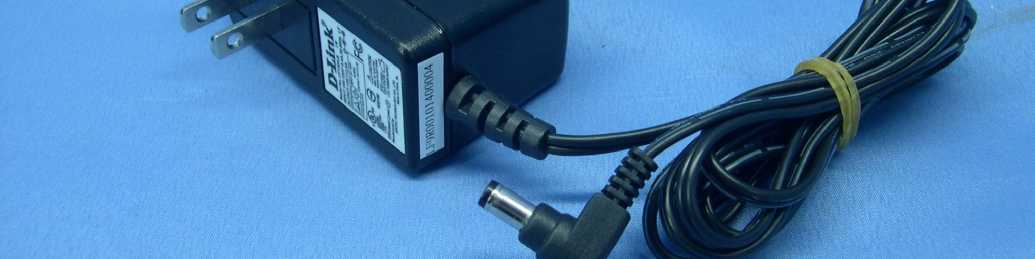

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Model No.: AMS3-0502500SU Page 3 Page 4 Model No.: CF1505-B Page 5

FCC ID： KA2IR815A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

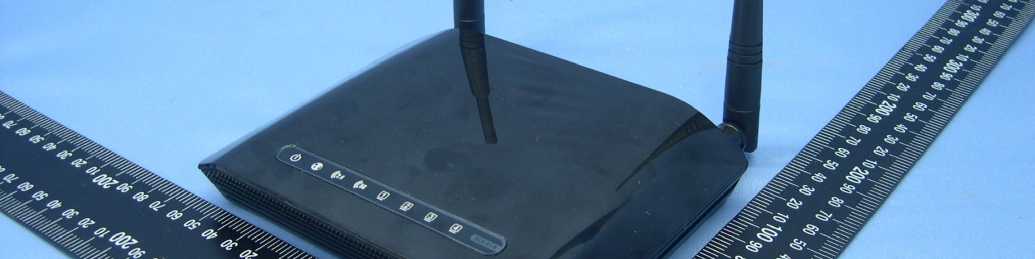

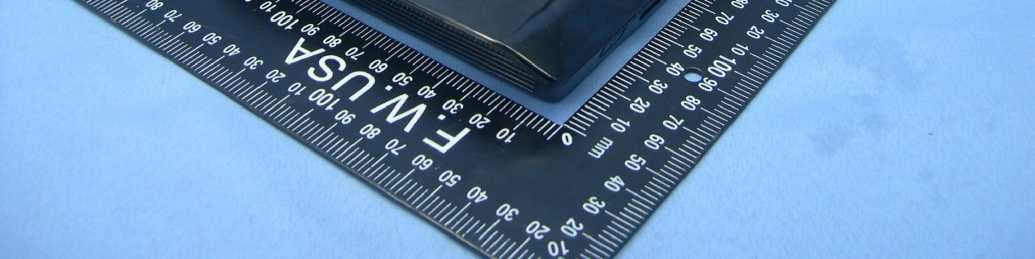

Page 1 CONSTRUCTION PHOTOS OF EUT Cable 1 Page 2 Page 3 Page 4 Cable 2 Page 5

FCC ID: KA2IR815A1 Report No.: RF990315H02/ RF990315H02-1 Operational Description This device is a Wireless N Dual Band Router; Wireless N Quadband Home Router, which operates in both of the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc from the power adapter. There are two antennas provided to this EUT, please refer the following table: The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA990315H02 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990315H02 MODEL NO.: DIR-815 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990315H02 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990315H02 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA990315H02 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: Antenna Gain Chain Manufacture Model name For 2.4GHz Gain (dBi) For 5GHz Gain (dBi) Antenna Cable Length Antenna Type Connector Chain (0) Antenna (1) Master Wave Technology Co., Ltd. 98144PIPF000 2.90686 5G Band1: 3.82562 5G Band4: 3.33016 48mm Dipole IPEX Chain (1) Antenna (2) Master Wave Technology Co., Ltd. 98144PIPF001 2.29251 5G Band1:3.25853 5G Band4: 2.82877 245mm Dipole IPEX ANTENNA COMBINATION MODE: COMBINATION MODE OPERATION MODE TX CHAIN(0) TX CHAIN(1) A 802.11 a √ B 802.11 b √ C 802.11 g √ D 802.11n(20MHz) for MCS0~7 √ √ E 802.11n(20MHz) for MCS8~15 √ √ F 802.11n(40MHz) for MCS0~7 √ √ G 802.11n(40MHz) for MCS8~15 √ √ Report No.: SA990315H02 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz): 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 131.8 0.051 1.0 6 2437 81.3 0.032 1.0 11 2462 74.1 0.029 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 457.1 0.178 1.0 6 2437 346.7 0.135 1.0 11 2462 398.1 0.155 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 480.9 0.187 1.0 6 2437 317.0 0.123 1.0 11 2462 469.0 0.182 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 394.5 0.153 1.0 4 2437 564.3 0.219 1.0 7 2452 385.5 0.150 1.0 Report No.: SA990315H02 Report Format Version 3.0.1 6 For 15.247(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 218.8 0.094 1.0 157 5785 199.5 0.085 1.0 165 5825 177.8 0.076 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 570.2 0.244 1.0 157 5785 544.6 0.233 1.0 165 5825 502.4 0.215 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151 5755 413.1 0.177 1.0 159 5795 403.9 0.173 1.0 Report No.: SA990315H02 Report Format Version 3.0.1 7 For 15.407(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 24.5 0.012 1.0 40 5200 29.5 0.014 1.0 48 5240 27.5 0.013 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 27.0 …
