KA2IR816LA1Wireless AC750 Dual Band Cloud Router

QUICK INSTALLATION GUIDE Wireless AC750 DuAl B AnD ClouD router Dir -816 l КратКое руКоводство по установКе Guía de InstalacIón RápIda GuIa de Instalação RápIda 快速安裝指南 petunjuk pemasanGan cepat Dir -816l 2 ENGLISH CONTENTS OF PACKAGING POWER ADAPTER 12V / 1a ETHERNET CABLE (CAT5 UTP) connect tHe RouteR to YouR pc duRInG setup If any of these items are missing from your packaging, contact your reseller. WI-FI CONFIGURATION NOTE contaIns tHe deFault WI-FI InFoRmatIon WIRELESS AC750 DUAL B AND C LOUD R OUTER dIR-816l Contents Wi-Fi Configuration Note Dir -816l 3 ENGLISH PRODUCT SETUP WeB-BAse D setuP Step 1 position your dIR-816l near your Internet-connected modem and pc. keep the router in an open area for better wireless coverage. Step 4 open a browser on the connected computer. If you are not automatically directed to the d-link setup Wizard, go to ‘http://dlinkrouter.local.’ and follow the onscreen instructions to configure your dIR-816l. use ‘Admin’ as your username and leave the password blank to configure manually. Step 2 unplug the modem ethernet cable connected to your computer and plug it into the port labeled ‘InteRnet’ on the router. connect the supplied power adapter to the router and a power outlet, then verify that the power led is on. In order to use all of the functions of this router, you must register it with mydlink. simply follow the steps at the end of the setup Wizard during installation to register your product with your mydlink account. NOTE: after mydlink registration is completed, your router’s default pppoe, l2tp, pptp connection will be set to always on. If your Isp charges for usage, you may wish to manually choose dial on demand as your default setting. Step 3 plug one end of the supplied ethernet cable into the port labeled ‘1’ on the back of the router, and the other end into the ethernet port on your computer. to set up the dIR-816 l through Wi-Fi, go to your computer or mobile device's Wi-Fi settings and select the network (ex: dlink-A8FA). enter Wi-Fi password (ex: akbdj19368) on the included Wi-Fi configuration note. WELCOME TO THE D-LINK SETUP WIZARD Modem PC Router Modem Router lan1234InteRnet RESET PC Modem Router lan1234InteRnet RESET Dir -816l 4 ENGLISH TROUBLESHOOTING setuP A nD C on FiGur Ation P ro Ble Ms 1. HOW DO I CONFIGURE MY DIR-816L ROUTER MANUALLY? - connect your pc to the router using an ethernet cable. - open a web browser and enter the address ‘http://dlinkrouter.local.’ (or ‘192.168.0.1’). - the default username is ‘admin’. the password should be left blank by default. - If you have changed the password and can not remember it, you will need to reset the router to return to an empty password field. 2. HOW DO I RESET MY DIR-816L ROUTER TO FACTORY DEFAULT SETTINGS? - ensure the router is powered on. - press and hold the reset button at the bottom of the device for 10 seconds. Note: Resetting the router to factory default will erase the current configuration settings. to re-configure your settings, log into the router as outlined in question 1, then run the setup Wizard. 3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WI-FI NAME (SSID) OR WI-FI PASSWORD? - For every pc that needs to connect to the router wirelessly, you will need to ensure you use the correct Wi-Fi name (ssId) and Wi-Fi password. - use the web-based user interface (as described in question 1 above) to check or choose your wireless settings. - make sure you write down these settings so that you can enter them for each wirelessly connected pc. the back of this document features an area to record this important information. 4. WHY CAN'T I GET AN INTERNET CONNECTION? - For adsl users, please contact your Isp to make sure the service has been enabled/connected by your Isp and that your Isp username and password is correct. 5. WHY CAN'T I REGISTER MY DEVICE WITH MYDLINK? - If you experience issues registering this router with your mydlink account, try performing a hard reset by using an unfolded paperclip to press and hold the reset button for 10 seconds while the router is powered on. this may be necessary if you purchased an open box or resold unit. Dir -816l 5 ENGLISH te CH ni CA l su PP ort Australia: tel: 1300-766-868 24/7 technical support Web: http://www.dlink.com.au e-mail: [email protected] India: tel: +91-22-27626600 t oll Free 1800-22-8998 Web: www.dlink.co.in e-mail: [email protected] Singapore, Thailand, Indonesia, Malaysia, Philippines, Vietnam: singapore - www.dlink.com.sg thailand - www.dlink.co.th Indonesia - www.dlink.co.id malaysia - www.dlink.com.my philippines - www.dlink.com.ph Vietnam - www.dlink.com.vn Korea: tel : +82-2-2028-1810 monday to Friday 9:00am to 6:00pm Web : http://d-link.co.kr e-mail : [email protected] New Zealand: tel: 0800-900-900 24/7 technical support Web: http://www.dlink.co.nz e-mail: [email protected] South Africa and Sub Sahara Region: tel: +27 12 661 2025 08600 dlInk (for south africa only) monday to Friday 8:30am to 9:00pm south africa time Web: http://www.d-link.co.za e-mail: [email protected] Saudi Arabia (KSA): tel: +966 01 217 0008 Fax: +966 01 217 0009 saturday to Wednesday 9.30am to 6.30pm thursdays 9.30am to 2.00 pm e-mail: [email protected] D-Link Middle East - Dubai, U.A.E. plot no. s31102, jebel ali Free Zone south, p.o.Box 18224, dubai, u.a.e. tel: +971-4-8809022 Fax: +971-4-8809066 / 8809069 technical support: +971-4-8809033 General Inquiries: [email protected] tech support: [email protected] Egypt 1, makram ebeid street - city lights Building nasrcity - cairo, egypt Floor 6, office c2 tel.: +2 02 26718375 - +2 02 26717280 technical support: +2 02 26738470 General Inquiries: [email protected] tech support: [email protected] Kingdom of Saudi Arabia office # 84 , al khaleej Building ( mujamathu al-khaleej) opp. king Fahd Road, olaya Riyadh - saudi arabia tel: +966 1 217 0008 technical support: +966 1 2170009 / +966 2 6522951 General Inquiries: [email protected] tech…

Text truncated - open the document above for the full version.

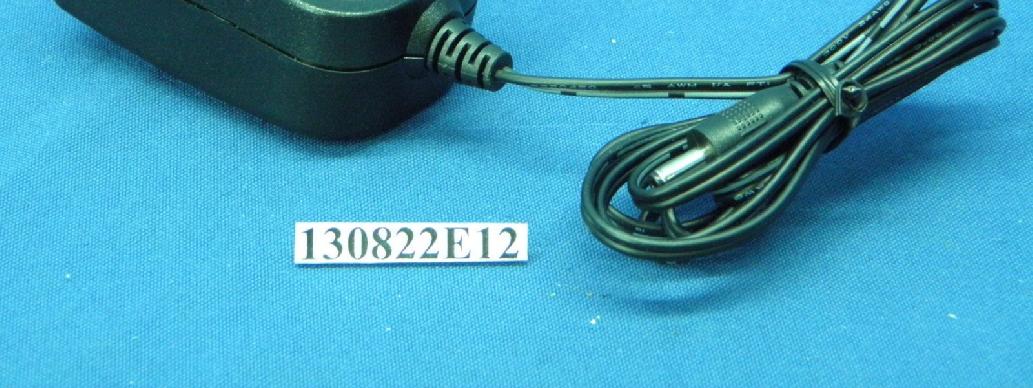

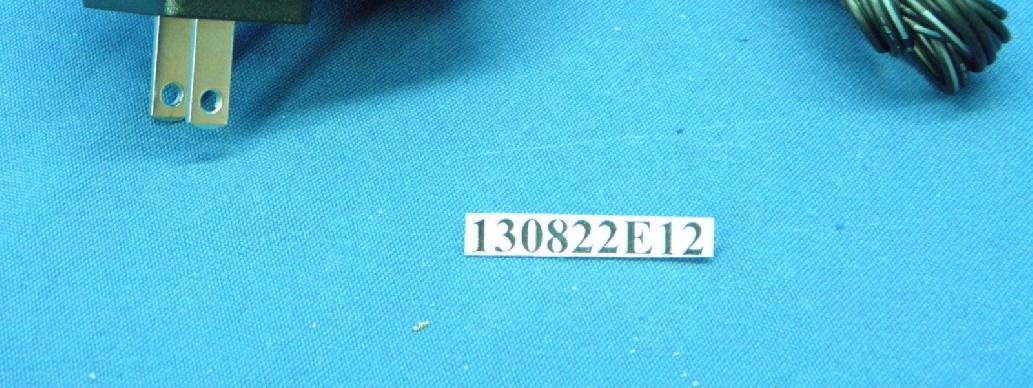

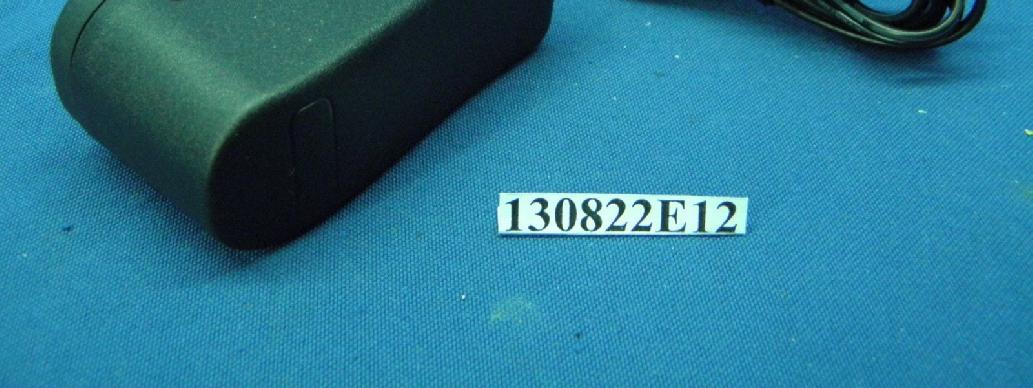

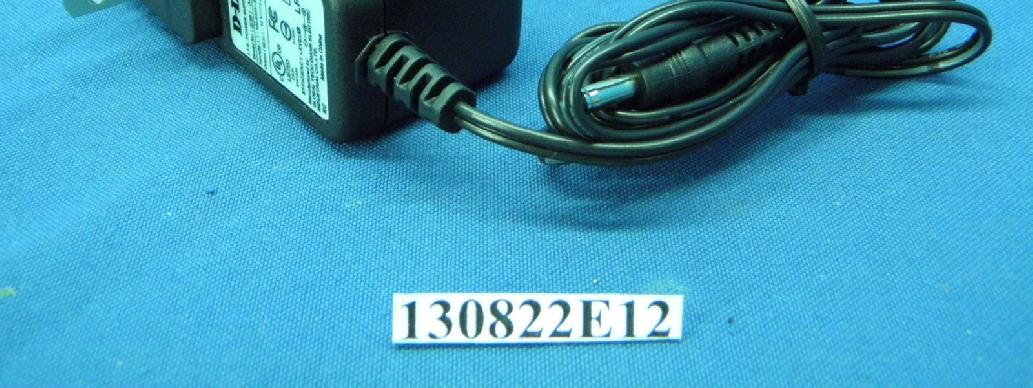

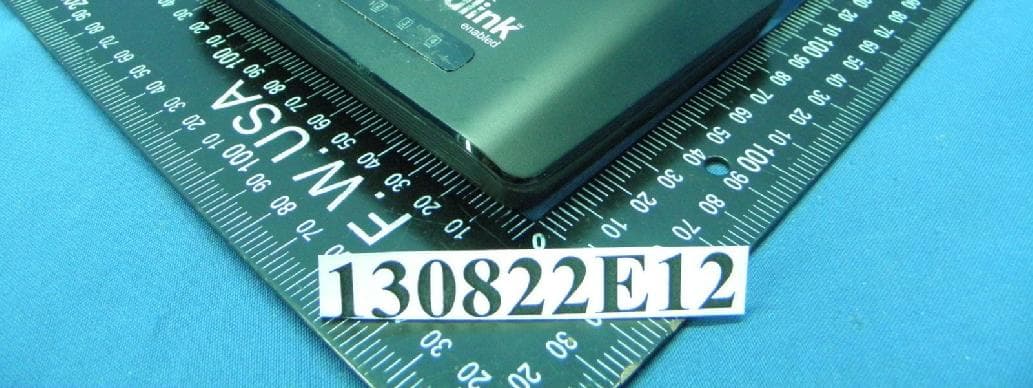

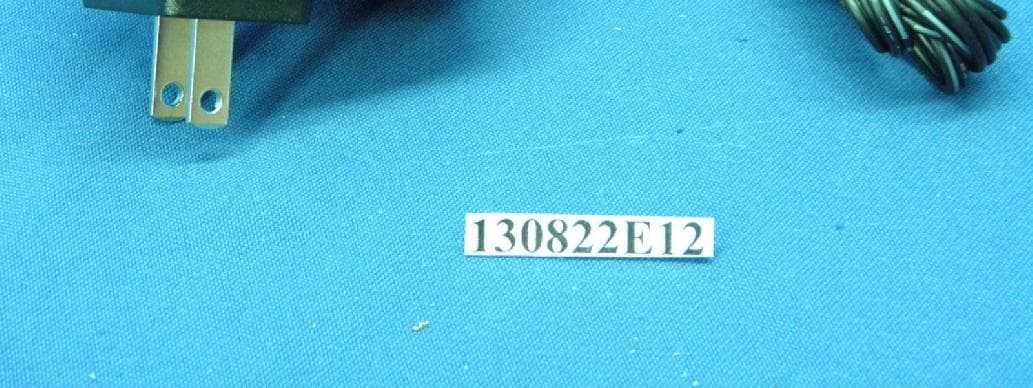

Report No.: 130822E12 1 of 8 CONSTRUCTION PHOTOS OF EUT Report No.: 130822E12 5 of 8 Adapter 1: AMS9-1201000FU2 Report No.: 130822E12 6 of 8 Report No.: 130822E12 7 of 8 Adapter 2: F12W3-120100SPAU Report No.: 130822E12 8 of 8

FCC ID： KA2IR816LA1 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here 9700000258DLG DIR-816L Device Label 注意： 1.公差容許外形下料及沖孔尺寸:+-0.15mm Outline and aperture Cut Tooling Tolerance:+-0.15mm 2.請參考產品結構 Please refer to the material construction. Color: Background: Black PANTONE 114C 25μ霧面特多龍(PET) Matte Clear Polyester Film 50μ白亮特多龍(PET) Glossy White Polyester Film ID: 3034 Reed Tai Reed Tai 2013/8/22 2013/8/22 2013/8/22 A1 V1.00 >7.6mm >5mm Joan Huang DIR-816L

Report No.: 130822E12 2 of 8 Report No.: 130822E12 3 of 8 Report No.: 130822E12 4 of 8

Report No.: SA130822E12 1 of 6 Report Format Version 5.0.0 Reference No.: RF EXPOSURE REPORT REPORT NO.: SA130822E12 MODEL NO.: DIR-816L FCC ID: KA2IR816LA1 RECEIVED: Aug. 22, 2013 TESTED: Aug. 22, 2013 ISSUED: Sep. 05, 2013 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130822E12 2 of 6 Report Format Version 5.0.0 Reference No.: TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130822E12 3 of 6 Report Format Version 5.0.0 Reference No.: RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130822E12 Original release Sep. 05, 2013 Report No.: SA130822E12 4 of 6 Report Format Version 5.0.0 Reference No.: 1. CERTIFICATION PRODUCT: Wireless AC750 Dual Band Cloud Router BRAND NAME: D-Link MODEL NO.: DIR-816L TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: D-Link Corporation TESTED DATE: Aug. 22, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: DIR-816L) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Aug. 09, 2013 ( Lori Chung, Specialist ) APPROVED BY : , DATE: Aug. 09, 2013 ( May Chen, Manager ) Report No.: SA130822E12 5 of 6 Report Format Version 5.0.0 Reference No.: 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130822E12 6 of 6 Report Format Version 5.0.0 Reference No.: 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 15.247(2.4GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 893.330 3.93 20 0.35460 1 15.247(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 381.944 3.67 20 0.17690 1 15.407(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 48.865 2.67 20 0.02263 1 CONCLUSION: Both of the 2.4GHz and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.35460 / 1 + 0.17690 / 1= 0.532, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF130822E12 1 of 103 Report Format Version 5.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF130822E12 MODEL NO.: DIR-816L FCC ID: KA2IR816LA1 RECEIVED: Aug. 22, 2013 TESTED: Aug. 22 to 28, 2013 ISSUED: Sep. 05, 2013 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130822E12 2 of 103 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 5 1. CERTIFICATION .................................................................................................... 6 2. SUMMARY OF TEST RESULTS ............................................................................ 7 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 8 3. GENERAL INFORMATION ..................................................................................... 9 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 9 3.2 DESCRIPTION OF TEST MODES ....................................................................... 13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 17 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 18 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 19 4. TEST TYPES AND RESULTS (FOR 2.4GHZ, 2.400 ~ 2.4835GHZ BAND)........... 20 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 20 4.1.2 TEST INSTRUMENTS .......................................................................................... 20 4.1.3 TEST PROCEDURES .......................................................................................... 21 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 21 4.1.5 TEST SETUP ....................................................................................................... 21 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 22 4.1.7 TEST RESULTS (MODE 1) .................................................................................. 23 4.1.8 TEST RESULTS (MODE 2) .................................................................................. 25 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 27 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 27 4.2.2 TEST INSTRUMENTS .......................................................................................... 28 4.2.3 TEST PROCEDURES .......................................................................................... 30 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 30 4.2.5 TEST SETUP ....................................................................................................... 31 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 31 4.2.7 TEST RESULTS ................................................................................................... 32 4.3 6DB BANDWIDTH MEASUREMENT ................................................................... 45 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................. 45 4.3.2 TEST INSTRUMENTS .......................................................................................... 45 4.3.3 TEST PROCEDURE ............................................................................................. 45 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 45 4.3.5 TEST SETUP ....................................................................................................... 45 4.3.6 EUT OPERATING COND…

Text truncated - open the document above for the full version.

Report No.: RF130822E12-1 1 of 58 Report Format Version 5.2.0 FCC TEST REPORT (15.407) REPORT NO.: RF130822E12-1 MODEL NO.: DIR-816L FCC ID: KA2IR816LA1 RECEIVED: Aug. 22, 2013 TESTED: Aug. 22 to 28, 2013 ISSUED: Sep. 05, 2013 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130822E12-1 2 of 58 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION ...........................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................6 2.1 MEASUREMENT UNCERTAINTY .....................................................................7 3. GENERAL INFORMATION ...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT ..............................................................8 3.2 DESCRIPTION OF TEST MODES ..............................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................15 3.4 DUTY CYCLE OF TEST SIGNAL................................................................16 3.5 DESCRIPTION OF SUPPORT UNITS ........................................................17 3.6 CONFIGURATION OF SYSTEM UNDER TEST .........................................18 4. TEST TYPES AND RESULTS .....................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................19 4.1.2 TEST INSTRUMENTS ................................................................................19 4.1.3 TEST PROCEDURES .................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD .......................................................20 4.1.5 TEST SETUP ..............................................................................................20 4.1.6 EUT OPERATING CONDITIONS ................................................................21 4.1.7 TEST RESULTS (MODE 1) .........................................................................22 4.1.8 TEST RESULTS (MODE 2) .........................................................................24 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................26 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...26 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS26 4.2.3 TEST INSTRUMENTS ................................................................................27 4.2.4 TEST PROCEDURES .................................................................................29 4.2.5 DEVIATION FROM TEST STANDARD .......................................................29 4.2.6 TEST SETUP ..............................................................................................30 4.2.7 EUT OPERATING CONDITION ..................................................................30 4.2.8 TEST RESULTS ..........................................................................................31 4.3 TRANSMIT POWER MEASUREMENT .......................................................41 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT ....................................41 4.3.2 TEST INSTRUMENTS ................................................................................41 4.3.3 TEST PROCEDURE ...................................................................................42 4.3.4 DEVIATION FROM TEST STANDARD .......................................................42 4.3.5 TEST SETUP ..............................................................................................42 4.3.6 EUT OPERATING CONDITIONS ................................................................43 4.3.7 TEST RESULTS .................................................................................…

Text truncated - open the document above for the full version.

Report No.: 120702E04 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (MODE 1) Report No.: 120702E04 2 of 3 CONDUCTED EMISSION TEST (MODE 2) Report No.: 120702E04 3 of 3 RADIATED EMISSION TEST
