KA2IR820LA1Wirelss AC1000 Dual Band Cloud Router

Version 1.0 | 2013/01/18 Wireless AC1000 Dual Band Cloud Router User Manual DIR-820L iD-Link DIR-850L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2012 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0November 21, 2012• Initial release for Revision A1 Preface iiD-Link DIR-850L User Manual Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ......................................................................................... ...4 Hardware Overview .....................................................................5 Connections ...........................................................................5 LEDs ...........................................................................................6 I nstallation .........................................................................7 Before you Begin ...........................................................................7 W ireless Installation Considerations ......................................8 Manual Setup .................................................................................9 Configuration ...................................................................11 Quick Setup Wizard ....................................................................12 QRS M obile App ..........................................................................19 Shar ePort Mobile App ..............................................................20 S etup ......................................................................................... ......25 Internet ...................................................................................25 Internet Connection Setup Wizard ..........................26 I nternet (Manual) ...........................................................32 L2TP ....................................................................................39 W ireless Settings .................................................................42 W ireless Connection Setup wizard ..........................42 Wi-Fi Protected Setup Wizard ....................................45 M anual Wireless Network Setup ..............................46 W ireless Security .................................................................57 Net work Settings ................................................................58 Router Settings ...............................................................58 DHCP Server Settings ...................................................59 DHCP R eservation .........................................................61 Parental Control ..................................................................62 Storage ............................................ .......................................63 IPv6 ..........................................................................................66 IPv6 Internet Connection Setup Wizard ................67 IPv6 Manual Setup.........................................................72 mydlink Settings ............................................ .....................81 Advanced ......................................................................................84 Virtual Server ............................................ ............................84 Port Forwarding ..................................................................85 Application Rules ................................................................86 QoS Engine............................................................................87 Network Filter.......................................................................89 Access Control .....................................................................90 Website Filters ............................................ ..........................93 Inbound Filters.....................................................................94 Firewall Settings ..................................................................95 R outing ............................................ .......................................97 Advanced Wireless .............................................................98 Wi-Fi Protected Setup (WPS) ..........................................99 WPS Butt on ...................................................................100 A dvanced Network Settings ........................................101 Table of Contents iiiD-Link DIR-850L User Manual Table of Contents Guest Zone .........................................................................102 IPv6 Firewall .......................................................................103 IPv6 Routing ......................................................................104 Tools .............................................................................................105 Admin ..................................................................................105 Time ......................................................................................106 SysLog ..................................................................................107…

Text truncated - open the document above for the full version.

97D-Link DIR-850L User Manual Section 3 - Configuration Enter a name for your route. Enter the IP address of packets that will take this route. Enter the netmask of the route, please note that the octets must match your destination IP address. Enter your next hop gateway to be taken if this route is used. The route metric is a value from 1 to 16 that indicates the cost of using this route. A value 1 is the lowest cost and 15 is the highest cost. Select the interface that the IP packet must use to transit out of the router when this route is used. Name: Destination IP: Netmask: Gateway: Metric: Interface: Routing The Routing option is an advanced method of customizing specific routes of data through your network. DIR-820L 98D-Link DIR-850L User Manual Section 3 - Configuration Advanced Wireless Set the transmit power of the antennas. This enables 802.11d operation. 802.11d is a wireless specification developed to allow implementation of wireless networks in countries that cannot use the 802.11 standard. This feature should only be enabled if you are in a country that requires it. WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients. Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss. Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40MHz and there is another wireless network’s channel over-lapping and causing interference, the router will automatically change to 20MHz. Transmit Power: WLAN Partition: WMM Enable: Short GI: HT20/40 Coexistence: DIR-820L 99D-Link DIR-850L User Manual Section 3 - Configuration Wi-Fi Protected Setup (WPS) Enable the Wi-Fi Protected Setup feature. Note: if this option is unchecked, the WPS button on the side of the router will be disabled. Tick this option to lock the configured wireless security settings. A PIN is a unique number that can be used to add the router to an existing network or to create a new network. Only the Administrator (“admin” account) can change or reset the PIN. Shows the current PIN. Restore the default PIN of the router. Create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface of the wireless client. Enable: Lock Wireless Security Settings: PIN Settings: Current PIN: Reset PIN to Default: Generate New PIN: Wi-Fi Protected Setup (WPS) System is a simplified method for securing your wireless network during the “Initial setup” as well as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certified it across different products as well as manufactures. The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin Code Method. The time reduction in setup and ease of use are quite beneficial, while the highest wireless Security setting of WPA2 is automatically used. DIR-820L 100D-Link DIR-850L User Manual Section 3 - Configuration This Wizard helps you add wireless devices to the wireless network. The wizard will either display the wireless network settings to guide you through manual configuration, prompt you to enter the PIN for the device, or ask you to press the configuration button on the device. If the device supports Wi-Fi Protected Setup and has a configuration button, you can add it to the network by pressing the configuration button on the device and then the on the router within 120 seconds. The status LED on the router will flash three times if the device has been successfully added to the network. There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well. Click to start the wizard and skip to page 48. Add Wireless Station: Add Wireless Device Wizard: You can also simply press the WPS button on the side of the router, and then press the WPS button on your wireless client to automatically connect without logging into the router. Refer to page 130 for more information. WPS Button WPS Button 101D-Link DIR-850L User Manual Section 3 - Configuration To use the Universal Plug and Play (UPnP ™ ) feature click on Enabled. UPnP provides compatibility with networking equipment, software and peripherals. Checking the box will allow the DIR-820L to respond to pings. Unchecking the box may provide some extra security from hackers. You may set the port speed of the Internet port to 10Mbps, 100Mbps, or Auto (recommended). Check the box to allow multicast traffic to pass through the router from the Internet (IPv4). Check the box to allow multicast traffic to pass through the router from the Internet (IPv6). Enable UPnP: WAN Ping: WAN Port Speed: Enable IPV4 Multicast Streams: Enable IPV6 Multicast Streams: Advanced Network Settings DIR-820L 102D-Link DIR-850L User Manual Section 3 - Configuration Guest Zone Check to enable the Guest Zone feature. The schedule of time when the Guest Zone will be active. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section or click Add New. Enter a wireless network name (SSID) that is different from your main wireless network. Check to allow network connectivity between the different zones created. Select the type of security or encryption you would like to enable for the guest zone. Enable Guest Zone: Schedule: Wireless Network Name: Enable Routing Between Zones: Security Mode: The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones will be separate fro…

Text truncated - open the document above for the full version.

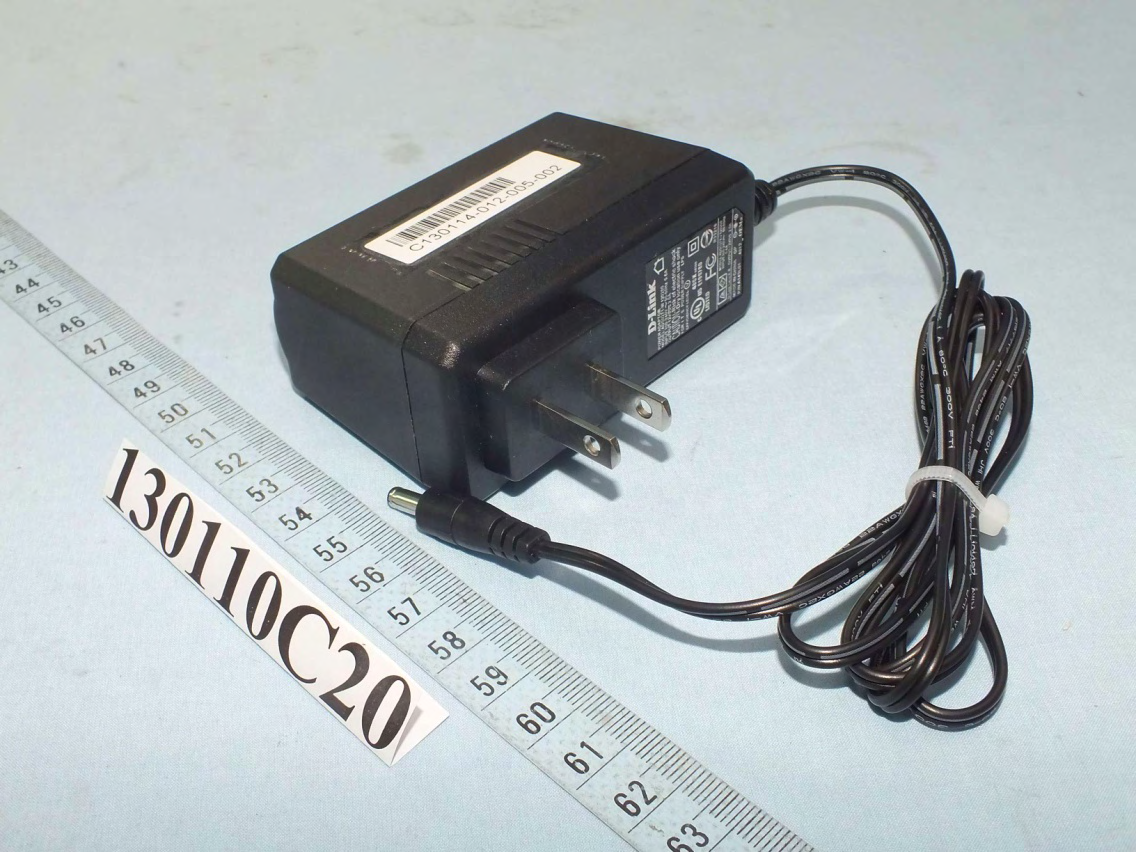

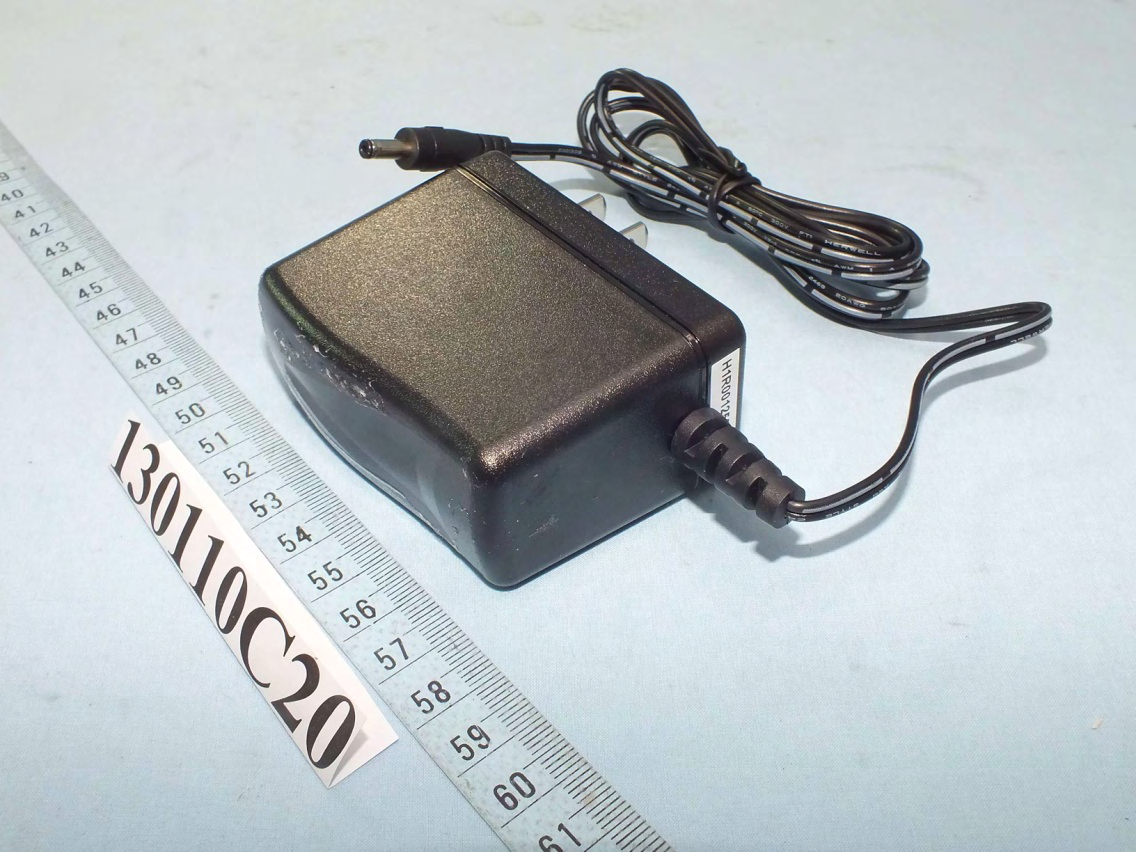

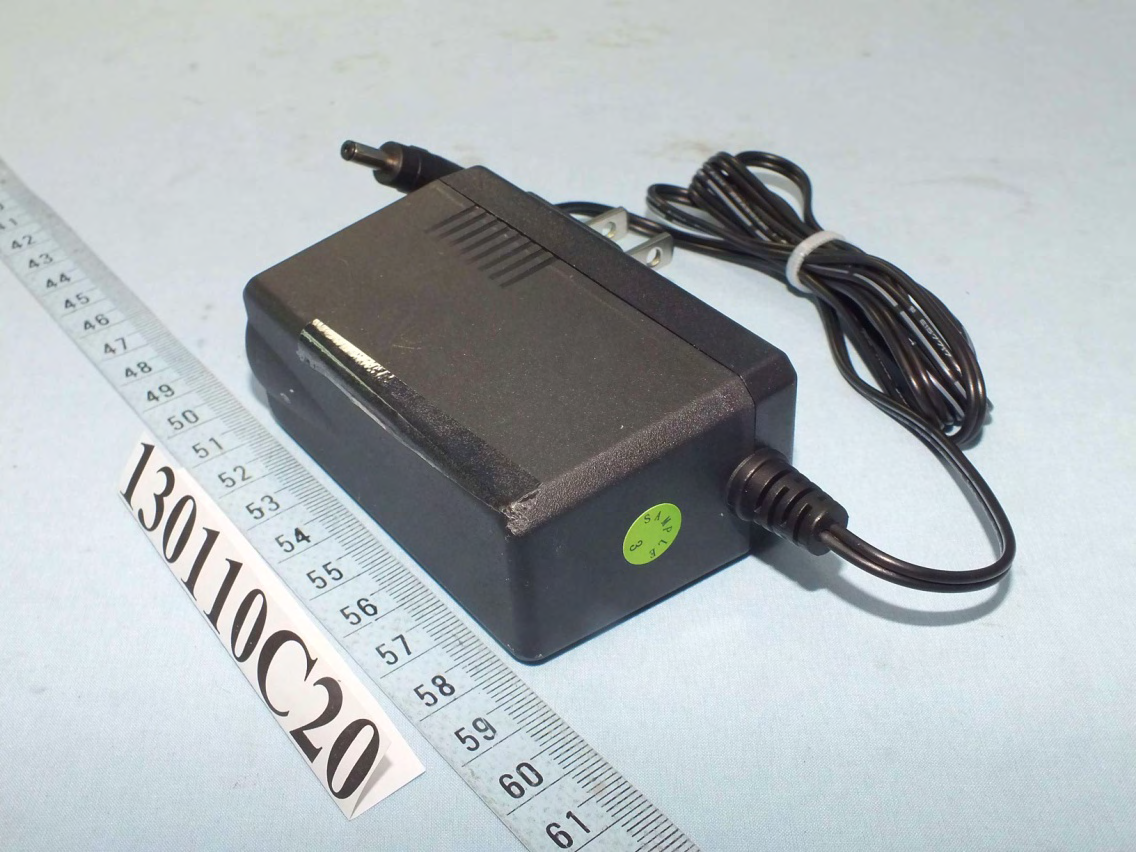

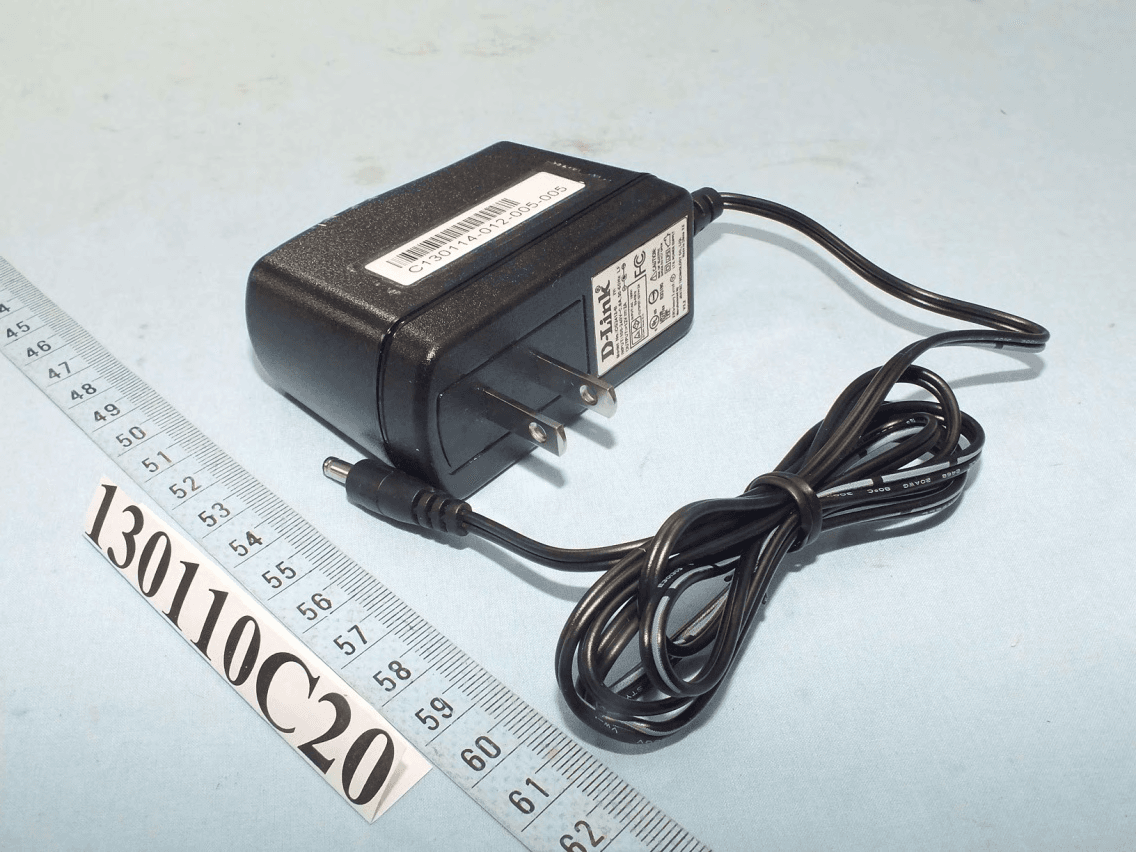

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

42.4 42.4 30mm 30mm Made in China.(C) FCC ID: KA2IR820LA1 IC: 4216A-IR820LA1 Model: DIR-820LA1 Default router settings: http://dlinkrouter.local. Username: Admin Password: (leave the field blank) DIR-820L

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

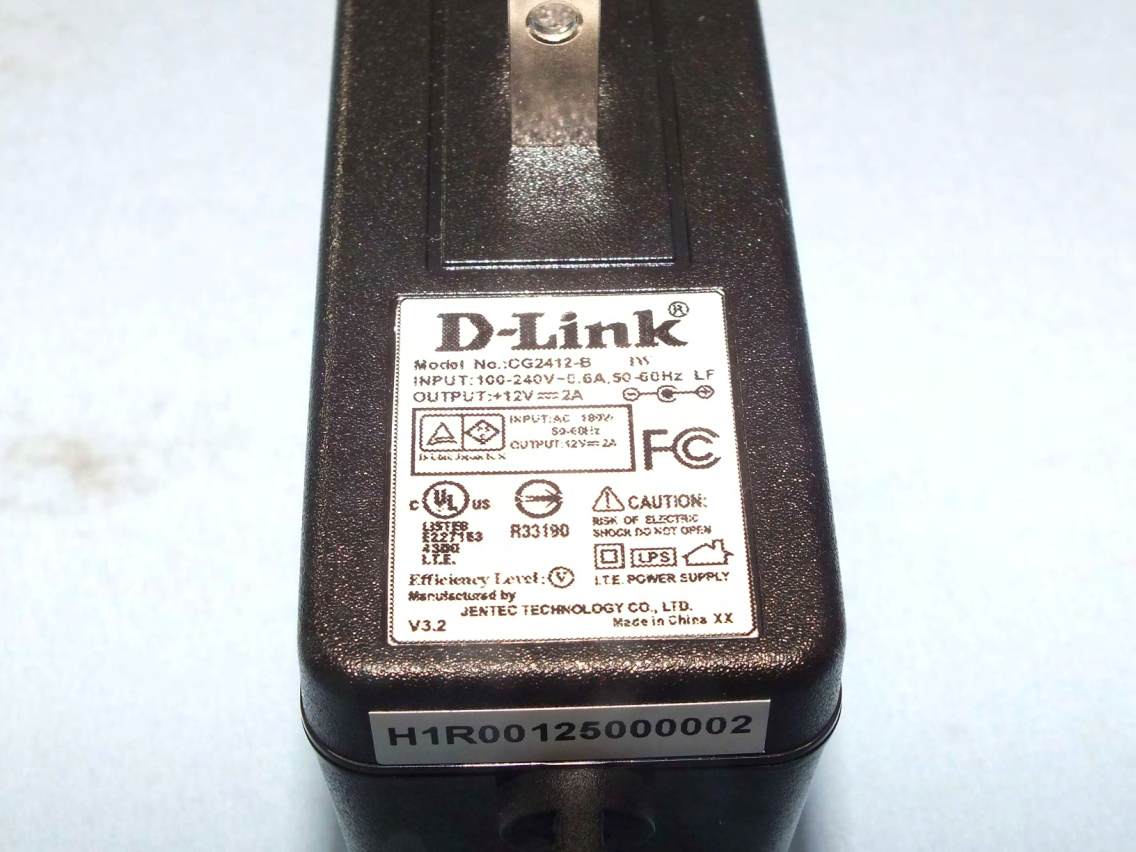

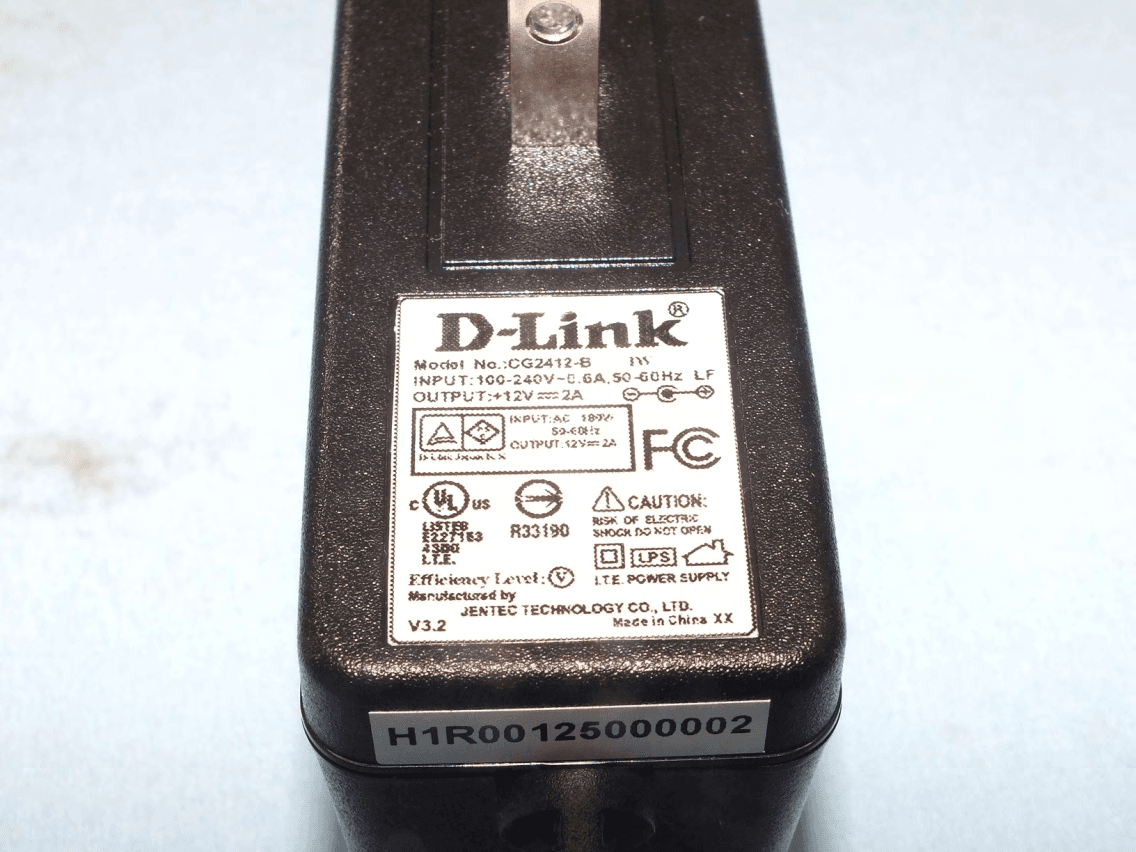

FCC ID: KA2IR820LA1 Report No.: RF130110C20 Operational Description This device is a Wireless AC1000 Dual Band Cloud Router, which operates in both 2.4GHz and 5GHz bands; the maximum data rate could be up to 866.7Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 866.7Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from Adapter. The antenna is PCB antenna with UFL connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA130110C20 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130110C20 MODEL NO.: DIR-820L FCC ID: KA2IR820LA1 RECEIVED: Jan. 10, 2013 TESTED: Jan. 11 ~ Jan. 23, 2013 ISSUED: Feb. 07, 2013 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmannm, Fountain Valley, California, United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA130110C20 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................ 4 2. RF EXPOSURE .............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION .......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 5 Report No.: SA130110C20 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130110C20 Original release Feb. 07, 2013 Report No.: SA130110C20 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Calculation result of maximum conducted power FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 29.28 0 20 0.169 1 5180-5240 16.91 0 20 0.010 1 5745-5825 27.26 0 20 0.106 1

Report No.: RF130110C20 1 of 87 Report Format Version 5.1.0 FCC TEST REPORT (15.247) REPORT NO.: RF130110C20 MODEL NO.: DIR-820L FCC ID: KA2IR820LA1 RECEIVED: Jan. 10, 2013 TESTED: Jan. 11 ~ Jan. 23, 2013 ISSUED: Feb. 07, 2013 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmannm, Fountain Valley, California, United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130110C20 2 of 87 Report Format Version 5.1.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 5 1. CERTIFICATION ........................................................................................................... 6 2. SUMMARY OF TEST RESULTS .................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 7 3. GENERAL INFORMATION ........................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 8 3.2 DESCRIPTION OF TEST MODES ............................................................................. 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 11 3.3 DESCRIPTION OF SUPPORT UNITS ....................................................................... 15 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 16 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 17 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................. 18 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 18 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 18 4.1.2 TEST INSTRUMENTS ................................................................................................ 19 4.1.3 TEST PROCEDURES ................................................................................................ 20 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 20 4.1.5 TEST SETUP .............................................................................................................. 21 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 21 4.1.7 TEST RESULTS ......................................................................................................... 22 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 35 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 35 4.2.2 TEST INSTRUMENTS ................................................................................................ 35 4.2.3 TEST PROCEDURES ................................................................................................ 36 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 36 4.2.5 TEST SETUP .............................................................................................................. 36 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 36 4.2.7 TEST RESULTS ......................................................................................................... 37 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 39 4.3.2 TEST SETUP .............................................................................................................. 39 4.3.3 TEST INSTRUMENTS ................................................................................................ 39 4.3.4 TEST PROCEDURE ................................................................................................... 39 4.3.5 DEVIATION FROM TEST STANDARD....................................................................... 39 4.3.6 EUT OPERATING CONDITIONS ..................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
