KA2IR820LB1Wireless AC1000 Dual Band Cloud Router

Version 2.0 | 2014/03/27 Wireless AC1000 Dual Band Cloud Router User Manual DIR-820L i D-Link DIR-820L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2014 by D-Link Systems, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. Revision Date Description 2.0 March 27, 2014 • Initial release for Revision B1 Preface ii D-Link DIR-820L User Manual Table of Contents Product Overview .............................................................. 1 Package Contents ......................................................................... 1 System Requirements ................................................................. 2Introduction ................................................................................... 3 Features ............................................................................................ 4 Hardware Overview ..................................................................... 5 Connections ........................................................................... 5LEDs ........................................................................................... 6 Installation ......................................................................... 7 Before you Begin ........................................................................... 7 Wireless Installation Considerations ...................................... 8Hardware Setup ............................................................................ 9 Configuration ................................................................... 11 Quick Setup Wizard ....................................................................12 QRS Mobile App ..........................................................................19 SharePort Mobile App ..............................................................20Setup ...............................................................................................25 Internet ...................................................................................25 Internet Connection Setup Wizard ..........................26Internet (Manual) ...........................................................32L2TP ....................................................................................39 Wireless Settings .................................................................42 Wireless Connection Setup wizard ..........................42Wi-Fi Protected Setup (WPS) Wizard .......................45 Manual Wireless Network Setup ..............................46 Wireless Security .................................................................57Network Settings ................................................................58 Router Settings ...............................................................58DHCP Server Settings ...................................................59DHCP Reservation .........................................................61 Storage ...................................................................................62IPv6 ..........................................................................................65 IPv6 Internet Connection Setup Wizard ................66 IPv6 Manual Setup.........................................................71 mydlink Settings .................................................................80 Advanced ......................................................................................83 Virtual Server ........................................................................83Port Forwarding ..................................................................84Application Rules ................................................................85QoS Engine............................................................................86Network Filter.......................................................................87Access Control .....................................................................88Website Filters ......................................................................91Inbound Filters.....................................................................92Firewall Settings ..................................................................93Routing ...................................................................................94Advanced Wireless .............................................................95Wi-Fi Protected Setup (WPS) ..........................................96 Advanced Network Settings ...........................................97 Guest Zone ............................................................................98IPv6 Firewall ..........................................................................99 Table of Contents iii D-Link DIR-820L User Manual Table of Contents IPv6 Routing ...................................................................... 100 Tools ............................................................................................. 101 Admin .................................................................................. 101Time ...................................................................................... 102SysLog .................................................................................. 103Email Settings ................................................................... 104System ................................................................................. 105Firmware ............…

Text truncated - open the document above for the full version.

79 D-Link DIR-820L User Manual Section 3 - Configuration Select Link-Local Only from the drop-down menu.Displays the IPv6 address of the router. My IPv6 Connection: LAN IPv6 Address Settings: Link-Local Connectivity 80 D-Link DIR-820L User Manual mydlink Settings On this page the user can configure the mydlink settings for this router. This feature will allow us to use the mydlink cloud services that includes online access and management of this router through the mydlink portal website or portable device applications like iOS and Android applications.In the mydlink section, we can view the registration status of the mydlink account service. The mydlink Service field will either display Registered or Non-Registered . In the Register mydlink Service section, we can register or modify a mydlink account. Click on the Register mydlink Service button to initiate this procedure. After clicking the Register mydlink Service button, this window will appear.Register mydlink Service Wizard: Step 1In this section we can select one of two options.• Select the ‘ Yes, I have a mydlink account. ’ option if you already have a mydlink account that you want to use on this router. • Select the ‘ No, I want to register and login with a new mydlink account. ’ option to register a new account and use it on this router. Click the Next button to proceed to the next step. Click the Cancel button to discard the changes made and return to the main page. The DIR-820L features a new cloud service that pushes information such as firmware upgrade notifications, user activity, and intr usion alerts to the mydlink™ app on Android and iOS mobile devices. To ensure that your router is up-to-date with the latest features, mydlink will notify you when an update is available for your router. You can also monitor a user’s online activity with real-time website browsing hist ory, maintaining a safe and secure environment, especially for children at home. 81 D-Link DIR-820L User Manual Register mydlink Service Wizard: Step 2When registering a new account , the following page appears. The following parameters will be available for configuration: E-mail Address (Account Name): Enter your e-mail address here. This e-mail address will also become your account name. Password: Enter your preferred password choice here. Confirm Password: Re-enter your preferred password choice here. Last Name: Enter your last name here. First Name: Enter your first name here. Accept terms and conditions: Tick this option to accept the mydlink terms and conditions. Click the Next button to proceed to the next step. Click the Prev button to return to the previous step. Click the Cancel button to discard the changes made and return to the main page. When logging in with an existing account , the following page appears. The following parameters will be available for configuration: E-mail Address (Account Name): Enter your e-mail address here. This e-mail address will also be your account name. Password: Enter your preferred password choice here. Click the Login button to login using these account details. Click the Prev button to return to the previous step. Click the Cancel button to discard the changes made and return to the main page. 82 D-Link DIR-820L User Manual At any point during this wizard, we can change the prefered language used. To change the language, select the desired language option from the Language drop-down menu, found on the top right of this page. End of Wizard 83 D-Link DIR-820L User Manual Section 3 - ConfigurationThis will allow you to open a single port. If you would like to open a range of ports, refer to the next page. Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields. Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click << . Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.Select TCP , UDP , or Both from the drop-down menu. The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always , which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. Select Allow All (most common) or a created Inbound filter. You may create your own inbound filters in the Advanced > Inbound Filter page. Name: IP Address: Private Port/ Public Port: Protocol Type: Schedule: Inbound Filter: Virtual Server Advanced 84 D-Link DIR-820L User Manual Section 3 - ConfigurationThis will allow you to open a single port or a range of ports. Port Forwarding Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields. Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click << . Enter the TCP and/or UDP port or ports that you want to open. You can enter a single port or a range of ports. Separate ports with a comma.Example: 24,1009,3000-4000The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always , which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. Select Allow All (most common) or a created Inbound filter. You may create your own inbound filters in the Advanced > Inbound Filter page. Name: IP Addres…

Text truncated - open the document above for the full version.

T o Whom It May Concern: Da te :20 November 2013 We, the undersigned, hereby authorize Sporton International Inc. to process submission for FCC and IC applicants and we agree to bill to Internationa Certification Corp.. This authorization is valid until a further written notice. Sincerely, ___ ________________ Gary Chang / Manager Internationa Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.)

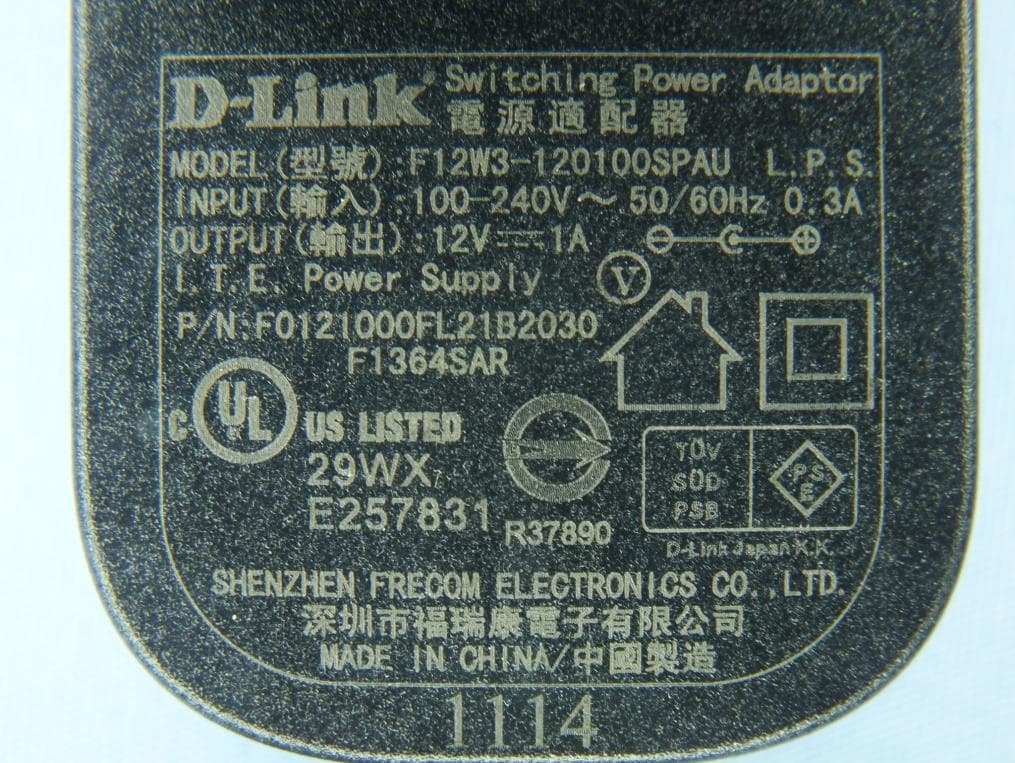

Report No. : EP434734 SPORTON International Inc. Page No. : 1 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP434734 SPORTON International Inc. Page No. : 2 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 3 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 4 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 5 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 6 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 7 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973

42.4 42.4 30mm 30mm Made in China.(C) FCC ID: KA2IR820LB1 IC: 4216A-IR820LB1 Model: DIR-820LB1 CAN ICES-3 (B)/NMB-3(B) Default router settings: http://dlinkrouter.local. Username: Admin Password: (leave the field blank) DIR-820L Label Location

Report No. : EP434734 SPORTON International Inc. Page No. : 8 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 9 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 10 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 11 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 12 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 13 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 14 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 15 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP434734 SPORTON International Inc. Page No. : 16 of 16 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC ID: IC: Channel frequency ModeChannelModeChannel 136 240 344 448 5149 6153 7157 8161 9165 1038 1146 3151 4159 5 6 7 8 9 KA2IR820LB1 4216A-IR820LB1 Operational Description The device is a wireless AC1000 dual band cloud router which operates at 2.4 and 5GHz band and supports IEEE 802.11 a / b / g / n / ac transmission modes. WPS Bottom is supported to provide end user to link up with other WiFi device more easily. RF main chipRTL8812AR / RTL8192ER Frequency range (MHz)2412~2462 / 5180~5240 / 5745~5825 Modulation type DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM Oscillating frequency (MHz)40 Antenna typePCB 2462 2422 5180 5200 5220 5240 2432 2437 2442 2447 2452 2457 11b 11g HT20 HT40 11a HT20 HT40 Frequency(MHz)Frequency(MHz) 2412 2417 2422 2427 2427 2432 2437 2442 2447 2452 5230 5755 5795 5745 5765 5785 5805 5825 5190 P 1 / 1

RF Exposure Report Report No. : FA430734 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA430734 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA430734 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) 2400-2483.5 23.34 0 23.34 0.043 1 5150-5250 16.87 0 16.87 0.010 1 5725-5850 25.85 0 25.85 0.077 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) MPE of Co-location evaluation: 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1 PD = Power density 1) 2.4 + 5.2GHz = 0.043 / 1 + 0.010 / 1 = 0.053 < 1 2) 2.4 + 5.8GHz = 0.043 / 1 + 0.077 / 1 = 0.120 < 1

FCC Test Report Report No. : FR430734AI SPORTON INTERNATIONAL INC. Page No. : 1 of 59 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : Wireless AC1000 Dual Band Cloud Router Brand Name : D-Link Model No. : DIR-820L FCC ID : KA2IR820LB1 Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz FCC Classification : DTS Applicant : D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, CA 92708 U.S.A. The product sample received on Mar. 10, 2014 and completely tested on Mar. 28, 2014. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR430734AI SPORTON INTERNATIONAL INC. Page No. : 2 of 59 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 6dB Bandwidth ..................................................................................................................................... 15 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Emissions in non-restricted frequency bands ...................................................................................... 25 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 35 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 58 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A3 FCC Test Report Report No. : FR430734AI SPORTON INTERNATIONAL INC. Page No. : 3 of 59 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:28.685MHz 49.18 (Margin 10.82dB) – QP 45.40 (Margin 4.60dB) – AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M:15.13/ 40M:35.13 80M:75.13 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm]:25.85 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/10kHz]:0.59 PSD [dBm/3kHz]:5.99 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 30dB below the highest power Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:500.45MHz 42.98 (Margin 3.02dB) - QP Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR430734AI SPORTON INTERNATIONAL INC. Page No. : 4 of 59 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR430734AI Rev. 01 Initial issue of report Apr. 14, 2014 FCC Test Report Report No. : FR430734AI SPORTON INTERNATIONAL INC. Page No. : 5 of 59 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5] 2 25.72 Yes 5725-5850 n(HT20) 5745-5825 149-165 [5] 2 25.69 Yes 5725-5850 n(HT40) 5755-5795 151-159 [2] 2 25.73 Yes 5725-5850 ac(VHT20) 5745-…
