KA2IR822E1AC1200 Wi-Fi Router

AC1200 Wi-Fi RouteR DiR-822 QuiCK iNStALLAtioN GuiDe DiR-822 2 ENGLISH CONTENTS OF PACKAGING CoNteNtS AC1200 WI-FI ROuTER DiR-822 POWER ADAPTER 12V 1A if any of these items are missing from your packaging, contact your reseller. ETHERNET CABLE CONNECT THE ROUTER TO YOUR PC DURING SETUP DiR-822 3 ENGLISH PRODuCT SETuP WeB-BASeD SetuP Step 1 Position your DIR-822 near your Internet-connected modem and PC. Keep the router in an open area for better wireless coverage. Step 4 Open a browser on the connected computer. If you are not automatically directed to the D-Link Setup Wizard, go to ‘http://192.168.0.1’ and follow the onscreen instructions to configure your DIR-822. Use ‘admin’ as your username and password. Step 2 Unplug the modem Ethernet cable connected to your computer and plug it into the port labeled ‘WAN’ on the router. Connect the supplied power adapter to the router and a power outlet, then verify that the power LED is on. Step 3 Plug one end of the supplied Ethernet cable into the port labeled ‘LAN1’ on the back of the router, and the other end into the Ethernet port on your computer. Modem Router PC Modem PC Modem internet Save Router Router DiR-822 4 ENGLISH TROuBLESHOOTING SetuP AND CoNFiGuRAtioN PRoBLeMS 1. HOW DO I CONFIGuRE MY DIR-822 ROuTER MANuALLY? - Connect your PC to the router using an Ethernet cable. - Open a web browser and enter the address ‘http://192.168.0.1’ . - The default username and password is ‘admin’. - If you have changed the password and can not remember it, you will need to reset the router to return to an empty password field. 2. HOW DO I RESET MY DIR-822 ROuTER TO FACTORY DEFAuLT SETTINGS? - Ensure the router is powered on. - Press and hold the reset button at the bottom of the device for 10 seconds. Note: Resetting the router to factory default will erase the current configuration settings. To re-configure your settings, log into the router as outlined in question 1, then run the Setup Wizard. 3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY WI-FI NAME (SSID) OR WI-FI PASSWORD? - For every PC that needs to connect to the router wirelessly, you will need to ensure you use the correct Wi-Fi Name (SSID) and Wi-Fi password. - Use the web-based user interface (as described in question 1 above) to check or choose your wireless settings. - Make sure you write down these settings so that you can enter them for each wirelessly connected PC. The back of this document features an area to record this important information. 4. WHY CAN'T I GET AN INTERNET CONNECTION? - For ADSL users, please contact your ISP to make sure the service has been enabled/connected by your ISP and that your ISP username and password is correct. teCHNiCAL SuPPoRt Having trouble installing your new product? D-Link’s website contains the latest user documentation and software updates for D-Link products. Customers can contact D-Link Technical Support through our website by choosing the relevant region. CONTACT uS: www.dlink.com/en/contact-us DiR-822 5 ENGLISH GPL Code Statement This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to view the full GPL Code Statement at: https://tsd.dlink.com.tw/GPL The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL. Written Offer for GPL and LGPL Source Code Where such specific license terms entitle you to the source code of such software, D-Link will provide upon written request via email and/or traditional paper mail the applicable GPL and LGPLsource code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL. Please direct all inquiries to: Email: [email protected] Snail Mail: Attn: GPLSOURCE REQUEST D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley, CA 92708 DiR-822 6 ENGLISH NOTE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rule…

Text truncated - open the document above for the full version.

The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited according to the ISO/IEC 17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Ryan Wang Authorized Signatory BTL INC. No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 TECHNICAL COMPLIANCE STATEMENT This is to certify that the product listed in follows was (were) tested in the BTL EMC Laboratory to comply with below FCC official limits. Equipment AC1200 Wi-Fi Router Brand Name D-Link Model Name DIR-822 Applicant D-Link Corporation Address 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Standard(s) FCC Part 15, Subpart B ANSI C63.4-2014 Report(s) BTL-FCCE-1-2006H007

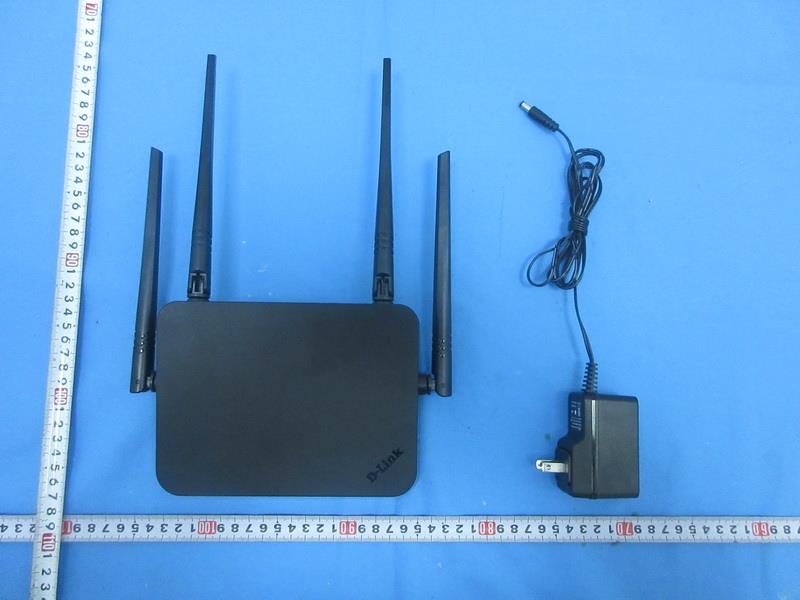

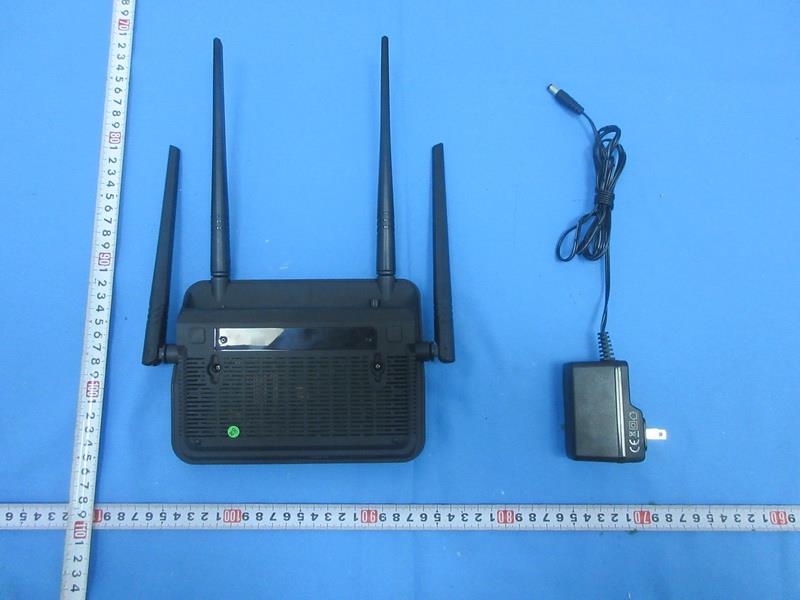

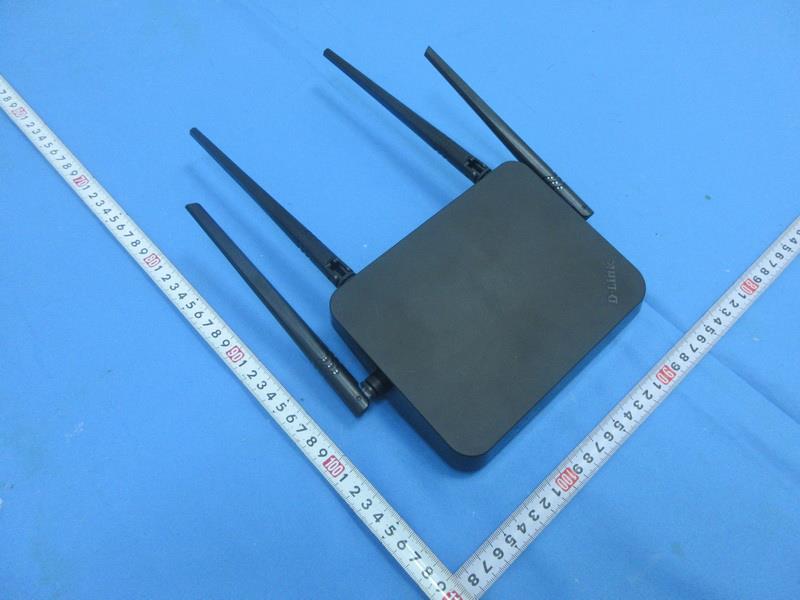

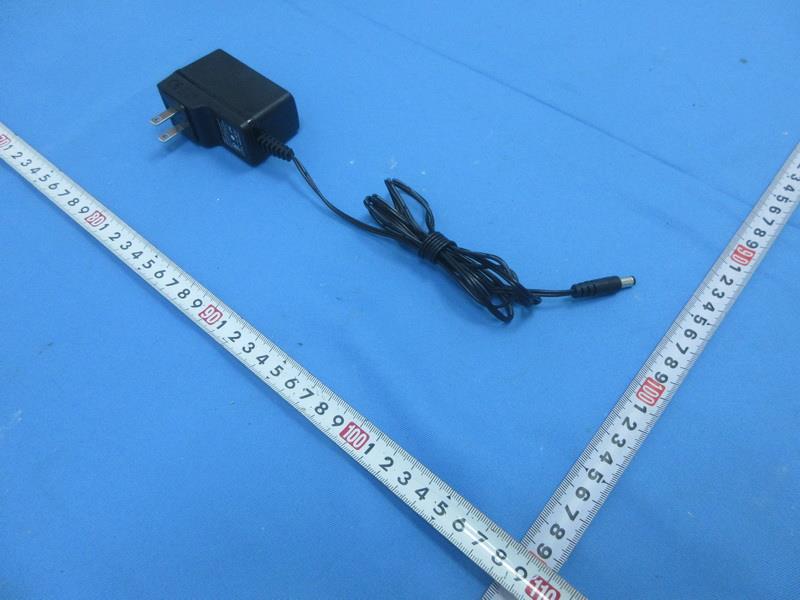

Project No.: 2006H007 Page 1 of 12 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2006H007 Page 2 of 12 Project No.: 2006H007 Page 3 of 12 Project No.: 2006H007 Page 4 of 12 2.4G ANT.2 5G ANT.2 5G ANT.1 2.4G ANT.1 Project No.: 2006H007 Page 5 of 12 Project No.: 2006H007 Page 6 of 12 Project No.: 2006H007 Page 7 of 12

Label Label location

Project No.: 2006H007 Page 8 of 12 Project No.: 2006H007 Page 9 of 12 Project No.: 2006H007 Page 10 of 12 Project No.: 2006H007 Page 11 of 12 Project No.: 2006H007 Page 12 of 12

Report No.: BTL-FCCP-3-2006H007 Page 1 of 4 FCC RF EXPOSURE REPORT FCC ID: KA2IR822E1 Project No. : 2006H007 Equipment : AC1200 Wi-Fi Router Brand Name : D-Link Test Model : DIR-822 Series Model : N/A Applicant : D-Link Corporation Address : 17595 Mt. Herrmann,Fountain Valley, California United State 92708 Manufacturer : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Date of Receipt : Jul. 06, 2020 Date of Test : Jul. 07, 2020~Aug. 12, 2020 Issued Date : Aug. 24, 2020 Report Version : R00 Test Sample : Engineering Sample No.: SH202007067 SH202007068 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Allen Wei Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.: BTL-FCCP-3-2006H007 Page 2 of 4 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Aug. 24, 2020 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 Tenda N/A Dipole N/A 5 N/A 2 Tenda N/A Dipole N/A 5 N/A Note: All antennas have the same gain, Directional gain = G ANT +Array Gain, For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain =10log (N ANT / N SS ) dB =5+10log(2/1)dBi=8.01. Then, the power density limit is 8-(8.01-6)=5.99. For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=5. For 5G Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A Dipole N/A 5 N/A 2 N/A N/A Dipole N/A 5 N/A Note: All antennas have the same gain, Directional gain = G ANT +Array Gain, For power spectral density measurements, N ANT = 2, N SS = 1. So Directional gain = G ANT + Array Gain =10log (N ANT / N SS ) dB =5+10log(2/1)dBi=8.01. Then, the UNII-1 power density limit is 17-(8.01-6)=14.99. the UNII-3 power density limit is 30-8.01+6=27.99 For power measurements, Array Gain = 0 dB (N ANT ≤ 4), so the Directional gain=5. Report No.: BTL-FCCP-3-2006H007 Page 3 of 4 Table for Antenna Configuration: For 2.4G: Operating Mode TX Mode Ant. 1 Ant. 2 Ant. 1+2 802.11b    802.11g    802.11n(20 MHz)    802.11n(40 MHz)    For 5G: Operating Mode TX Mode Ant. 1 Ant. 2 Ant. 1+2 IEEE 802.11a    IEEE 802.11n (HT20)    IEEE 802.11n (HT40)    IEEE 802.11ac (VHT20)    IEEE 802.11ac (VHT40)    IEEE 802.11ac (VHT80)    Report No.: BTL-FCCP-3-2006H007 Page 4 of 4 1.1. TEST RESULTS For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. tune up Power (dBm) Max. tune up Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 30 1000 0.629115 1 Complies For 5GHz : Antenna Gain (dBi) Antenna Gain (numeric) Max. tune up Power (dBm) Max. tune up Power Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 5 3.1623 25 251.1886 0.198944 1 Complies For the max simultaneous transmission MPE: 2.4G+5G Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.629115 0.198944 0.828059 1 Complies Note: The calculated distance is 20 cm. Output power including tune up tolerance. End of Test Report

Report No.:BTL-FCCP-2-2006H007 Page 1 of 145 FCC Radio Test Report FCC ID: KA2IR822E1 This report concerns: Original Grant Project No. : 2006H007 Equipment : AC1200 Wi-Fi Router Brand Name : D-Link Test Model : DIR-822 Series Model : N/A Applicant : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Manufacturer : D-Link Corporation Address : 17595 Mt. Herrmann, Fountain Valley, California United State 92708 Date of Receipt : Jul. 06, 2020 Date of Test : Jul. 07, 2020~Aug. 12, 2020 Issued Date : Aug. 24, 2020 Report Version : R00 Test Sample : Engineering Sample No.: SH202007067 SH202007068 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Allen Wei Approved by : Ryan Wang Add: No. 29, Jintang Road, Tangzhen Industry Park, Pudong New Area, Shanghai 201210,China TEL: +86-021-61765666 Web: www.newbtl.com Report No.:BTL-FCCP-2-2006H007 Page 2 of 145 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.:BTL-FCCP-2-2006H007 Page 3 of 145 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 TEST MODES 11 2.2 PARAMETERS OF TEST SOFTWARE 13 2.3 DUTY CYCLE 14 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 2.5 SUPPORT UNITS 16 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 17 3.1 LIMIT 17 3.2 TEST PROCEDURE 17 3.3 DEVIATION FROM TEST STANDARD 17 3.4 TEST SETUP 18 3.5 EUT OPERATION CONDITIONS 18 3.6 TEST RESULTS 18 4 . RADIATED EMISSIONS TEST 19 4.1 LIMIT 19 4.2 TEST PROCEDURE 20 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 21 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 23 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 23 4.8 TEST RESULTS - ABOVE 1000 MHz 23 5 . BANDWIDTH TEST 24 5.1 LIMIT 24 5.2 TEST PROCEDURE 24 5.3 TEST PROCEDURE 24 5.4 TEST SETUP 25 Report No.:BTL-FCCP-2-2006H007 Page 4 of 145 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER TEST 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULTS 27 7 . POWER SPECTRAL DENSITY TEST 28 7.1 LIMIT 28 7.2 TEST PROCEDURE 28 7.3 DEVIATION FROM STANDARD 28 7.4 TEST SETUP 29 7.5 EUT OPERATION CONDITIONS 29 7.6 TEST RESULTS 29 8 . MEASUREMENT INSTRUMENTS LIST 30 9 . EUT TEST PHOTOS 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 39 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 42 APPENDIX E - BANDWIDTH 115 APPENDIX F - CONDUCTED OUTPUT POWER 124 APPENDIX G - POWER SPECTRAL DENSITY 137 Report No.:BTL-FCCP-2-2006H007 Page 5 of 145 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Aug. 24, 2020 Report No.:BTL-FCCP-2-2006H007 Page 6 of 145 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Output Power APPENDIX F PASS ------ 15.407(a) Power Spectral Density APPENDIX G PASS ------ 15.407(g) Frequency Stability APPENDIX H PASS ------ 15.203 Antenna Requirements ------ PASS NOTE (3) 15.407(c) Automatically Discontinue Transmission ------ PASS NOTE (3) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. (3) During no any information tr…
