KA2IR826LMO1IEEE 802.11a/n Wireless PCIe Module

i IEEE 802.11a/n Wireless PCIe Module User’s Guide ii TABLE OF CONTENT Introduction .................................................................................... 1 Overview of this User’s Guide ..................................................... 1 Software Installation ....................................................................... 2 Windows 98se/ME/2000/XP Utility and Driver Installation ........ 2 Wireless Utility Setting ................................................................ 3 Technical Specifications ............................................................... 13 1 INTRODUCTION Congratulations on your purchase of this 802.11a/n PCIe Module This manual helps to get familiar with the Wireless PCIe Adapter. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference. With a Wireless LAN (IEEE 802.11g) mini PCI Adapter, a desktop or laptop computer can communicate with another computer in a wireless way. Easy-to-use utilities are bundled with Wireless mini-PCI Adapter for configuration, monitoring, and diagnosis purposes. Wireless PCIe Adapter can wirelessly transmit and receive data, minimizing the need for wired connections, at a speed of up to fifty-four megabit per second. Wireless PCIe Adapter provides users with an access to real-time information anywhere in their organization. The mobility provides productivity and service, which are not available under wired networks. The Wireless PCIe Adapter configuration is easy to change from peer-to-peer networks, suitable for a small number of users, to full infrastructure networks of thousands of users that allow roaming around a broad area. Overview of this User’s Guide Introduction. Describes the Wireless PCIe Adapter and its features. Software Installation. Tells how to setup the driver and the utility setting. Technical Specifications. Lists the technical (general, physical and environmental) specifications of the Wireless PCIe Adapter. 2 SOFTWARE INSTALLATION This section will lead you to install the driver and utility of the Wireless PCIe Adapter via Windows OS installation. Windows 98se/ME/2000/XP Utility and Driver Installation 1. Insert the Wireless LAN mini PCI Adapter Driver & Utility CD-ROM into computer’s CD-ROM Drive and it will automatically run a setup menu and install the driver and the utility, for Win98se, please reboot the system to install the driver to the system properly. In some specific setting on Windows system, you may need to proceed the software manually, go to your Windows Start menu and choose Run, type “D:\Utility\Setup.exe” in the dialog box (D:\ will depend on where your CD-ROM drive is located) and click OK. 2. If you need to install the driver manually, refer each Windows OS to the following CD-Rom directory path: D:\Drivers\<Windows OS>\SIS163U.INF. Note: (D:\ will depends on where the CD-ROM drive is located and <Windows OS> will depend on the Windows Operating System you are using). 3. The Install Shield Wizard screen will appear. Click “Next” to continue. 4. The installation program will help you to setup the Wireless Utility. Be noted that the Windows XP have its own Wireless Utility; you can either use the utility of Windows XP or the provided utility. 5. You will see the icon on the Windows task bar when you finish the installation. When the icon in the toolbar represents in green color, it is properly connected to the network and if it represents in red color, then it is not connected to the network. 3 Wireless Utility Setting With the Wireless PCIe Adapter utility, users can configure all the functions provided by the Wireless Monitor Utility. Double-click the utility icon that appears in the taskbar. The Wireless Monitor Utility includes seven tabs: Status, Configuration, Advanced, Profile, Network, Statistics and About. Status The Status screen shows you the status of the Wireless Adapter, it shows that where the device is connected to, the Network mode, the Channel, the transmit rate and the encryption mode. There are two dialog boxes showing the data transmitted and the data received. The two signal lines show the Signal Strength and the Link Quality of the device. 4 Configuration The Configuration function helps you to configure the Network and the Security. Network: the setting of the Network mode, the SSID and the Channels.
Network Mode: If you want to connect with an Access Point, please set to “Infrastructure” mode. If you have more stations and just want to set them as local network, please set the mode to “Ad-Hoc” mode.
Network SSID: The SSID differentiates one Wireless LAN group name from another; so all access points and all devices attempting to connect to a specific Wireless LAN group name must use the same SSID. A device will not be permitted to join the BSS unless it can provide the unique SSID. If the SSID parameter is “ANY”, it will detect the strongest signal of the wireless station.
Channel: It shows radio channel numbers that used for Wireless LAN networking. The channel number can be set only under the Ad-Hoc operation mode. In Ad-Hoc mode stations, each station must have the same channel numbers and SSID. In Infrastructure mode, the Wireless mini-PCI Adapter will automatically detect the channel number of the Access Point. Security: the setting of the Network Encryption. This function is used to protect wireless communication from eavesdropping. A secondary function of encryption is to prevent unauthorized access to a wireless network, and it can be achieved by using the Encryption function.
Encryption Mode: There are two kinds of encryption mode, WEP encryption and WPA-PSK. Click the Enable Encryption to activate the security of the mini-PCI Adapter. WEP-Key: WEP (Wired Equivalent Privacy) relies on a secret key that is shared between a mobile station and a base station (Access Point). WEP-Passphrase: the Passphrase in the dialog box helps you to create a group of WEP key in t…

Text truncated - open the document above for the full version.

FCC ID: KA2IR826LMO1 Report No.: RF120305C07 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 6, 2012 Dear Application Examiner, D-Link Corporation, the device: IIEEE 802.11a/n Wireless PCIe Module, FCC ID: KA2IR826LMO1, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input, it is integrated in chip RT5592EP-QFN88. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MS3410. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: KA2IR826LMO1 Report No.: RF120305C07 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Technical Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

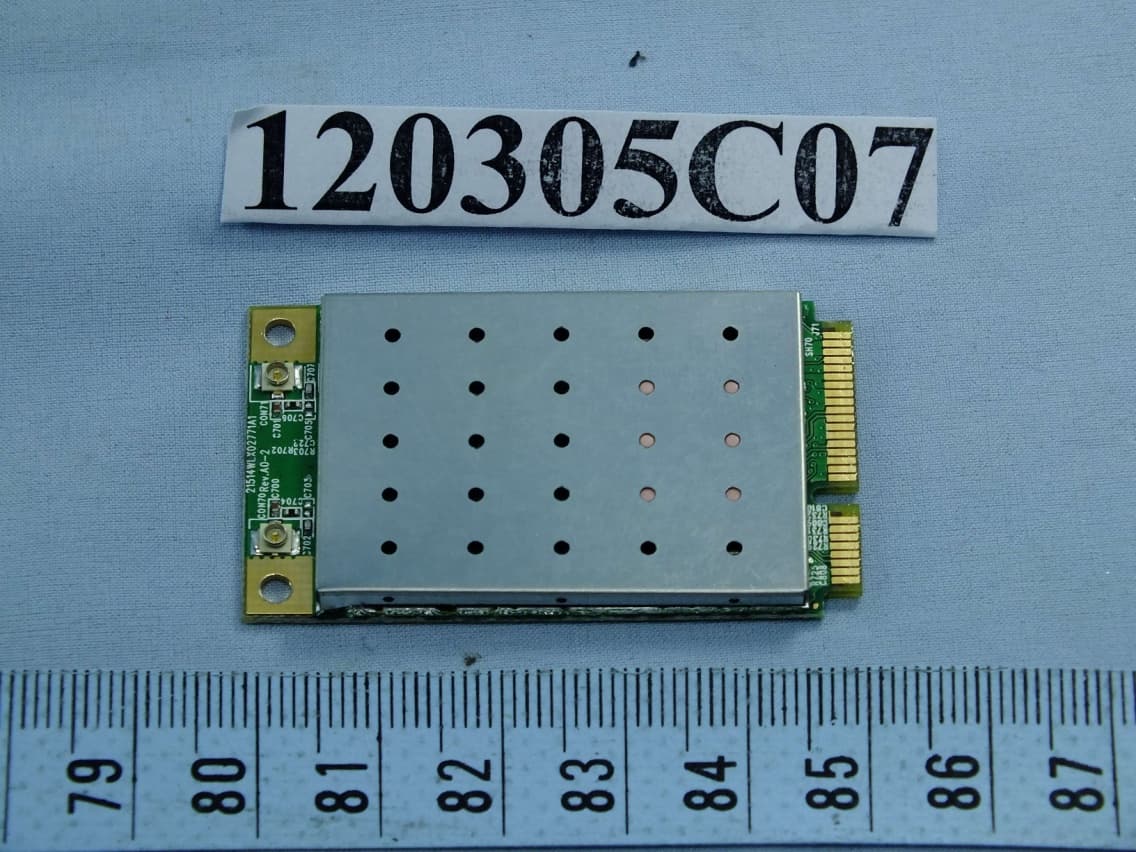

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: KA2IR826LMO1 IC : 4216A-IR826LMO1 Model: DIR-826LMO1 Made in China.

Page 2 Page 3 Page 4

FCC ID: KA2IR826LMO1 Report No.: RF120305C07 Operational Description This device is an IEEE 802.11a/n Wireless PCIe Module, which operates in 5GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.3Vdc from host equipment. The antenna is PCB with UFL antenna connector. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120305C07 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120305C07 MODEL NO.: DIR-826LMO1 FCC ID: KA2IR826LMO1 RECEIVED: Mar. 05, 2012 TESTED: Mar. 13 ~ Mar. 22, 2012 ISSUED: Mar. 26, 2012 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 5 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120305C07 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 5 Report No.: SA120305C07 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120305C07 Original release Mar. 26, 2012 Report No.: SA120305C07 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: IEEE 802.11a/n Wireless PCIe Module MODEL NO.: DIR-826LMO1 BRAND: D-Link APPLICANT: D-Link Corporation TESTED: Mar. 13 ~ Mar. 22, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: DIR-826LMO1) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Mar. 26, 2012 Andrea Hsia / Specialist APPROVED BY : , DATE :Mar. 26, 2012 Gary Chang / Technical Manager Report No.: SA120305C07 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 16.9 0 20 0.010 1 5745-5825 26.1 0 20 0.081 1

Report No.: RF120305C07 1 Report Format Version 4.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF120305C07 MODEL NO.: DIR-826LMO1 FCC ID: KA2IR826LMO1 RECEIVED: Mar. 05, 2012 TESTED: Mar. 13 ~ Mar. 22, 2012 ISSUED: Mar. 26, 2012 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120305C07 2 Report Format Version 4.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 4 1. CERTIFICATION .......................................................................................................... 5 2. SUMMARY OF TEST RESULTS ................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 6 3. GENERAL INFORMATION .......................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 7 3.2 DESCRIPTION OF TEST MODES .............................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 12 4. TEST TYPES AND RESULTS ................................................................................... 13 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 13 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................... 13 4.1.2 TEST INSTRUMENTS ............................................................................................... 14 4.1.3 TEST PROCEDURES ............................................................................................... 15 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 15 4.1.5 TEST SETUP ............................................................................................................. 16 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 16 4.1.7 TEST RESULTS ........................................................................................................ 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 26 4.2.2 T EST INSTRUMENTS .............................................................................................. 26 4.2.3 TEST PROCEDURES ............................................................................................... 27 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 27 4.2.5 TEST SETUP ............................................................................................................. 28 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 28 4.2.7 TEST RESULTS ........................................................................................................ 29 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 31 4.3.2 TEST SETUP ............................................................................................................. 31 4.3.3 TEST INSTRUMENTS ............................................................................................... 31 4.3.4 TEST PROCEDURE .................................................................................................. 31 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 31 4.3.6 EUT OPERATING CONDITIONS .............................................................................. 31 4.3.7 TEST RESULTS ........................................................................................................ 32 4.4 CONDUCTED OUTPUT POWER .............................................................................. 33 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT .............................. 33 4.4.2 TEST SETUP ............................................................................................................. 33 4.4.3 INSTRUMENTS ......................................................................................................... 33 4.4.4 TEST PROCEDURES ............................................................................................... 33 4.4.5 DEVIATION FROM TEST STANDARD...................................................................... 33 4.4.6 EUT OPERATING CONDITIONS .............................................................................. 33 4.4.7 TEST RESULTS ...........................................…
