KA2IR842A1AC1200 Wi-Fi Gigabit Router

Version 1.0 | 23/06/2015 AC1200 Wi-Fi Gigabit Router User Manual DIR-842 i D-Link DIR-842 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United Stat es or other countries. iPhone, iPad, and iPod touch are register ed trademarks of Apple Inc. Android is a trademark of Google, Inc. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2015 by D-Link Corporation.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation. Revision Date Description 1.0 June 23, 2015 t
*OJUJBM
SFMFBTF Preface ii D-Link DIR-842 User Manual Table of Contents Preface ................................................................................. i Manual Revisions ........................................................................... iTrademarks ...................................................................................... iPackage Contents ......................................................................... 1System Requirements ................................................................. 2Introduction ................................................................................... 3Features ............................................................................................ 4Hardware Overview ..................................................................... 5 Connections ........................................................................... 5LEDs ........................................................................................... 6 Installation ......................................................................... 7 Before you Begin ........................................................................... 7Wireless Installation Considerations ...................................... 8Manual Setup ................................................................................. 9 Configuration ................................................................... 10 Setup Wizard ................................................................................11QRS Mobile App ..........................................................................14 Configuration ................................................................... 18 Home ..............................................................................................19 Internet ...................................................................................19DIR-842 ...................................................................................20Connected Clients ..............................................................21 Settings ..........................................................................................22 Wizard .....................................................................................22 Internet ...................................................................................22 IPv6 .....................................................................................31 Wireless ..................................................................................46 Guest Zone .......................................................................48 Network ..................................................................................49 Features ..........................................................................................51 QoS Engine............................................................................51Firewall Settings ..................................................................52 IPv4/IPv6 Rules ...............................................................54 Port Forwarding ..................................................................55 Virtual Server ...................................................................56 Website Filter ........................................................................57Static Routes .........................................................................58 IPv6 .....................................................................................59 Dynamic DNS .......................................................................60 IPv6 Host ...........................................................................61 Management ................................................................................62 Time & Schedule .................................................................62 Time ....................................................................................62Schedule ...........................................................................63 System Log ............................................................................64Admin .....................................................................................65 System ...............................................................................66 Upgrade .................................................................................67Statistics .................................................................................68 Table of Contents iii D-Link DIR-842 User Manual Table of Contents Connect a Wireless Client to your Router ...................... 69 WPS Button ...................................................................................69Windows® 8 ...................................................................................70 WPA/WPA2 ............................................................................70 Windows® 7 ...................................................................................72 WPA/WPA2 ....…

Text truncated - open the document above for the full version.

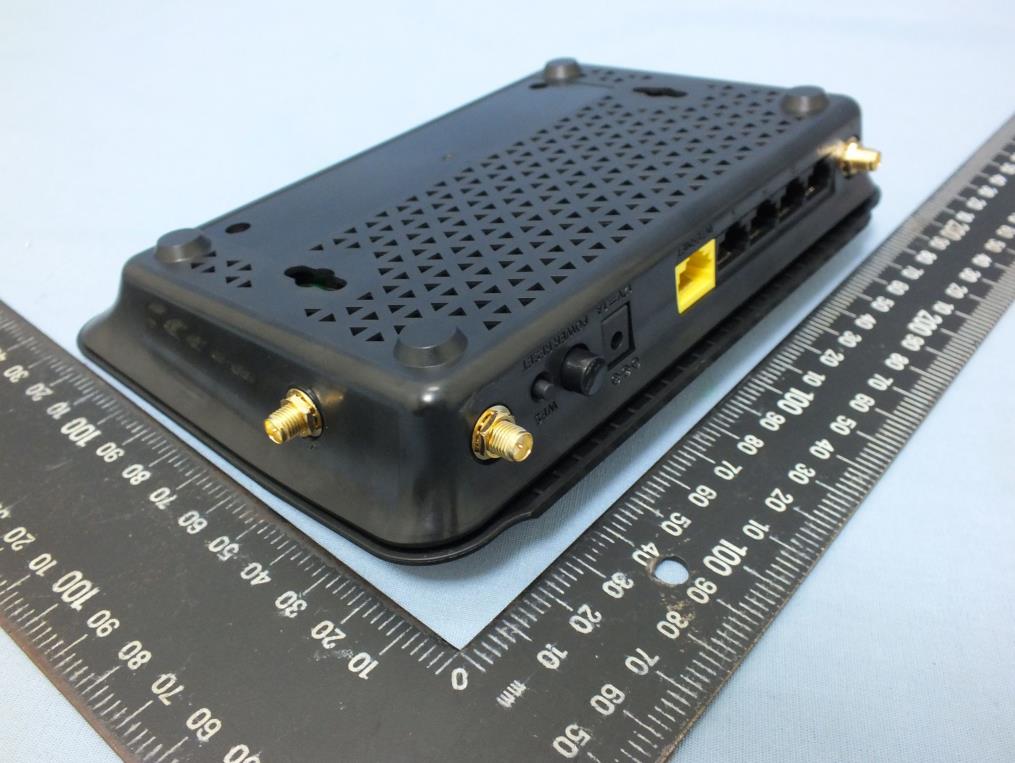

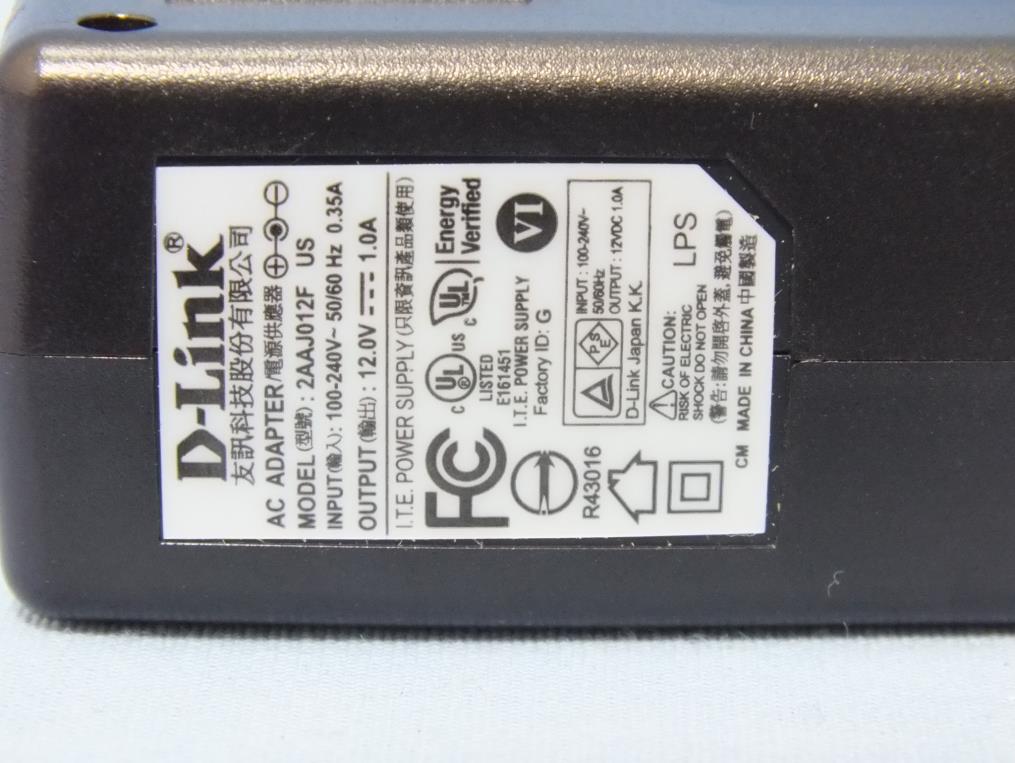

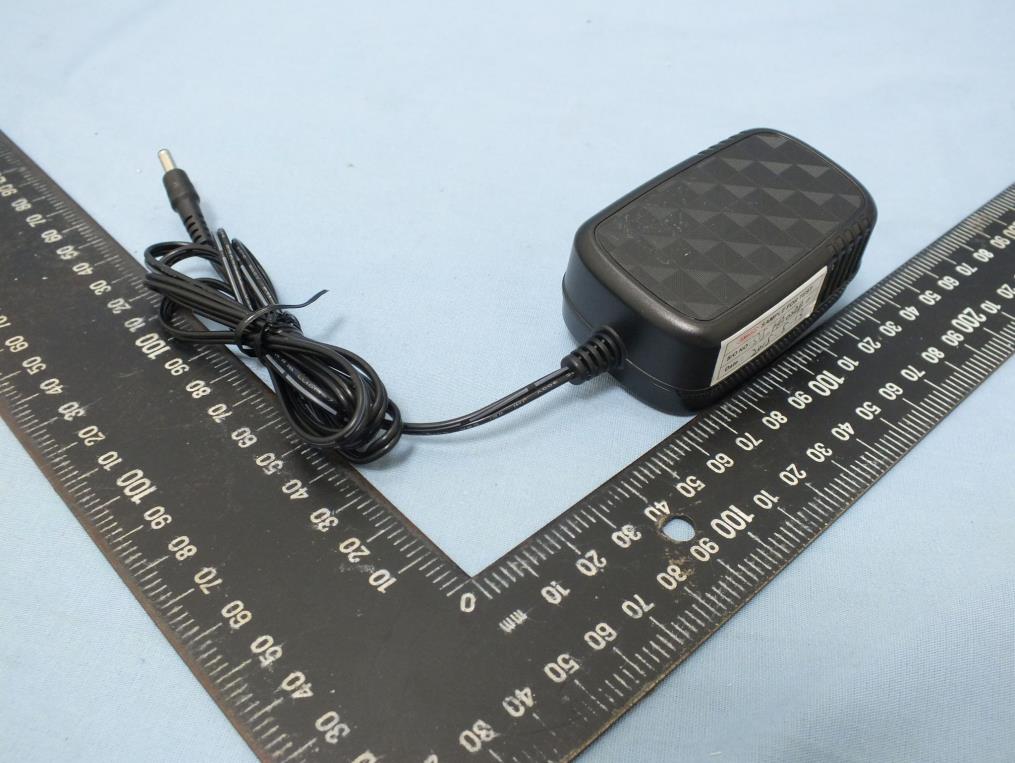

Report No. : EP551960 SPORTON International Inc. Page No. : 1 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Detachable antenna Report No. : EP551960 SPORTON International Inc. Page No. : 2 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 3 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 4 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 5 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 6 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 7 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 8 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 9 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Fixed antenna Report No. : EP551960 SPORTON International Inc. Page No. : 10 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 11 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 12 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 13 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 14 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 15 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Label Location

Report No. : EP551960 SPORTON International Inc. Page No. : 16 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Detachable antenna Report No. : EP551960 SPORTON International Inc. Page No. : 17 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 18 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 19 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 20 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 21 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 22 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Fixed antenna Report No. : EP551960 SPORTON International Inc. Page No. : 23 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 24 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 25 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 26 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 27 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP551960 SPORTON International Inc. Page No. : 28 of 28 TEL : 886-3-327-3456 FAX : 886-3-327-0973

RF Exposure Report Report No. : FA551960 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA551960 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA551960 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) 2400-2483.5 23.23 5.52 28.75 0.149 1 5150-5250 21.42 7.51 28.93 0.155 1 5725-5850 20.29 7.51 27.80 0.120 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. MPE of Co-location evaluation: 2.4 and 5GHz can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1 PD = Power density MPE of 2.4 + 5GHz = 0.149 / 1 + 0.155 / 1 = 0.304< 1

FCC Test Report Report No. : FR561960AN SPORTON INTERNATIONAL INC. Page No. : 1 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : AC1200 Wi-Fi Gigabit Router Brand Name : D-Link Model No. : DIR-842 FCC ID : KA2IR842A1 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant : D-Link Corporation No. 289, Xinhu 3rd Rd., Neihu District, Taipei City 11494, Taiwan, R. O. C. The product sample received on Apr. 16, 2015 and completely tested on Jul. 08, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR561960AN SPORTON INTERNATIONAL INC. Page No. : 2 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT....................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 17 3.3 RF Output Power .................................................................................................................................. 19 3.4 Peak Power Spectral Density ............................................................................................................... 22 3.5 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 25 3.6 Frequency Stability ............................................................................................................................... 48 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 50 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A5 FCC Test Report Report No. : FR561960AN SPORTON INTERNATIONAL INC. Page No. : 3 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.2630270MHz 47.30 (Margin 14.04dB) - QP 44.77 (Margin 6.57dB) - AV FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M: 40.14 / 40M: 58.55 80M: 81.62 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5150-5250MHz: 21.42 Power [dBm] 5150-5250MHz: 28.49 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz: 9.29 PPSD [dBm/MHz] 5150-5250MHz: 12.48 Complied 3.5 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]: 5150.00MHz 52.99 (Margin 1.01dB) – AV Non-Restricted Bands: ≤ -27dBm (68.2dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.6 15.407(g) Frequency Stability 4.6923 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR561960AN SPORTON INTERNATIONAL INC. Page No. : 4 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR561960AN Rev. 01 Initial issue of report Jul. 23, 2015 FCC Test Report Report No. : FR561960AN SPORTON INTERNATIONAL INC. Page No. : 5 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 2 21.42 YES 5150-5250 n(HT20) 5180-5240 36-48 [4] 2 21.12 YES 5150-5250 n(HT40) 5190-5230 38-46 [2] 2 19.35 YES 5150-5250 ac(VHT20) 51…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR551960AI SPORTON INTERNATIONAL INC. Page No. : 1 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : AC1200 Wi-Fi Gigabit Router Brand Name : D-Link Model No. : DIR-842 FCC ID : KA2IR842A1 Standard : 47 CFR FCC Part 15.407 Operating Band : 5725 MHz – 5850 MHz FCC Classification : NII Applicant : D-Link Corporation No. 289, Xinhu 3rd Rd., Neihu District, Taipei City 11494, Taiwan, R. O. C. The product sample received on Apr. 16, 2015 and completely tested on Jul. 08, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR551960AI SPORTON INTERNATIONAL INC. Page No. : 2 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 9 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT....................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 The Worst Case Power Setting Parameter .......................................................................................... 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 11 2.4 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 Emission Bandwidth ............................................................................................................................. 17 3.3 RF Output Power .................................................................................................................................. 19 3.4 Peak Power Spectral Density ............................................................................................................... 22 3.5 Transmitter Radiated Unwanted Emissions and Band Edge ............................................................... 25 3.6 Frequency Stability ............................................................................................................................... 48 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 50 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A5 FCC Test Report Report No. : FR551960AI SPORTON INTERNATIONAL INC. Page No. : 3 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.2616470MHz 47.17 (Margin 14.21dB) – QP 45.32 (Margin 6.06dB) – AV FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M: 16.35 / 40M: 35.71 80M: 75.13 500kHz for 6dB bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm] 5725-5850MHz: 20.29 Power [dBm] 5725-5850MHz: 28.49 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5725-5850MHz: 6.35 PPSD [dBm/500kHz] 5725-5850MHz: 25.48 Complied 3.5 15.407(b) Transmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]: 5725.00MHz 77.18 (Margin 1.02dB) – PK Non-Restricted Bands: ≤ -27dBm (68.2dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.6 15.407(g) Frequency Stability 4.8954 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR551960AI SPORTON INTERNATIONAL INC. Page No. : 4 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR551960AI Rev. 01 Initial issue of report Jul. 23, 2015 FCC Test Report Report No. : FR551960AI SPORTON INTERNATIONAL INC. Page No. : 5 of 51 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5] 2 20.29 YES 5725-5850 n(HT20) 5745-5825 149-165 [5] 2 20.16 YES 5725-5850 n(HT40) 5755-5795 151-159 [2] 2 18.56 YES 5725-5…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR 551960 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR 551960 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW Test Photos Report No. : FR 551960 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration Below 1GHz test: FRONT VIEW REAR VIEW Test Photos Report No. : FR 551960 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Above 1GHz test: FRONT VIEW REAR VIEW Test Photos Report No. : FR 551960 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW
