KA2IR850LB1Wireless AC1200 Dual Band Gigabit Cloud Router

D-Link Corporation
Wireless AC1200 Dual Band Gigabit Cloud Router - FCC ID KA2IR850LB1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 06, 2014
Application Purpose
Original Equipment
Date of Application
Aug 06, 2014
Equipment Note
Wireless AC1200 Dual Band Gigabit Cloud Router
Frequency Range
5775.00000000 - 5775.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Version 2.00 | 05/07/2014 Wireless AC1200 Dual Band Gigabit Cloud Router User Manual DIR-850L iD-Link DIR-850L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2014 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. RevisionDateDescription 2.0017 June, 2014• Update to Revision B1 Preface iiD-Link DIR-850L User Manual Table of Contents Preface .................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 Connections ...........................................................................5 LEDs ...........................................................................................6 Installation .........................................................................7 Before you Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Hardware Installation ..................................................................9 Getting Started ................................................................11 Setup Wizard ................................................................................12 QRS Mobile App ..........................................................................17 mydlink SharePort ......................................................................22 Main Menu ............................................................................25 Documents ............................................................................26 Pictures ...................................................................................28 Videos .....................................................................................30 Music .......................................................................................32 Folders ....................................................................................35 Favorites .................................................................................38 Using the mydlink SharePort app for Android™ ..............39 Main Menu ............................................................................42 Documents ............................................................................43 Pictures ...................................................................................45 Videos .....................................................................................47 Music .......................................................................................49 Folders ....................................................................................52 Favorites .................................................................................56 Using SharePort Web Access ..................................................57 Music .......................................................................................59 Pictures ...................................................................................60 Videos .....................................................................................61 Documents ............................................................................62 Configuration ...................................................................63 Home ..............................................................................................64 Internet ...................................................................................64 DIR-850L .................................................................................65 Connected Clients ..............................................................66 USB Device ............................................................................67 Settings ..........................................................................................68 Wizard .....................................................................................68 Internet ...................................................................................68 Wireless ..................................................................................92 Network ..................................................................................95 SharePort ...............................................................................97 Table of Contents iiiD-Link DIR-85…

Text truncated - open the document above for the full version.

External Photos

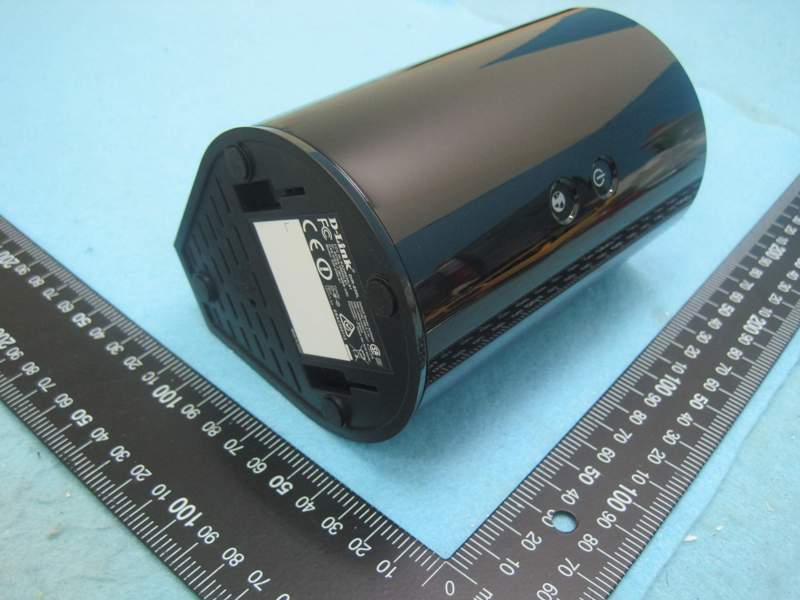

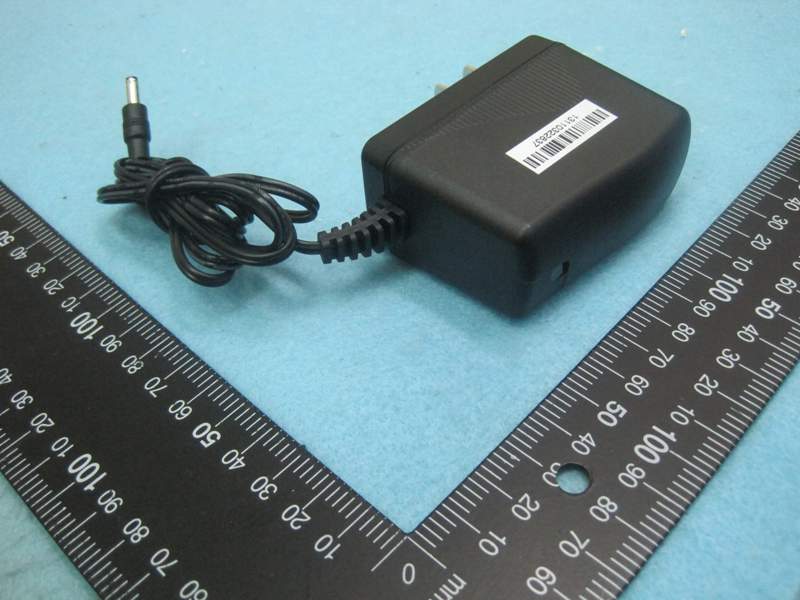

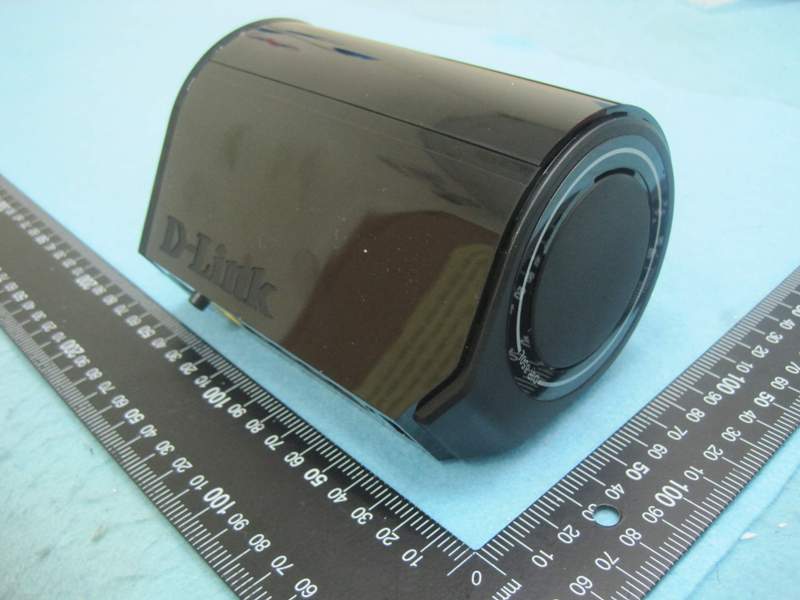

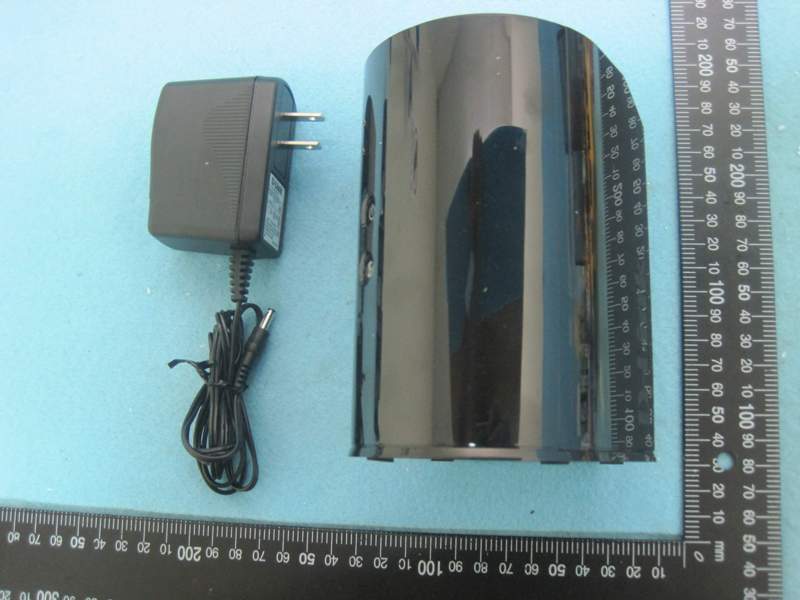

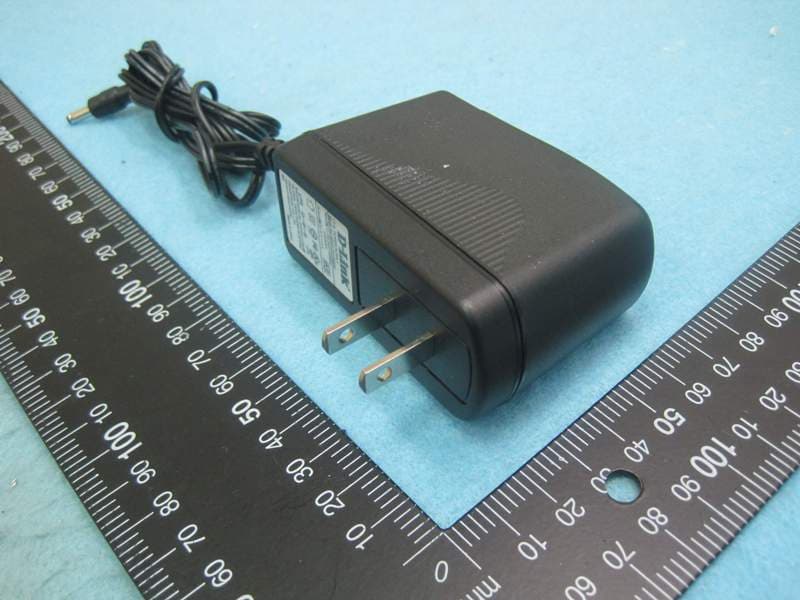

Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Adapter Brand: D-Link Model: AMS3-1201500FU Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973

Internal Photos

Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 1 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 2 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 3 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 4 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 5 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 6 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 7 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 8 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973 Report No.: 442251 SPORTON International Inc. PAGE NUMBER : 9 OF 9 TEL : 886-3-327-3456 ISSUED DATE : Aug. 04, 2014 FAX : 886-3-327-0973

RF Exposure Info

Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT20 : 26.24 dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.47 2.7990 26.2406 420.7867 0.234430 1 Complies For 5GHz ISM Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11a: 25.98 dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.47 2.7990 25.9817 396.4325 0.220861 1 Complies For 2.4GHz Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11b 26.90 dBm Average Output Power Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.20 2.0893 26.8968 489.4149 0.203530 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.203530 / 1 + 0.234430 / 1 = 0.43796, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation Applicant Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID KA2IR850LB1 Product Name Wireless AC1200 Dual Band Gigabit Cloud Router Brand Name D-Link Model No. DIR-850L Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Mar. 27, 2014 Final Test Date Jun. 14, 2014 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02, KDB 662911 D01 v02r01, KDB644545 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR442251AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: KA2IR850LB1 Issued Date : Aug. 04, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. EUT Operation during Test .................................................................................................................................................................12 3.10. Duty Cycle ........................................................................................................................................................................................13 3.11. Test Configurations ...........................................................................................................................................................................17 4. TEST RESULT ................................................................................................................................................... 20 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................20 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................24 4.3. Power Spectral Density Measurement ..............................................................................................................................................27 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................39 4.5. Radiated Emissions Measurement ....................................................................................................................................................48 4.6. Emissions Measurement ....................................................................................................................................................................76 4.7. Antenna Requirements ...................................................................................................................................................................105 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 106 6. MEASUREMENT UNCERTAINTY........................................................................................................................ 108 APPENDIX A. TEST PHOTOS ......................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 23°C Humidity 56% Test Engineer Robert Chang Configurations 2.4G + 5G Horizontal Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : C3 of C3 Vertial

Test Setup Photos

Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR442251 FCC ID: KA2IR850LB1 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
515C5.78 GHz - 5.78 GHz71.80 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power. The device can be self-colocated with the composite UNII portion. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. This device has 20, 40, and 80MHz BW modes.
