KA2IR862LA1Wireless AC1600 Dual Band Gigabit Cloud Router

Version 1.0 | 2014/01/20 Wireless AC1600 Dual Band Gigabit Cloud Router User Manual DIR-862L iD-Link DIR-862L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2013 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0December 20, 2013• Initial release for Revision A1 Preface iiD-Link DIR-862L User Manual Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 Connections ...........................................................................5 LEDs ...........................................................................................6 Installation .........................................................................7 Before you Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Hardware Setup ............................................................................9 Configuration ...................................................................11 Quick Setup Wizard ....................................................................12 QRS Mobile App ..........................................................................19 SharePort Mobile App ..............................................................20 Setup ...............................................................................................25 Internet ...................................................................................25 Internet Connection Setup Wizard ..........................26 Internet (Manual) ...........................................................32 L2TP ....................................................................................39 Wireless Settings .................................................................42 Wireless Connection Setup wizard ..........................42 Wi-Fi Protected Setup (WPS) Wizard .......................45 Manual Wireless Network Setup ..............................46 Wireless Security .................................................................57 Network Settings ................................................................58 Router Settings ...............................................................58 DHCP Server Settings ...................................................59 DHCP Reservation .........................................................61 Storage ...................................................................................62 IPv6 ..........................................................................................65 IPv6 Internet Connection Setup Wizard ................66 IPv6 Manual Setup.........................................................71 mydlink Settings .................................................................80 Advanced ......................................................................................83 Virtual Server ........................................................................83 Port Forwarding ..................................................................84 Application Rules ................................................................85 QoS Engine............................................................................86 Network Filter.......................................................................87 Access Control .....................................................................88 Website Filters ......................................................................91 Inbound Filters.....................................................................92 Firewall Settings ..................................................................93 Routing ...................................................................................94 Advanced Wireless .............................................................95 Wi-Fi Protected Setup (WPS) ..........................................96 Advanced Network Settings ...........................................97 Guest Zone ............................................................................98 IPv6 Firewall ..........................................................................99 Table of Contents iiiD-Link DIR-862L User Manual Table of Contents IPv6 Routing ......................................................................100 Tools .............................................................................................101 Admin ..................................................................................101 Time ......................................................................................102 SysLog ..................................................................................103 Email Settings ...................................................................104 System .................................................................................105 Firmwar…

Text truncated - open the document above for the full version.

81D-Link DIR-862L User Manual Register mydlink Service Wizard: Step 2 When registering a new account, the following page appears. The following parameters will be available for configuration: E-mail Address (Account Name): Enter your e-mail address here. This e-mail address will also become your account name. Password:Enter your preferred password choice here. Confirm Password:Re-enter your preferred password choice here. Last Name:Enter your last name here. First Name:Enter your first name here. Accept terms and conditions: Tick this option to accept the mydlink terms and conditions. Click the Next button to proceed to the next step. Click the Prev button to return to the previous step. Click the Cancel button to discard the changes made and return to the main page. When logging in with an existing account, the following page appears. The following parameters will be available for configuration: E-mail Address (Account Name): Enter your e-mail address here. This e-mail address will also be your account name. Password:Enter your preferred password choice here. Click the Login button to login using these account details. Click the Prev button to return to the previous step. Click the Cancel button to discard the changes made and return to the main page. 82D-Link DIR-862L User Manual At any point during this wizard, we can change the prefered language used. To change the language, select the desired language option from the Language drop-down menu, found on the top right of this page. End of Wizard 83D-Link DIR-862L User Manual Section 3 - Configuration This will allow you to open a single port. If you would like to open a range of ports, refer to the next page. Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields. Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<. Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network. Select TCP, UDP, or Both from the drop-down menu. The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. Select Allow All (most common) or a created Inbound filter. You may create your own inbound filters in the Advanced > Inbound Filter page. Name: IP Address: Private Port/ Public Port: Protocol Type: Schedule: Inbound Filter: Virtual Server Advanced 84D-Link DIR-862L User Manual Section 3 - Configuration This will allow you to open a single port or a range of ports. Port Forwarding Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the fields. Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<. Enter the TCP and/or UDP port or ports that you want to open. You can enter a single port or a range of ports. Separate ports with a comma. Example: 24,1009,3000-4000 The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. Select Allow All (most common) or a created Inbound filter. You may create your own inbound filters in the Advanced > Inbound Filter page. Name: IP Address: TCP/UDP: Schedule: Inbound Filter: 85D-Link DIR-862L User Manual Section 3 - Configuration Enter a name for the rule. You may select a pre-defined application from the drop-down menu and click <<. This is the port used to trigger the application. It can be either a single port or a range of ports. Select the protocol of the trigger port (TCP, UDP, or Both). This is the port number on the Internet side that will be used to access the application. You may define a single port or a range of ports. You can use a comma to add multiple ports or port ranges. Select the protocol of the firewall port (TCP, UDP, or Both). The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section. Name: Trigger: Traffic Type: Firewall: Traffic Type: Schedule: Application Rules Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difficulties working through NAT (Network Address Translation). Application Rules makes some of these applications work with the DIR-862L. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type as TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic. The DIR-862L provides some predefined applications in the table on the bottom of the web page. Select the application you want to use and enable it. 86D-Link DIR-862L User Manual Section 3 - Configuration QoS Engine The QoS Engine option helps improve your network performance by prioritizing applications. By default the QoS Engine settings are disabled and application priority is not classified automatically. The QoS section contains a queu…

Text truncated - open the document above for the full version.

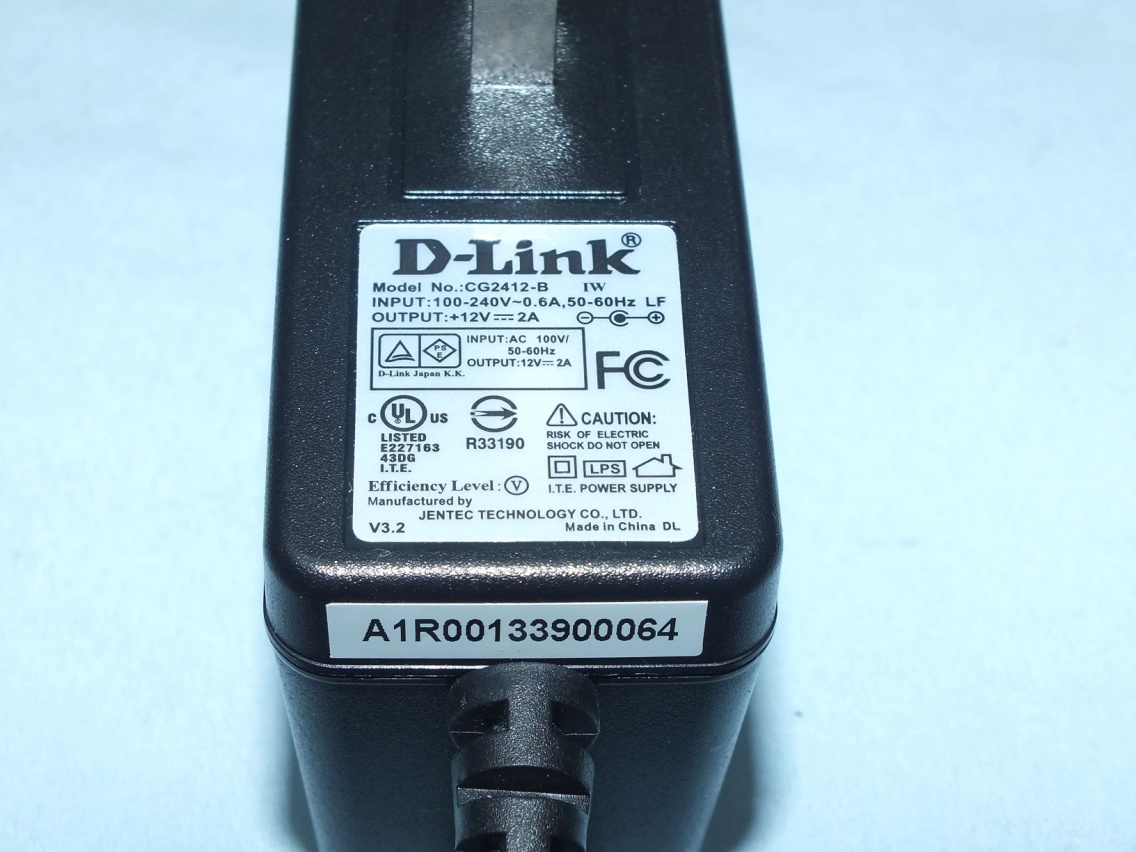

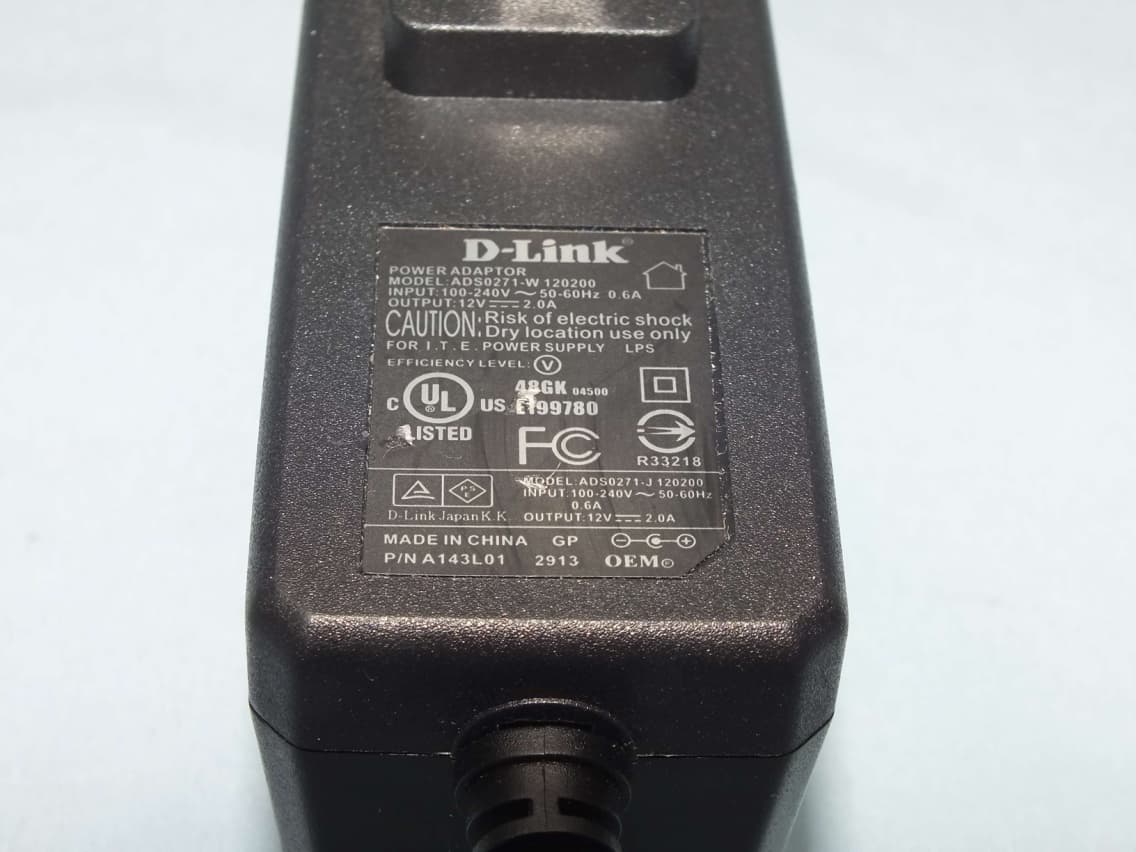

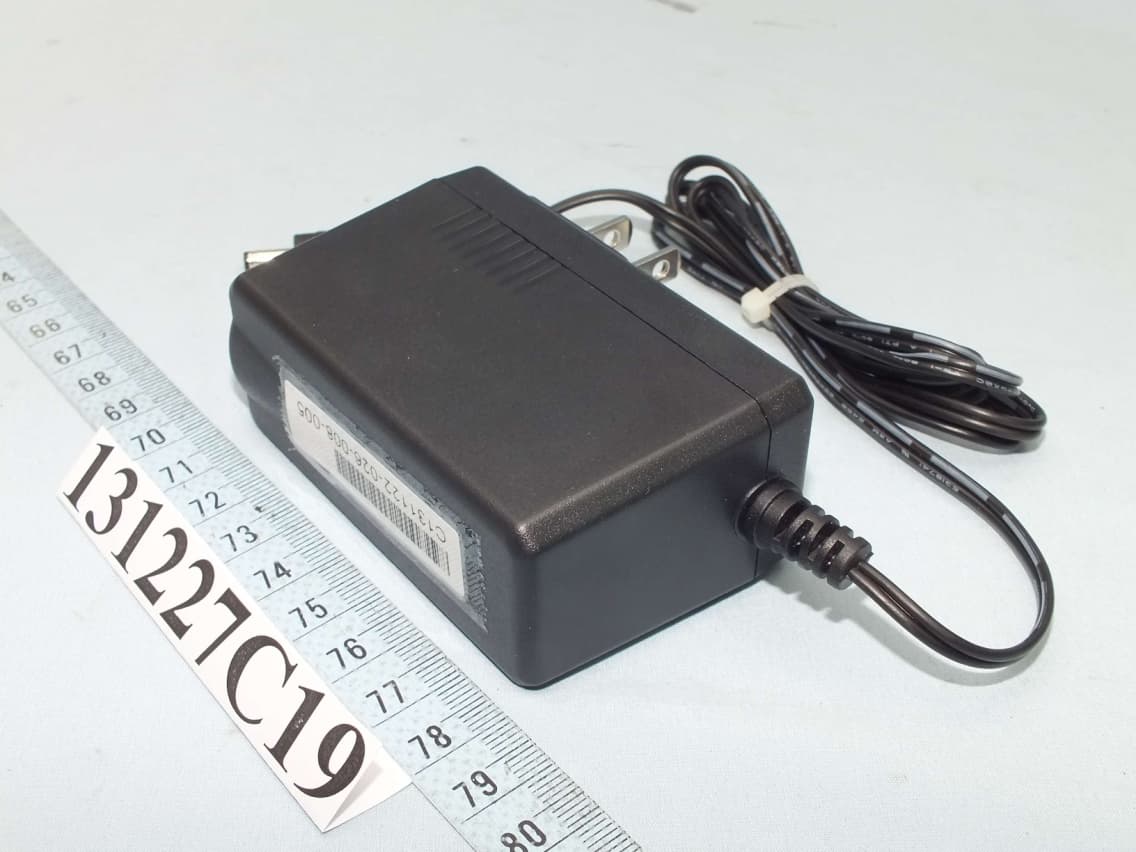

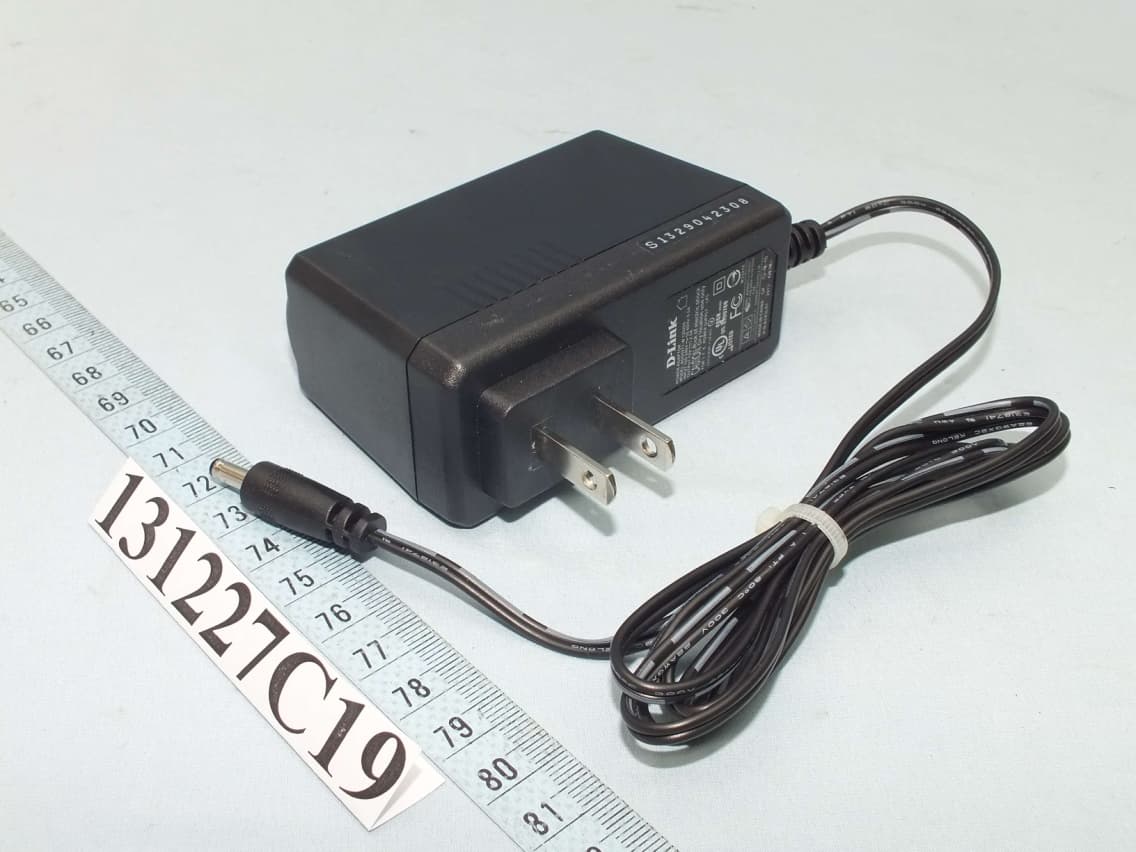

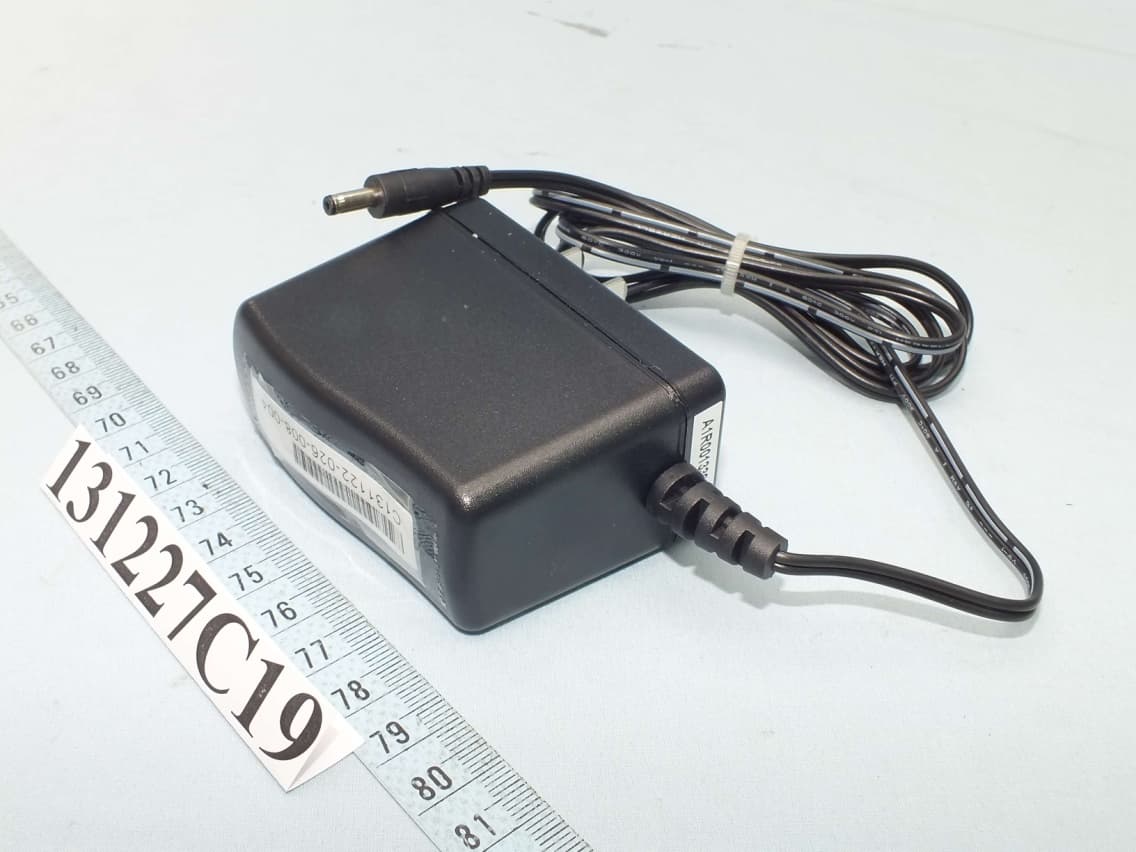

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Label location

DIR-862L FCC ID : KA2IR862LA1 IC : 4216A-IR862LA1 Model: DIR-862LA1 CAN ICES-3 (B)/NMB-3(B)

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

FCC ID: KA2IR862LA1 Report No.: RF131227C19 Operational Description This device is a Wireless AC1600 Dual Band Gigabit Cloud Router which operates in both of 2.4GHz and 5GHz bands; the maximum data rate could be up to 1299.9Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 1299.9Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from AC adapter. The antenna is PCB antenna with UFL antenna connector. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA131227C19 1 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 RF EXPOSURE REPORT REPORT NO.: SA131227C19 MODEL NO.: DIR-862L FCC ID: KA2IR862LA1 RECEIVED: Dec. 10, 2013 TESTED: Dec. 10, 2013 ~ Jan. 10, 2014 ISSUED: Jan. 15, 2014 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Hermann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA131227C19 2 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA131227C19 3 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131227C19 Original release. Jan. 15, 2014 Report No.: SA131227C19 4 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 1. CERTIFICATION PRODUCT:Wireless AC1600 Dual Band Gigabit Cloud Router MODEL:DIR-862L BRAND:D-Link APPLICANT:D-Link Corporation TESTED:Dec. 10, 2013 ~ Jan. 10, 2014 TEST SAMPLE:ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: DIR-862L) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Jan. 15, 2014 Suntee Liu / Specialist APPROVED BY : , DATE : Jan. 15, 2014 Ken Liu / Senior Manager Report No.: SA131227C19 5 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131227C19 6 of 6 Report Format Version 5.0.0 Reference No.: 131227C22 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.05 4.77 20 0.303 1 5180-5240 16.71 4.77 20 0.028 1 5745-5825 25.09 4.77 20 0.193 1 Note: Directional gain = 0dBi + 10log(3) = 4.77dBi CONCLUSION: The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density WLAN 2.4GHz + WLAN 5GHz = 0.303 + 0.193 = 0.496 Therefore all the maximum calculations of above situations are less than the “1” limit. ---END---

Report No.: RF131227C19-1 1 of 60 Report Format Version 5.2.0 Reference No.: 131227C22 FCC TEST REPORT (15.407) REPORT NO.: RF131227C19-1 MODEL NO.: DIR-862L FCC ID: KA2IR862LA1 RECEIVED: Dec. 10, 2013 TESTED: Dec. 10, 2013 ~ Jan. 10, 2014 ISSUED: Jan. 15, 2014 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Hermann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF131227C19-1 2 of 60 Report Format Version 5.2.0 Reference No.: 131227C22 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 4 1. CERTIFICATION ....................................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................................ 6 3. GENERAL INFORMATION ....................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ......................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ........................................................................................... 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................................... 10 3.3 DUTY CYCLE OF TEST SIGNAL ........................................................................................... 12 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 19 4. TEST TYPES AND RESULTS ................................................................................................ 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................. 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............................. 20 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .......................... 20 4.1.3 TEST INSTRUMENTS ............................................................................................................ 21 4.1.4 TEST PROCEDURES ............................................................................................................. 22 4.1.5 DEVIATION FROM TEST STANDARD ................................................................................... 22 4.1.6 TEST SETUP .......................................................................................................................... 23 4.1.7 EUT OPERATING CONDITION .............................................................................................. 24 4.1.8 TEST RESULTS ...................................................................................................................... 25 4.2 CONDUCTED EMISSION MEASUREMENT ......................................................................... 36 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ....................................................... 36 4.2.2 TEST INSTRUMENTS ............................................................................................................ 36 4.2.3 TEST PROCEDURES ............................................................................................................. 37 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................... 37 4.2.5 TEST SETUP .......................................................................................................................... 37 4.2.6 EUT OPERATING CONDITIONS ........................................................................................... 37 4.2.7 TEST RESULTS ............................................................................................................ .......... 38 4.3 PEAK TRANSMIT POWER MEASUREMENT ....................................................................... 42 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT…

Text truncated - open the document above for the full version.

Report No.: RF131227C19 1 of 111 Report Format Version 5.2.0 Reference No.: 131227C22 FCC TEST REPORT (15.247) REPORT NO.: RF131227C19 MODEL NO.: DIR-862L FCC ID: KA2IR862LA1 RECEIVED: Dec. 10, 2013 TESTED: Dec. 10, 2013 ~ Jan. 10, 2014 ISSUED: Jan. 15, 2014 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Hermann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF131227C19 2 of 111 Report Format Version 5.2.0 Reference No.: 131227C22 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 5 1. CERTIFICATION ....................................................................................................................... 6 2. SUMMARY OF TEST RESULTS .............................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................................ 7 3. GENERAL INFORMATION ....................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ......................................................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................................... 11 3.3 DUTY CYCLE OF TEST SIGNAL ........................................................................................... 15 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................................... 17 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................................... 18 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 19 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ............................................................. 20 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................. 20 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............................. 20 4.1.2 TEST INSTRUMENTS ............................................................................................................ 21 4.1.3 TEST PROCEDURES ............................................................................................................. 22 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................... 22 4.1.5 TEST SETUP .......................................................................................................................... 23 4.1.6 EUT OPERATING CONDITIONS ........................................................................................... 24 4.1.7 TEST RESULTS .................................................................…

Text truncated - open the document above for the full version.
