  1. Home/
  2. D-Link Corporation/
  3. KA2IR865LA1

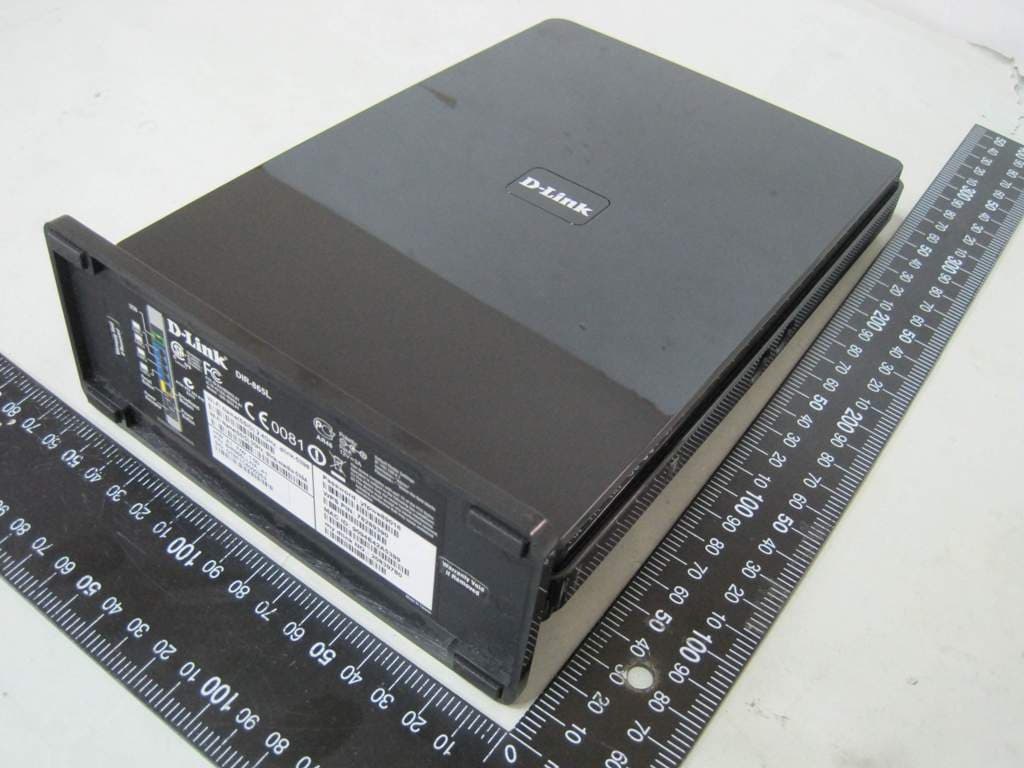

KA2IR865LA1Wireless AC 1750 Dual Band Cloud Router

D-Link Corporation
Wireless AC 1750 Dual Band Cloud Router - FCC ID KA2IR865LA1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jun 14, 2012
Application Purpose
Original Equipment
Date of Application
Jun 14, 2012
Equipment Note
Wireless AC 1750 Dual Band Cloud Router
Frequency Range
5210.00000000 - 5210.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

iD-Link DIR-865L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2012 by D-Link Systems, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc. RevisionDateDescription 1.0May 16, 2012• Initial release for Revision A1 Preface iiD-Link DIR-865L User Manual Table of Contents Preface..................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Product.Overview...............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................4 Hardware Overview .....................................................................5 Connections ...........................................................................5 LEDs ...........................................................................................6 Installation..........................................................................7 Before you Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Manual Setup .................................................................................9 Connect to an Existing Router ...............................................11 Configuration....................................................................13 Quick Setup Wizard ....................................................................14 QRS Mobile App ..........................................................................21 SharePort Mobile App ..............................................................22 Web-based Configuration Utility ..........................................26 Internet Connection Setup .............................................27 Static (assigned by ISP) ................................................28 Dynamic (Cable) .............................................................30 PPPoE (DSL) ......................................................................31 PPTP ....................................................................................33 L2TP ....................................................................................35 DS-Lite ...............................................................................37 Wireless Settings .................................................................38 Manual Wireless Settings .................................................39 802.11n/g (2.4GHz) .......................................................39 802.11ac/n/a (5GHz) .....................................................40 Wireless Bridge Mode .......................................................41 Wireless Security .................................................................44 What is WPA? ...................................................................44 Wireless Security Setup Wizard .................................45 Add Wireless Device with WPS Wizard ...................47 WPA/WPA2-Personal (PSK) .........................................49 Configure WPA/WPA2-Enterprise (RADIUS)..........50 Network Settings ................................................................52 Router Settings ...............................................................52 DHCP Server Settings ...................................................53 DHCP Reservation .........................................................55 Parental Control ..................................................................56 Storage ...................................................................................57 Access Files from the Internet ...................................58 IPv6 ..........................................................................................59 IPv6 Internet Connection Setup Wizard ................60 IPv6 Manual Setup.........................................................65 mydlink Settings .................................................................74 Table of Contents iiiD-Link DIR-865L User Manual Table of Contents Advanced ...............................................................................75 Virtual Server ...................................................................75 Port Forwarding .............................................................76 Application Rules ...........................................................77 QoS Engine .......................................................................78 Network Filters ................................................................79 Access Control .................................................................80 Website Filters .................................................................83 Inbound Filters ................................................................84 Firewall Settings .............................................................85 Routing ..............................................................................87 Advanced W…

Text truncated - open the document above for the full version.

External Photos

Report No:251806 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No:251806 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255 Report No:251806 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255 Report No:251806 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255 Report No:251806 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255 Report No:251806 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 06, 2012 FAX : 886-2-2696-2255

RF Exposure Info

Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11n MCS020MHz : 16.92dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.50 2.8184 16.8835 48.7923 0.017518 1 Complies For 5GHz ISM Band: 15.247 Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11a: 26.31 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.27 8.4528 26.3054 427.1055 0.459902 1 Complies Note: =9.27 dBi For 2.4GHz Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11bg: 28.07 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 7.77 5.9841 28.0707 641.3156 0.488880 1 Complies Note: =7.77 dBi CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.488880 / 1 + 0.459902 / 1 =0.948782, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Test Report

Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 61% Test Engineer Wen Chao Configurations 2.4G + 5G TX Horizontal Report No.: FR251806 FCC ID: KA2IR865LA1 Page No. : C3 of C3 Vertial

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation Applicant Address No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID KA2IR865LA1 Manufacturer’s company Alpha Networks Inc. Manufacturer Address No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Product Name Wireless AC 1750 Dual Band Cloud Router Brand Name D-Link Model Name DIR-865L Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date May 18, 2012 Final Test Date May 29, 2012 Submission Type Original Equipment Operating Mode Master Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR251806AA Report Format Version: 01 Page No. : i of ii FCC ID: KA2IR865LA1 Issued Date : Jun. 06, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................26 4.4. Power Spectral Density Measurement ..............................................................................................................................................39 4.5. Peak Excursion Measurement ...........................................................................................................................................................44 4.6. Radiated Emissions Measurement ....................................................................................................................................................49 4.7. Band Edge Emissions Measurement .................................................................................................................................................64 4.8. Frequency Stability Measurement ....................................................................................................................................................72 4.9. Antenna Requirements .....................................................................................................................................................................74 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 75 6. TEST LOCATION.............................................................................................................................................. 77 7. TAF CERTIFICATE OF ACCREDITATION ................................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower Output
315E5.21 GHz - 5.21 GHz48.80 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This device must be installed and operated to provide a separation distance of at least 25 cm from all. End-users must be provided transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 3T3R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 5190-5230 and in 802.11ac (80MHz), the operating frequency segment limited to 5210MHz. Operating of this device in the 5150 MHz to 5250 MHz range is restricted to indoor use only.
