KA2IR868LA1Wireless AC1750 Dual Band Gigabit Cloud Router USB 3.0

Version 1.0 | 01/16/2013 User Manual DIR-868L Wireless AC1750 Dual-Band Gigabit Cloud Router USB 3.0 iD-Link DIR-868L User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2013 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation. RevisionDateDescription 1.0January 16, 2013• Initial release Preface iiD-Link DIR-868L User Manual Table of Contents Preface..................................................................................i Manual Revisions ...........................................................................i Trademarks ......................................................................................i Product.Overview...............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................ 4 Hardware Overview .....................................................................5 Connections ...........................................................................5 LEDs ...........................................................................................6 Installation..........................................................................7 Before you Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Manual S etup .................................................................................9 Configur ation....................................................................11 D-Link Quick Setup Wizard .....................................................12 QRS Mobile A pp (iOS, Android) .............................................19 ShareP ort Mobile App (iOS, Android) .................................20 Web -based Configuration Utility ..........................................24 In ternet Connection Setup ............................................. 25 Static IP ..............................................................................26 Dynamic IP (DHCP) ........................................................27 PPPoE (Username/Password) ....................................28 PPTP ....................................................................................30 L2TP ....................................................................................31 DS-Lit e ...............................................................................33 Wireless Settings .................................................................34 Wireless Connection Setup Wizard..........................35 Wireless Security Setup Wizard .................................38 Add Wireless Device with WPS Wizard ...................40 Manual Wireless Settings .................................................42 802.11 b/g/n (2.4GHz) ..................................................42 802.11ac draft (5GHz) ...................................................43 Network Settings ................................................................44 Rout er Settings ...............................................................45 DHCP Server Settings ...................................................46 DHCP Reservation .........................................................47 Storage ...................................................................................48 Media Server.........................................................................49 IPv6 .......................................................................................... 50 IPv6 Internet Connection Setup Wizard ................51 Manual IP v6 Local Connectivity Setup ..................56 IPv6 M anual Setup.........................................................57 mydlink Settings ................................................................. 68 Advanced ......................................................................................69 Vir tual Server ........................................................................ 69 Port Forwarding ..................................................................70 Application Rules ................................................................ 71 QoS Engine............................................................................72 Network Filters .....................................................................74 Access Control ..................................................................... 75 Table of Contents iiiD-Link DIR-868L User Manual Table of Contents Website Filters ......................................................................78 Inbound Filter ......................................................................79 Firewall Settings ..................................................................80 Routing ...................................................................................82 Advanced Wireless .............................................................83 Wi-Fi Protected Setup .......................................................84 Advanced Network ............................................................86 Guest Zone ......................................…

Text truncated - open the document above for the full version.

77D-Link DIR-868L User Manual Section 3 - Configuration Enter the rule: Enable - Check to enable the rule. Name - Enter a name for your rule. Dest.IP.Start - Enter the starting IP address. Dest.IP.End - Enter the ending IP address. Protocol - Select the protocol. Dest.Port.Start - Enter the starting port number. Dest.Port.End - Enter the ending port number. To enable web logging, click Enable. Click Save to save the access control rule. Your newly created policy will now show up under Policy .Ta ble. 78D-Link DIR-868L User Manual Section 3 - Configuration Configure Website Filter: Website URL/ Domain: Website Filters Select either DENY.computers.access.to.ONLY.these.sites or ALLOW.computers.access.to.ONLY.these.sites. Enter the keywords or URLs that you want to allow or block. Click Save.Settings. Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network. To use this feature select to Allow or Deny, enter the domain or website and click Save.Settings. You must also select Apply. Web.Filter under the Access Control section. 79D-Link DIR-868L User Manual Section 3 - Configuration Enter a name for the inbound filter rule. Select Allow or Deny. Check to enable rule. Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify an IP range. Enter the ending IP address. Enter 255.255.255.255 if you do not want to specify and IP range. Click the Add button to apply your settings. You must click Save .S ettings at the top to save the settings. This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule. Name: Action: Enable: Remote IP Start: Remote IP End: Add: Inbound Filter Rules List: The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can configure inbound data filtering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote Administration features. Inbound Filter 80D-Link DIR-868L User Manual Section 3 - Configuration SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol. Enable this feature to protect your network from certain kinds of “spoofing” attacks. If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer. Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort. Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains it’s IP address automatically using DHCP, be sure to make a static reservation on the Setup > Network . Se ttings page so that the IP address of the DMZ machine does not change. Allows multiple machines on the LAN to connect to their corporate network using PPTP protocol. Allows multiple VPN clients to connect to their corporate network using IPSec. Some VPN clients support traversal of IPSec through Enable SPI: Anti-Spoof Check: Enable DMZ: DMZ IP Address: PPTP: IPSEC (VPN): Firewall Settings A firewall protects your network from the outside world. The DIR-868L offers a firewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world. 81D-Link DIR-868L User Manual Section 3 - Configuration RTSP: SIP: NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network, try turning this ALG off. Please check with the system administrator of your corporate network whether your VPN client supports NAT traversal. Allows application that uses Real Time Streaming Protocol to receive streaming media from the Internet. QuickTime and Real Player are some of the common applications using this protocol. Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG off. 82D-Link DIR-868L User Manual Section 3 - Configuration Enter a name for your route. Enter the IP address of packets that will take this route. Enter the netmask of the route, please note that the octets must match your destination IP address. Enter your next hop gateway to be taken if this route is used. The route metric is a value from 1 to 16 that indicates the cost of using this route. A value 1 is the lowest cost and 15 is the highest cost. Select the interface that the IP packet must use to transit out of the router when this route is used. Name: Destination IP: Netmask: Gateway: Metric: Interface: Routing The Routing option is an advanced method of customizing specific routes of data through your network. 83D-Link DIR-868L User Manual Section 3 - Configuration Advanced Wireless This will display which radio band the following settings will be ued for. This top box will be the settings for the 2.4 GHz band. Set the transmit power of the antennas for the 2.4 GHz band. This enables 802.11d operation. 802.11d is a wireless specification developed to allow implementation of wireless networks in countries that cannot use the 802.11 standard. This feature should only be enabled if you are in a country that requires it. WMM is QoS for your wireless network. This will improve the quality of v…

Text truncated - open the document above for the full version.

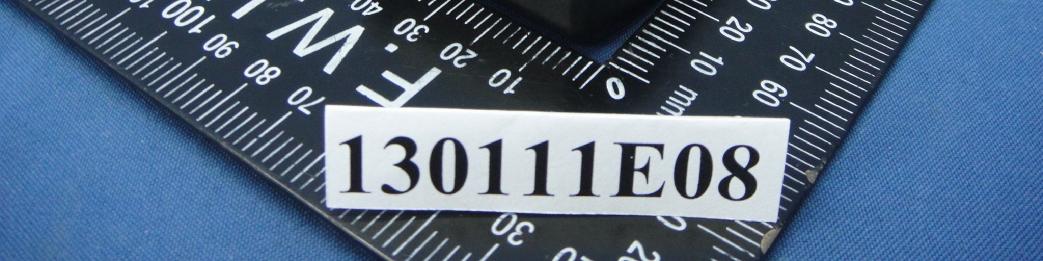

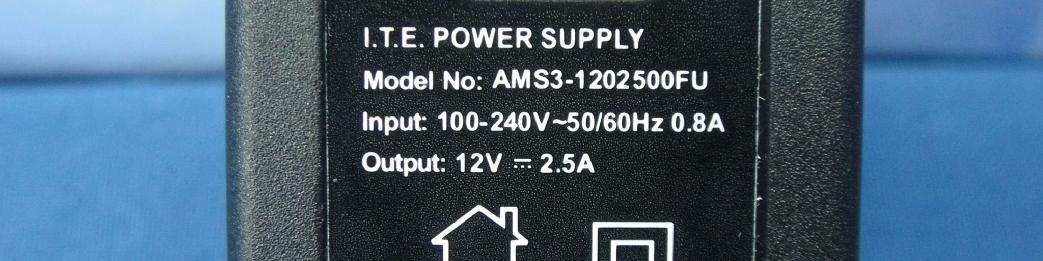

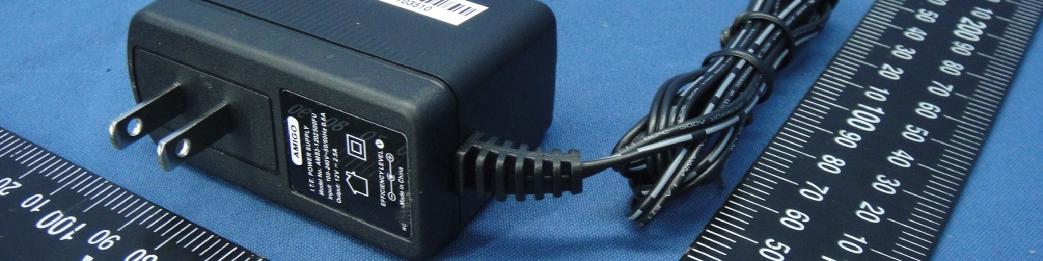

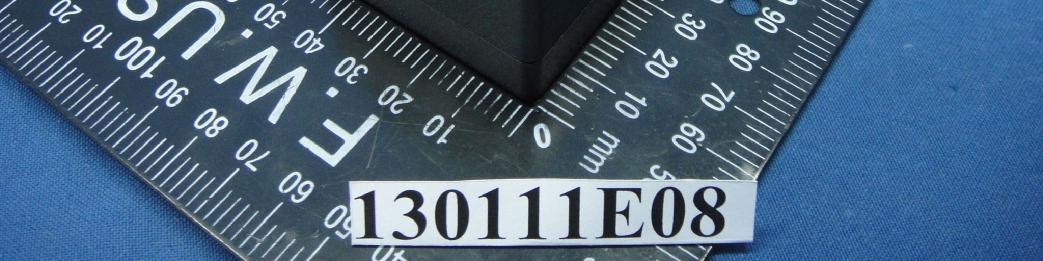

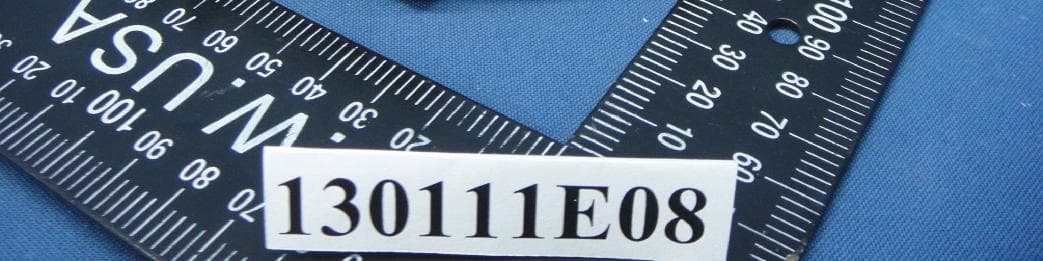

Report No.: 130111E08 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130111E08 Page 2 Report No.: 130111E08 Page 3 Model No.: AMS3-1202500FU Report No.: 130111E08 Page 4 Report No.: 130111E08 Page 5 Model No.: WA-30B12 Report No.: 130111E08 Page 6

Report No.: 130111E08 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 130111E08 Page 2 Report No.: 130111E08 Page 3 Report No.: 130111E08 Page 4 Report No.: 130111E08 Page 5 Report No.: 130111E08 Page 6 Report No.: 130111E08 Page 7 Report No.: 130111E08 Page 8 Report No.: 130111E08 Page 9 Report No.: 130111E08 Page 10 Report No.: 130111E08 Page 11 Report No.: 130111E08 Page 12 Report No.: 130111E08 Page 13 Report No.: 130111E08 Page 14 Report No.: 130111E08 Page 15 Report No.: 130111E08 Page 16

Report No.: SA130111E08 1 of 6 Report Format Version 5.0.0 Reference No.: RF EXPOSURE REPORT REPORT NO.: SA130111E08 MODEL NO.: DIR-868L FCC ID: KA2IR868LA1 RECEIVED: Jan. 24, 2013 TESTED: Jan. 24 to Feb. 01, 2013 ISSUED: Feb. 06, 2013 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130111E08 2 of 6 Report Format Version 5.0.0 Reference No.: TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130111E08 3 of 6 Report Format Version 5.0.0 Reference No.: RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130111E08 Original release Feb. 06, 2013 Report No.: SA130111E08 4 of 6 Report Format Version 5.0.0 Reference No.: 1. CERTIFICATION PRODUCT: Wireless AC1750 Dual Band Gigabit Cloud Router USB 3.0 BRAND NAME: D-Link MODEL NO.: DIR-868L TEST SAMPLE: R&D SAMPLE APPLICANT: D-Link Corporation TESTED DATE: Jan. 24 to Feb. 01, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: DIR-868L) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 06, 2013 ( Phoenix Huang, Specialist ) APPROVED BY : , DATE: Feb. 06, 2013 ( May Chen, Deputy Manager ) Report No.: SA130111E08 5 of 6 Report Format Version 5.0.0 Reference No.: 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130111E08 6 of 6 Report Format Version 5.0.0 Reference No.: 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 585.685 3.6 20 0.267 1 For 15.247(5GHz): FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 780.691 3.82 20 0.374 1 CONCLUSION: Both of the 2.4GHz and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.267 / 1 + 0.374 / 1 = 0.641, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF130111E08 1 of 66 Report Format Version 5.1.0 FCC TEST REPORT REPORT NO.: RF130111E08 MODEL NO.: DIR-868L FCC ID: KA2IR868LA1 RECEIVED: Jan. 11, 2013 TESTED: Jan. 15 to Feb. 01, 2013 ISSUED: Feb. 06, 2013 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130111E08 2 of 66 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 16 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS (MODE 1) .................................................................................. 21 4.1.8 TEST RESULTS (MODE 2) .................................................................................. 23 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 25 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 25 4.2.2 TEST INSTRUMENTS .......................................................................................... 26 4.2.3 TEST PROCEDURES .......................................................................................... 27 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 27 4.2.5 TEST SETUP ....................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 28 4.2.7 TEST RESULTS ................................................................................................... 29 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 42 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 42 4.3.2 TEST INSTRUMENTS .......................................................................................... 42 4.3.3 TEST PROCEDURE ............................................................................................. 42 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 42 4.3.5 TEST SETUP .......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 130111E08 1 of 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (MODE 1) Report No.: 130111E08 2 of 3 CONDUCTED EMISSION TEST (MODE 2) Report No.: 130111E08 3 of 3 RADIATED EMISSION TEST
