KA2M15A1AX1500 Wi-Fi 6 AI Mesh Router

M15 AX1500 AX1500 WI-FI 6 AI MESH ROUTER AX1500 WI-FI 6 AI MESH SYSTEM iD-Link M15 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions RevisionDateDescription 1.00May 24, 2021Initial release Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2020 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Power Usage ErP Power Usage This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy. Network Standby: TBC Preface iiD-Link M15 User Manual Table of Contents Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ............................................................................................3 Hardware Overview .....................................................................4 M15 LED Indicator ................................................................4 M15 Rear ..................................................................................5 Hardware Setup ............................................................................6 Using The D-Link Ai App ...................................................6 Web Based Installation ..............................................................7 Configuration .....................................................................8 Accessing the Web User Interface ..........................................8 Home ................................................................................................9 Internet ...................................................................................10 M15 ..........................................................................................11 Connected Clients ..............................................................12 Extenders ...............................................................................13 Mesh Network ......................................................................14 Settings ..........................................................................................15 Wizard .....................................................................................15 Internet ...................................................................................16 IPv4 .....................................................................................16 IPv6 .....................................................................................26 Wireless ..................................................................................37 Wi-Fi ....................................................................................37 Guest Zone .......................................................................39 Network ..................................................................................40 D-Link Cloud .........................................................................42 Operation Mode ..................................................................43 Features ..........................................................................................44 Parental Control ..................................................................44 QoS Engine............................................................................46 Firewall ...................................................................................48 IPv4/IPv6 Rules ...............................................................50 Port Forwarding ..................................................................51 Port Forwarding .............................................................51 Virtual Server ...................................................................52 Static Routes .........................................................................53 IPv4 .....................................................................................53 IPv6 .....................................................................................54 Dynamic DNS .......................................................................55 Quick VPN ..............................................................................57 Management ................................................................................58 Time & Schedule .................................................................58 Time ....................................................................................58 Schedule ...........................................................................59 System Log ............................................................................60 System Admin ......................................................................62 Admin.....................................…

Text truncated - open the document above for the full version.

Date: 2021-07-20 FCC ID: KA2M15A1 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------------------- Shanglin Chung, Vice President D-Link Corporation Tel: 886-2-66000123#5610 Fax: +886-2-5550-9988 E-mail: [email protected]

Date: 2021-07-20 FCC ID: KA2M15A1 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------------------- Shanglin Chung, Vice President D-Link Corporation Tel: 886-2-66000123#5610 Fax: +886-2-5550-9988 E-mail: [email protected]

Date: 2021-07-20 FCC ID: KA2M15A1 AUTHORIZATION LETTER To Whom It May Concern: D-Link Corporation hereby authorizes Debby Lin/Senior Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin/Senior Specialist of BV CPS Taoyuan on D-Link Corporation’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Shanglin Chung, Vice President D-Link Corporation Tel: 886-2-66000123#5610 Fax: +886-2-5550-9988 E-mail: [email protected]

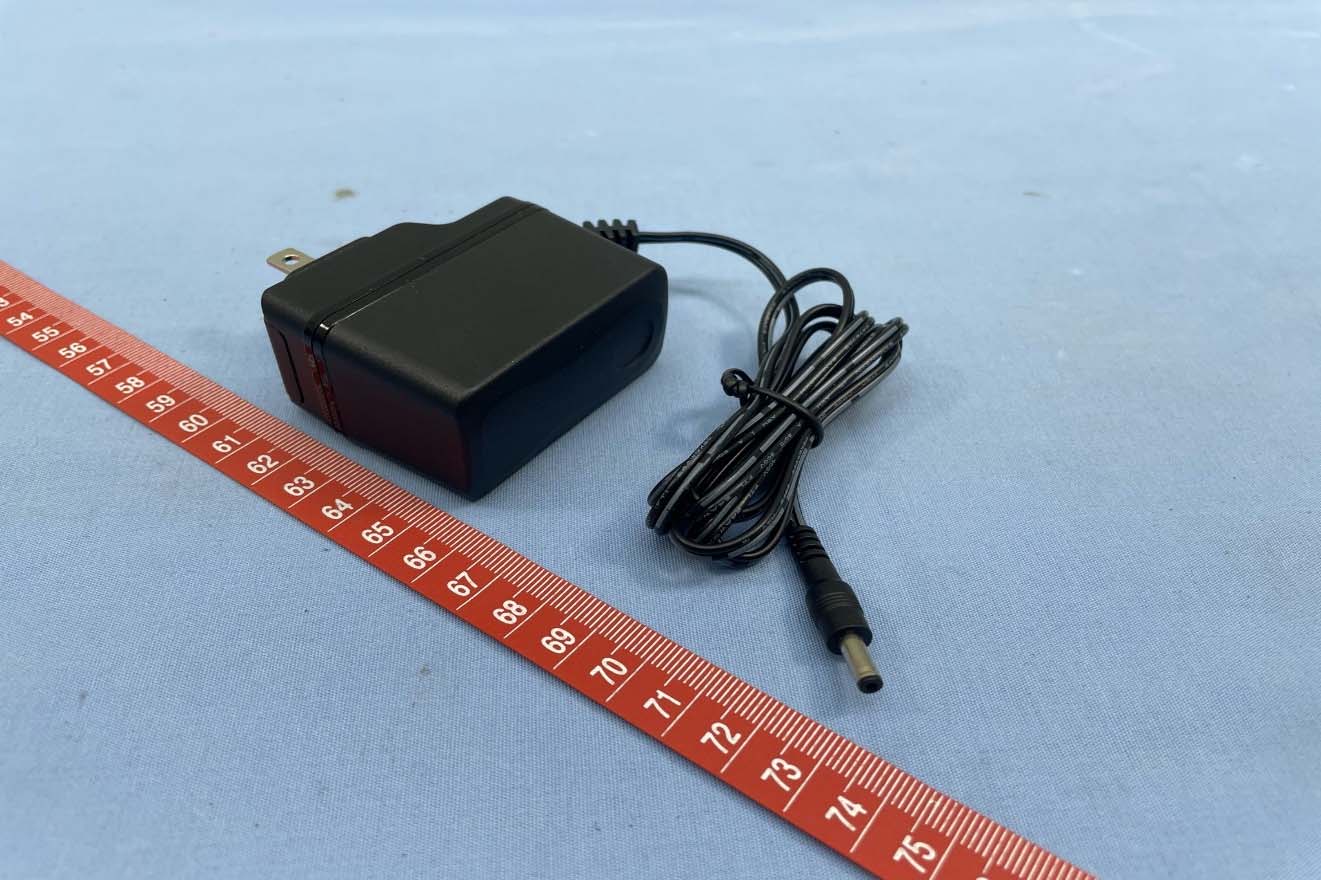

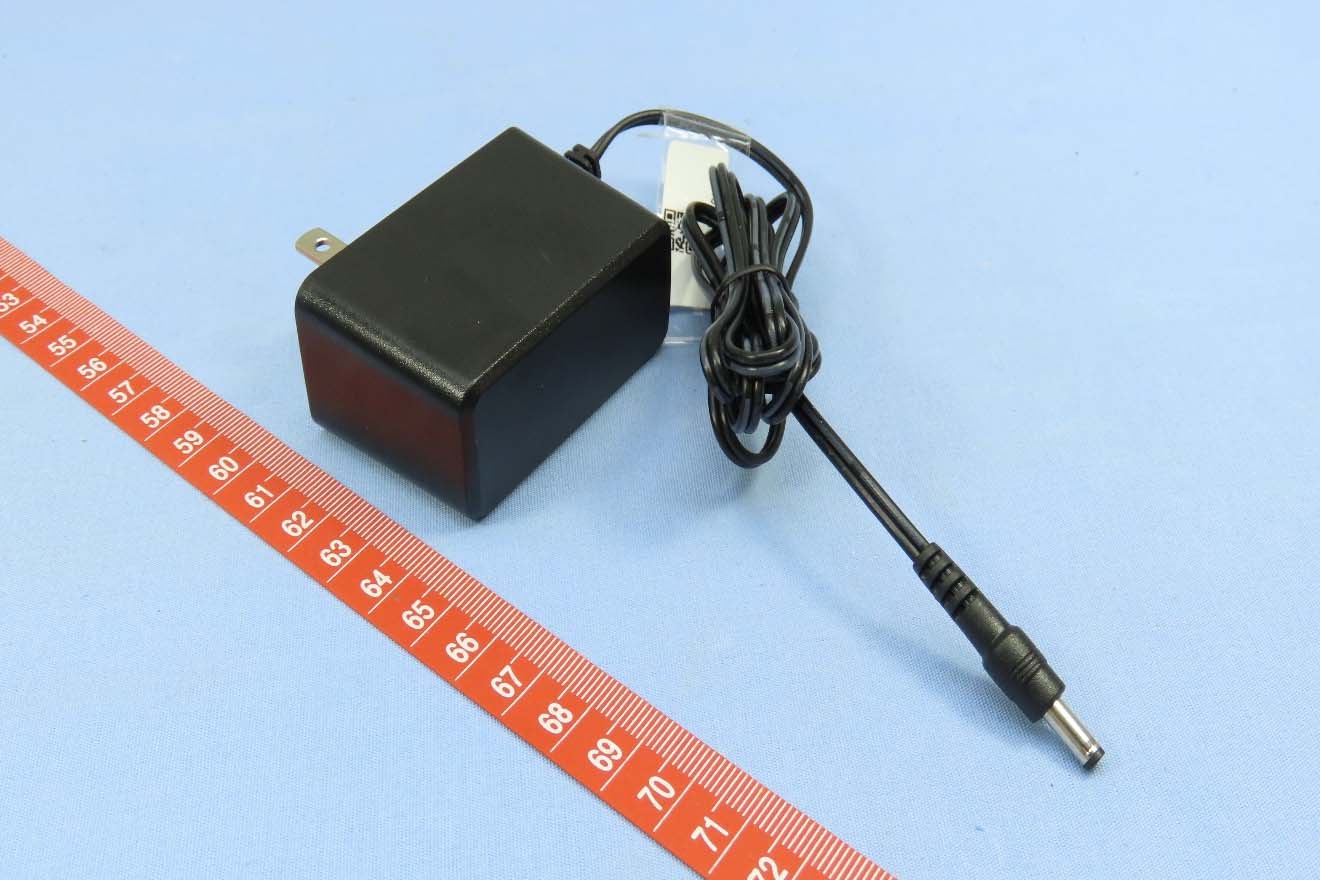

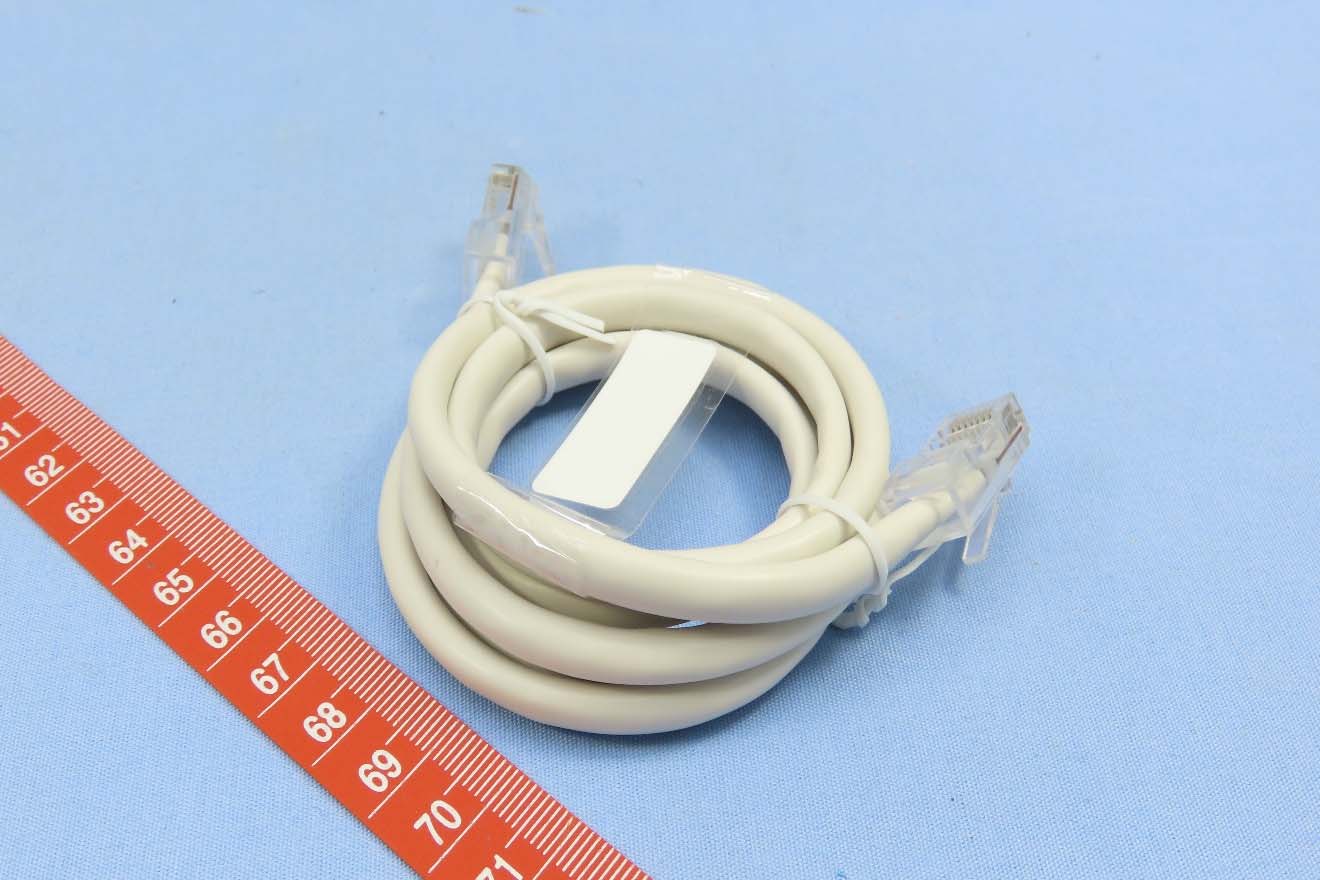

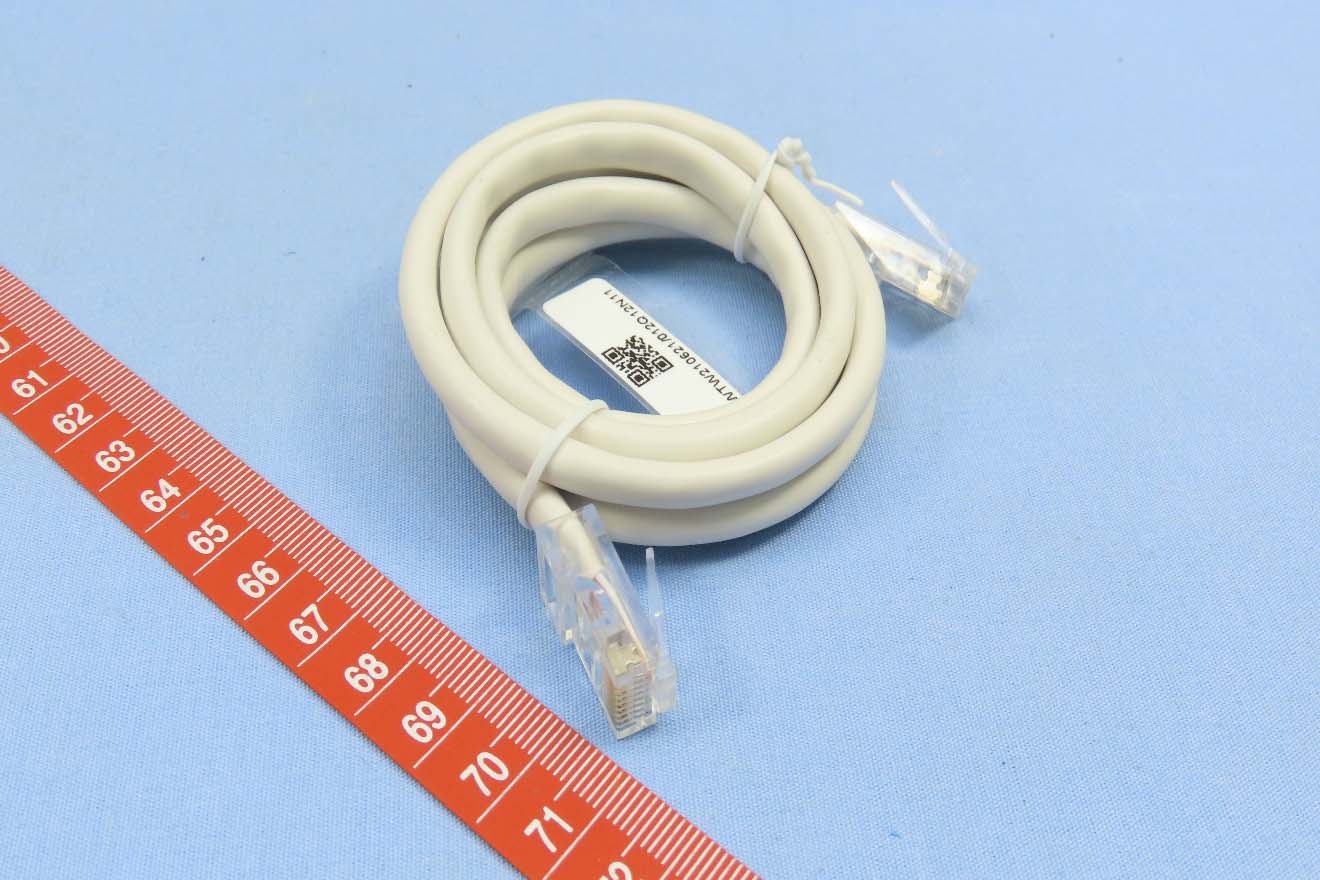

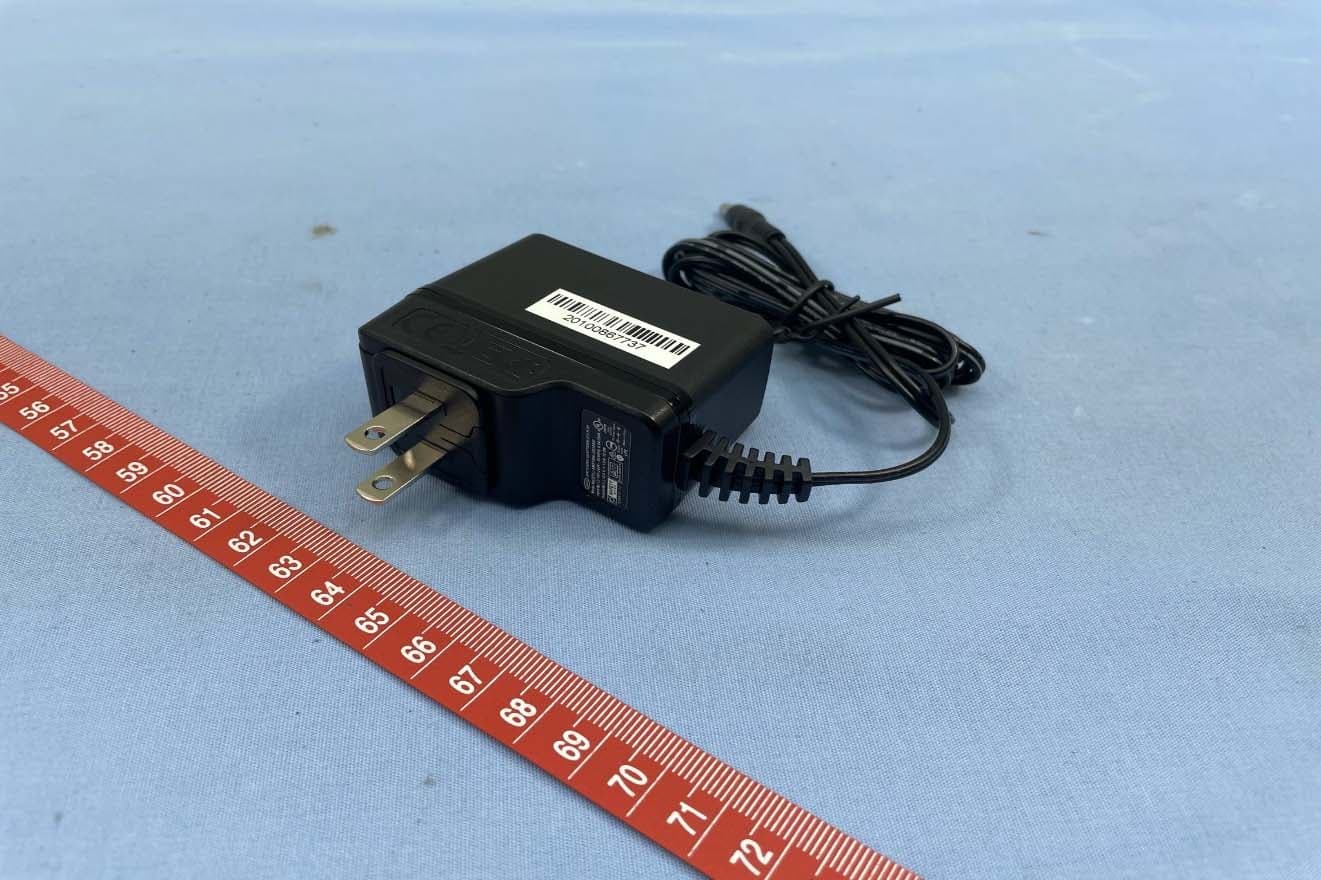

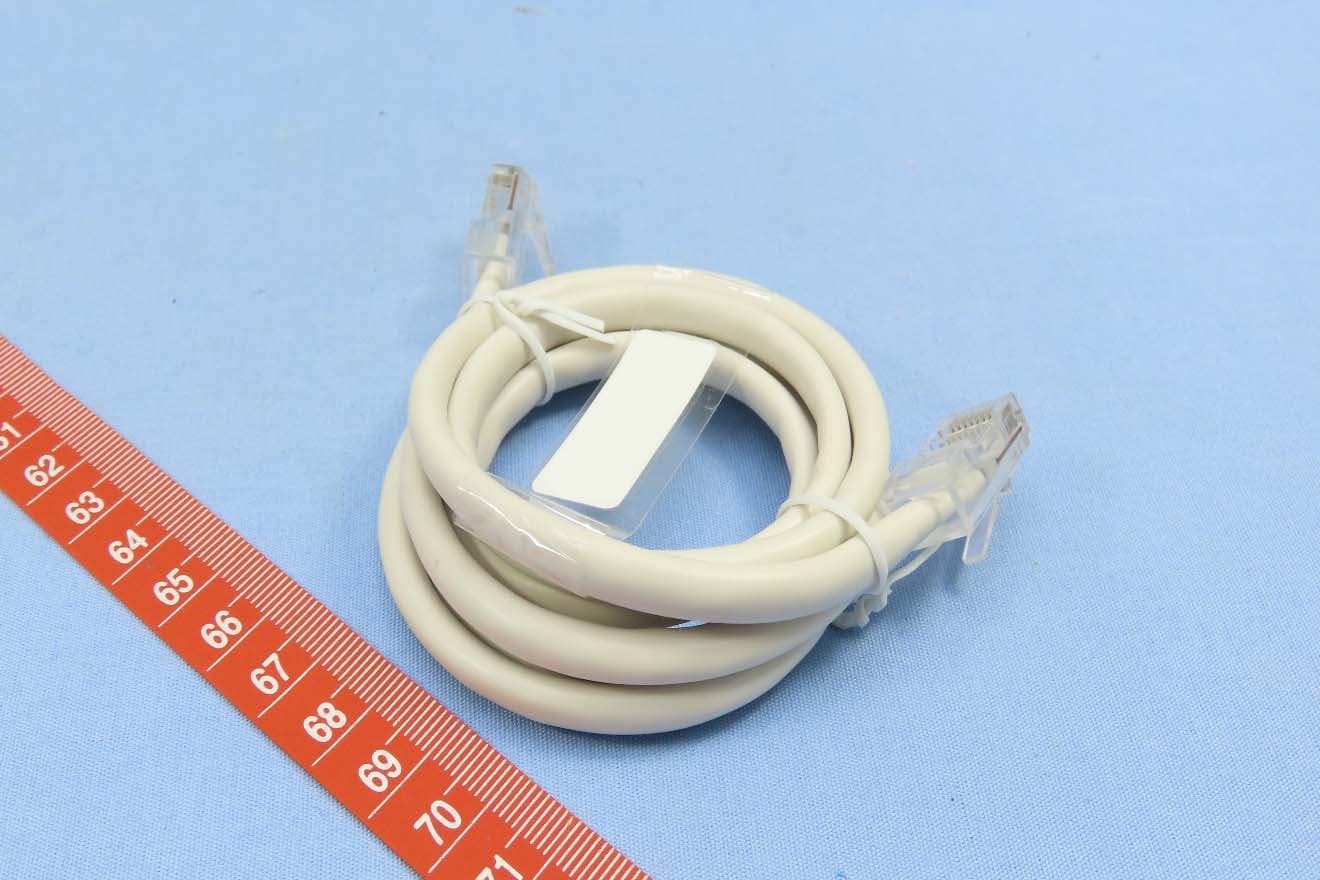

Reference No.: BDUI-WTW-P20110877-1_EXT Page 1/11 Brand: D-Link, Model: M15 Reference No.: BDUI-WTW-P20110877-1_EXT Page 2/11 Reference No.: BDUI-WTW-P20110877-1_EXT Page 3/11 Reference No.: BDUI-WTW-P20110877-1_EXT Page 4/11 Reference No.: BDUI-WTW-P20110877-1_EXT Page 5/11 Reference No.: BDUI-WTW-P20110877-1_EXT Page 6/11 1.0m CAT5E 24AWG CCA WHITE CABLE (Brand: Nienyi, Model: NY4710 REV.0) Reference No.: BDUI-WTW-P20110877-1_EXT Page 7/11 Adapter (Brand: Amigo, Model: AMS159A-1201000F (US+UK)) Reference No.: BDUI-WTW-P20110877-1_EXT Page 8/11 Adapter (Brand: Amigo, Model: AMS159A-1201000F (EU+UK)) Reference No.: BDUI-WTW-P20110877-1_EXT Page 9/11 Reference No.: BDUI-WTW-P20110877-1_EXT Page 10/11 Adapter (Brand: Amigo, Model: AMS159A-1201000FU (US)) Reference No.: BDUI-WTW-P20110877-1_EXT Page 11/11

Label location Model：M15 FCC ID : KA2M15A1 IC : 4216A-M15A1 Label is in the bottom

Reference No.: BDUI-WTW-P20110877-1_INT Page 1/7 Brand: D-Link, Model: M15 Reference No.: BDUI-WTW-P20110877-1_INT Page 2/7 Reference No.: BDUI-WTW-P20110877-1_INT Page 3/7 Reference No.: BDUI-WTW-P20110877-1_INT Page 4/7 Reference No.: BDUI-WTW-P20110877-1_INT Page 5/7 5G1 5G2 2G2 2G1 Reference No.: BDUI-WTW-P20110877-1_INT Page 6/7 Reference No.: BDUI-WTW-P20110877-1_INT Page 7/7

Report No.: SABDUI-WTW-P20110877 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SABDUI-WTW-P20110877 FCC ID: KA2M15A1 Test Model: M15 Received Date: Feb. 25, 2021 Test Date: Mar. 09 ~ May 20, 2021 Issued Date: Jun. 29, 2021 Applicant: D-Link Corporation Address: 14420 Myford Road Suite 100 Irvine California United States 92606 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABDUI-WTW-P20110877 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SABDUI-WTW-P20110877 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SABDUI-WTW-P20110877 Original release Jun. 29, 2021 Report No.: SABDUI-WTW-P20110877 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: AX1500 Wi-Fi 6 AI Mesh Router, AX1500 Wi-Fi 6 AI Mesh System, AX1500 Mesh Router, AX1500 Mesh System Brand: D-Link Test Model: M15 Sample Status: Engineering sample Applicant: D-Link Corporation Test Date: Mar. 09 ~ May 20, 2021 Standards: FCC Part 2 (Section 2.1091) References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date:Jun. 29, 2021 Pettie Chen / Senior Specialist Approved by : , Date:Jun. 29, 2021 Bruce Chen / Senior Project Engineer Report No.: SABDUI-WTW-P20110877 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABDUI-WTW-P20110877 Page No. 6 / 6 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Average Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) CDD Mode 2412-2462 27.19 5.45 20 0.365 1 5180-5240 24.48 5.45 20 0.196 1 5745-5825 23.91 5.58 20 0.177 1 Beamforming Mode 2412-2462 23.28 5.45 20 0.149 1 5180-5240 21.23 5.45 20 0.093 1 5745-5825 20.90 5.58 20 0.088 1 *Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Note: 1. Directional gain: 2.4GHz: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /2]= 5.45dBi 5180-5240MHz: Directional gain = 10 log[(10 G1 /20 + 10 G2 /…

Text truncated - open the document above for the full version.

Report No.: RFBDUI-WTW-P20110877-1 Page No. 1 / 111 Report Format Version:6.1.2 FCC Test Report Report No.: RFBDUI-WTW-P20110877-1 FCC ID: KA2M15A1 Test Model: M15 Received Date: Feb. 25, 2021 Test Date: Mar. 09 ~ May 20, 2021 Issued Date: Jun. 29, 2021 Applicant: D-Link Corporation Address: 14420 Myford Road Suite 100 Irvine California United States 92606 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number (1): 788550 / TW0003 Test Location (2): B2F., No.215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan FCC Registration / Designation Number (2): 427177 / TW0011 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBDUI-WTW-P20110877-1 Page No. 2 / 111 Report Format Version:6.1.2 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................. 10 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 14 3.5 General Description of Applied Standards and References ............................................................. 14 4 Test Types and Results ...................................................................................................................... 15 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 15 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 15 4.1.2 Test Instruments ................................................................................................................................ 16 4.1.3 Test Procedures ................................................................................................................................. 17 4.1.4 Deviation from Test Standard ............................................................................................................ 17 4.1.5 Test Setup .......................................................................................................................................... 18 4.1.6 EUT Operating Conditions ................................................................................................................. 19 4.1.7 Test Results ....................................................................................................................................... 20 4.2 Conducted Emission Measurement .................................................................................................. 76 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 76 4.2.2 Test Instruments ................................................................................................................................ 76 4.2.3 Test Procedures .....................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RFBDUI-WTW-P20110877-1 Page No. 65 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 66 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 67 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 68 / 111 Report Format Version:6.1.2 802.11ax (HE80) Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 69 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 70 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 71 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 72 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 73 / 111 Report Format Version:6.1.2 Remarks: 1. Level(dBuV/m) = Read Level(dBuV) + Factor(dB/m) 2. Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB) – Pre-Amplifier Factor(dB) 3. The other emission levels were very low against the limit. 4. Over limit = Level – Limit value 5. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 74 / 111 Report Format Version:6.1.2 Below 1GHz Worst-Case: 802.11a Remarks: 1. Level = Read Level + Factor Margin value = level – Limit value. 2. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 75 / 111 Report Format Version:6.1.2 Remarks: 1. Level = Read Level + Factor Margin value = level – Limit value. 2. The emission levels of other frequencies were very low against the limit. Report No.: RFBDUI-WTW-P20110877-1 Page No. 76 / 111 Report Format Version:6.1.2 4.2 Conducted Emission Measurement 4.2.1 Limits of Conducted Emission Measurement Frequency (MHz) Conducted Limit (dBuV) Quasi-peak Average 0.15 - 0.5 66 - 56 56 - 46 0.50 - 5.0 56 46 5.0 - 30.0 60 50 Note: 1. The lower limit shall apply at the transition frequencies. 2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50MHz. 4.2.2 Test Instruments Description & Manufacturer Model No. Serial No. Cal. Date Cal. Due Test Receiver ROHDE & SCHWARZ ESR3 102783 Dec. 21, 2020 Dec. 20, 2021 RF signal cable (with 10dB PAD) Woken 5D-FB Cable-cond2-01 Sep. 04, 2020 Sep. 03, 2021 V-LISN SCHWARZBECK (EUT) NNBL 8226-2 8226-142 Jul. 31, 2020 Jul. 30, 2021 LISN ROHDE & SCHWARZ (Peripheral) ESH3-Z5 100312 Aug. 18, 2020 Aug. 17, 2021 Software ADT BV ADT_Cond_ V7.3.7.4 NA NA NA Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The test was performed in HwaYa Shielded Room 2 (Conduction 2). 3. The VCCI Site Registration No. is C-12047. Report No.: RFBDUI-WTW-P20110877-1 Page No. 77 / 111 Report Format Version:6.1.2 4.2.3 Test Procedures a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference. c. The frequency range from 150kHz to 30MHz was searched. Emission levels under (Limit - 20dB) was not recorded. NOTE: The resolution bandwidth and video bandwidth of test receiver is 9kH…

Text truncated - open the document above for the full version.

Reference No.: BDUI-WTW-P20110877_TSup Page 1 / 3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: BDUI-WTW-P20110877_TSup Page 2 / 3 RADIATED EMISSION TEST (Below 1GHz) Reference No.: BDUI-WTW-P20110877_TSup Page 3 / 3 RADIATED EMISSION TEST (Above 1GHz) ---END---
