KA2M18A1AX1800 Wi-Fi 6 AI Router, AX1800 MESH ROUTER, AX1800 MESH SYSTEM

AX1800 Wi-Fi 6 AI ROUTER M18 iD-Link M18 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions HardwareRevisionDateDescription A11.002022/01/27Initial release Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2022 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Power Usage ErP Power Usage This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy. Network Standby: 4.47W Preface iiD-Link M18 User Manual Table of Contents Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Features ....................................................................................3 Hardware Overview .....................................................................4 M18 LED Indicator ................................................................4 M18 Rear ..................................................................................5 Hardware Setup ............................................................................6 Using the EAGLE PRO AI App ..........................................6 W eb Based Installation ......................................................8 Configuration .....................................................................9 Accessing the Web User Interface ..........................................9 Home ..............................................................................................10 Internet ...................................................................................11 M18 ..........................................................................................12 Connected Clients ..............................................................13 Extenders ...............................................................................14 Mesh Network ......................................................................15 Settings ..........................................................................................16 Wizard .....................................................................................16 Internet ...................................................................................17 IPv4 .....................................................................................17 IPv6 .....................................................................................28 Internet - VLAN ...............................................................41 Internet - VLAN (Continued) ......................................42 Wireless ..................................................................................43 Wi-Fi ....................................................................................43 Guest Zone .......................................................................47 Network ..................................................................................49 D-Link Cloud .........................................................................51 Operation Mode ..................................................................52 Features ..........................................................................................53 Parental Control ..................................................................53 QoS Engine............................................................................56 Firewall ...................................................................................58 IPv4/IPv6 Rules ...............................................................60 Port Forwarding .............................................................62 Virtual Server ...................................................................63 Static Routes .........................................................................64 IPv4 .....................................................................................64 IPv6 .....................................................................................65 Dynamic DNS .......................................................................66 Quick VPN ..............................................................................68 Management ................................................................................69 Time & Schedule .................................................................69 Time ....................................................................................69 Schedule ...........................................................................70 S ystem Log ............................................................................71 System Admin ......................................................................73 Admin........................…

Text truncated - open the document above for the full version.

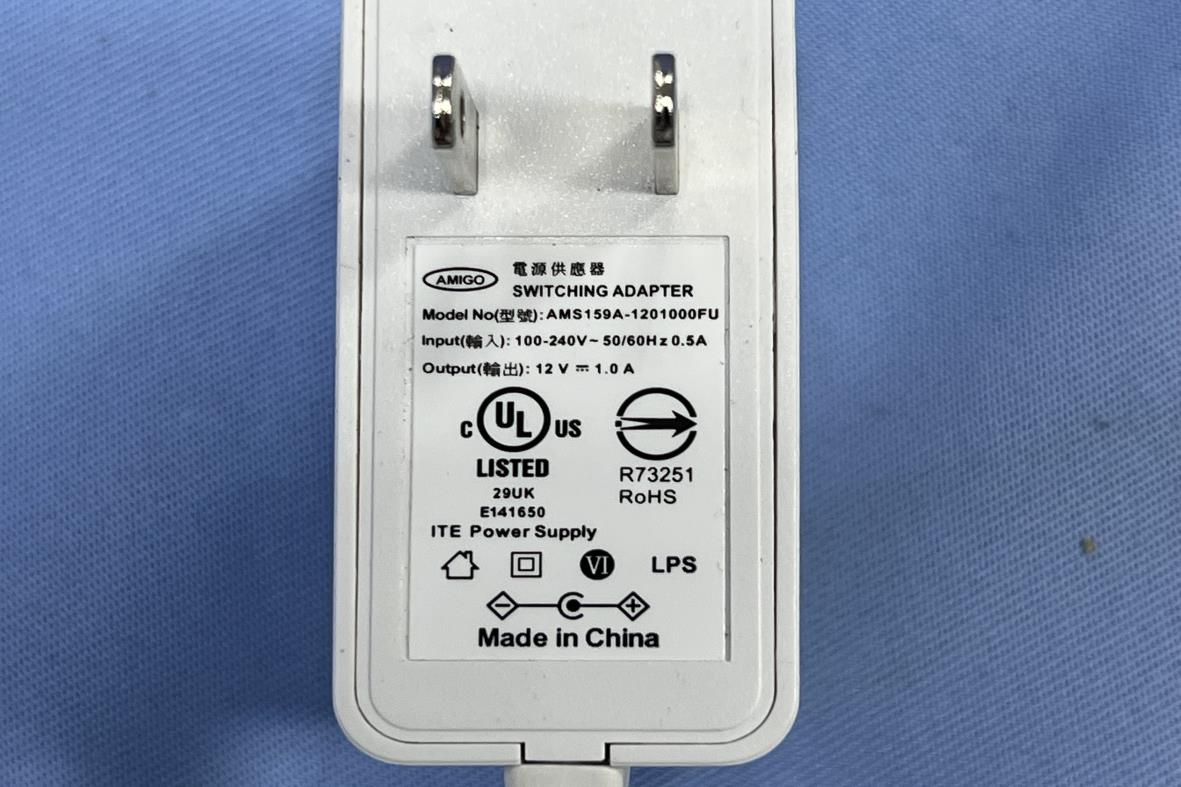

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 16 Project No: TM-2201000099P Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 16 Project No: TM-2201000099P Rev.: 00 Adapter (AMIGO / AMS159A-1201000FU) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 16 Project No: TM-2201000099P Rev.: 00 Lan Cable (Nienyi / NYS4709)

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 16 Project No: TM-2201000099P Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 16 Project No: TM-2201000099P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 16 Project No: TM-2201000099P Rev.: 00 Module & Crystal This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 16 Project No: TM-2201000099P Rev.: 00 Antenna C1958-510024-A This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 13 / 16 Project No: TM-2201000099P Rev.: 00 C1958-510025-A This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 14 / 16 Project No: TM-2201000099P Rev.: 00 C1958-510026-A This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 15 / 16 Project No: TM-2201000099P Rev.: 00 C1958-510027-A This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 16 / 16 Project No: TM-2201000099P Rev.: 00 C1958-510023-A

Project No: TM-2201000099P FCC ID: KA2M18A1 Page 1 / 22 Report No.: TMWK2201000113KR Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for AX1800 Wi-Fi 6 AI Router, AX1800 MESH ROUTER, AX1800 MESH SYSTEM Model Name.: M18 Prepared for: D-Link Corporation 14420 Myford Road Suite 100 Irvine California United States 92606 Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: August 2, 2022 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 22 Report No.: TMWK2201000113KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 2, 2022 Initial Issue ALL Doris Chu This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 22 Report No.: TMWK2201000113KR Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ............................................................................. 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ............................................ 5 3 DEVICE UNDER TEST (DUT) INFORMATION .............................................................. 6 3.1 DUT DESCRIPTION .............................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE ....................................................................... 13 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................. 13 4.2 MPE CALCULATION METHOD ........................................................................... 14 4.3 MPE EXEMPTION ............................................................................................... 15 4.4 MULTIPLE RF SOURCES ................................................................................... 16 5 MAXIMUM PERMISSIBLE EXPOSURE ....................................................................... 17 6 MPE EXEMPTION OPTION B ...................................................................................... 19 7 SIMULTANEOUS TRANSMISSION ANALYSIS .......................................................... 21 7.1 SUM OF THE MPE FOR WIFI 2.4GHZ & WIFI 5GHZ .......................................... 21 8 FACILITIES .................................................................................................................. 22 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 22 Report No.: TMWK2201000113KR Rev.: 00 1 Attestation of Test Results Applicant Name D-Link Corporation Model Name 14420 Myford Road Suite 100 Irvine California United States 92606 Applicable Standards FCC 47 CFR § 2.1091 KDB 447498 D04 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: January 17, 2022 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 22 Report No.: TMWK2201000113KR Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 …

Text truncated - open the document above for the full version.

Page: 528 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_26/0 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Vertical Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5467.500 Peak 38.29 20.05 58.35 68.20 -9.85 5675.250 Peak 37.18 20.16 57.34 86.93 -29.59 5709.750 Peak 36.17 20.22 56.39 107.93 -51.54 5724.750 Peak 47.34 20.32 67.66 121.63 -53.97 5745.000 Peak 95.86 20.45 116.30 - - 5745.000 Average 84.05 20.45 104.50 - - 5852.250 Peak 36.39 20.74 57.13 117.07 -59.94 5855.250 Peak 37.41 20.75 58.17 110.73 -52.56 5877.000 Peak 37.46 20.85 58.31 103.71 -45.40 5975.250 Peak 37.47 21.17 58.63 68.20 -9.57 Page: 529 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_26/0 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Horizontal Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5470.500 Peak 37.62 20.05 57.67 68.20 -10.53 5657.250 Peak 37.47 20.15 57.62 73.59 -15.96 5709.000 Peak 36.17 20.22 56.38 107.72 -51.34 5724.750 Peak 35.05 20.32 55.37 121.63 -66.26 5745.000 Peak 86.68 20.45 107.13 - - 5745.000 Average 75.20 20.45 95.64 - - 5853.750 Peak 37.17 20.75 57.91 113.65 -55.74 5871.750 Peak 36.62 20.83 57.44 106.11 -48.67 5904.750 Peak 36.89 20.97 57.86 83.15 -25.28 5985.750 Peak 37.71 21.17 58.87 68.20 -9.33 Page: 530 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_52/37 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Vertical Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5544.750 Peak 37.62 20.03 57.65 68.20 -10.55 5692.500 Peak 37.49 20.16 57.65 99.67 -42.02 5706.750 Peak 38.82 20.20 59.02 107.09 -48.07 5724.750 Peak 42.00 20.32 62.32 121.63 -59.31 5745.000 Peak 96.17 20.45 116.62 - - 5745.000 Average 87.09 20.45 107.54 - - 5852.250 Peak 37.11 20.74 57.85 117.07 -59.22 5864.250 Peak 38.10 20.79 58.90 108.21 -49.31 5894.250 Peak 38.00 20.92 58.92 90.92 -32.00 5934.000 Peak 38.30 21.09 59.39 68.20 -8.81 Page: 531 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_52/37 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Horizontal Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5629.500 Peak 38.10 20.12 58.22 68.20 -9.98 5688.750 Peak 36.54 20.16 56.70 96.90 -40.20 5700.000 Peak 36.92 20.16 57.08 105.20 -48.12 5722.500 Peak 36.00 20.30 56.30 116.50 -60.20 5745.000 Peak 86.39 20.45 106.84 - - 5745.000 Average 77.39 20.45 97.84 - - 5851.500 Peak 35.30 20.74 56.03 118.78 -62.74 5855.250 Peak 37.61 20.75 58.36 110.73 -52.37 5880.000 Peak 36.95 20.86 57.82 101.49 -43.67 5939.250 Peak 37.80 21.11 58.92 68.20 -9.28 Page: 532 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_106/53 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Vertical Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5599.500 Peak 37.90 20.07 57.97 68.20 -10.23 5662.500 Peak 38.63 20.15 58.79 77.48 -18.69 5714.250 Peak 41.75 20.25 62.00 109.19 -47.19 5724.000 Peak 47.56 20.31 67.87 119.92 -52.05 5745.000 Peak 96.91 20.45 117.36 - - 5745.000 Average 87.59 20.45 108.04 - - 5851.500 Peak 36.59 20.74 57.33 118.78 -61.45 5863.500 Peak 37.85 20.79 58.64 108.42 -49.78 5888.250 Peak 37.88 20.90 58.78 95.36 -36.59 5987.250 Peak 38.28 21.17 59.44 68.20 -8.76 Page: 533 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5745MHz_106/53 Temp/Hum 23.6(°C)/ 62%RH Test Item Band Edge Test Date May 4, 2022 Polarize Horizontal Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5628.000 Peak 37.70 20.11 57.81 68.20 -10.39 5689.500 Peak 37.58 20.16 57.74 97.46 -39.72 5718.750 Peak 36.86 20.28 57.14 110.45 -53.32 5721.750 Peak 37.07 20.30 57.37 114.79 -57.42 5745.000 Peak 86.75 20.45 107.20 - - 5745.000 Average 78.48 20.45 98.93 - - 5853.750 Peak 36.89 20.75 57.64 113.65 -56.01 5860.500 Peak 36.63 20.78 57.40 109.26 -51.85 5907.000 Peak 37.39 20.98 58.37 81.48 -23.11 5946.750 Peak 38.60 21.15 59.74 68.20 -8.46 Page: 534 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5825MHz Temp/Hum 21.8(°C)/ 64%RH Test Item Band Edge Test Date March 29, 2022 Polarize Vertical Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5626.500 Peak 37.2…

Text truncated - open the document above for the full version.

Page: 595 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE40 / 5510 MHz Temp/Hum 24.5(°C)/ 56%RH Test Item Band Edge Test Date April 25, 2022 Polarize Horizontal Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5417.250 Peak 37.28 20.06 57.34 74.00 -16.66 5417.250 Average 30.61 20.06 50.68 54.00 -3.32 5465.250 Peak 36.40 20.05 56.46 68.20 -11.74 5510.000 Peak 73.01 20.02 93.03 - - - - 5510.000 Average 64.39 20.02 84.41 - - - - 5725.000 Peak 35.10 20.32 55.42 68.20 -12.78 Page: 596 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE40 / 5670 MHz_ Temp/Hum 24.5(°C)/ 56%RH Test Item Band Edge Test Date April 25, 2022 Polarize Vertical Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5455.500 Peak 37.69 20.06 57.75 74.00 -16.25 5455.500 Average 30.61 20.06 50.67 54.00 -3.33 5466.000 Peak 35.82 20.05 55.87 68.20 -12.33 5670.000 Peak 80.05 20.15 100.20 - - - - 5670.000 Average 72.13 20.15 92.28 - - - - 5725.000 Peak 36.46 20.32 56.78 68.20 -11.42 Page: 597 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE40 / 5670 MHz Temp/Hum 24.5(°C)/ 56%RH Test Item Band Edge Test Date April 25, 2022 Polarize Horizontal Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5451.000 Peak 37.79 20.07 57.86 74.00 -16.14 5451.000 Average 30.77 20.07 50.84 54.00 -3.16 5467.500 Peak 36.95 20.05 57.00 68.20 -11.20 5670.000 Peak 69.78 20.15 89.94 - - - - 5670.000 Average 64.65 20.15 84.80 - - - - 5725.000 Peak 35.67 20.32 55.99 68.20 -12.21 Page: 598 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE80 / 5530 MHz_ Temp/Hum 24.5(°C)/ 56%RH Test Item Band Edge Test Date April 25, 2022 Polarize Vertical Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5388.750 Peak 37.76 20.01 57.77 74.00 -16.23 5388.750 Average 30.57 20.01 50.58 54.00 -3.42 5463.750 Peak 37.45 20.06 57.50 68.20 -10.70 5530.000 Peak 75.73 20.03 95.76 - - - - 5530.000 Average 67.74 20.03 87.76 - - - - 5725.000 Peak 35.19 20.32 55.51 68.20 -12.69 Page: 599 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE80 / 5530 MHz Temp/Hum 24.5(°C)/ 56%RH Test Item Band Edge Test Date April 25, 2022 Polarize Horizontal Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5415.750 Peak 38.06 20.06 58.12 74.00 -15.88 5415.750 Average 31.54 20.06 51.60 54.00 -2.40 5463.000 Peak 38.70 20.06 58.76 68.20 -9.44 5530.000 Peak 68.50 20.03 88.53 - - - - 5530.000 Average 61.74 20.03 81.76 - - - - 5725.000 Peak 35.75 20.32 56.07 68.20 -12.13 Page: 600 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Data for UNII-3 Test Mode IEEE 802.11ac VHT20 / 5745 MHz Temp/Hum 22.9(°C)/ 52%RH Test Item Band Edge Test Date April 22, 2022 Polarize Vertical Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5525.250 Peak 39.56 20.03 59.59 68.20 -8.61 5691.750 Peak 37.02 20.16 57.18 99.12 -41.93 5708.250 Peak 36.66 20.21 56.87 107.51 -50.64 5724.750 Peak 36.92 20.32 57.24 121.63 -64.39 5745.000 Peak 79.43 20.45 99.88 - - - - 5745.000 Average 72.44 20.45 92.89 - - - - 5854.500 Peak 36.52 20.75 57.27 111.94 -54.66 5855.250 Peak 39.13 20.75 59.88 110.73 -50.85 5923.500 Peak 37.89 21.05 58.94 69.31 -10.36 5962.500 Peak 37.74 21.16 58.91 68.20 -9.29 Page: 601 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ac VHT20 / 5745 MHz Temp/Hum 22.9(°C)/ 52%RH Test Item Band Edge Test Date April 22, 2022 Polarize Horizontal Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 5507.250 Peak 37.76 20.02 57.78 68.20 -10.42 5680.500 Peak 36.66 20.16 56.81 90.81 -33.99 5703.750 Peak 37.83 20.18 58.01 106.25 -48.24 5724.000 Peak 36.61 20.31 56.92 119.92 -63.00 5745.000 Peak 70.23 20.45 90.68 - - - - 5745.000 Average 63.37 20.45 83.82 - - - - 5853.750 Peak 37.67 20.75 58.41 113.65 -55.24 5861.250 Peak 36.78 20.78 57.56 109.05 -51.49 5901.750 Peak 37.99 20.96 58.95 85.37 -26.41 5939.250 Peak 38.35 21.11 59.46 68.20 -8.74 Page: 602 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ac VHT20 / 5825 MHz Temp/Hum 22.9(°C)/ 52%RH Test Item Band Edge Test Date April 22, 2022 Polarize Vertical Test Engineer Tony Chao Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode…

Text truncated - open the document above for the full version.

Page: 675 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ac VHT80 / 5290 MHz Temp/Hum 22.3(°C)/ 53%RH Test Item Harmonic Test Date April 20, 2022 Polarize Horizontal Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 10580.000 Peak 30.24 18.20 48.44 68.20 -19.76 15870.000 Peak 29.25 26.23 55.48 74.00 -18.52 15870.000 Average 22.57 26.23 48.80 54.00 -5.20 N/A Remark: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. Page: 676 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5260 MHz Temp/Hum 22.3(°C)/ 53%RH Test Item Harmonic Test Date April 20, 2022 Polarize Vertical Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 10520.000 Peak 34.19 18.16 52.35 68.20 -15.85 15780.000 Peak 33.08 25.80 58.89 74.00 -15.11 15780.000 Average 25.04 25.80 50.84 54.00 -3.16 N/A Remark: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. Page: 677 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5260 MHz Temp/Hum 22.3(°C)/ 53%RH Test Item Harmonic Test Date April 20, 2022 Polarize Horizontal Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 10520.000 Peak 31.97 18.16 50.13 68.20 -18.07 15780.000 Peak 30.20 25.80 56.00 74.00 -18.00 15780.000 Average 24.32 25.80 50.12 54.00 -3.88 N/A Remark: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. Page: 678 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mode IEEE 802.11ax HE20 / 5300 MHz Temp/Hum 22.3(°C)/ 53%RH Test Item Harmonic Test Date April 20, 2022 Polarize Vertical Test Engineer Ray Li Detector Peak & Average Freq. Detector Spectrum Factor Actual Limit Margin Mode Reading Level FS @3m (MHz) (PK/QP/AV) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 10600.000 Peak 32.20 18.20 50.40 68.20 -17.80 15900.000 Peak 30.15 26.46 56.61 74.00 -17.39 15900.000 Average 22.77 26.46 49.23 54.00 -4.77 N/A Remark: 1. Measuring frequencies from 1 GHz to the 10th harmonic of highest fundamental frequency. Page: 679 / 939 Report No.: TMWK2201000111KR Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Test Mod…

Text truncated - open the document above for the full version.
