KA2M60A1AX6000 Dual-Band Wi-Fi 6 Router (Single pack), AX6000 Dual-Band Wi-Fi 6 Mesh System (Multi-pack)

AX6000 Dual-Band Wi-Fi 6 Router M60 User Manual Version 1.00 | 06/12/2023 iD-Link M60 AX6000 Dual-Band Wi-Fi 6 Router User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions RevisionDateDescription 1.00June 12, 2023Initial release Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App Store SM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Google, Nest Hub, and Google Home are trademarks of Google LLC. Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies. Copyright © 2023 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Power Usage ErP Power Usage This device is an Energy Related Product (ErP) with High Network Availability (HiNA) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy. Network Standby: 6.93 watts Switched Off: 0.06 watts Preface iiD-Link M60 AX6000 Dual-Band Wi-Fi 6 Router User Manual Table of Contents Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................2 Introduction ...................................................................................3 Hardware Overview .....................................................................5 AX6000 Dual-Band Wi-Fi 6 Router LED Indicator ......5 AX6000 Dual-Band Wi-Fi 6 Router Rear Panel ............6 Installation .........................................................................7 Before You Begin ...........................................................................7 Wireless Installation Considerations ......................................8 Setup .................................................................................................9 AQUILA PRO AI Setup .......................................................10 Hardware Setup .........................................................................11 Setup Wizard .......................................................................13 Configuration ...................................................................20 Accessing the Web User Interface ........................................20 Home ..............................................................................................21 Internet ...................................................................................22 Internet ...................................................................................23 AX6000 Dual-Band Wi-Fi 6 Router ................................24 Connected Clients ..............................................................25 Extenders ...............................................................................26 Settings ....................................................................................................27 Wizard .................................................................................................27 Internet ...................................................................................28 IPv4 .....................................................................................28 IPv6 .....................................................................................38 IPv6 - Auto Detection ...................................................39 Internet - VLAN ....................................................................51 Internet - VLAN ....................................................................52 Wireless ..................................................................................53 Wireless..............................................................................54 Guest Zone .......................................................................58 Net work ..................................................................................60 D-Link Cloud .........................................................................62 Features ..........................................................................................63 Parental Control ..................................................................63 QoS Engine............................................................................66 Firewall ...................................................................................68 Firewall Settings - IPv4/IPv6 Rules ...........................70 Firewall Settings - IPv4/IPv6 Rules ...........................71 Port Forwarding .............................................................72 Port Forwarding - Virtual Server ....................................73 P ort Forwarding - Virtual Server ....................................74 S tatic Routes - IPv4 .............................................................75 Static Routes - IPv6 .............................................................76 Dynamic DNS .......................................................................77 Quick VPN ..............................................................................79 Manageme…

Text truncated - open the document above for the full version.

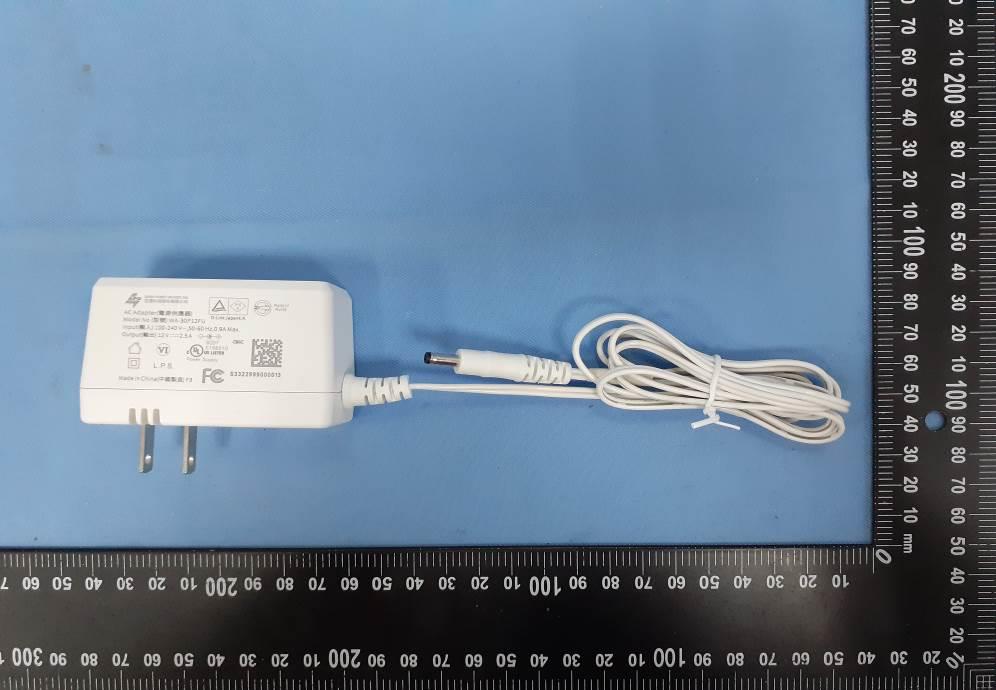

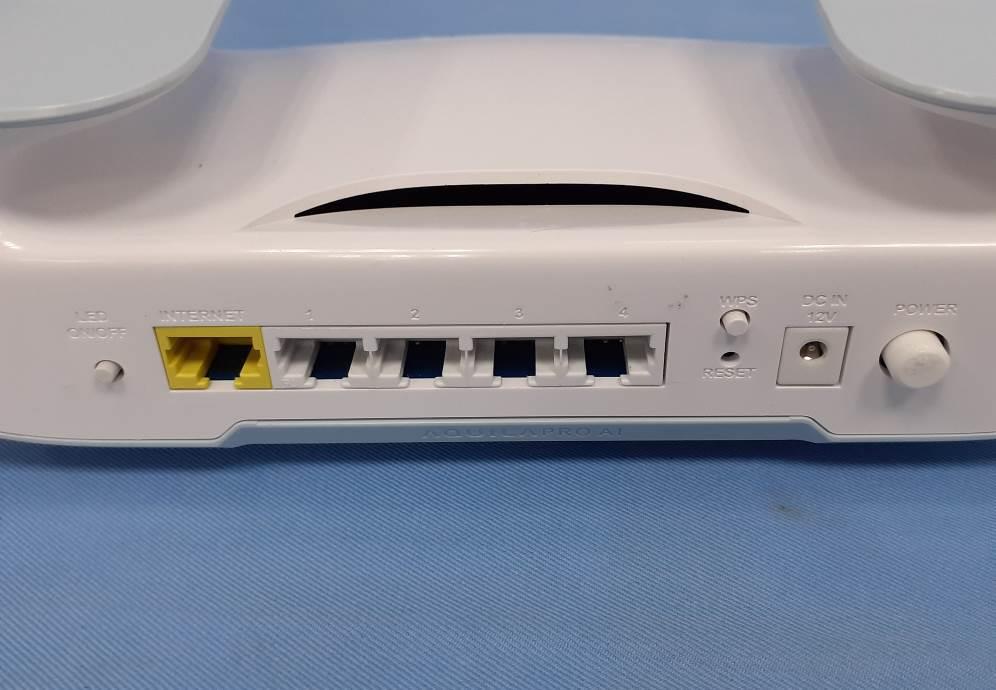

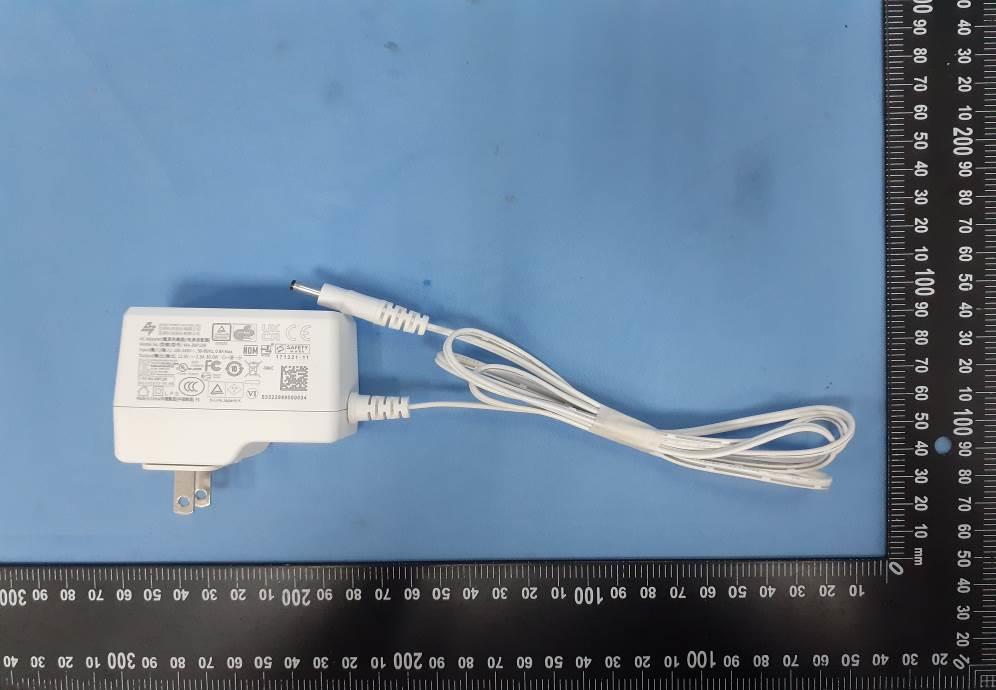

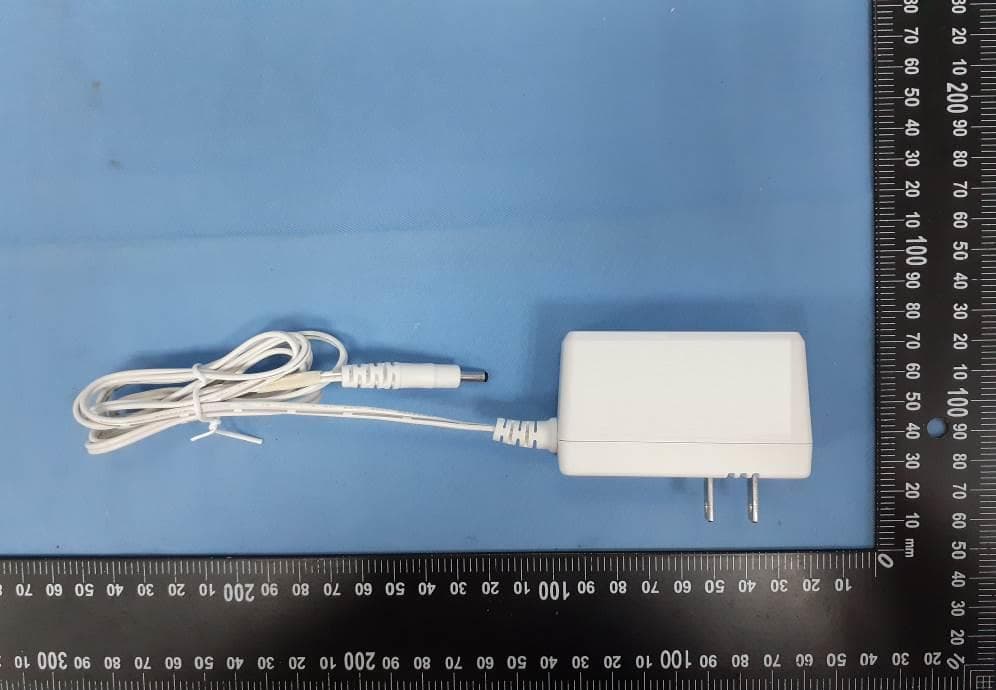

22-2149_EUT External Photos Page 1 of 9 External Photos Model Number: M60 22-2149_EUT External Photos Page 2 of 9 EUT Photo (1) EUT Photo (2) 22-2149_EUT External Photos Page 3 of 9 EUT Photo (3) EUT Photo (4) 22-2149_EUT External Photos Page 4 of 9 EUT Photo (5) EUT Photo (6) 22-2149_EUT External Photos Page 5 of 9 EUT Photo (7) EUT Photo (8) 22-2149_EUT External Photos Page 6 of 9 EUT Photo (9) EUT Photo (10) 22-2149_EUT External Photos Page 7 of 9 EUT Photo (11) EUT Photo (12) 22-2149_EUT External Photos Page 8 of 9 EUT Photo (13) EUT Photo (14) 22-2149_EUT External Photos Page 9 of 9 EUT Photo (15)

22-2149_EUT Internal Photos Page 1 of 21 Internal Photos Model Number: M60 22-2149_EUT Internal Photos Page 2 of 21 EUT Photo (1) EUT Photo (2) 22-2149_EUT Internal Photos Page 3 of 21 EUT Photo (3) EUT Photo (4) ANT 0 WLAN 2.4 GHz ANT 1 WLAN 2.4 GHz ANT 3 WLAN 2.4 GHz ANT 2 WLAN 2.4 GHz ANT 0 WLAN 5 GHz ANT 1 WLAN 5 GHz ANT 3 WLAN 5 GHz ANT 2 WLAN 5 GHz 22-2149_EUT Internal Photos Page 4 of 21 EUT Photo (5) EUT Photo (6) 22-2149_EUT Internal Photos Page 5 of 21 EUT Photo (7) EUT Photo (8) 22-2149_EUT Internal Photos Page 6 of 21 EUT Photo (9) EUT Photo (10) 22-2149_EUT Internal Photos Page 7 of 21 EUT Photo (11) EUT Photo (12) 22-2149_EUT Internal Photos Page 8 of 21 EUT Photo (13) EUT Photo (14) 22-2149_EUT Internal Photos Page 9 of 21 EUT Photo (15) EUT Photo (16) 22-2149_EUT Internal Photos Page 10 of 21 EUT Photo (17) EUT Photo (18) 22-2149_EUT Internal Photos Page 11 of 21 EUT Photo (19) EUT Photo (20) 22-2149_EUT Internal Photos Page 12 of 21 EUT Photo (21) EUT Photo (22) 22-2149_EUT Internal Photos Page 13 of 21 EUT Photo (23) EUT Photo (24) 22-2149_EUT Internal Photos Page 14 of 21 EUT Photo (25) EUT Photo (26) 22-2149_EUT Internal Photos Page 15 of 21 EUT Photo (27) EUT Photo (28) 22-2149_EUT Internal Photos Page 16 of 21 EUT Photo (29) EUT Photo (30) 22-2149_EUT Internal Photos Page 17 of 21 EUT Photo (31) EUT Photo (32) 22-2149_EUT Internal Photos Page 18 of 21 EUT Photo (33) EUT Photo (34) 22-2149_EUT Internal Photos Page 19 of 21 EUT Photo (35) EUT Photo (36) 22-2149_EUT Internal Photos Page 20 of 21 EUT Photo (37) EUT Photo (38) 22-2149_EUT Internal Photos Page 21 of 21 EUT Photo (39) EUT Photo (40)

Page 1 of 9 Report Number: 2307FS11 Version: 00 MPE Report Applicant ： D-Link Corporation Product Name ： AX6000 Dual-Band Wi-Fi 6 Router (Single pack) AX6000 Dual-Band Wi-Fi 6 Mesh System (Multi-pack) Trade Name ： D-Link Model Number ： M60 Applicable Standard ： 47 CFR § 2.1091 Received Date ： Dec. 27, 2022 Issued Date ： Aug. 23, 2023 Issued by Approved By ： Eurofins E&E Wireless Taiwan Co., Ltd. No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of Eurofins E&E Wireless Taiwan Co., Ltd. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. Page 2 of 9 Report Number: 2307FS11 Version: 00 Revision History Version Issued Date Revisions Revised By 00 Aug. 23, 2023 Initial Issue Rowan Hsieh Page 3 of 9 Report Number: 2307FS11 Version: 00 Contents 1. General Information .................................................................................................................... 4 2. Description of Equipment under Test (EUT) ............................................................................ 5 3. RF Exposure Limit ...................................................................................................................... 6 4. RF Exposure Assessment .......................................................................................................... 7 5. Maximum Transmitting Mode Evaluation ................................................................................. 9 6. Result ........................................................................................................................................... 9 7. Conclusion ................................................................................................................................... 9 Page 4 of 9 Report Number: 2307FS11 Version: 00 1. General Information 1.1 Reference Applicable Standard Standard Description Version IEEE C95.1 American National Standard safety levels with respect to human exposure to radio frequency electromagnetic fields, 300 KHz to 100 GHz, New York. 1992 47 CFR § 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. - 47 CFR § 1.1310 Radiofrequency radiation exposure limits. - KDB 447498 D04 RF exposure procedures and equipment authorization policies for mobile and portable devices v01 1.2 Testing Location Lab Name: Eurofins E&E Wireless Taiwan Co., Ltd. Site Address: □ No. 140-1, Changan Street, Bade District, Taoyuan City 334025, Taiwan (R.O.C.) Site Address: ■ No. 2, Wuquan 5th Rd. Wugu Dist., New Taipei City, Taiwan (R.O.C.) Page 5 of 9 Report Number: 2307FS11 Version: 00 2. Description of Equipment under Test (EUT) Applicant D-Link Corporation 14420 Myford Road Suite 100 Irvine California United States 92606 Manufacturer D-Link Corporation 14420 Myford Road Suite 100 Irvine California United States 92606 Product Name AX6000 Dual-Band Wi-Fi 6 Router (Single pack) AX6000 Dual-Band Wi-Fi 6 Mesh System (Multi-pack) Trade Name D-Link Model Number M60 FCC ID KA2M60A1 USE DISTANCE 30 cm Antenna information Brand: HONGBO Model: PCB Antenna Spec: Please refer to antenna report “Antenna Solution(泓博) for Amigo M60” Note: The above information of DUT was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 2.1 RF Specification Frequency Range WLAN 2.4 GHz Band：2412 - 2472 MHz WLAN 5.2 GHz Band：5180 - 5320 MHz WLAN 5.6 GHz Band：5500 - 5720 MHz WLAN 5.8 GHz Band：5745 - 5825 MHz Supported Modulations WLAN 2.4 GHz : 802.11b/g/n/ax HT20/HT40/VHT20/VHT40/ HE20/HE40 WLAN 5 GHz : 802.11a/n/ac/ax HT20/HT40/VHT20/VHT40/VHT80/VHT160/HE20/HE40/HE80/HE160 Page 6 of 9 Report Number: 2307FS11 Version: 00 3. RF Exposure Limit For devices that operate at larger distances from persons, where there are minimal RF coupling interactions between a device and the user or nearby persons, RF exposure compliance using maximum permissible exposure (MPE) limits is applied. The limits for MPE is listed as below: Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824 / f 2.19 / f (180 / f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F / 1,500 30 1,500-100,000 - - 1.0 30 Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time|E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F / 300 6 1,500-100,000 - - 5 6 f = frequency in MHz. * = Plane-wave equivalent power density. Page 7 of 9 Report Number: 2307FS11 Version: 00 4. RF Exposure Assessment 4.1 Exemption Evaluation Exemption evaluation was performed according to the appendix A and B in KDB447498 D04. The General Sequence for Determination of Procedure demonstrated in Figure A.1 of KDB447498 D04 was applied. Page 8 of 9 Report Number: 2307FS11 Version: 00 4.2 Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR § 1.1310 titled …

Text truncated - open the document above for the full version.

Antenna Solution for M60 project D-Link / M60 TOM 2023.03.17 V3.0 2023/3/15 1 Adddress: No. 8, Liuzhou Road, Lushan Industrial Park, Xinxing Development Zone, Changshu City, Jiangsu Province Antenna Type _ Dipole 2 Executive Summary •Testing contents –Test Environment and Equipment –HB Antenna Photo –Test Result :Return loss –Test Result :Isolation –DUT orientation setting –Antenna radiation pattern –Test Result : Gain Table Version information Version Remark Date V3.0 Antenna solution 20230317 3 2023/3/15 4 Test Environment & Equipment VSWR were performed using an Agilent S-parameter Network Analyzer. •SATIMO SG 24 Multi-Probe Antenna Measurement System •Angle between probes: 15° •Frequency range: 400 MHz - 6 GHz •Chamber Room Size: 4.0 m L x 4.0 m W x 4.0 m H 6 Test Result : Return Loss 2G1 7 Test Result : Return Loss 2G2 8 Test Result : Return Loss 2G3 9 Test Result : Return Loss 2G4 10 Test Result : Return Loss 5G1 11 Test Result : Return Loss 5G2 12 Test Result : Return Loss 5G3 13 Test Result : Return Loss 5G4 14 Test Result : Return Loss＆Isolation lsolation 2G1 2G2 15 Test Result : Return Loss＆Isolation lsolation 2G1 2G3 16 Test Result : Return Loss＆Isolation lsolation 2G1 2G4 17 Test Result : Return Loss＆Isolation lsolation 2G1 5G1 18 Test Result : Return Loss＆Isolation lsolation 2G1 5G2 19 Test Result : Return Loss＆Isolation lsolation 2G1 5G3 20 Test Result : Return Loss＆Isolation lsolation 2G1 5G4 21 Test Result : Return Loss＆Isolation lsolation 2G2 2G3 22 Test Result : Return Loss＆Isolation lsolation 2G2 2G4 23 Test Result : Return Loss＆Isolation lsolation 2G2 5G1 24 Test Result : Return Loss＆Isolation lsolation 2G2 5G2 25 Test Result : Return Loss＆Isolation lsolation 2G2 5G3 26 Test Result : Return Loss＆Isolation lsolation 2G2 5G4 27 Test Result : Return Loss＆Isolation lsolation 2G3 2G4 28 Test Result : Return Loss＆Isolation lsolation 2G3 5G1 29 Test Result : Return Loss＆Isolation lsolation 2G3 5G2 30 Test Result : Return Loss＆Isolation lsolation 2G3 5G3 31 Test Result : Return Loss＆Isolation lsolation 2G3 5G4 32 Test Result : Return Loss＆Isolation lsolation 2G4 5G1 33 Test Result : Return Loss＆Isolation lsolation 2G4 5G2 34 Test Result : Return Loss＆Isolation lsolation 2G4 5G3 35 Test Result : Return Loss＆Isolation lsolation 2G4 5G4 36 Test Result : Return Loss＆Isolation lsolation 5G2 5G1 37 Test Result : Return Loss＆Isolation lsolation 5G3 5G1 38 Test Result : Return Loss＆Isolation lsolation 5G4 5G1 39 Test Result : Return Loss＆Isolation lsolation 5G3 5G2 40 Test Result : Return Loss＆Isolation lsolation 5G4 5G2 41 Test Result : Return Loss＆Isolation lsolation 5G4 5G3 43 Antenna radiation pattern (2G1) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 2400~2500MHZ 44 Antenna radiation pattern (2G2) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 2400~2500MHZ 45 Antenna radiation pattern (2G3) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 2400~2500MHZ 46 Antenna radiation pattern (2G4) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 2400~2500MHZ 47 Antenna radiation pattern (5G1) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 5150~5850MHZ 48 Antenna radiation pattern (5G2) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 5150~5850MHZ 49 Antenna radiation pattern (5G3) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 5150~5850MHZ 50 Antenna radiation pattern (5G4) X-Z planeY-Z planeX-Y plane 90 ° 0 ° 270 ° 180 ° 90° 0 ° 270 ° 180 ° 0 ° 90 ° 180 ° 270 ° 5150~5850MHZ -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_2G_Front to Back(YZ) 2400MHz2450MHz2500MHz -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_2G_Side to Side(XZ) 2400MHz2450MHz2500MHz -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_2G _Azimuth(XY) 2400MHz2450MHz2500MHz 51 Composite pattern(2G) Y X X Z Z Y -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_5G _Azimuth(XY) 5150MHz5600MHz5850MHz -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_5G_side_to Side(XZ) 5150MHz5600MHz5850MHz -30 -25 -20 -15 -10 -5 0 5 10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 Composite_5G_Front to Back(YZ) 5150MHz5600MHz5850MHz 52 Composite pattern(5G) Y X X Z Z Y

Page 1 of 9 Report Number: 2306FR14 Version: 00 Appendix A:Test Data Duty cycle Band Frequency (MHz) On time (ms) On+off time (ms) Duty cycle (%) Duty Factor (dB) 1/T Minimun VBW (kHz) 802.11b 2412 1.030 1.083 95.106 0.218 0.971 802.11g 2412 0.840 0.888 94.595 0.241 1.190 802.11ax HE20 2412 0.795 0.845 94.014 0.268 1.258 802.11ax HE40 2422 0.795 0.843 94.304 0.255 1.258 Page 2 of 9 Report Number: 2306FR14 Version: 00 2.4 GHz Band (Beamforming off) Mod. Freq. (MHz) Data Rate RF power setting in Test SW Test SW Version Ant-0 Ant-1 Ant-2 Ant-3 802.11b 2412 1M 21.00 21.00 21.00 21.00 QA tool/0.0.2.88 802.11b 2437 1M 21.50 21.50 21.50 21.50 802.11b 2462 1M 22.50 22.50 22.50 22.50 802.11g 2412 6M 18.00 18.00 18.00 18.00 802.11g 2437 6M 18.00 18.00 18.00 18.00 802.11g 2462 6M 19.50 19.50 19.50 19.50 802.11n HT20 2412 26M 16.00 16.00 16.00 16.00 802.11n HT20 2437 26M 17.50 17.50 17.50 17.50 802.11n HT20 2462 26M 15.50 15.50 15.50 15.50 802.11n HT40 2422 54M 13.00 13.00 13.00 13.00 802.11n HT40 2437 54M 18.00 18.00 18.00 18.00 802.11n HT40 2452 54M 14.50 14.50 14.50 14.50 802.11n VHT20 2412 26M 16.00 16.00 16.00 16.00 802.11n VHT20 2437 26M 17.50 17.50 17.50 17.50 802.11n VHT20 2462 26M 15.50 15.50 15.50 15.50 802.11n VHT40 2422 54M 13.00 13.00 13.00 13.00 802.11n VHT40 2437 54M 17.50 17.50 17.50 17.50 802.11n VHT40 2452 54M 14.50 14.50 14.50 14.50 802.11ax HE20 2412 Full MCS0 16.00 16.00 16.00 16.00 802.11ax HE20 2437 Full MCS0 17.50 17.50 17.50 17.50 802.11ax HE20 2462 Full MCS0 15.50 15.50 15.50 15.50 802.11ax HE40 2422 Full MCS0 13.00 13.00 13.00 13.00 802.11ax HE40 2437 Full MCS0 18.00 18.00 18.00 18.00 802.11ax HE40 2452 Full MCS0 14.50 14.50 14.50 14.50 Page 3 of 9 Report Number: 2306FR14 Version: 00 2.4 GHz Band (Beamforming off) Mod. CH Freq. (MHz) Data Rate Avg Conducted Power (dBm) Conducted Power Limit (dBm) Ant-0 Ant-1 Ant-2 Ant-3 SUM Ant-0 Ant-1 Ant-2 Ant-3 SUM 802.11b 1 2412 1M 22.01 21.72 21.81 21.85 - 30.00 30.00 30.00 30.00 - 802.11b 6 2437 1M 23.13 22.47 23.05 22.65 - 30.00 30.00 30.00 30.00 - 802.11b 11 2462 1M 24.41 23.38 24.18 24.00 - 30.00 30.00 30.00 30.00 - 802.11g 1 2412 6M 19.70 19.07 19.26 19.64 - 30.00 30.00 30.00 30.00 - 802.11g 6 2437 6M 19.68 19.39 19.55 19.54 - 30.00 30.00 30.00 30.00 - 802.11g 11 2462 6M 20.78 20.31 20.72 20.60 - 30.00 30.00 30.00 30.00 - 802.11n HT20 1 2412 26M 16.54 16.64 17.23 17.78 23.10 26.81 26.81 26.81 26.81 26.81 802.11n HT20 6 2437 26M 20.33 20.12 20.52 20.85 26.49 26.81 26.81 26.81 26.81 26.81 802.11n HT20 11 2462 26M 17.06 16.57 17.03 17.19 22.99 26.81 26.81 26.81 26.81 26.81 802.11n HT40 3 2422 54M 14.28 13.72 14.01 14.46 20.15 26.81 26.81 26.81 26.81 26.81 802.11n HT40 6 2437 54M 20.49 20.28 20.64 20.85 26.59 26.81 26.81 26.81 26.81 26.81 802.11n HT40 9 2452 54M 15.68 15.36 15.30 15.25 21.42 26.81 26.81 26.81 26.81 26.81 802.11n VHT20 1 2412 26M 17.28 17.37 17.63 18.14 23.64 26.81 26.81 26.81 26.81 26.81 802.11n VHT20 6 2437 26M 20.00 19.85 20.17 20.53 26.16 26.81 26.81 26.81 26.81 26.81 802.11n VHT20 11 2462 26M 16.96 16.78 17.52 17.56 23.24 26.81 26.81 26.81 26.81 26.81 802.11n VHT40 3 2422 54M 14.94 14.60 14.30 14.20 20.54 26.81 26.81 26.81 26.81 26.81 802.11n VHT40 6 2437 54M 20.21 20.06 20.41 20.67 26.36 26.81 26.81 26.81 26.81 26.81 802.11n VHT40 9 2452 54M 16.46 15.75 16.36 15.65 22.09 26.81 26.81 26.81 26.81 26.81 Mod. CH Freq. (MHz) RU Data Rate Avg Conducted Power (dBm) Conducted Power Limit (dBm) Ant-0 Ant-1 Ant-2 Ant-3 SUM Ant-0 Ant-1 Ant-2 Ant-3 SUM 802.11ax HE20 1 2412 Full MCS0 17.30 17.08 17.88 18.32 23.69 26.81 26.81 26.81 26.81 26.81 802.11ax HE20 6 2437 Full MCS0 20.35 20.19 20.57 20.87 26.52 26.81 26.81 26.81 26.81 26.81 802.11ax HE20 11 2462 Full MCS0 17.20 16.78 17.58 17.61 23.33 26.81 26.81 26.81 26.81 26.81 802.11ax HE40 3 2422 Full MCS0 14.82 14.18 14.40 14.75 20.56 26.81 26.81 26.81 26.81 26.81 802.11ax HE40 6 2437 Full MCS0 20.49 20.28 20.64 20.90 26.60 26.81 26.81 26.81 26.81 26.81 802.11ax HE40 9 2452 Full MCS0 16.42 15.60 16.26 16.20 22.15 26.81 26.81 26.81 26.81 26.81 Page 4 of 9 Report Number: 2306FR14 Version: 00 6 dB Bandwidth Mod. Freq. (MHz) 6 dB Bandwidth (kHz) 6 dB Bandwidth Min.Limit (kHz) Ant-0 Ant-1 Ant-2 Ant-3 802.11b 2412 8075 - - - ≧ 500 802.11b 2437 8069 - - - ≧ 500 802.11b 2462 8054 - - - ≧ 500 802.11g 2412 15160 - - - ≧ 500 802.11g 2437 15160 - - - ≧ 500 802.11g 2462 15160 - - - ≧ 500 802.11ax HE20 2412 17000 15840 16670 17250 ≧ 500 802.11ax HE20 2437 16800 15600 15560 15160 ≧ 500 802.11ax HE20 2462 18170 15140 15860 16270 ≧ 500 802.11ax HE40 2422 36360 35120 35140 35140 ≧ 500 802.11ax HE40 2437 35650 35140 35170 35830 ≧ 500 802.11ax HE40 2452 35900 35340 35150 35130 ≧ 500 Page 5 of 9 Report Number: 2306FR14 Version: 00 99 % Occupied BW Mod. Freq. (MHz) 99 % Occupied BW (MHz) Ant-0 Ant-1 Ant-2 Ant-3 802.11b 2412 12.411 - - - 802.11b 2437 12.429 - - - 802.11b 2462 12.417 - - - 802.11g 2412 16.621 - - - 802.11g 2437 16.482 - - - 802.11g 2462 16.463 - - - 802.11ax HE20 2412 18.700 18.706 18.733 18.744 802.11ax HE20 2437 18.850 18.816 18.856 18.846 802.11ax HE20 2462 18.822 18.817 18.809 18.854 802.11ax HE40 2422 37.576 37.524 37.568 37.503 802.11ax HE40 2437 37.607 37.614 37.598 37.554 802.11ax HE40 2452 37.566 37.564 37.531 37.631 Page 6 of 9 Report Number: 2306FR14 Version: 00 Maximum Power Spectral Density Measurement Mod. Freq. (MHz) Measurement (dBm/3 kHz) Max.Limit (dBm/ 3 kHz) Ant-0 Ant-1 Ant-2 Ant-3 SUM Ant-0 Ant-1 Ant-2 Ant-3 SUM 802.11b 2412 -0.58 - - - 8.00 - - - - 802.11b 2437 0.21 - - - 8.00 - - - - 802.11b 2462 0.17 - - - 8.00 - - - - 802.11g 2412 -4.23 - - - 8.00 - - - - 802.11g 2437 -4.80 - - - 8.00 - - - - 802.11g 2462 -3.55 - - - 8.00 - - - - 802.11ax HE20 2412 -7.76 -8.65 -7.95 -8.26 -2.12 8.00 8.00 8.00 8.00 4.81 802.11ax HE20 2437 -6.88 -5.96 -5.10 -6.21 0.03 8.00 8.00 8.00 8.00 4.81 802.11ax HE20 2462 -8.71 -8.67 -7.03 -7.36 -1.86 8.00 8.00 8.00 8.00 4.81 802.11ax HE40 2422 -13.39 -13.86 -12.95 -12.42 -7.10 8.00 8.00 8.00 8.00 4.81 802.11ax HE40 2437 -8.09 -8.59 -7.68 …

Text truncated - open the document above for the full version.

Page 1 of 62 Report Number: 2306FR14 Version: 00 Appendix B. Test Plots Duty cycle 802.11b On+off time 802.11g On+off time Page 2 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20 On+off time 802.11ax HE40 On+off time Page 3 of 62 Report Number: 2306FR14 Version: 00 Out of Band Conducted Spurious Emission 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 4 of 62 Report Number: 2306FR14 Version: 00 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 5 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 6 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-0 2422 MHz 2437 MHz 2452 MHz Page 7 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-1 2412 MHz 2437 MHz 2462 MHz Page 8 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-1 2422 MHz 2437 MHz 2452 MHz Page 9 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-2 2412 MHz 2437 MHz 2462 MHz Page 10 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-2 2422 MHz 2437 MHz 2452 MHz Page 11 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-3 2422 MHz 2437 MHz 2452 MHz Page 12 of 62 Report Number: 2306FR14 Version: 00 Reference level 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 13 of 62 Report Number: 2306FR14 Version: 00 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 14 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 15 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-0 2422 MHz 2437 MHz 2452 MHz Page 16 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-1 2412 MHz 2437 MHz 2462 MHz Page 17 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-1 2422 MHz 2437 MHz 2452 MHz Page 18 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-2 2412 MHz 2437 MHz 2462 MHz Page 19 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-2 2422 MHz 2437 MHz 2452 MHz Page 20 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-3 2412 MHz 2437 MHz 2462 MHz Page 21 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-3 2422 MHz 2437 MHz 2452 MHz Page 22 of 62 Report Number: 2306FR14 Version: 00 Conducted Band Edge 802.11b_ANT-0 2412 MHz 2462 MHz Page 23 of 62 Report Number: 2306FR14 Version: 00 802.11g_ANT-0 2412 MHz 2462 MHz Page 24 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-0 2412 MHz 2462 MHz Page 25 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-0 2422 MHz 2452 MHz Page 26 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-1 2412 MHz 2462 MHz Page 27 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-1 2422 MHz 2452 MHz Page 28 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-2 2412 MHz 2462 MHz Page 29 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-2 2422 MHz 2452 MHz Page 30 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-3 2412 MHz 2462 MHz

Page 31 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-3 2422 MHz 2452 MHz Page 32 of 62 Report Number: 2306FR14 Version: 00 6 dB Bandwidth 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 33 of 62 Report Number: 2306FR14 Version: 00 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 34 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 35 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-0 2422 MHz 2437 MHz 2452 MHz Page 36 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-1 2412 MHz 2437 MHz 2462 MHz Page 37 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-1 2422 MHz 2437 MHz 2452 MHz Page 38 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-2 2412 MHz 2437 MHz 2462 MHz Page 39 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-2 2422 MHz 2437 MHz 2452 MHz Page 40 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-3 2412 MHz 2437 MHz 2462 MHz Page 41 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-3 2422 MHz 2437 MHz 2452 MHz Page 42 of 62 Report Number: 2306FR14 Version: 00 99% Occupied Bandwidth 802.11b_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 43 of 62 Report Number: 2306FR14 Version: 00 802.11g_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 44 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-0 2412 MHz 2437 MHz 2462 MHz Page 45 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-0 2422 MHz 2437 MHz 2452 MHz Page 46 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-1 2412 MHz 2437 MHz 2462 MHz Page 47 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE40_ANT-1 2422 MHz 2437 MHz 2452 MHz Page 48 of 62 Report Number: 2306FR14 Version: 00 802.11ax HE20_ANT-2 2412 MHz 2437 MHz 2462…

Text truncated - open the document above for the full version.
