KA2RFHTN102A1Wi-Fi Invite Home Hub

RocketFish RF-HTN102 Wi-Fi Invite Home Hub User Manual 2 Preface RocketFish reserves the right to modify this docume nt at any time without obligation or notification o f any person or organization of such revisions or c hanges. Manual Revisions Trademarks ©2010 RocketFish. RocketFish and the RocketFish log o are trademarks of Best Buy Enterprise Services, I nc. Other brands and product names are trademarks o r registered trademarks of their respective holders. Revision Date Description 1.0 November 23, 2010 First Draft 2.0 December 9, 2010 Second Draft 3.0 December 21, 2010 Third Draft 4.0 December 22, 2010 Fourth Draft 3 Table of Contents Preface............................................ ................................................... ................................................... ................................................... ................................................... ................2 Manual Revisions................................... ................................................... ................................................... ................................................... ................................................... .....2 Trademarks......................................... ................................................... ................................................... ................................................... ................................................... ........2 Product Overview................................... ................................................... ................................................... ................................................... ................................................... ........5 Package Contents................................... ................................................... ................................................... ................................................... ................................................... ....5 System Requirements ................................ ................................................... ................................................... ................................................... ................................................... 5 Introduction....................................... ................................................... ................................................... ................................................... ................................................... .............6 Features........................................... ................................................... ................................................... ................................................... ................................................... ...........7 Hardware Overview.................................. ................................................... ................................................... ................................................... ................................................... ..8 Hardware Overview (Continued) ...................... ................................................... ................................................... ................................................... ............................................9 Installation....................................... ................................................... ................................................... ................................................... ................................................... .............12 Connecting the Hub to your Network................. ................................................... ................................................... ................................................... ............................................13 Configuration...................................... ................................................... ................................................... ................................................... ................................................... ..........14 Web-based configuration utility.................... ................................................... ................................................... ................................................... ..............................................17 Accessing the web-based configuration utility ...... ................................................... ................................................... ................................................... .................................18 Checking the General Status of the Hub............. ................................................... ................................................... ................................................... ....................................19 Checking the Wireless Network Status ............... ................................................... ................................................... ................................................... ....................................19 Checking the Traffic Statistics.................... ................................................... ................................................... ................................................... ..............................................21 Accessing the System Log........................... ................................................... ................................................... ................................................... ........... 錯誤 錯誤錯誤錯誤 ! 尚未定義書籤 尚未定義書籤尚未定義書籤尚未定義書籤 。 。。。 Hub Administration................................. ................................................... ................................................... ................................................... .................. 錯誤 錯誤錯誤錯誤 ! 尚未定義書籤 尚未定義書籤尚未定義書籤尚未定義書籤 。 。。。 Adjusting the Time and Date Settings............... .........................…

Text truncated - open the document above for the full version.

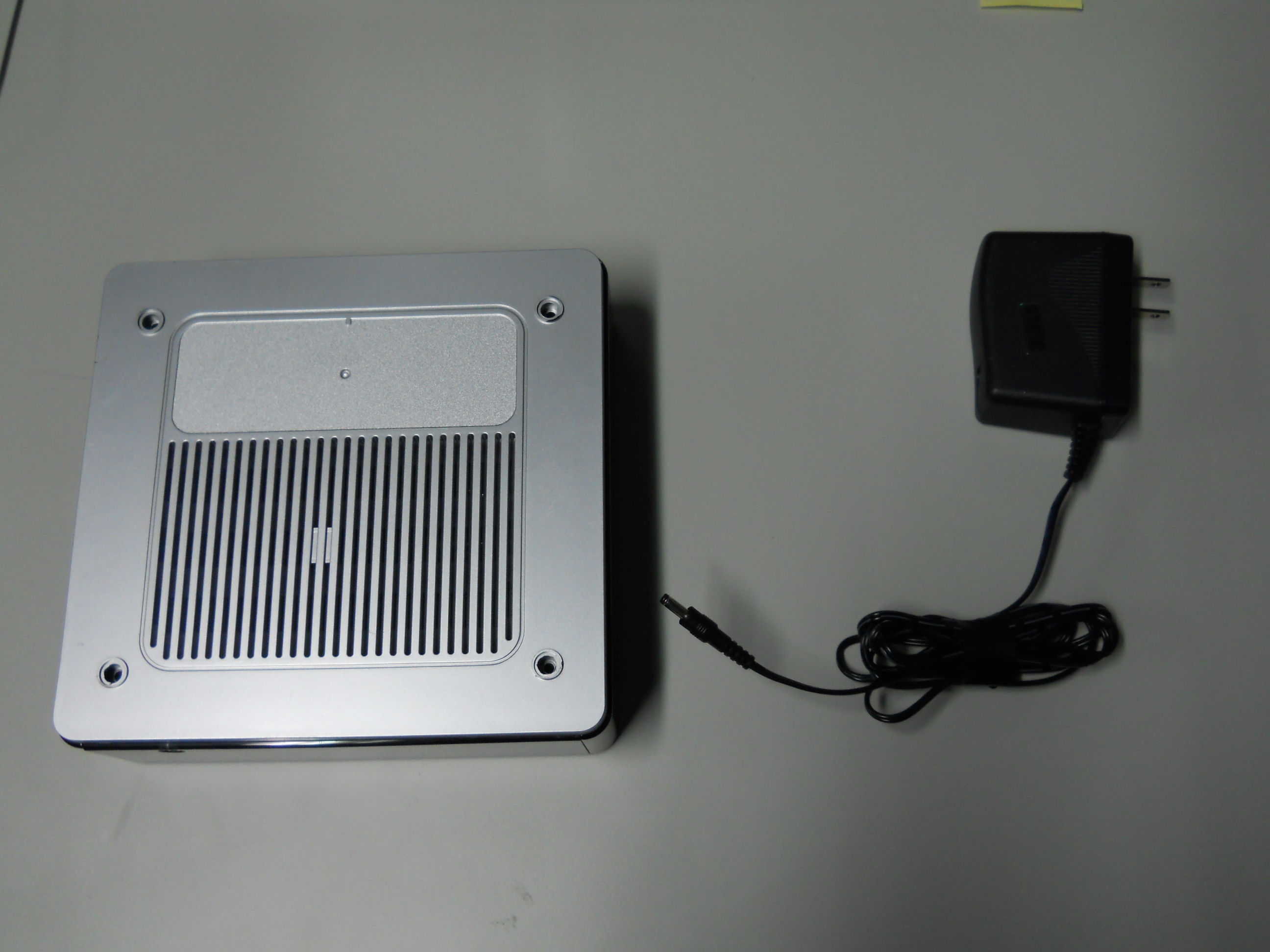

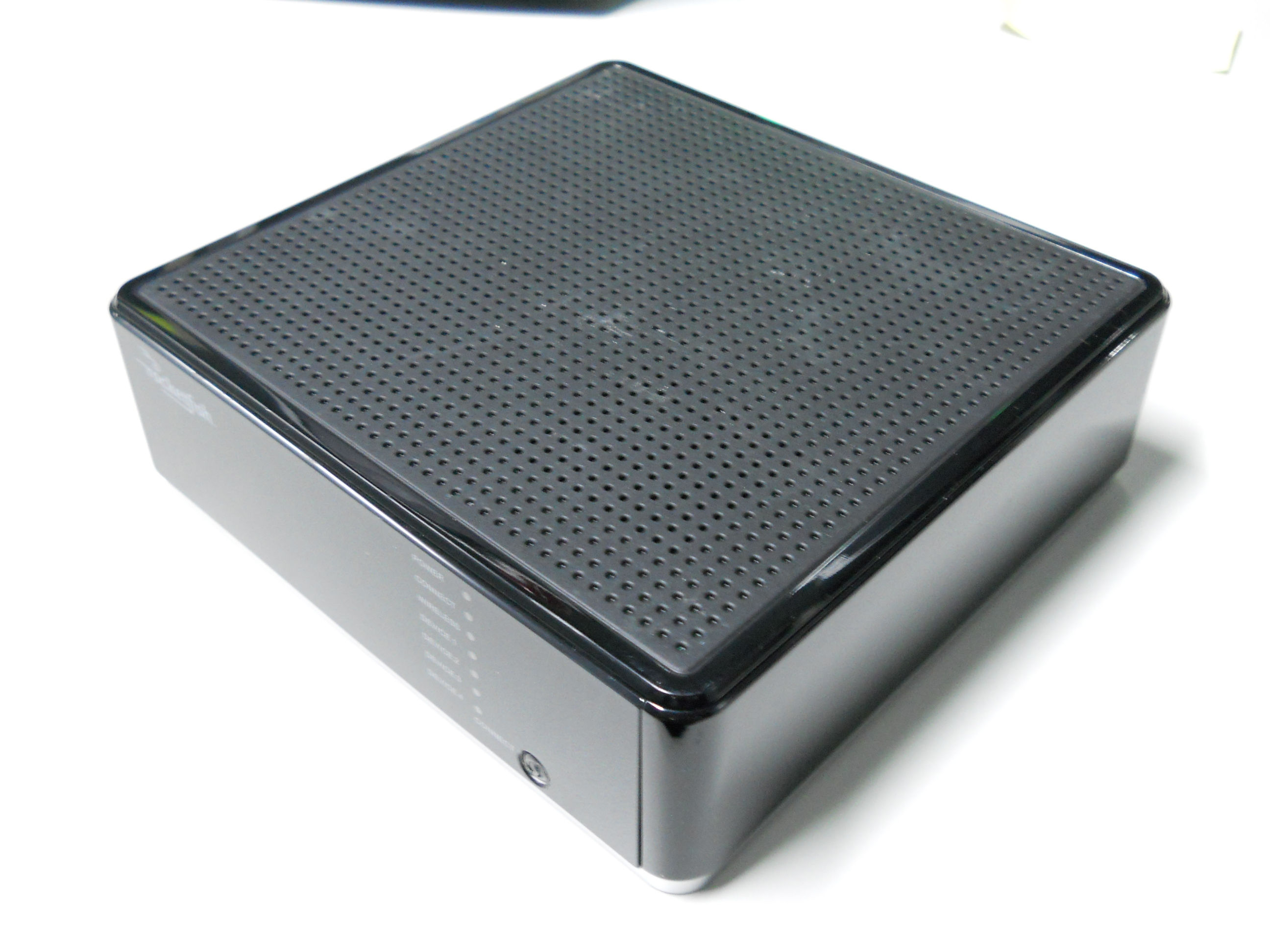

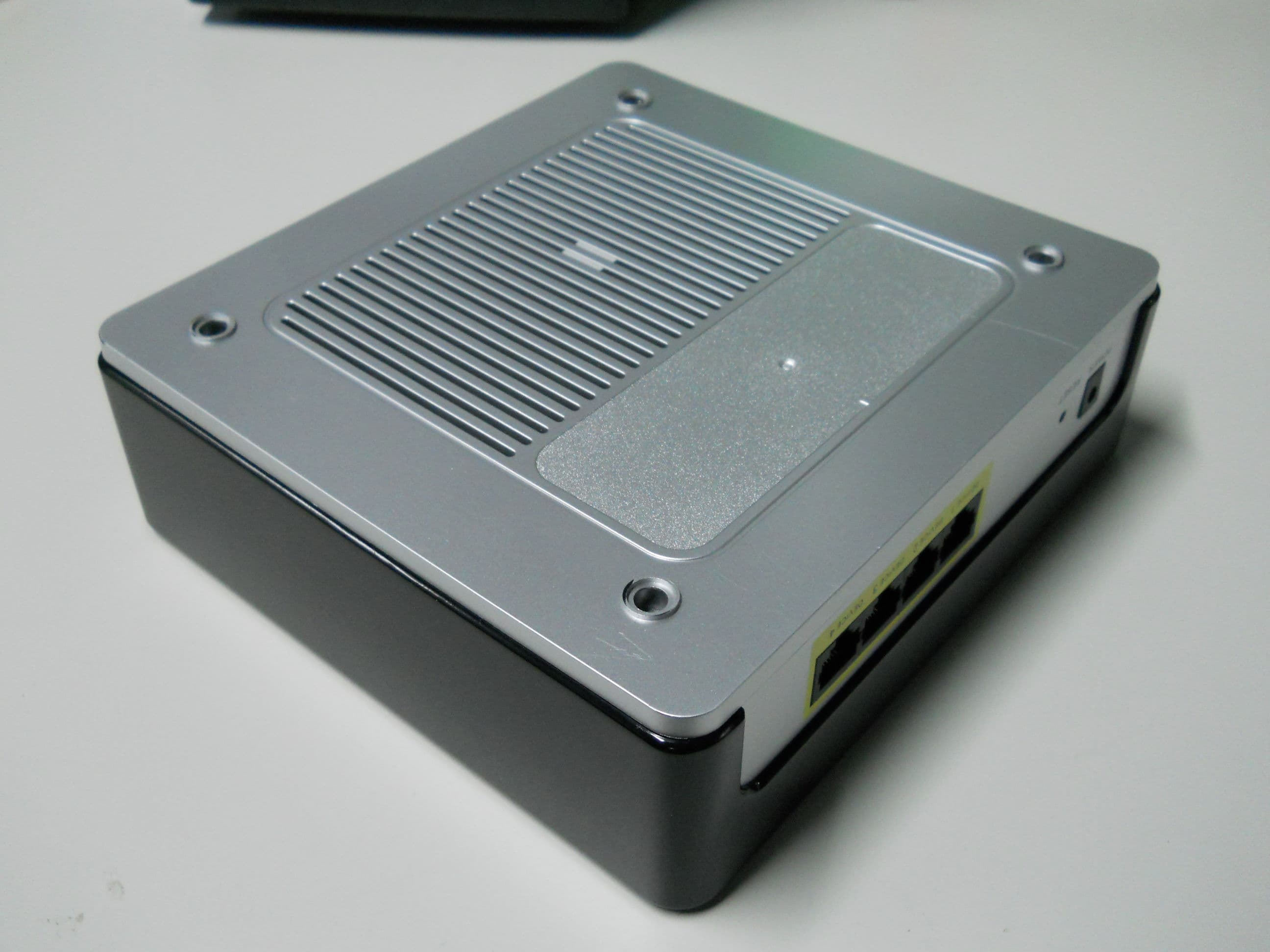

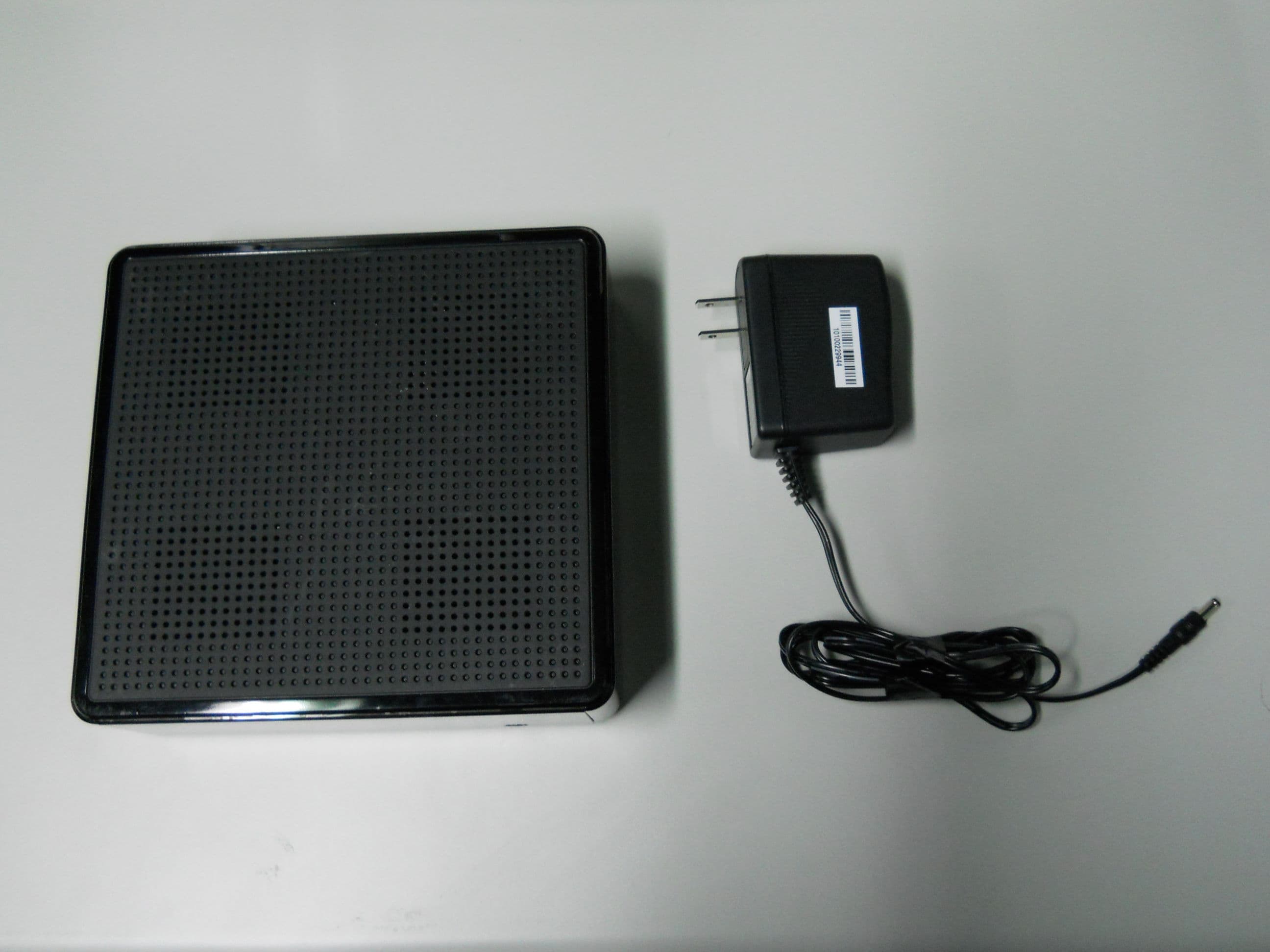

Page 1 of 2 Type Designation: RF-HTN102 External Photo Report Number: 17018981 001 Page 2 of 2 Type Designation: RF-HTN102 External Photo Report Number: 17018981 001

Label Size : 117.00 x 40.00 mm, R=7.20

Device label .粘貼位置視意圖 粘貼位置視意圖粘貼位置視意圖 粘貼位置視意圖 <RF-HTN102 device label> Device label 粘貼處

Page 1 of 5 Type Designation: RF-HTN102 Internal Photo Report Number: 17018981 001 Page 2 of 5 Type Designation: RF-HTN102 Internal Photo Report Number: 17018981 001 Page 3 of 5 Type Designation: RF-HTN102 Internal Photo Report Number: 17018981 001 Page 4 of 5 Type Designation: RF-HTN102 Internal Photo Report Number: 17018981 001 Page 5 of 5 Type Designation: RF-HTN102 Internal Photo Report Number: 17018981 001

Page 1 of 3 Type Designation: RF-HTN104/ RF-HTN 102 Reference Number: 17018980/ 17018981 Prediction of MPE limit at given distance 1. Introduction Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. Limits for Maximum Permissible Exposure According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. According to FCC Part 1.1310 RF exposure is calculated. Limits for General Population/ Uncontrolled Exposure Page 2 of 3 Type Designation: RF-HTN104/ RF-HTN 102 Reference Number: 17018980/ 17018981 3. Test result 2.4GHz Band: Maximum peak output power at antenna input terminal: 19.76 (dBm) Maximum peak output power at antenna input terminal: 94.68 (mW) Prediction distance: 20 (cm) Predication frequency: 2437.00 (MHz) Antenna Gain (typical): 5.88 (dBi) Power density at predication frequency at 20 cm: 0.180 (mW/cm 2 ) MPE limit for RF exposure at prediction frequency: 1.0 (mW/cm 2 ) 5.8GHz Band: Maximum peak output power at antenna input terminal: 28.07 (dBm) Maximum peak output power at antenna input terminal: 641.77 (mW) Prediction distance: 20 (cm) Predication frequency: 5795 (MHz) Antenna Gain (typical): 7.18 (dBi) Power density at predication frequency at 20 cm: 0.91 (mW/cm 2 ) MPE limit for RF exposure at prediction frequency: 1.0 (mW/cm 2 ) Page 3 of 3 Type Designation: RF-HTN104/ RF-HTN 102 Reference Number: 17018980/ 17018981 5.2GHz Band: Maximum peak output power at antenna input terminal: 16.32 (dBm) Maximum peak output power at antenna input terminal: 134.03 (mW) Prediction distance: 20 (cm) Predication frequency: 5230 (MHz) Antenna Gain (typical): 7.28 (dBi) Power density at predication frequency at 20 cm: 0.194 (mW/cm 2 ) MPE limit for RF exposure at prediction frequency: 1.0 (mW/cm 2 ) 4. Conclusion The equipment compliance with the MPE limits.

Produkte Products Prüfbericht - Nr.: Test Report No. 17018981 001 Seite 2 von 283 Page 2 of 283 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.4 CONDUCTED SPURIOUS EMISSIONS IN 100KHZ BANDWIDTH RESULT: Passed 5.1.5 POWER SPECTRAL DENSITY RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 CONDUCTED EMISSIONS RESULT: Passed 5.2.1 ANTENNA REQUIREMENT RESULT: Passed 5.2.2 26DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.2.3 PEAK OUTPUT POWER RESULT: Passed 5.2.4 POWER SPECTRAL DENSITY RESULT: Passed 5.2.5 PEAK POWER EXCURSION RESULT: Passed 5.2.6 RF CONDUCTED SPURIOUS EMISSIONS RESULT: Passed 5.2.7 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17018981 001 Seite 3 von 283 Page 3 of 283 Contents 1. GENERAL REMARKS......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS.......................................................................................... 4 2. TEST SITES...................................................................................................................... 4 2.1 TEST FACILITIES............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................... 5 2.3 TRACEABILITY.................................................................................................................. 6 2.4 CALIBRATION................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3. GENERAL PRODUCT INFORMATION.................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES.................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS..................................................... 10 3.5 SUBMITTED DOCUMENTS................................................................................................ 10 4. TEST SET-UP AND OPERATION MODES............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE.......................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT........................................................ 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................... 11 4.5 TEST SETUP DIAGRAM.................................................................................................... 12 5. TEST RESULTS............................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES – FCC PART 15 SUBPART C ....................... 14 5.1.1 Antenna Requirement ................................................................................................................14 5.1.2 Peak Output Power ....................................................................................................................15 5.1.3 6dB Bandwidth and 99% Bandwidth ..........................................................................................17 5.1.4 Conducted Spurious Emissions in 100kHz Bandwidth ..............................................................68 5.1.5 Power Spectral Density ............................................................................................................161 5.1.6 Spurious Emission ...................................................................................................................216 5.1.7 Conducted emissions ...............................................................................................................227 5.2 TRANSMITTER REQUIREMENT & TEST SUITES – PART 15 SUBPART E ............................. 230 5.2.1 Antenna Requirement ..............................................................................................................230 5.2.2 26dB Bandwidth and 99% Bandwidth ......................................................................................231 5.2.3 Peak Output Power ..................................................................................................................235 5.2.4 Power Spectral Density ............................................................................................................239 5.2.5 Peak Power Excursion .............................................................................................................245 5.2.6 RF Conducted Spurious Emissions .........................................................................................249 5.2.7 Spurious Emission ...................................................................................................................274 6. PHOTOGRAPHS OF THE TEST SET-UP............................................................................ 281 Produkte Products Prüfbericht - Nr.: Test Report No. 17018981 001 Seite 4 von 283 Page 4 of 283 7. LIST OF TABLES...............................................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. Seite 280 von 282 Page 280 of 282 6. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Radiated Emissions
