Date: Jun 24 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Rex Lai / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Rex Lai / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

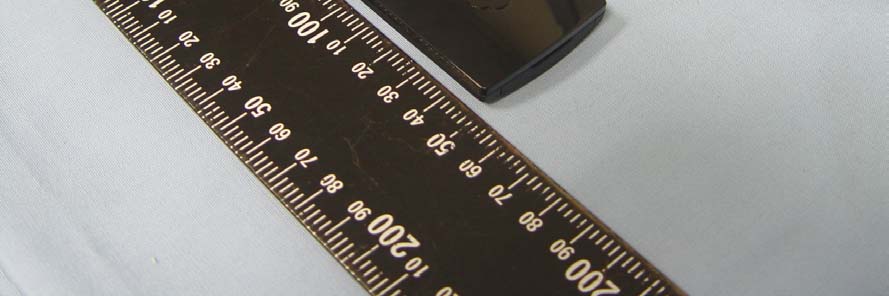

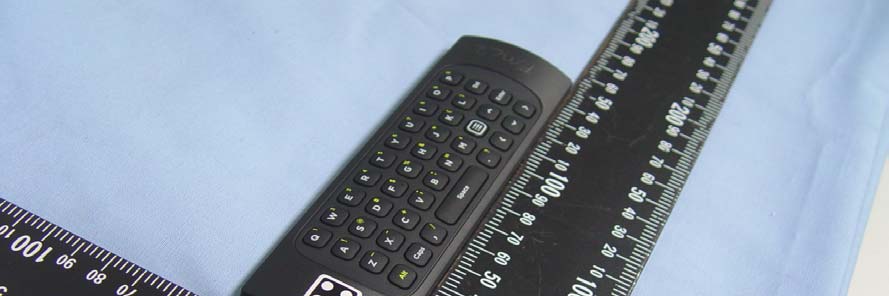

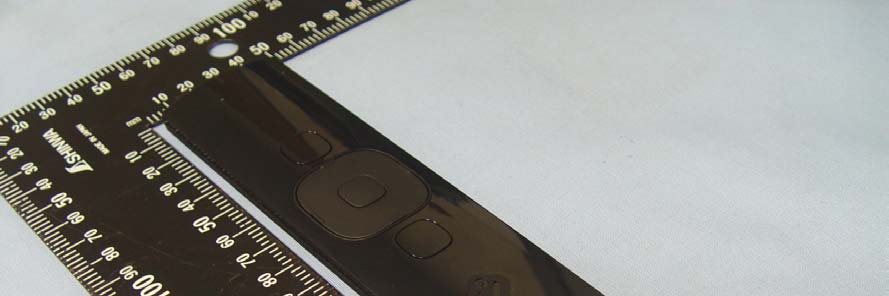

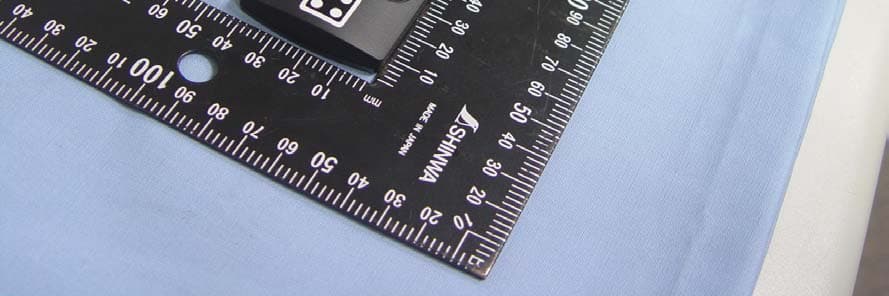

Compliance Certification Services Inc. Report No.: T100617011 Date of Issue: July 21, 2010 A1 - 1 Total Page: 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT

Label format and it’s location A Side B Side

Compliance Certification Services Inc. Report No.: T100617011 Date of Issue: July 21, 2010 A1 - 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100617011 Date of Issue: July 21, 2010 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100617011 Date of Issue: July 21, 2010 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100617011 Date of Issue: July 21, 2010 A1 - 5 Rev. 00

T100617001-2403-E CCS WUGU Antenna Pattern Model Name:Remote controller Brand: D-Link Antenna Gain : 0.88dBi Antenna Type :Printed antenna Job No.:T100617001-2403-E Date:2010/6/24 Time: 00:41 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2403 Polarization : E Plane Max gain(dBi):0.88 Min gain(dBi):-34.37 Avg gain(dBi):-5.56 T100617001-2403-H CCS WUGU Antenna Pattern Job No.:T100617001-2403-H Date:2010/6/24 Time: 00:33 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2403 Polarization : H Plane Max gain(dBi):-11.88 Min gain(dBi):-38.65 Avg gain(dBi):-19.72 T100617001-2440-E CCS WUGU Antenna Pattern Job No.:T100617001-2440-E Date:2010/6/24 Time: 00:42 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2440 Polarization : E Plane Max gain(dBi):0.68 Min gain(dBi):-30.47 Avg gain(dBi):-5.50 T100617001-2440-H CCS WUGU Antenna Pattern Job No.:T100617001-2440-H Date:2010/6/24 Time: 00:28 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2440 Polarization : H Plane Max gain(dBi):-12.39 Min gain(dBi):-37.53 Avg gain(dBi):-18.74 T100617001-2475-E CCS WUGU Antenna Pattern Job No.:T100617001-2475-E Date:2010/6/24 Time: 00:37 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2475 Polarization : E Plane Max gain(dBi):0.38 Min gain(dBi):-25.81 Avg gain(dBi):-5.74 T100617001-2475-H CCS WUGU Antenna Pattern Job No.:T100617001-2475-H Date:2010/6/24 Time: 00:38 Temp.()/Hum.(%):25/80% Tested by: Mark.Y Center freq.(MHz): 2475 Polarization : H Plane Max gain(dBi):-12.36 Min gain(dBi):-48.90 Avg gain(dBi):-19.23

Compliance Certification Services Inc. Report No.: T100617011-RP1 FCC ID: KA2SM22AA1 Date of Issue: September 1, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 29 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Remote controller Model Number: DSM-22A, DSM-22 Trade Name: D-Link Issued to D-Link Corporation 17595 Mt. Herrmann Fountain Valley California 92708 United States Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100617011-RP1 FCC ID: KA2SM22AA1 Date of Issue: September 1, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 7 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 8 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 9 5.1 FACILITIES .................................................................................................................................. 9 5.2 EQUIPMENT................................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 10 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 11 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 11 6.2 SUPPORT EQUIPMENT ........................................................................................................ 11 7. FCC PART 15.249 REQUIREMENTS ......................................................................................... 12 7.1 20 DB BANDWIDTH.............................................................................................................. 12 7.2 BAND EDGES MEASUREMENT ......................................................................................... 15 7.3 SPURIOUS EMISSION .......................................................................................................... 20 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 28 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 29 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100617011-RP1 FCC ID: KA2SM22AA1 Date of Issue: September 1, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: D-Link Corporation 17595 Mt. Herrmann Fountain Valley California 92708 United States Equipment Under Test: Remote controller Tr a d e N a m e : D-Link Model Number: DSM-22A, DSM-22 Date of Test: June 18 ~ September 1, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100617011-RP1 FCC ID: KA2SM22AA1 Date of Issue: September 1, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Remote controller Trade Name D-Link Model Number DSM-22A, DSM-22 Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Power Supply Coin-cell Battery: 3V (CR2032) Frequency Range 2400 ~ 2483.5 MHz Operating Frequency 2403 ~ 2475MHz Frequency Number 73 Channels Channel Spacing 1MHz Modulation Technique GFSK Antenna Gain 0.88 dBi Antenna Designation Printed Antenna Remark: 1. The sample selected f…
