KA2SPW215A1mydlink TM Wi-Fi Smart Plug

DSP-W215 User Manual mydlink™ Wi-Fi Smart Plug Version DRAFT | 01/09/2014 2D-Link DSP-W215 User Manual Table of Contents Product Overview ..............................................................................3 Package Contents ...........................................................................................3 Minimum Requirements ...............................................................................3 Introduction ......................................................................................................4 Hardware Overview ........................................................................................5 LEDs and Buttons ...................................................................................5 Installation Considerations ..........................................................................6 Safety ...................................................................................................................6 Wireless Installation Considerations ........................................................7 Installation and Setup .......................................................................8 Troubleshooting ..............................................................................16 Technical Specifications ..................................................................17 Contacting Technical Support ........................................................18 Warranty ...........................................................................................19 Registration .....................................................................................25 Table of Contents 3D-Link DSP-W215 User Manual Section 1 - Product Overview DSP-W215 mydlink Wi-Fi Smart Plug Quick Install Guide If any of the above items are missing, please contact your reseller. Package Contents Product Overview Minimum Requirements Requirements • IEEE 802.11n or 802.11g wireless router with Internet service • An available power outlet • Mobile device or tablet with iOS 6.0 - 7.0 or Android 4.0 - 4.3. 4D-Link DSP-W215 User Manual Section 1 - Product Overview Introduction The DSP-W215 mydlink Wi-Fi Smart Plug is a multi-purpose, compact, and easy-to-use device that allows you to monitor and control your home’s electronic devices from wherever you are. Scheduling provides a helpful way to save power while you’re at work or asleep, and the mydlink app provides an easy way to check usage, set up alerts, or turn a device on or off. Most importantly, the DSP-W215 will safeguard against damage to your home and appliances due to overheating, giving you peace of mind. Control Your Power Usage From Anywhere With the DSP-W215 mydlink Wi-Fi Smart Plug, you’ll have the ability to control the power supply to electronic devices in your home. Set a schedule that turns your TV off when you’re asleep, have your hi-fi wake you up in the morning, or ensure that your desk lamps aren’t left on when you’re at work. The handy mydlink smartphone app will allow you to switch your appliances on or off in an instant, or change your power schedules on-the-go, ensuring that you won’t have to worry about leaving something on when you’re away. Compact and Convenient 20% smaller than traditional plug-in timers, the DSP-W215 blends seamlessly into your wall outlet without needlessly taking up extra space. No extra cables are necessary as the mydlink Wi-Fi Smart Plug simply layers over your existing plug socket, helping you keep your home free of clutter. Easy to Set Up Get set up in a snap; simply push the Wi-Fi Protected Setup (WPS) button on the DSP-W215 and on your home mydlink router, to establish a secure connection in an instant. The mydlink Wi-Fi Smart Plug will automatically be added to your list of devices on the mydlink smartphone app, allowing you to get started right away. 5D-Link DSP-W215 User Manual Section 1 - Product Overview Hardware Overview LEDs and Buttons 1 3 4 5 2 1WPS/Reset Button WPSPress for one second to start the WPS connection process. The Status LED will start to blink. ResetPress and hold for 10 seconds to reset the device back to the factory default settings. 2ON/OFF ButtonPress to turn the device ON or OFF. 3Status LED Solid GreenThe device is successfully connected to your network. Blinking GreenDuring the WPS process. Blinking OrangeThe device is attempting to communicate with your wireless network. Solid RedDuring power on/boot process or device is defective. OffThe device is powered off. Press the on/off button to turn on. 4Power LED Solid GreenThe device is powered on. Off The device is turned off or not receiving power. Press the on/off button to turn on. If the device will not power on, try another outlet. 5PlugConnect your appliances, lamps, and other devices to monitor. 6D-Link DSP-W215 User Manual Section 1 - Product Overview Installation Considerations Plan the location of your Smart Plug devices: 1. Connect Smart Plug devices into electrical outlets that are not controlled by a wall switch. This will help you to avoid accidentally turning off power to the device. 2. Verify that your Smart Plug devices are electrically rated to operate with the power available in your location. 3. Be sure to plug the power cables into properly grounded electrical outlets in order to help prevent against electrical shock. Please read all of the safety and operating instructions before using your device: 1. Do not open the device or attempt to repair or service it. 2. Use the device in a dry location, and avoid placing it in a humid environment. 3. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect from the power outlet and use a damp towel. 4. Keep the device out of direct sunlight. 5. Do not cover or block the vents on the device. 6. Make sure that the device has adequate room for ventilation. 7. Avoid placing the device near a heater or a radiator. Safety 7D-Link DSP-W215 User Manu…

Text truncated - open the document above for the full version.

To Whom It May Concern: Date:20 November 2013 We, the undersigned, hereby authorize Sporton International Inc. to process submission for FCC and IC applicants and we agree to bill to Internationa Certification Corp.. This authorization is valid until a further written notice. Sincerely, ___________________ Gary Chang / Manager Internationa Certification Corp. No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.)

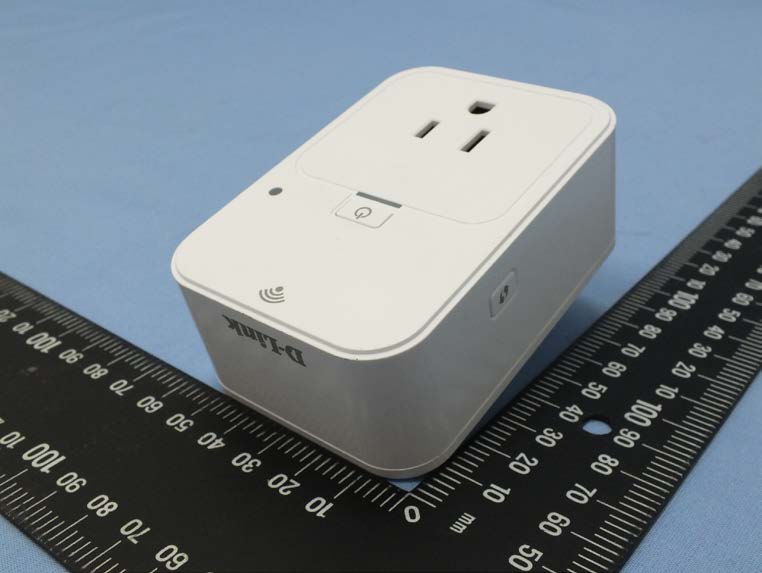

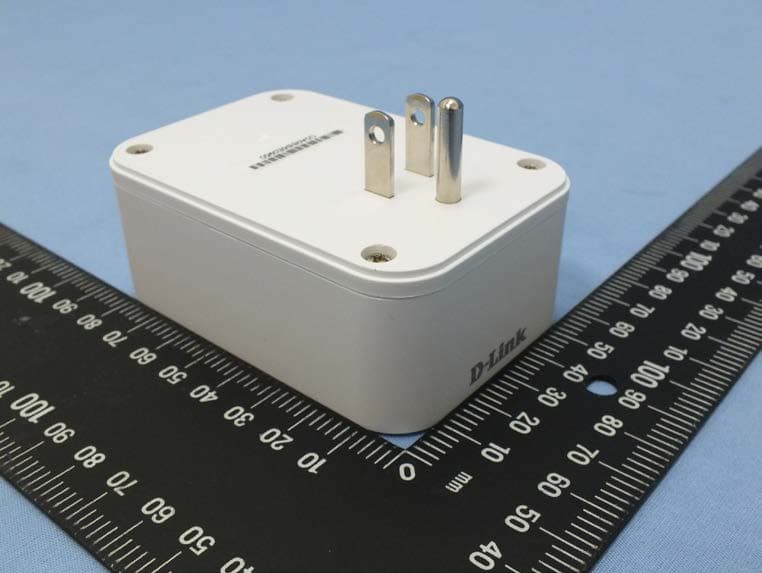

Report No. : EP3N0602 Photographs of EUT SPORTON International Inc. Page No. : 1 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 2 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

E464410 Appliance Control DSP-W215 FCC ID: KA2SPW215A1 IC : 4216A-SPW215A1 Model: DSP-W215A1 CAN ICES-3 (B)/NMB-3(B) Input: 100-120Vac, 50/60Hz, 15A Output: 100-120Vac, 50/60Hz, 15A General Purpose INDOOR USE ONLY Made in China.(C) Label Location

Report No. : EP3N0602 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 4 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 5 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 6 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 7 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 8 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 9 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP3N0602 SPORTON International Inc. Page No. : 10 of 10 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC ID: IC: Channel frequency Channel 1 2 3 4 5 6 7 8 9 10 11 3 4 5 6 7 8 9 Oscillating frequency (MHz) Antenna type AR1311 2412~2462 25 PCB 2447 2422 Operational Description KA2SPW215A1 4216A-SPW215A1 The device is aWi-Fi Smart plug which operates at 2.4GHz and supports 802.11 b / g / HT20 / HT40 modes. The Smart Plug lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. Keep in mind the number and thickness of walls and ceilings, as well as the location of other objects that the wireless signals must pass through, may limit the range. RF main chip Frequency range (MHz) DBPSK, DQPSK, CCK BPSK, QPSK, 16QAM, 64QAM Modulation type 2452 2457 2437 2442 ModeFrequency (MHz) 2412 2417 2437 2442 2462 2452 2427 2432 11b 11g 11n HT20 2447 11n HT40 2422 2427 2432 P 1 / 1

RF Exposure Report Report No. : FA3N0644 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FA3N0644 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FA3N0644 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure MPE Evaluation of Single Transmission Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Frequency Range (MHz) RF Output Power (dBm) Antenna Gain (dBi) EIRP Power (dBm) PD (S) (mW/cm²) Limit (mW/cm²) 2400-2483.5 19.06 3 22.06 0.032 1 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.)

FCC Test Report Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : 1 of 68 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 FCC Test Report Equipment : mydlink™ Wi-Fi Smart Plug Brand Name : D-Link Model No. : DSP-W215 FCC ID : KA2SPW215A1 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : D-Link Corporation 17595 Mt. Herrmann, Fountain Valley, CA 92708 U.S.A The product sample received on Nov. 6, 2013 and completely tested on Nov. 22, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: James Fan / Assistant Manager FCC Test Report Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : 2 of 68 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 AC Power-line Conducted Emissions .................................................................................................. 12 3.2 6dB Bandwidth ..................................................................................................................................... 15 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Emissions in non-restricted frequency bands ...................................................................................... 24 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 37 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 66 APPENDIX A. TEST PHOTOS ................................................................................................................. A1-A3 FCC Test Report Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : 3 of 68 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.1548450MHz 63.01 (Margin 2.73dB) – QP 45.07 (Margin 10.67dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M:10.03 / 40M:36.41 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]:23.15 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/3kHz]: -6.1 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 20dB below the highest power Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:2483.5MHz 52.99 (Margin 1.01dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : 4 of 68 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR3N0644 Rev. 01 Initial issue of report Jan. 07, 2014 FR3N0644 Rev. 02 Modified test result of section 3.5 Jan. 15, 2014 FCC Test Report Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : 5 of 68 TEL : 886-3-3273456 Report Version : Rev. 02 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Powe…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : A1 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : A2 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW Test Photos Report No. : FR3N0644 SPORTON INTERNATIONAL INC. Page No. : A3 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
