KA2SR250NB1Wireless N Service Router

Unified Services Router User Manual DSR-150/150N/250/250N/500/500N/1000/1000N Version 2.01 | November 17, 2014 Wireless N Service Router DSR-250NB1 D-Link DSR-Series User Manuali The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Manual Revisions RevisionDateDescription 2.00July 31, 2014• DSR Products with firmware version 2.00 2.01November 17, 2014• add License Update section Trademarks/Copyright Notice D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. © 2014 D-Link Corporation, All Rights Reserved This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Limitations of Liability UNDER NO CIRCUMSTANCES SHALL D-LINK OR ITS SUPPLIERS BE LIABLE FOR DAMAGES OF ANY CHARACTER (E.G. DAMAGES FOR LOSS OF PROFIT, SOFTWARE RESTORATION, WORK STOPPAGE, LOSS OF SAVED DATA OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES) RESULTING FROM THE APPLICATION OR IMPROPER USE OF THE D-LINK PRODUCT OR FAILURE OF THE PRODUCT, EVEN IF D-LINK IS INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. FURTHERMORE, DLINK WILL NOT BE LIABLE FOR THIRD-PARTY CLAIMS AGAINST CUSTOMER FOR LOSSES OR DAMAGES. D-LINK WILL IN NO EVENT BE LIABLE FOR ANY DAMAGES IN EXCESS OF THE AMOUNT D-LINK RECEIVED FROM THE END-USER FOR THE PRODUCT. Preface Preface D-Link DSR-Series User Manualii Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Safety Cautions To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following precautions: • Observe and follow service markings. • Do not service any product except as explained in your system documentation. • Opening or removing covers that are marked with the triangular symbol with a lightning bolt may expose you to electrical shock. • Only a trained service technician should service components inside these compartments. • If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or contact your trained service provider: • The power cable, extension cable, or plug is damaged. • An object has fallen into the product. • The product has been exposed to water. • The product has been dropped or damaged. • The product does not operate correctly when you follow the operating instructions. • Keep your system away from radiators and heat sources. Also, do not block cooling vents. • Do not spill food or liquids on your system components, and never operate the product in a wet environment. If the system gets wet, see the appropriate section in your troubleshooting guide or contact your trained service provider. • Do not push any objects into the openings of your system. Doing so can cause fire or electric shock by shorting out interior components. • Use the product only with approved equipment. • Allow the product to cool before removing covers or touching internal components. • Operate the product only from the type of external power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your service provider or local power company. • Also, be sure that attached devices are electrically rated to operate with the power available in your location. • Use only approved power cable(s). If you have not been provided with a power cable for your system or for any AC powered option intended for your system, purchase a power cable that is approved for use in your country. The power cable must be rated for the product and for the voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the cable should be greater than the ratings marked on the product. • To help prevent electric shock, plug the system and peripheral power cables into properly grounded electrical outlets. Safety Instructions Preface D-Link DSR-Series User Manualiii • These cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from a cable. If you must use an extension cable, use a 3-wire cable with properly grounded plugs. • Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or power strip. • To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS). • Position system cables and power cables carefully; route cables so that they cannot be stepped on or tripped over. Be sure that nothing rests on any cables. • Do not modify power cables or plugs. Consult a licensed electrician or your power company for site modifications. • Always follow your local/national wiring rules. • When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe the following guidelines: • Install the power supply before connecting the power cable to the power supply. • Unplug the power cable before removing the power supply. • If the system has multiple sourc…

Text truncated - open the document above for the full version.

D-Link DSR-Series User Manual148 Section 8 - Security Schedules Path: Security > Firewall > Schedules Firewall rules can be enabled or disabled automatically if they are associated with a configured schedule. The schedule configuration page allows you to define days of the week and the time of day for a new schedule, and then this schedule can be selected in the firewall rule configuration page. Note: All schedules will follow the time in the router’s configured time zone. Refer to the section on choosing your Time Zone and configuring NTP servers for more information. To add, delete, or edit a schedule: 1. Click Security > Firewall > Schedules. 2. Right-click an entry and select either Edit or Delete. To add a new schedule, click Add New Schedule. FieldDescription NameEnter a name for your schedule. Scheduled DaysSelect All Days or Specific Days. Monday - SundayIf you selected Specific Days, toggle each day you want to ON. Scheduled Time of DaySelect All Day or Specific Times. Start Time/End Time If you selected Specific Times, use the mouse on the blue boxes representing the hour, minutes, and am/ pm to select the start time and end time. Click, hold, and move up to decrease the value or move down to increase the value. SaveClick to save your settings. Specific Days enabledSpecific Times enabled D-Link DSR-Series User Manual149 Section 8 - Security Custom Services Path: Security > Firewall > Custom Services Custom services can be defined to add to the list of services available during firewall rule configuration. While common services have known TCP/UDP/ICMP ports for traffic, many custom or uncommon applications exist in the LAN or WAN. In the custom service configuration menu you can define a range of ports and identify the traffic type (TCP/UDP/ICMP) for this service. Once defined, the new service will appear in the services list of the firewall rules configuration menu. To add, delete, or edit a custom service: 1. Click Security > Firewall > Custom Services. 2. Right-click an entry and select either Edit or Delete. To add a new schedule, click Add New Custom Service. FieldDescription NameEnter a name for your custom service. TypeEnter the layer 3 protocol that the service uses (TCP, UDP, BOTH, or ICMP). Port TypeSelect Port Range or Multiple Ports. Start PortIf you selected Port Range, enter the first (TCP, UDP or BOTH) port of a range that the service uses. Finish PortIf you selected Port Range, enter the last port of a range that the service uses. PortsIf you selected Multiple Ports, enter the port or ports separated by a comma. ICMP TypeThe ICMP type is a numeric value that can range between 0 and 40. SaveClick to save your settings. D-Link DSR-Series User Manual150 Section 8 - Security ALGs Path: Security > Firewall > ALGs Application Level Gateways (ALGs) are security components that enhance the firewall and NAT support of this router to seamlessly support application layer protocols. In some cases enabling the ALG will allow the firewall to use dynamic ephemeral TCP/ UDP ports to communicate with the known ports a particular client application (such as H.323 or RTSP) requires, without which the admin would have to open large number of ports to accomplish the same support. Because the ALG understands the protocol used by the specific application that it supports, it is a very secure and efficient way of introducing support for client applications through the router’s firewall. 1. Click Security > Firewall > ALGs tab. 2. Toggle the protocol(s) to ON that you want to allow through the router. D-Link DSR-Series User Manual151 Section 8 - Security SMTP ALGs Path: Security > Firewall > ALGs > SMTP ALGs Simple Mail Transfer Protocol (SMTP) is a text based protocol used for transferring email between mail servers over the Internet. Typically the local SMTP server will be located on a DMZ so that mail sent by remote SMTP servers will traverse the router to reach the local server. Local users will then use email client software to retrieve their email from the local SMTP server. SMTP is also used when clients are sending email and SMTP ALG can be used to monitor SMTP traffic originating from both clients and servers. 1. Click Security > Firewall > ALGs > SMTP ALGs tab. 2. Toggle Status to ON. 3. Enter the port at which the SMTP packets are inspected. 4. Click Save. D-Link DSR-Series User Manual152 Section 8 - Security Approved Mail IDs Path: Security > Firewall > ALGs > Approved Mail IDs 1. Click Security > Firewall > ALGs > Approved Mail IDs tab. 2. Right-click an entry and select either Edit or Delete. To add a new mail ID, click Add New Approved Mail ID. 3. Enter a mail ID and click Save. D-Link DSR-Series User Manual153 Section 8 - Security Blocked Mail IDs Path: Security > Firewall > ALGs > Blocked Mail IDs 1. Click Security > Firewall > ALGs > Blocked Mail IDs tab. 2. Right-click an entry and select either Edit or Delete. To add a new mail ID, click Add New Blocked Mail ID. 3. Enter a mail ID and click Save. D-Link DSR-Series User Manual154 Section 8 - Security Mail Filtering Path: Security > Firewall > ALGs > Mail Filtering 1. Click Security > Firewall > ALGs > Mail Filtering tab. 2. Right-click an entry and select either Edit or Delete. To add a new mail ID, click Add New Mail Filter. 3. Enter a subject and a mail ID. 4. Select to allow or block. 5. Click Save. D-Link DSR-Series User Manual155 Section 8 - Security VPN Passthrough Path: Security > Firewall > VPN Passthrough This router’s firewall settings can be configured to allow encrypted VPN traffic for IPsec, PPTP, and L2TP VPN tunnel connections between the LAN and internet. A specific firewall rule or service is not appropriate to introduce this passthrough support; instead the options in the VPN Passthrough page must be toggled to ON. 1. Click Security > Firewall > VPN Passthrough. 2. Toggle the VPN protocol you want to allow to ON and click Save. D-Link DSR-Series User Manual156 Section 8 - Security Dynamic Port Forward…

Text truncated - open the document above for the full version.

Autho Rules the c r Part 1 Equi p Mode Brand Appli Addre Stand Rep o The te was ( accre techn samp orized under . The produ riteria limits 5, Subpart pment W el Name D d Name D icant D ess N dard(s) F A I C C ort(s) B est data, da (were) obta dited by the ical standa le and item CER r Declaratio uct listed in Class B o f B, establish Wireless N DSR-250N D-Link D-Link Cor No.289, Sin FCC Part 1 ANSI C63.4 CES-003 Is CISPR 22: 2 CAN/CSA-C BTL-FCCE- ata evaluati ained utilizi e Authority rd(s). The t (s) tested. B1, Nei - RTIFIC on of Confo follows w a f conducted hed by the F Service Ro rporation nhu 3rd., N 5, Subpart 4-2009 ssue 5: 201 2008 CISPR 22-1 -1-1411067 on, and equ ng the tes of TAF acc est data co A Autho B No.37, Lan -Hu District, TEL:+ 8 FAX:+8 CATEO rmity accor as (were) tes d and radia FCC, USA. outer eihu Distri B: 2013 12 10 7 uipment co st procedure cording to th ontained in t Andy Chiu rized Signa BTL INC. ne 365, Yan Taipei Cit y 886-2-2657- 886-2-2657- OF CO rding to 47 sted in the ted emissi o ct, Taipei C nfiguration es, test ins he ISO-170 the referenc atory g Guang S t y 114, Taiwa -3299 -3331 OMPL CFR, Part 2 BTL EMC L ons of the T City 114, Ta contained i struments, 025 quality a ced test rep t., an. LIANC 2 and Part Laboratory Technical S aiwan, R.O n our test r test sites t assessmen port relate o CE 15 of the F to comply w Standards F O.C. report(s) ab that has b t standard only to the E FCC with FCC ove een and EUT

Project No.: 1411067 Page 2 of 18 Project No.: 1411067 Page 3 of 18 Project No.: 1411067 Page 4 of 18 Project No.: 1411067 Page 5 of 18

80.00 mm DSR-250N H/W Ver.:B1 F/W Ver.:XXXXXXX MADE IN CHINA 35.0 mm SCP S/N: XXXXXym000001 P/N:XXXXXXXXXXXXXXXX MAC ID:XXXXXXXXXXXX (C) FCC ID:KA2SR250NB1 IC:4216A-SR250NB1 Model: DSR-250NB1 This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1)this device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. 0984

Project No.: 1411067 Page 6 of 18 Project No.: 1411067 Page 7 of 18 Project No.: 1411067 Page 8 of 18 Project No.: 1411067 Page 9 of 18 Project No.: 1411067 Page 10 of 18 Project No.: 1411067 Page 11 of 18 Project No.: 1411067 Page 12 of 18 Project No.: 1411067 Page 13 of 18 Project No.: 1411067 Page 14 of 18 Project No.: 1411067 Page 15 of 18 Project No.: 1411067 Page 16 of 18 Project No.: 1411067 Page 17 of 18 Project No.: 1411067 Page 18 of 18

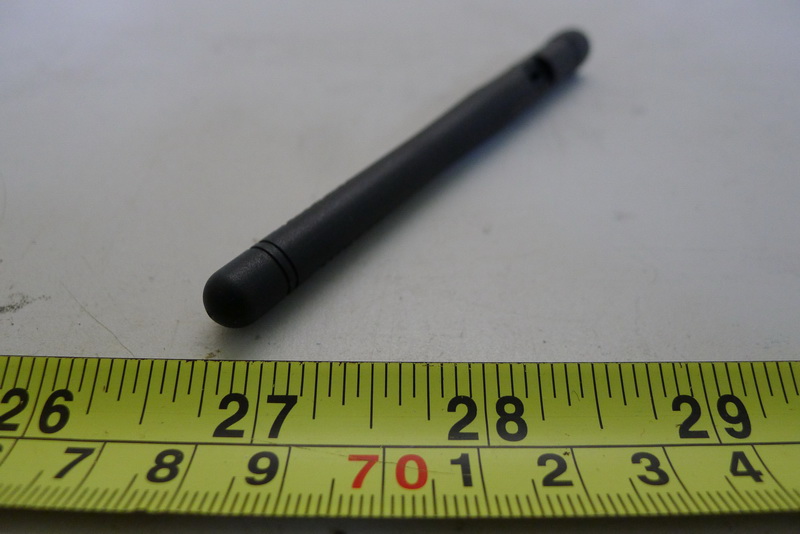

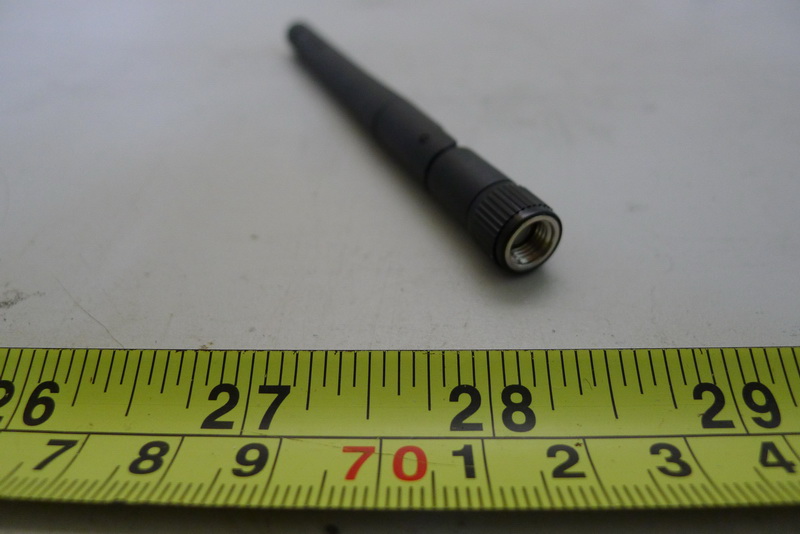

FCC RF EXPOSURE REPORT FCC ID: KA2SR250NB1 Project No. : 1411067 Equipment : Wireless N Service Router Model : DSR-250N Applicant : D Link Corporation Address : Fountain Valley Califormia United States 92708 According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 SSR-02521 Dipole R-SMA 2.85 2 SSR-02521 Dipole R-SMA 2.71 TEST RESULTS EUT： Wireless N Service Router Model Name : DSR-250N Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.85 1.9275 16.59 45.6037 0.017496471 Complies 2.85 1.9275 14.83 30.4089 0.011666761 Complies 2.85 1.9275 16.54 45.0817 0.017296191 Complies EUT： Wireless N Service Router Model Name : DSR-250N Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.85 1.9275 16.95 49.5450 0.019008611 Complies 2.85 1.9275 19.16 82.4138 0.031619161 Complies 2.85 1.9275 16.49 44.5656 0.017098201 Complies EUT： Wireless N Service Router Model Name : DSR-250N Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.85 1.9275 16 39.8107 0.015273911 Complies 2.85 1.9275 18.64 73.1139 0.028051131 Complies 2.85 1.9275 13.73 23.6048 0.009056291 Complies EUT： Wireless N Service Router Model Name : DSR-250N Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.85 1.9275 12.18 16.5196 0.006337971 Complies 2.85 1.9275 15.86 38.5478 0.014789391 Complies 2.85 1.9275 12.18 16.5196 0.006337971 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FICP-1-1411067 Page 1 of 154 FCC&IC Radio Test Report FCC ID: KA2SR250NB1 IC: 4216A-SR250NB1 This report concerns (check one): Original Grant Class II Change Project No. : 1411067 Equipment : Wireless N Service Router Model Name for FCC : DSR-250N Model Name for IC DSR-250NB1 Applicant for FCC : D Link Corporation Applicant for IC D-LINK CORPORATION Address for FCC : Fountain Valley Califormia United States 92708 Applicant for IC No. 289, Sinhu 3rd Rd., Neihu District Taipei City 114 Taiwan Date of Receipt : Nov. 10, 2014 Date of Test : Nov. 10, 2014~Dec. 28, 2014 Issued Date : Dec. 29, 2014 Tested by : BTL Inc. Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No.37, Lane 365, Yang Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: BTL-FICP-1-1411067 Page 2 of 154 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the cli ent. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1411067 Page 3 of 154 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FICP-1-1411067 Page 4 of 154 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 38 ATTACHMENT E - BANDWIDTH 87 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 96 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 101 ATTACHMENT H - POWER SPECTRAL DENSITY 134 Report No.: BTL-FICP-1-1411067 Page 5 of 154 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1-1411067 Original Issue. Dec. 29, 2014 Report No.: BTL-FICP-1-1411067 Page 6 of 154 1. CERTIFICATION Equipment : Wireless N Service Router Brand Name : D-Link Model Name for FCC : DSR-250N Model Name for IC DSR-250NB1 Applicant for FCC : D Link Corporation Applicant for IC D-LINK CORPORATION Date of Test : Nov. 10, 2014~Dec. 28, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2013 (15.247) / ANSI C63.4-2009 Canada RSS-210: 2010 RSS-GEN Issue 4, Nov 2014 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FICP-1-1411067) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FICP-1-1411067 Page 7 of 154 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FC…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1411067 Page 26 of 154 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1411067 Page 27 of 154 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1411067 Page 28 of 154 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1411067 Page 29 of 154 Radiated Measurement Photos Above 1000MHz
