  1. Home/
  2. D-Link Corporation/
  3. KA2SR500NA1

KA2SR500NA1SMB Wireless N Gigabit VPN Router

D-Link Corporation
SMB Wireless N Gigabit VPN Router - FCC ID KA2SR500NA1 - D-Link Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 07, 2010
Application Purpose
Original Equipment
Date of Application
Jul 07, 2010
Equipment Note
SMB Wireless N Gigabit VPN Router
Frequency Range
2422.00000000 - 2452.00000000
Company
D-Link Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Unified Services Router User Manual DSR-500N/1000N Release 1.01 http://www.dlink.com Building Networks for People User Manual Unified Services Router D-Link Corporation Copyright Β© 2010. http://www.dlink.com Unified Services Router User Manual 1 User Manual DSR-500N/1000N Unified Services Router Version 1.0 Copyright Β© 2010 Copyright Notice This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Limitations of Liability UNDER NO CIRCUMSTANCES SHALL D-LINK OR ITS SUPPLIERS BE LIABLE FOR DAMAGES OF ANY CHARACTER (E.G. DAMAGES FOR LOSS OF PROFIT, SOFTWARE RESTORATION, WORK STOPPAGE, LOSS OF SAVED DATA OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES) RESULTING FROM THE APPLICATION OR IMPROPER USE OF THE D-LINK PRODUCT OR FAILURE OF THE PRODUCT, EVEN IF D-LINK IS INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. FURTHERMORE, D- LINK WILL NOT BE LIABLE FOR THIRD-PARTY CLAIMS AGAINST CUSTOMER FOR LOSSES OR DAMAGES. D-LINK WILL IN NO EVENT BE LIABLE FOR ANY DAMAGES IN EXCESS OF THE AMOUNT D-LINK RECEIVED FROM THE END-USER FOR THE PRODUCT. Unified Services Router User Manual 2 Table of Contents Chapter 1. Introduction ............................................................................................................................. 8 1.1 About this User Manual ............................................................................................ 8 1.2 Typographical Conventions ..................................................................................... 8 Chapter 2. Configuring Your Network: LAN Setup ............................................................................... 9 2.1 LAN Configuration ..................................................................................................... 9 2.1.1 LAN Configuration in an IPv6 Network ................................................................ 11 2.1.2 Configuring IPv6 Router Advertisements ............................................................ 14 2.2 VLAN Configuration ................................................................................................ 17 2.2.1 Associating VLANs to ports ................................................................................... 18 2.3 Configurable Port: DMZ Setup .............................................................................. 20 2.4 Universal Plug and Play (UPnP) ........................................................................... 21 Chapter 3. Connecting to the Internet: WAN Setup ........................................................................... 23 3.1 Internet Setup Wizard ............................................................................................. 23 3.2 WAN Configuration ................................................................................................. 24 3.2.1 WAN Port IP address ............................................................................................. 25 3.2.2 WAN DNS Servers ................................................................................................. 25 3.2.3 DHCP WAN ............................................................................................................. 25 3.2.4 PPPoE Profiles ........................................................................................................ 27 3.2.5 WAN Configuration in an IPv6 Network ............................................................... 28 3.2.6 Checking WAN Status ............................................................................................ 29 3.3 Bandwidth Controls ................................................................................................. 32 3.4 Features with Multiple WAN Links ........................................................................ 34 3.4.1 Auto Failover ............................................................................................................ 34 3.4.2 Load Balancing ........................................................................................................ 35 3.4.3 Protocol Bindings .................................................................................................... 36 3.5 Routing Configuration ............................................................................................. 37 3.5.1 Routing Mode .......................................................................................................... 37 3.5.2 Dynamic Routing (RIP) .......................................................................................... 39 3.5.3 Static Routing .......................................................................................................... 40 3.6 Configurable Port - WAN Option .......................................................................... 42 3.7 WAN Port Settings .................................................................................................. 44 Chapter 4. Wireless Access Point Setup ............................................................................................. 46 4.1 Wireless Settings Wizard ....................................................................................... 46 4.1.1 Wireless Network Setup Wizard ........................................................................... 47 4.1.2 Add Wireles…

Text truncated - open the document above for the full version.

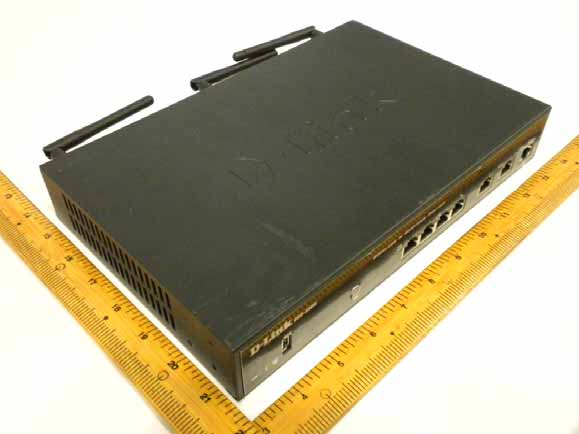

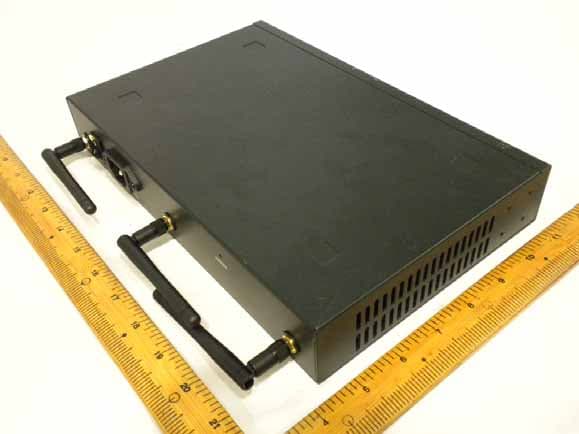

External Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A8 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A8

ID Label/Location Info

Label & Location

Internal Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A8 CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued Date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A8

RF Exposure Info

Test Result of RF Exposure Evaluation . Product: SMB Wireless N Gigabit VPN Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.412-2.462 GHz ANT 1, 2, 3: Antenna type: Dipole Antenna Antenna Gain: 2 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Jun. 01, 2010 Temperature: 20Β°C Atmospheric pressure: 1022 hPa Humidity: 66% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) Ant 1 Ant 2 Ant 3 Ant 1 Ant 2 Ant 3 802.11b (11Mbps) 01 2412 18.23 18.39 18.26 0.021 0.022 0.021 06 2437 18.17 18.24 18.41 0.021 0.021 0.022 11 2462 18.15 18.03 18.07 0.021 0.020 0.020 802.11g (6Mbps) 01 2412 17.09 17.38 17.19 0.016 0.017 0.017 06 2437 17.34 17.57 17.19 0.017 0.018 0.017 11 2462 17.22 17.26 17.08 0.017 0.017 0.016 802.11n HT20 (6.5Mbps) 01 2412 17.22 0.017 06 2437 17.27 0.017 11 2462 17.15 0.016 802.11n HT40 (13.5Mbps) 03 2422 17.25 0.017 06 2437 17.34 0.017 09 2452 17.31 0.017 The MPE is calculated as 0.022 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Test Report

CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 152 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : D-Link Corporation Address : 17595 Mt. Herrmann Street, Fountain Valley, CA 92708, USA Equipment : SMB Wireless N Gigabit VPN Router Model No. : DSR-500N FCC ID : KA2SR500NA1 Trade Name : D-Link Laboratory Accreditation Β‚ The test result refers exclusively to the test presented test model / sample., Β‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Β‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 152 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 RF Spec. .................................................................................................................................... 7 2.3 Carrier Frequency of Channels .................................................................................................. 7 2.4 Test Mode and Test Software ..................................................................................................... 8 2.5 Description of Test System ......................................................................................................... 8 2.6 Connection Diagram of Test System .......................................................................................... 9 2.7 General Information of Test ...................................................................................................... 10 2.8 Measurement Uncertainty ........................................................................................................ 10 2.9 History of this test report .......................................................................................................... 11 3. Antenna Requirements ..................................................................................................................... 12 3.1 Standard Applicable ................................................................................................................. 12 3.2 Antenna Construction and Directional Gain ............................................................................. 12 4. Test of Conducted Emission ............................................................................................................ 13 4.1 Test Limit .................................................................................................................................. 13 4.2 Test Procedures ....................................................................................................................... 13 4.3 Typical Test Setup .................................................................................................................... 14 4.4 Measurement Equipment ......................................................................................................... 14 4.5 Test Result and Data ................................................................................................................ 15 4.6 Test Photographs ..................................................................................................................... 21 5. Test of Radiated Emission ............................................................................................................... 22 5.1 Test Limit .................................................................................................................................. 22 5.2 Test Procedures ....................................................................................................................... 22 5.3 Typical Test Setup .................................................................................................................... 23 5.4 Measurement Equipment ......................................................................................................... 23 5.5 Test Result and Data ................................................................................................................ 24 5.6 Test Photographs ..................................................................................................................... 60 6. 6dB Bandwidth Measurement Data ................................................................................................. 61 6.1 Test Limit .................................................................................................................................. 61 6.2 Test Procedures ....................................................................................................................... 61 6.3 Test Setup Layout .................................................................................................................... 61 6.4 Measurement Equipment ......................................................................................................... 61 6.5 Test Result and Data ................................................................................................................ 61 7. Maximum Peak Output …

Text truncated - open the document above for the full version.

Test Setup Photos

CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 21 of 152 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1005138 Cerpass Technology Corp. Issued date : Jun. 14, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 60 of 152 5.6 Test Photographs Front View Rear View

Contact Information

Applicant

Brett Adair(General Counsel)
[email protected]714-885-6000Fax: 866-743-4589

Test Firm

Cerpass Technology CorporationEric Chen
[email protected]886-2-2656-1688Fax: 886-2-2656-1689

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz542.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is the combined maximum peak conducted output power. Device is operating in a 2x2, 2X3, 3X3 Spatial Multiplexing MIMO configuration as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
