KA2T11302.4Ghz/54Mbps Wireless MINI PCI Card

IEEE 802.11g (draft) Wireless Network Adapter User Manual version 1.0 Manufacturer's Disclaimer Statement The information in this document is subject to change without notice and does not represent a commitment on the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to make changes to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. Driver Installation Step 1: Insert the 802.11g Wireless Network Adapter into your computer. Windows Found New Hardware Wizard will come up. Select the second option and click “Next” to continue. Step 2: Select the driver to install. Click “Browse” to select the folder where you store the driver files. Click “OK” to continue. Click “Next” to continue. Step 4: Driver Found Click “Continue Anyway” to continue Step 3: Driver Installation Driver files are being saved to your Windows system. Step 4: Driver Installation Complete Click “Finish” to complete the driver setup. The following message will appear as soon as you successfully installed the driver for your IEEE 802.11g wireless network adapter. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users. 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The Module is approved using the FCC ‘unlicensed modular transmitter approval’ method. Therefore the module must only be used with the originally approved antennas. As long as the 3 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example :Wireless AP, Wireless Router ). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID:KA2T113 0”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-locat…

Text truncated - open the document above for the full version.

FCC ID: KA2T1130 ADT No.920617R08 Modular Approval Request Letter Advance Data Technology July 25, 2003 Dear Application Examiner, D-Link Corporation, Inc.’s 2.4GHz/54Mbps Wireless MINI PCI Card, FCC ID: KA2T1130, would like to have your authorization as a modular approval specific to the mobile device such as access point and router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip IPN2120a. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: KA2T1130 ADT No.920617R08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

wer (1653x2338x16M jpeg)

C:\DOCUME~1\Jane\LOCALS~1\Temp\C.NotesR5.Data.jane\ ~9002511 (1653x2338x2 tiff)

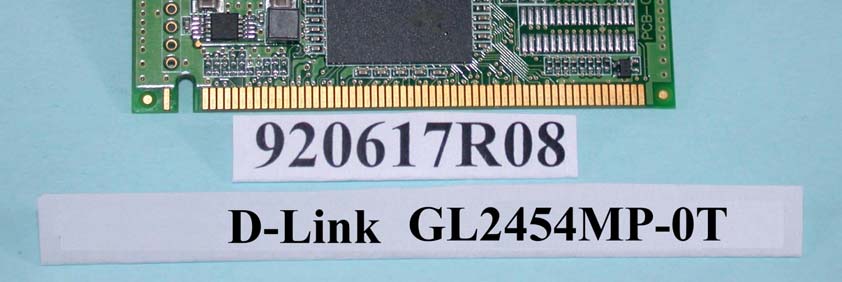

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Label Location Tested To Comply With FCC Standards Rating: 3.3V Made in Taiwan FOR HOME OR OFFICE USE FCC ID: KA2T1130 57mm 19mm Dualband Wireless Network Mini PCI Model Name: GL2454MP-0T

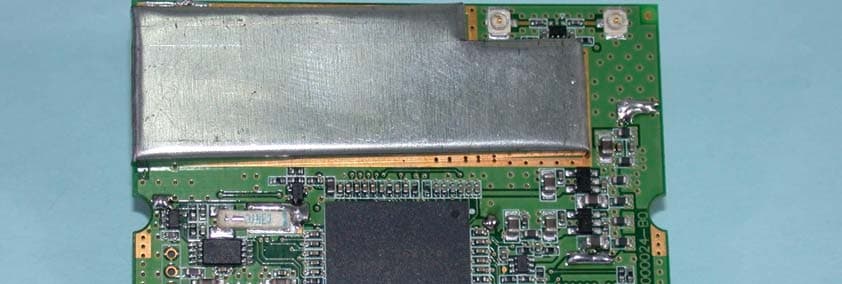

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: KA2T1130 ADT No.920617R08 Operational Description This device is a 2.4GHz/54Mbps Wireless MINI PCI Card which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This device would like to have authorization as a modular approval specific to the mobile device such as access point and router. The transmitter of the EUT is powered by host equipment via a mini pci interface. The antenna types are dipole and patch antennas with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

Report No: 920617R08 1 RF EXPOSURE REPORT REPORT NO.: RF920617R08 MODEL NO.: GL2454MP-0T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park, Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 Report No: 920617R08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No: 920617R08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. Report No: 920617R08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.16 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: for CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241293.7560.0591.0 6243796.3830.0611.0 11246294.6240.0601.0 for OFDM technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241276.5590.0481.0 6243776.2070.0481.0 11246276.5590.0481.0

FCC ID: KA2T1130 Report No.: RF920617R081Issued: June 27, 2003 FCC TEST REPORT REPORT NO.: RF920617R08 MODEL NO.: GL2454MP-0T RECEIVED: June 17, 2003 TESTED: June 19 ~ 25, 2003 APPLICANT: D-Link Corporation ADDRESS: No.8, Li-Hsin VII Road Science Based Industrial Park Hsin-Chu,Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: KA2T1130 Report No.: RF920617R082Issued: June 27, 2003 Table of Contents 1CERTIFICATION ........................................................................................4 2SUMMARY OF TEST RESULTS ................................................................5 3GENERAL INFORMATION.........................................................................6 3.1GENERAL DESCRIPTION OF EUT ...........................................................6 3.2DESCRIPTION OF TEST MODES .............................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................8 4TEST TYPES AND RESULTS ....................................................................9 4.1CONDUCTED EMISSION MEASUREMENT .............................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...........................9 4.1.2TEST INSTRUMENTS ...............................................................................9 4.1.3TEST PROCEDURES ..............................................................................10 4.1.4DEVIATION FROM TEST STANDARD ....................................................10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ............................................................. 11 4.1.7TEST RESULTS .......................................................................................12 4.2RADIATED EMISSION MEASUREMENT ................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ..............................18 4.2.2TEST INSTRUMENTS .............................................................................19 4.2.3TEST PROCEDURES ..............................................................................20 4.2.4DEVIATION FROM TEST STANDARD ....................................................20 4.2.5TEST SETUP ...........................................................................................21 4.2.6EUT OPERATING CONDITIONS .............................................................21 4.2.7TEST RESULTS (A) .................................................................................22 4.2.8TEST RESULTS (B) .................................................................................29 4.2.9TEST RESULTS (C) .................................................................................36 4.36dB BANDWIDTH MEASUREMENT........................................................43 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT .....................................43 4.3.2TEST INSTRUMENTS .............................................................................43 4.3.3TEST PROCEDURE ................................................................................44 4.3.4DEVIATION FROM TEST STANDARD ....................................................44 4.3.5TEST SETUP ...........................................................................................44 4.3.6EUT OPERATING CONDITIONS .............................................................44 4.3.7TEST RESULTS .......................................................................................45 4.4MAXIMUM PEAK OUTPUT POWER .......................................................54 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........54 4.4.2TEST INSTRUMENTS .............................................................................54 FCC ID: KA2T1130 Report No.: RF920617R083Issued: June 27, 2003 4.4.3TEST PROCEDURES ..............................................................................55 4.4.4DEVIATION FROM TEST STANDARD ....................................................55 4.4.5TEST SETUP ...........................................................................................55 4.4.6EUT OPERATING CONDITIONS .............................................................55 4.4.7TEST RESULTS .......................................................................................56 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................57 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................57 4.5.2TEST INSTRUMENTS .............................................................................57 4.5.3TEST PROCEDURE ................................................................................58 4.5.4DEVIATION FROM TEST STANDARD ....................................................58 4.5.5TEST SETUP ...........................................................................................58 4.5.6EUT OPERATING CONDITIONS .............................................................58 4.5.7TEST RESULTS .......................................................................................59 4.6BAND EDGES MEASUREMENT .............................................................67 4.6.1LIMITS OF BAND EDGES MEASUREMENT...........................................67 4.6.2TEST INSTRUMENTS .............................................................................67 4.6.3…

Text truncated - open the document above for the full version.

FCC ID: KA2T1130 Report No.: RF920617R0874Issued: June 27, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2T1130 Report No.: RF920617R0875Issued: June 27, 2003 FCC ID: KA2T1130 Report No.: RF920617R0876Issued: June 27, 2003 RADIATED EMISSION TEST FCC ID: KA2T1130 Report No.: RF920617R0877Issued: June 27, 2003
