KA2WA123B1WIRELESS N 150 USB ADAPTER, WIRELESS N 150 EASY USB ADAPTER

2D-Link DWA-123 User Manual Table of Contents Product Overview ......................................................................3 Package Contents ......................................................................... 3 S ystem Requirements ................................................................. 3 Introduction ................................................................................... 4 Features ............................................................................................ 5 Hardware Overview ..................................................................... 6 Installation ..................................................................................7 Getting Started .............................................................................. 7 Remove Existing Installations .......................................... 7 Disable Other Wireless Adapters ..................................... 8 W ireless Installation Considerations ....................................10 A dapter Installation ...................................................................11 Wi-Fi Protected Setup (WPS) ..........................................14 Connect to a Wireless Network ............................................ 17 U sing Windows ® 7 .......................................................................17 Using Windows Vista ® ................................................................18 Using Windows ® XP ....................................................................19 Wireless Security ..................................................................... 20 W hat is WPA? ................................................................................20 Using Windows ® 7 ...............................................................21 Using Windows Vista ® .......................................................24 Using the Windows ® XP Utility ........................................26 Troubleshooting ..................................................................... 28 W ireless Basics ........................................................................ 32 Wireless Modes ............................................................................36 Networking Basics .................................................................. 37 Check y our IP address ...............................................................37 Windows ® XP Users .............................................................37 Windows ® 7/Windows Vista ® Users ................................37 Statically Assign an IP address ...............................................38 Windows ® XP Users .............................................................38 Windows ® 7/Windows Vista ® Users ................................39 Technical Specifications ........................................................ 40 Table of Contents 3D-Link DWA-123 User Manual Section 1 - Product Overview • D-Link DWA-123 Wireless N 150 USB Adapter • Manual and Warranty on CD • D-Link Wireless Connection Manager on CD • Quick Installation Guide System Requirements • A computer or laptop with an available USB 2.0 port • W indows ® 7, Vista ® , XP (Service Pack 3) • CD-ROM Drive • 300MHz processor and at least 64MB of RAM • An 802.11n or 802.11g access point or wireless router Product Overview Package Contents 4D-Link DWA-123 User Manual Section 1 - Product Overview Introduction DWA-123 Wireless N 150 USB Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Instead of stringing Ethernet cables to your PC or dismantling your desktop computer case, the DWA-123 can enable 802.11n wireless connectivity by simply utilizing your desktop or notebook PC’s USB port. Powered by Wireless N 150 technology, the DWA-123 provides a faster wireless connection and superior reception than 802.11g*. The DWA-123 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by connecting this USB Adapter to a Wireless N router and stay connected from virtually anywhere in the home. This USB Adapter supports WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. D-Link’s Quick Setup Wizard guides you step-by-step through the installation process. You’ll be able to configure this USB Adapter without having to call the teenager from down the street to help you. The D-Link Wireless Manager is included with this product to keep track of all your most frequently accessed networks. Compact in size, robust in speed the DWA-123 Wireless N 150 USB Adapter is great for travel and a convenient solution for providing high performance wireless connectivity to your desktop or notebook PC. Enjoy the many benefits of wireless connectivity today! * Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. 5D-Link DWA-123 User Manual Section 1 - Product Overview Features • C ompact size for placement anywhere. • Convenience of Plug & Play installation. • Fully 802.11g compatible. • 802.11n compliant. • Powered by the USB port; no external power source required. • USB 2.0 standard * . • You can securely connect to a wireless network using WPA/WPA2 (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available. • Position the DWA-123 almost anywhere in your workspace to achieve the best reception possible. • Supports Infrastructure networks via an access point • Easy configuration using WPS PBC utility * Using a USB 1.1 port will adversely affect throughput. 6D-Link DWA-123 User Manual Section 1 - Product …

Text truncated - open the document above for the full version.

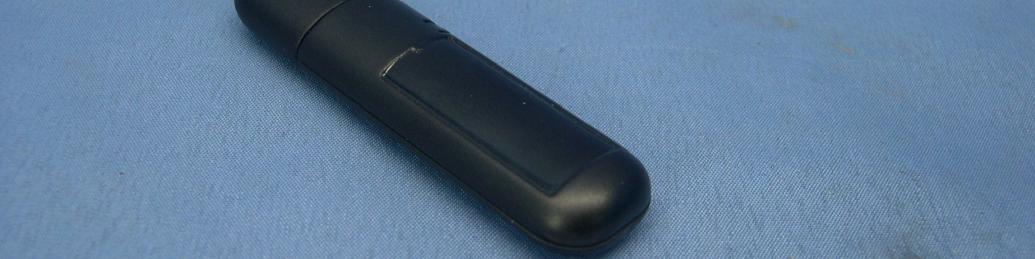

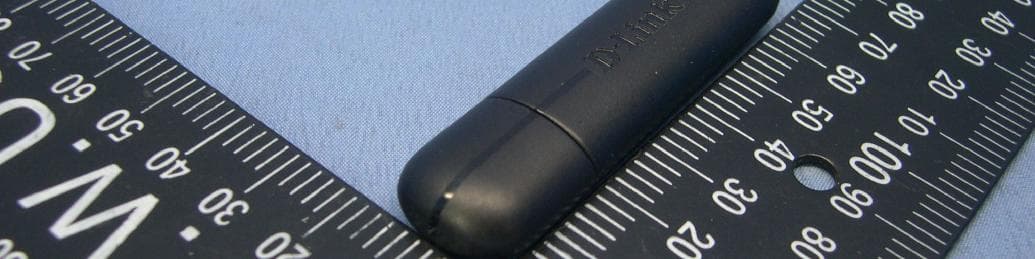

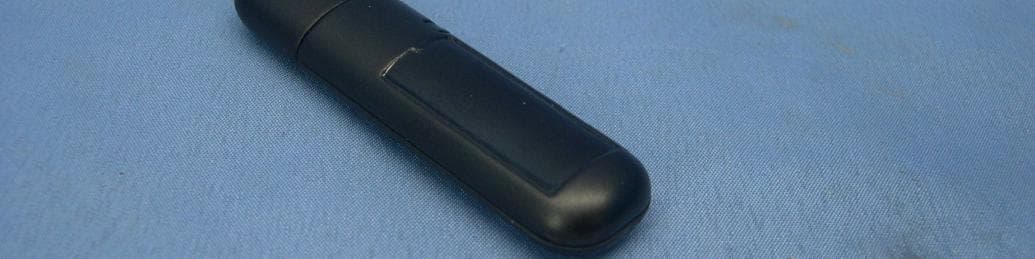

Report No.: 111124E02 1 CONSTRUCTION PHOTOS OF EUT

LABEL Location LABEL Drawing Label here

Report No.: 111124E02 1 CONSTRUCTION PHOTOS OF EUT Report No.: 111124E02 2

FCC SAR Test Report Report Format Version 4.1.0 Page No. : 1 of 21 Report No. : SA111124E02 Issued Date : Apr. 02, 2012 Revision : R01 FCC SAR Test Report Report No. : SA111124E02 Applicant : D-Link Corporation Address : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Product : WIRELESS N 150 USB ADAPTER, WIRELESS N 150 EASY USB ADAPTER FCC ID : KA2WA123B1 Brand : D-Link Model No. : DWA-123, GO-USB-N150 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v04 / KDB 447498 D02 v02 Date of Testing : Dec. 15, 2011 ~ Apr. 01, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. This test report consists of 21 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Prepared By : Rennie Wang / Assistant Manager Approved By : Roy Wu / Manager FCC SAR Test Report Report Format Version 4.1.0 Page No. : 2 of 21 Report No. : SA111124E02 Issued Date : Apr. 02, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 13 3.4 SAR Measurement Procedure ................................................................................................................................... 14 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 14 3.4.2 Volume Scan Procedure................................................................................................................................... 14 3.4.3 Power Drift Monitoring ...................................................................................................................................... 14 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 15 3.4.5 SAR Averaged Methods ................................................................................................................................... 15 4. SAR Measurement Evaluation ............................................................................................................................................ 16 4.1 EUT Configuration and Setting ................................................................................................................................... 16 4.2 EUT Testing Position .................................................................................................................................................. 16 4.3 Tissue Verification ...................................................................................................................................................... 16 4.4 System Verification ..................................................................................................................................................... 17 4.…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 System Check_B2450_111215 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 716 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 19.5 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.4 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 12.4 mW/g; SAR(10 g) = 5.71 mW/g Maximum value of SAR (measured) = 18.6 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/04/01 System Check_B2450_120401 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_0401 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.8, 7.8, 7.8); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 21.4 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.0 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 20.2 mW/g

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 P01 802.11b_Horizontal Up_0.5cm_Ch11 DUT: 111124E02 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.139 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.85 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 0.196 W/kg SAR(1 g) = 0.098 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.144 mW/g Ch11/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.85 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 0.133 W/kg SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.022 mW/g Maximum value of SAR (measured) = 0.106 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 P02 802.11b_Horizontal Down_0.5cm_Ch11 DUT: 111124E02 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.539 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.3 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.638 W/kg SAR(1 g) = 0.322 mW/g; SAR(10 g) = 0.157 mW/g Maximum value of SAR (measured) = 0.453 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 P03 802.11b_Vertical Front_0.5cm_Ch11 DUT: 111124E02 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.018 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.90 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.029 W/kg SAR(1 g) = 0.00496 mW/g; SAR(10 g) = 0.00135 mW/g Maximum value of SAR (measured) = 0.012 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 P04 802.11b_Vertical Back_0.5cm_Ch11 DUT: 111124E02 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.159 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.82 V/m; Power Drift = -0.185 dB Peak SAR (extrapolated) = 0.256 W/kg SAR(1 g) = 0.124 mW/g; SAR(10 g) = 0.058 mW/g Maximum value of SAR (measured) = 0.190 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2011/12/15 P05 802.11b_Tip Mode_0.5cm_Ch11 DUT: 111124E02 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_1215 Medium parameters used: f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Ambient Temperature：21.3 °C; Liquid Temperature：20.9 °C DASY4 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.89, 6.89, 6.89); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2011/07/29 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (31x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.016 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.65 V/m; Power Drift = -0.142 dB Peak SAR (extrapolated) = 0.019 W/kg SAR(1 g) = 0.00784 mW/g; SAR(10 g) = 0.00252 mW/g Maximum value of SAR (measured) = 0.013 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/04/01 P09 802.11g_Horizontal Up_0.5cm_Ch06 DUT: 111124E02 Communication System: 802.11g; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: B2450_0401 Medium parameters used: f = 2437 MHz; σ = 1.96 mho/m; ε r = 51; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.8, 7.8, 7.8); Calibrated: 2012/02/23 - Sensor-Surface: 2mm (Mechanical Surface …

Text truncated - open the document above for the full version.

Report No.: RF111124E02 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF111124E02 MODEL NO.: DWA-123, GO-USB-N150 FCC ID: KA2WA123B1 RECEIVED: Nov. 24, 2011 TESTED: Nov. 24 to Dec. 01, 2011 ISSUED: Jan. 09, 2012 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF111124E02 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................12 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................14 4. TEST TYPES AND RESULTS..............................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT........................................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................15 4.1.2 TEST INSTRUMENTS..........................................................................................15 4.1.3 TEST PROCEDURES..........................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD.................................................................16 4.1.5 TEST SETUP.......................................................................................................17 4.1.6 EUT OPERATING CONDITIONS.........................................................................17 4.1.7 TEST RESULTS...................................................................................................18 4.2 RADIATED EMISSION MEASUREMENT.............................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................20 4.2.2 TEST INSTRUMENTS..........................................................................................21 4.2.3 TEST PROCEDURES..........................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.................................................................22 4.2.5 TEST SETUP.......................................................................................................23 4.2.6 EUT OPERATING CONDITIONS.........................................................................24 4.2.7 TEST RESULTS...................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT....................................................................54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................54 4.3.2 TEST INSTRUMENTS..........................................................................................54 4.3.3 TEST PROCEDURE.............................................................................................54 4.3.4 DEVIATION FROM TEST STANDARD.................................................................54 4.3.5 TEST SETUP.......................................................................................................54 4.3.6 EUT OPERATING CONDITIONS.........................................................................54 4.3.7 TEST RESULTS...................................................................................................55 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................59 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................59 4.4.2 INSTRUMENTS....................................................................................................59 4.4.3 TEST PROCEDURES..........................................................................................59 Report No.: RF111124E02 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................59 4.4.5 TEST SETUP.......................................................................................................59 4.4.6 EUT OPERATING CONDITIONS.........................................................................59 4.4.7 TEST RESULTS...................................................................................................60 4.5 POWER SPECTRAL D…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST

FCC SAR Test Report Report Format Version 4.1.0 Report No. : SA111124E02 Revision : R01 <Photographs of EUT> <Location of Antenna> ANT FCC SAR Test Report Report Format Version 4.1.0 Report No. : SA111124E02 Revision : R01 <Photographs of SAR Setup> Horizontal Up with 5 mm Gap Horizontal Down with 5 mm Gap Vertical Front with 5 mm Gap Vertical Back with 5 mm Gap Tip Mode with 5 mm Gap
