Document Created by Nick Schuster Wireless N USB adapter DWA-135, DWA-135A1 D-Link DWA-135 User Manual Page 2 Page 2 Table of Contents Table of Contents ...................................................2 Product Overview ...................................................3 Package Contents ..........................................................................3 System Requirements ....................................................................3 Introduction ...................................................................................4 Features .........................................................................................4 Hardware Overview ........................................................................5 Wireless Installation Considerations ..............................................6 Basic Installation ...................................................7 Installing the DWA-135 Adapter .....................................................7 Connect to the Wireless Network .................................................10 Connect using Windows 7 ....................................................10 Connect using Windows 7 and WPS ....................................11 Connect using Windows XP .................................................12 Knowledge Base .................................................. 13 Wireless Basics ...........................................................................13 Wireless Modes ...........................................................................15 Networking Basics .......................................................................16 Wireless Security .........................................................................19 Troubleshooting ................................................... 20 Is the adapter installed correctly? .................................................20 Adapter is not recognized by the Computer. .................................22 Not connecting to the Wireless Network/Internet. ........................22 Technical Spesifications ......................................... 23 Contacting Technical Support ................................... 24 Warranty ........................................................... 25 Registration........................................................ 29 D-Link DWA-135 User Manual Page 3 Product Overview Package Contents • D-Link DWA-135 802.11n Wireless N USB Adapter.• User Manual and Warranty on CD-ROM.• Printed Quick Installation Guide.• Software on CD-ROM. If any of the above items are missing, please contact your reseller. System Requirements For best results, the following system requirements are recommended:• Computer with: 1GHz processor / 512 MB RAM / CD-ROM drive / USB 2.0 Port.• Windows ® 2000 (with Service Pack 4), Windows ® XP (with Service Pack 2), Windows ® Vista™ or Windows ® 7. • An 802.11n (Draft 2.0) Access Point or Wireless Router. D-Link DWA-135 User Manual Page 4 Introduction The DWA-135 802.11n Wireless N USB Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Instead of stringing Ethernet cables to your PC or dismantling your desktop computer case, the DWA-135 can enable 802.11n wireless connectivity by simply utilizing your deskto p or notebook PC’s USB port. Powered by RangeBooster N™ technology, the DWA-135 provides a faster wireless connection and superior reception than 802.11g*. The DWA-135 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by connecting this USB Adapter to a RangeBooster N™ router and stay connected from virtually anywhere in the home. This USB Adapter supports WPA and WPA2 encryption to prevent outside intrusion a nd protect your personal information from being exposed.Compact in size, robust in speed the DWA-135 Wireless N USB Adapter is great for travel and a convenient solution for providing high performance wireless connectivity to your desktop or notebook PC. Enjoy the many benefits of wireless connectivity today! * Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental con ditions will adversely affect wireless signal range. Features • Wireless 802.11n complaint and backwards compatible with 802.11b/g standards. • High-Speed USB 2.0 Standard and requires no additional external power source. • Convenient Plug & Play installation.• Compact size for easy placement around the computer.• Supports Wireless encryptions like Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA/WPA2). • Support Wireless authentication methods like 802.1X.• Support Wireless Infrastructure and Ad-Hoc topologies.• MIMO (2 x 2) technology for extended reception robustness and exceptional throughput. • Support IEEE 802.11e Quality of Service (QoS) Wi-Fi Multimedia (WMM).• MIMO Power Saving mechanism.• Channel management and co-existence.Here is a list of features that can be found on the D-Link DWA-135 802.11n Wireless N USB Adapter: • Bandwidth transmissions in both 20 MHz and 40 MHz.• Maximum data rate of 54 Mbps (802.11g) and 300 Mbps (802.11n).• Support Fast Receiver Automatic Gain Control (AGC). D-Link DWA-135 User Manual Page 5 Hardware Overview D-Link DWA-135 User Manual Page 6 Wireless Installation Considerations The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operati ng range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or …

Text truncated - open the document above for the full version.

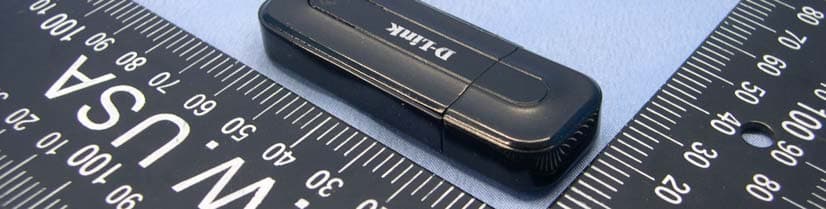

EXT PHOTOS

FCC ID： KA2WA135A1 LABEL Drawing and Location Label here

INT PHOTOS

WLAN CARD OPERATIONAL DESCRIDPTION 1. Supply voltage: 5V+/-5% from USB port 2. Frequency of operation: 2400~2483.5MHz 3. Number of channels: 11 channels for 11b, 11g, draft 11n (20MHz) 7 channels for draft 11n (40MHz) 4. Antenna type: PCB Antenna 5. Antenna gain: PCB Antenna 1 with 0dBi gain PCB Antenna 2 with 0dBi gain 6. Antenna connector: U.FL connector 7. Introduction of the device: The device is a wireless network card, is used to link to other wireless network card or wireless router to communicate with them. 8. Related antenna connector photo:

Report No.: SA990623E01 1 Report Format Version 3.0.1 SAR TEST REPORT REPORT NO.: SA990623E01 MODEL NO.: DWA-135 FCC ID: KA2WA135A1 RECEIVED: Jun. 23, 2010 TESTED: Jul. 21, 2010 ISSUED: Aug. 04, 2010 APPLICANT: D-Link Corporation ADDRESS: No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 27 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA990623E01 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION .............................................................................................................. 3 2. GENERAL INFORMATION .............................................................................................. 4 2.1 GENERAL DESCRIPTION OF EUT................................................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................. 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ........................................................ 6 2.4 TEST EQUIPMENT .......................................................................................................... 9 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................... 10 2.6 DESCRIPTION OF SUPPORT UNITS........................................................................... 13 3. DESCRIPTION OF ANTENNA LOCATION .................................................................... 14 4. RECIPES FOR TISSUE SIMULATING LIQUIDS ........................................................... 15 5. SYSTEM VALIDATION................................................................................................... 18 5.1 TEST PROCEDURE ...................................................................................................... 18 5.2 VALIDATION RESULTS ................................................................................................. 19 5.3 SYSTEM VALIDATION UNCERTAINTIES ..................................................................... 20 6. TEST RESULTS ............................................................................................................. 21 6.1 TEST PROCEDURES .................................................................................................... 21 6.2 CONDUCTED POWER.................................................................................................. 23 6.3 DESCRIPTION OF TEST CONDITION.......................................................................... 23 6.4 MEASURED SAR RESULT............................................................................................ 24 6.5 POWER DRIFT TABLE .................................................................................................. 25 6.6 SAR LIMITS ................................................................................................................... 26 7. INFORMATION ON THE TESTING LABORATORIES................................................... 27 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA990623E01 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Wireless N USB adapter MODEL: DWA-135 BRAND: D-Link APPLICANT: D-Link Corporation TESTED: Jul. 21, 2010 TEST SAMPLE: MASS-PRODUCTION STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: DWA-135) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Aug. 04, 2010 Pettie Chen / Specialist TECHNICAL ACCEPTANCE : , DATE :Aug. 04, 2010 Responsible for RF Mason Chang / Engineer APPROVED BY : , DATE :Aug. 04, 2010 Gary Chang / Assistant Manager Report No.: SA990623E01 4 Report Format Version 3.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT EUT Wireless N USB adapter MODEL NO. DWA-135 FCC ID KA2WA135A1 POWER SUPPLY 5Vdc from host equipment MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b:11.0/ 5.5/ 2.0/ 1.0Mbps 802.11g: 54.0/ 48.0/ 36.0/ 24.0/ 18.0/ 12.0/ 9.0/ 6.0Mbps 802.11n (20MHz, MCS 0~7, 800ns GI): 6.5/13/ 19.5/ 26/ 39/ 52/ 58.5/ 65Mbps 802.11n (20MHz, MCS 8~15, 800 ns GI): 13/ 26/ 39/ 52/ 78/ 104/ 117/ 130Mbps 802.11n (20MHz, MCS 0~7, 400 ns GI): 7.2/ 14.4/ 21.7/ 28.9/ 43.3/ 57.8/ 65.0/ 72.2Mbps 802.11n (20MHz, MCS 8~15, 400 ns GI): 14.444/ 28.889/ 43.333/ 57.778/ 86.667/ 115.556/ 130.000/ 144.444Mbps 802.11n (40MHz, MCS 0~7, 800 ns GI): 13.5/ 27/ 40.5/ 54/ 81/ 108/ 121.5/ 135Mbps 802.11n (40MHz, MCS 8~15, 800 ns GI): 27/ 54/ 81/ 108/ 162/ 216/ 243/ 270Mbps 802.11n (40MHz, MCS 0~7, 400 ns GI): 15.0/ 30.0/ 45.0/ 60.0/ 90.0/ 120.0/ 135.0/ 150.0Mbps 802.11n (40MHz, MCS 8~15, 400 ns GI): 30.0/ 60.0/ 90.0/ 120.0/ 180.0/ 240.0/ 270.0/ 300.0Mbps OPERATING FREQUENCY 2412 ~ 2462MHz NUMBER OF CHANNEL 11 for 802.11b, 802.11g, 802.11n (20MHz) 7 for 802.11n (40MHz) MAXIMUM SAR (1g) 1.07W/kg ANTENNA TYPE Please see note 1 D…

Text truncated - open the document above for the full version.

D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: 100645FIA01 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: 100645FIA01 MODEL NO.: DWA-135 RECEIVED: Jun. 22, 2010 FCC ID: KA2WA135A1 TESTED: June 22 – July 04, 2010 ISSUED: July 09, 2010 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 106 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by any government agencies. The test results in the report only apply to the tested sample. Report No.: 100645FIA01 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION ................................................................................................. 3 2. SUMMARY OF TEST RESULTS......................................................................... 4 2.1 MEASUREMENT UNCERTAINTY.......................................................................................................... 4 3. GENERAL INFORMATION ................................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT................................................................................................... 5 3.2 DESCRIPTION OF TEST MODES......................................................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS................................................................11 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................................................11 4. TEST TYPES AND RESULTS .......................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT...................................................................................... 12 4.2 CONDUCTED EMISSION MEASUREMENT ................................................................................. 41 4.3 6dB BANDWIDTH MEASUREMENT .............................................................................................. 46 4.4 MAXIMUM PEAK OUTPUT POWER ............................................................................................. 60 4.5 POWER SPECTRAL DENSITY MEASUREMENT ........................................................................ 64 4.6 BAND EDGES MEASUREMENT...................................................................................................... 78 4.7 ANTENNA REQUIREMENT ........................................................................................................... 104 5. APPENDIX - INFORMATION ON THE TESTING LABORATORIES.............. 105 6. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ................................................................. 106 Report No.: 100645FIA01 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Wireless N USB adapter MODEL: DWA-135 BRAND: D-Link APPLICANT: D-Link Corporation TEST SAMPLE: ENGINEERING SAMPLE TESTED: June 22 – July 04, 2010 STANDARDS: FCC Part 15, Subpart C (Section 15.247) ANSI C63.4-2003 The above equipment (Model: DWA-135) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: July 09, 2010 ( Carol Liao, Specialist ) TECHNICAL ACCEPTANCE : , DATE: July 09, 2010 ( Hank Chung, Deputy Manager ) APPROVED BY : , DATE: July 09, 2010 ( May Chen, Deputy Manager ) Report No.: 100645FIA01 4 Report Format Version 3.0.1 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC PART 15, SUBPART C (SECTION 15.247) STANDARD SECTION TEST TYPE AND LIMIT RESULTREMARK 15.207 AC Power Conducted Emission PASS Meet the requirement of limit. Minimum passing margin is -22.7dB at 1.79MHz 15.247(a)(2) Spectrum Bandwidth of a Direct Sequence Spread Spectrum System Limit: min. 500kHz PASS Meet the requirement of limit. 15.247(b) Maximum Peak Output Power Limit: max. 30dBm PASS Meet the requirement of limit. 15.247(d) Radiated Emissions Limit: Table 15.209 PASS Meet the requirement of limit. Minimum passing margin is -4.09dB at 2483.5MHz 15.247(e) Power Spectral Density Limit: max. 8dBm PASS Meet the requirement of limit. 15.247(d) Band Edge Measurement Limit: 20dB less than the peak value of fundamental frequency PASS Meet the requirement of limit. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2 Ed 1.0. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. This lab’s measurement uncertainty U Lab , is low than U Cispr , Table 1 – Values of U Cispr of CISPR 16-4-2 Ed. 1.0, therefore compliance is deemed to occur if no measured disturbance exceeds the disturbance limit. Measurement Value Conducted emissions 2.45 dB Radiated emissions (30MHz-1GHz) 3.3 dB Radiated emissions (1GHz -18GHz) 2.19 dB Radiated emissions (18GHz -40GHz) 2.55 dB Report No.: 100645FIA01 5 Report For…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION MEASUREMENT RADIATED EMISSION MEASUREMENT

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Horizontal up Horizontal Down Vertical front Vertical back Tip TEST SET UP PHOTO
