KA2WA140B1Wireless USB Adapter

 R A N G E B O O S T E R N T M USB ADAPTER DWA-140 Quick Install Guide+ Installations-Anleitung+ Guide d’installation+ Guía de instalación+ Guida di Installazione+ Installatiehandleiding+ Instrukcja instalacji+ Instalační příručka+ Telepítési Segédlet+ Installasjonsveiledning+ Installationsvejledning+ Asennusopas+ Installationsguide+ Guia de Instalação+ Οδηγός Γρήγορης Εγκατάστασης το+  Quick Installation Guide DWA-140 DWA-40 RANGEBOOSTER N Wireless USB Adapter CD-ROM (Installation CD, Manual and Warranty) If any of the items are missing, please contact your reseller. 1 Remove the D-Link CD-ROM. 2 B. Click “ Install Driver” Quick Installation Package Contents RANGEBOOSTER N TM USB ADAPTER Warning: Do NOT install the Adapter into your computer before installing the driver software from the D-Link CD. A. Insert D-Link CD-ROM into your computer.  Quick Install Guide Troubleshooting 1. If I’ve lost my CD what can I do? The CD contains software drivers and manual which can be obtained from D-Link (see Technical Support below). Windows 000, XP, Vista in most cases will automatically install the correct drivers. 2. If I’ve forgotten my wireless encryption key? The wireless encryption key is configured at the Wireless Access Point, Router or DSL Modem Router. If you are unable to obtain your encryption key, the only solution would be to re-configure your Access Point/Router to use a new encryption key. Please contact your Wireless Access Point/Router/DSL Modem Router manufacturer. 3. Why can’t I get a wireless connection? Check that your DWA-40 is plugged in properly to the USB port or try to plug the DWA-40 into another USB port if available. Check that the LED has come on. If no the driver or the USB port need to be look at. Ensure that the wireless settings on the DWA-40 match the settings on your Access Point/Router. Please check and confirm your settings for. Wireless Network Name (SSID) Wireless Encryption Key Wireless Security Method (E.g. WEP, WPA) To check whether a Wireless connection has been made, in the Windows System Tray (bottom right). Red means no valid connections have been made. Check that your Internet is working fine on existing computers. Ensure that you have followed and completed the software installation process, otherwise, please re-install the software. The LED on the DWA-40 should come on after software installation. 4. Which Operating Systems does the DWA-140 support? The DWA-40 support all popular Operating Systems including Microsoft Windows XP(64/ bit)/000. Note: If you are unable to connect, see the Troubleshooting chapter of the product manual in the D-Link DWA-140 RangeBooster N Adapter CD Technical Support Thank you for choosing D-Link products. For further information, support, product drivers and manuals please visit the D-Link website at www.dlink.eu http://www.dlink.co.uk 4 Kurzanleitung für die Fehlerbehebung 1. Was kann ich tun, wenn ich meine CD verloren habe? Auf der CD sind die Software-Treiber und das Handbuch gespeichert. Diese sind jedoch auch direkt bei D-Link erhältlich (siehe „Technischer Kundendienst“). Unter Windows 000, XP, Vista werden die entsprechenden Treiber in der Regel automatisch installiert. Installationsanleitung DWA-140 RANGEBOOSTER N TM USB ADAPTER Sollte eines dieser Teile fehlen, wenden Sie sich bitte an Ihren Fachhändler. Lieferumfang DWA-40 RANGEBOOSTER N Wireless USB Adapter CD-ROM (Handbuch, Software und Garantie auf der CD-ROM) 1 D-Link CD herausnehmen. 2 B. Klicken Sie auf die Schaltfläche “ Install Driver” Warnung! Installieren Sie auf keinen Fall den Adapter, bevor Sie nicht die Software von der D-Link-CD-ROM installiert haben. A. Legen Sie die D-Link CD ins Laufwerk ein. Installationsanleitung 4 2. Was kann ich tun, wenn ich meinen Verschlüsselungsschlüssel für die drahtlose Verbindung vergessen habe? Der Verschlüsselungsschlüssel wird im drahtlosen Access Point, Router oder DSL- Modem-Router eingestellt. Wenn Sie Ihren Verschlüsselungsschlüssel verloren haben, müssen Sie den Access Point bzw. den Router neu konfigurieren und einen neuen Schlüssel einstellen. Bitte wenden Sie sich dazu an den Hersteller Ihres drahtlosen Access Point, Routers oder DSL-Modem-Routers. 3. Warum kann ich keine drahtlose Verbindung aufbauen? Überprüfen Sie, ob der DWA-40 ordnungsgemäß mit dem USB-Anschluss verbunden ist, oder versuchen Sie, wenn möglich, den DWA- 40 an einen anderen USB- Anschluss anzuschließen. Vergewissern Sie sich, dass die grüne Verbindungsanzeige leuchtet. Falls nicht, müssen der Treiber oder der USB-Anschluss überprüft werden. Überprüfen Sie, ob die Einstellungen für die drahtlose Verbindung am DWA-40 mit den Einstellungen des Access Point bzw. Routers übereinstimmen. Überprüfen Sie folgende Einstellungen: Netzwerkname (SSID) Verschlüsselungsschlüssel für die drahtlose Verbindung Sicherheitsstandard für drahtlose Verbindungen (z. B. WEP, WPA) Überprüfen Sie in der Windows-Taskleiste (rechts unten), ob eine drahtlose Verbindung aufgebaut wurde. Wenn das Symbol rot angezeigt wird, wurde keine Verbindung aufgebaut. Überprüfen Sie, ob das Internet auf anderen Computern funktioniert. Vergewissern Sie sich, dass die Software korrekt und vollständig installiert ist. Installieren Sie die Software bei Bedarf neu. Die Anzeige am DWA-40 beginnt zu leuchten, sobald die Software korrekt installiert ist. 4. Welche Betriebssysteme werden vom DWA-140 unterstützt? Der DWA-40 unterstützt alle gängigen Betriebssysteme, z. B. Microsoft Windows XP(64/  bit)/000. Hinweis: Wenn keine Verbindung aufgebaut werden kann, sehen Sie auf der CD für den D-Link DWA-140 RangeBooster N Adapter im Produkthandbuch im Kapitel „ Fehlerbehebung“ nach. Technischer Kundendienst Vielen Dank, dass Sie sich für ein Produkt von D-Link entschieden haben. Weitere Informationen sowie technische Hilfe, Treiber und Handbücher finden Sie auf unserer Website unter www.dlink.eu. http://www.dlink.de 6 Guide d’installation rapide DWA-140 RANGEBOOS…

Text truncated - open the document above for the full version.

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=1118c08155a8a60a&ww=1131&lvp=3&cvp=7&qt=&zx=e81qng-fnea4q D-LINK Corporation, FCC ID: KA2WA140B1, Assessment NO.: AN07T6634, Notice#1 Inbox Reply from "vicky.liu" <[email protected]> hide details Mar 25 (16 hours ago) to [email protected] cc [email protected] date Mar 25, 2007 10:12 PM subject D-LINK Corporation, FCC ID: KA2WA140B1, Assessment NO.: AN07T6634, Notice#1 Images are not displayed. Display images below - Always display images from [email protected] Hi Tim: Thanks for you reply and my answer is belowing. Please find the updated file for User Manual. ----- vicky.liu/ccsemc 2007/03/26 09:05 AM ----- <tim.dwyer@ccsemc. com> 2007/03/24 10:22 AM <[email protected]> <[email protected]> D-LINK Corporation, FCC ID: KA2WA140B1, Assessment NO.: AN07T6634, Notice#1 Dear CCS TW, The application review is complete. Only 1 issue needs to be addressed. If you have questions, please send email. 1. The RF exposure warning is repeated on pages 38 and 39 of the user manual with different information in each warning. Please provide a revised manual with the correct warning statement for this device. Thank you and best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...155a8a60a&ww=1131&lvp=3&cvp=7&qt=&zx=e81qng-fnea4q (1 of 2)3/26/2007 2:33:04 PM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=1118c08155a8a60a&ww=1131&lvp=3&cvp=7&qt=&zx=e81qng-fnea4q ________________________________________________________________________ This e-mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886-2-2299-9720) for any problem with this transmission. Thank you for your attention. 2 attachments — Download all attachments noname 8K View Download DWA-140_User Manual(960326).pdf 2529K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&...155a8a60a&ww=1131&lvp=3&cvp=7&qt=&zx=e81qng-fnea4q (2 of 2)3/26/2007 2:33:04 PM

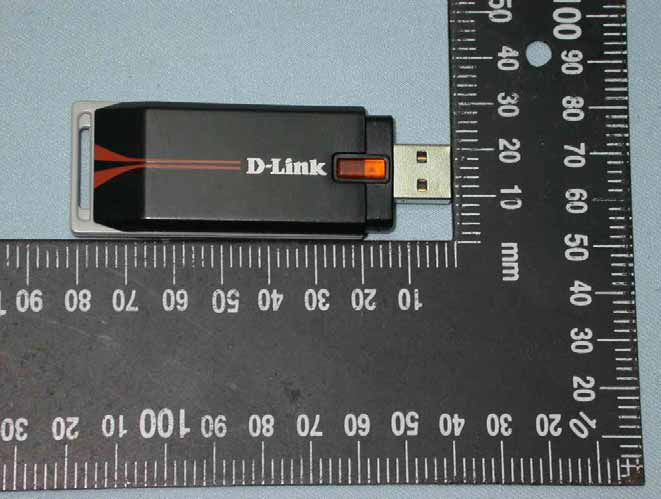

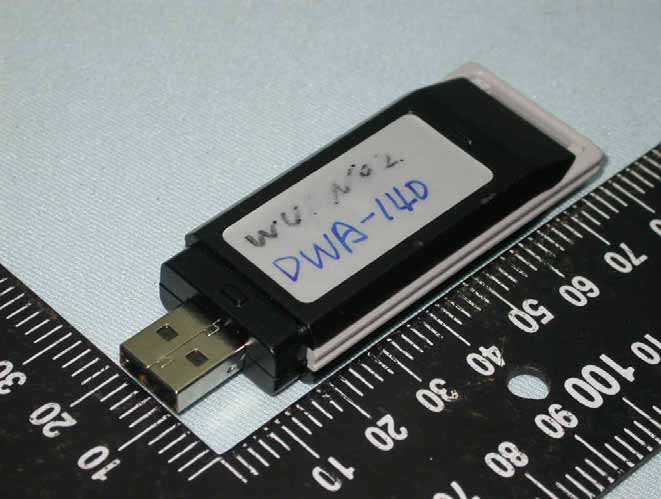

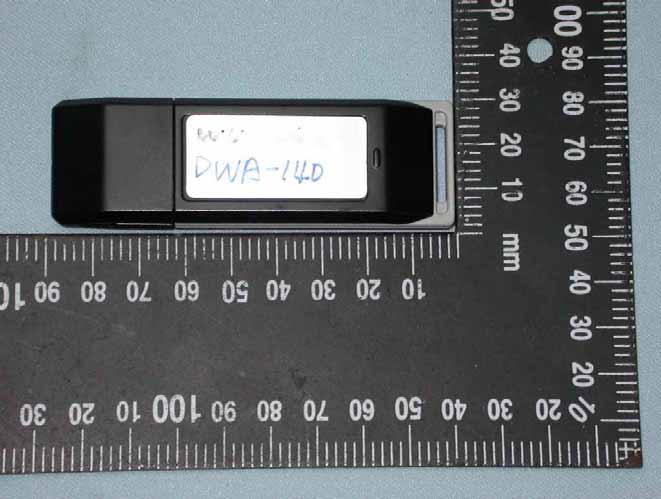

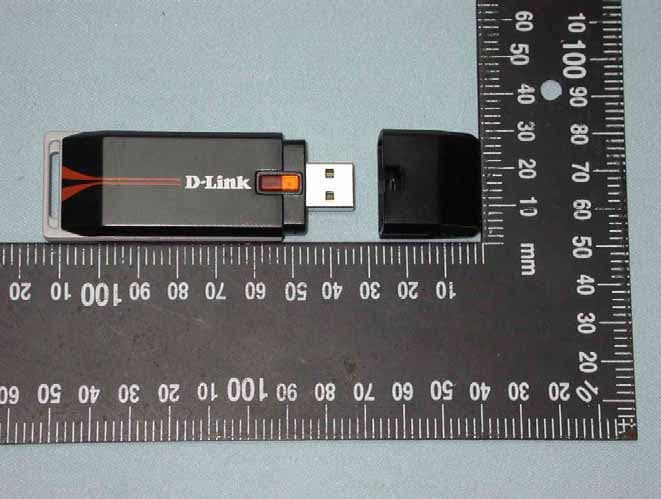

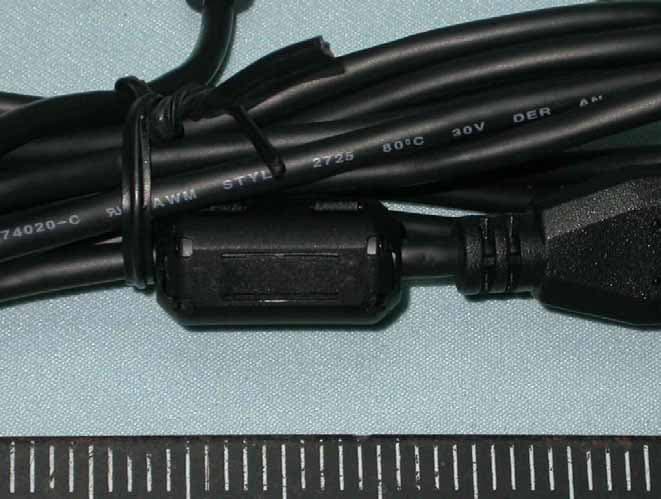

Compliance Certification Services Inc. Report No.70126004 Page 1 of 13 External Photo Compliance Certification Services Inc. Report No.70126004 Page 2 of 13 Compliance Certification Services Inc. Report No.70126004 Page 3 of 13 Compliance Certification Services Inc. Report No.70126004 Page 4 of 13 Compliance Certification Services Inc. Report No.70126004 Page 5 of 13 Compliance Certification Services Inc. Report No.70126004 Page 6 of 13

Compliance Certification Services Inc. Report No.70126004 Page 7 of 13 Internal Photo Compliance Certification Services Inc. Report No.70126004 Page 8 of 13 Compliance Certification Services Inc. Report No.70126004 Page 9 of 13 Compliance Certification Services Inc. Report No.70126004 Page 10 of 13 Compliance Certification Services Inc. Report No.70126004 Page 11 of 13 Compliance Certification Services Inc. Report No.70126004 Page 12 of 13 Compliance Certification Services Inc. Report No.70126004 Page 13 of 13

ACX Advanced Ceramic X AT5020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Part Number Frequency Range (MHz) Peak Gain XZ-V Average Gain XZ-V VSWR Impedance AT5020 -B2R8HAA_ 2400 ~ 2500 0 dBi typ. -1 dBi typ. 2 max. 50 Ω Q’ty/Reel (pcs) : 2,000pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 5020 - B 2R8 HAA ‡ ‡ i ghfe dc c Type AT : Antenna d Dimensions ( L × W ) 5.0× 2.0 mm e Material Code B f Frequency Range 2R8=2800MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T L Mark L W T a Dimensions 5.00.2 2.00.2 1.10.2 0.50.3 (a) Without Matching Circuits 1.0 * 3.9 5.9 1.0 * * 1.8 1.0 (b) With Matching Circuits * 3.9 8.9 1.8 4.0 1.0 1.0 * * *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. ACX Advanced Ceramic X Typical Electrical Characteristics (T=25 o C) ™Test Board Antenna No Ground Ground 18mm 18mm 30mm 50Ω Feed Line 9.6mm ™Return Loss (a) Without Matching Circuits (b) With Matching Circuits ACX Radiation Patterns Advanced Ceramic X 180 o 270 o 0 o 90 o X Z Y XY-cut scanning direction 180 270 o 0 o 90 o X Z Y XZ-cut scanning direction 180 270 0 o 90 o X Z Y YZ-cut scanning direction XY cut @2.45GHz Vertical Horizontal XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ-V/YZ-H XZ-V/XZ-H XY-V/XY-H Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw

Compliance Certification Services Inc. Report No.: 70126004-SF FCC ID: KA2WA140B1 Date of Issue: March 03, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 35 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless USB Adapter Trade Name: D-Link Model: DWA-140 Issued to Alpha Networks Inc. No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70126004-SF Date of Issue: March 03, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................18 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................20 8.4 SAR MEASUREMENTS RESULTS...............................................................................22 9. EUT PHOTOS ...........................................................................................................................32 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................33 11. FACILITIES..............................................................................................................................34 12. REFERENCES ..........................................................................................................................34 13. ATTACHMENTS......................................................................................................................35 Compliance Certification Services Inc. Report No.: 70126004-SF Date of Issue: March 03, 2007 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Alpha Networks Inc. No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan R.O.C. Equipment Under Test: Wireless USB Adapter Trade Name: D-Link Model Number: DWA-140 Date of Test: February 28 ~ March 02, 2007 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Gavin Lim Chris Hsieh Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70126004-SF Date of Issue: March 03, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless USB Adapter Trade Name D-Link Model Number DWA-140 Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz 802.11n: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 21.20 dBm 802.11g: 21.16 dBm 802.11n: 23.54 dBm(HT20) 802.11n: 23.37 dBm(HT40) IBM host: 802.11b: 0.587 W/kg 802.11g: 0.581 W/kg 802.11n: 0.724 W/kg(HT20) 802.11n: 0.640 W/kg(HT40) Dell host: 802.11b: 1.060 W/kg 802.11g: 1.490 W/kg 802.11n: 1.540 W/kg(HT20) 802.11n: 1.310 W/kg(HT40) Max. SAR (1g): Sony host: 802.11b: 0.477 W/kg 802.11g: 0.350 W/kg 802.11n: 0.361 W/kg(HT20) 802.11n: 0.291 W/kg(HT40) Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: CHIP antenna Host 1 IBM x31, Model: 2672-I8V, SN: 99KPZYN Host 2 Dell, Model: D600, SN: CN-0T9369-48643-4CB-0392 Host 3 Sony, Model: VGN-S44TP, SN: 28198080 8100339 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: 70126004-SF Date of Issue: March 03, 2007 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Eff…

Text truncated - open the document above for the full version.

Date/Time: 2/28/2007 9:32:16 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.98 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.5 deg C;Liquid Temperature:23.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 97.6 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.5 mW/g; SAR(10 g) = 6.19 mW/g Maximum value of SAR (measured) = 19.2 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.7 mW/g Page1 Page2 Date/Time: 3/1/2007 9:46:32 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; ı = 2.01 mho/m; İ r = 51.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.4 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 98.1 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 28.7 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.29 mW/g Maximum value of SAR (measured) = 19.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 19.9 mW/g Page1 Page2 Date/Time: 3/2/2007 10:33:45 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.94 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:2 4.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.1 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.2 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 14.1 mW/g; SAR(10 g) = 6.2 mW/g Maximum value of SAR (measured) = 15.8 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.9 mW/g Page1 Page2 Date/Time: 2/28/2007 10:18:45 AM Test Laboratory: Compliance Certification Services Inc. 802.11b Tip Touch mode DUT: DWA-140; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.5 deg C;Liquid Temperature:23.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4,V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=1M/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.559 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 20.6 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.237 mW/g Maximum value of SAR (measured) = 0.827 mW/g Middle CH, Rate=1M/Z Scan (1x1x26): Measurement grid: dx=20mm, dy=20mm, dz=4mm Maximum value of SAR (measured) = 0.525 mW/g Page1 Page2 Date/Time: 2/28/2007 11:02:50 AM Test Laboratory: Compliance Certification Services Inc. 802.11g Tip Touch mode DUT: DWA-140; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.96 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.5 deg C;Liquid Temperature:23.5 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detect…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 1 of 140 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For Wireless USB Adapter Model : DWA-140 Trade Name : D-Link Issued for D-Link Corporation No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 2 of 140 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES .......................................................................................................................... 6 5.2 EQUIPMENT ........................................................................................................................ 6 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 8 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 10 8.1 6dB BANDWIDTH ................................................................................................................ 10-23 8.2 99% BANDWIDTH ............................................................................................................... 24-37 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 38-52 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 53-54 8.5 AVERAGE POWER............................................................................................................... 55-57 8.6 POWER SPECTRAL DENSITY ............................................................................................ 58-77 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 78-94 8.8 RADIATED EMISSIONS ...................................................................................................... 95 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 95-98 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 99 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 100-111 8.8.4 RESTRICTED BAND EDGES..................................................................................... 112-127 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 128-131 9. ANTENNA REQUIREMENT .................................................................................................... 132 9.1 STANDARD APPLICABLE................................................................................................... 132 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 132 APPENDIX SETUP PHOTOS....................................................................................................... 133-140 Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 3 of 140 1. TEST REPORT CERTIFICATION Applicant D-Link Corporation Address No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Equipment Under Test Wireless USB Adapter Model DWA-140 Trade Name D-Link Tested Date January 27 ~ March 05, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 4 of 140 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless USB Adapter Model Number DWA-140 IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11b : 21.20dBm IEEE 802.11g : 21.16dBm IEEE 802.11n HT20 : 23.54dBm Transmit Power IEEE 802.11n HT40 : 23.…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 133 of 140 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 134 of 140 Compliance Certification Services Inc.FCC ID KA2WA140B1 Report No.70126004-RP1 Page 135 of 140 RADIATED …
