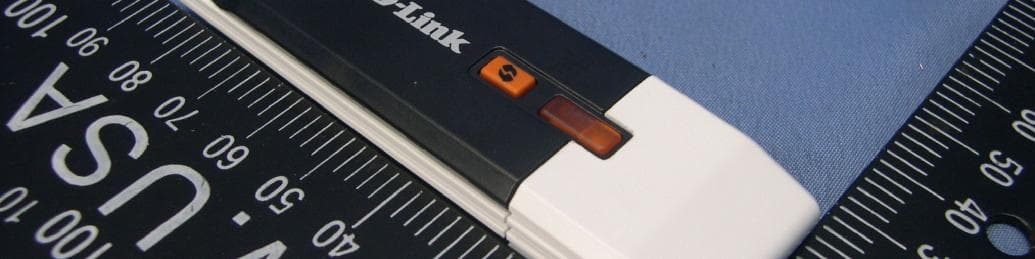

KA2WA140B3RangeBooster N USB Adapter

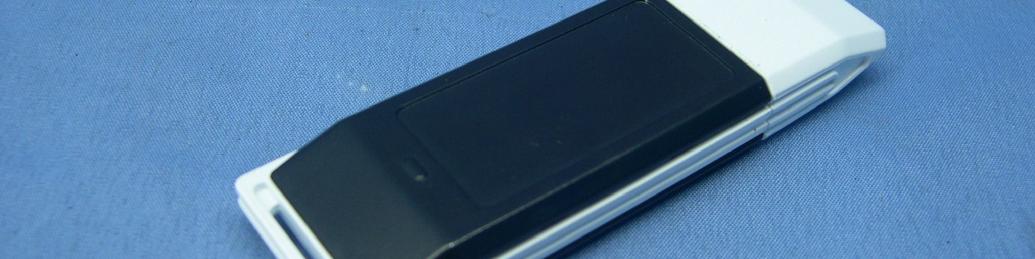

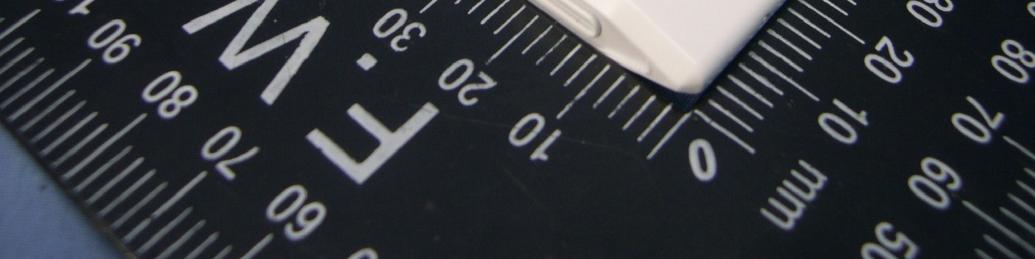

Page 1 CONSTRUCTION PHOTOS OF EUT Page 4

LABEL Location LABEL Drawing

Page 2 Page 3 Page 4

Report No.: SA110608E03 1 Report Format Version 4.0.0 SAR TEST REPORT REPORT NO.:SA110608E03 MODEL NO.:DWA-140 (Refer to item 2.1 for more details) FCC ID:KA2WA140B3 IC ID:4216A-WA140B3 RECEIVED:Jun. 08, 2011 TESTED:Jul. 14, 2011 ISSUED:Jul. 19, 2011 APPLICANT: D-Link Corporation ADDRESS: No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. MANUFACTORY: Alpha Networks Inc. ADDRESS: No. 8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. MANUFACTORY: Alpha Networks (Dongguan) Co., Ltd. ADDRESS: Jiekou Administration Zone, Canghan Town, Dongguan City, Guangdong Province, China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 28 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: SA110608E03 2 Report Format Version 4.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD............................................................................................... 3 1. CERTIFICATION ........................................................................................................... 4 2. GENERAL INFORMATION............................................................................................ 5 2.1 GENERAL DESCRIPTION OF EUT.............................................................................. 5 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................... 6 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ..................................................... 7 2.4 TEST EQUIPMENT ..................................................................................................... 10 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION................... 11 2.6 DESCRIPTION OF SUPPORT UNITS ........................................................................ 14 3. DESCRIPTION OF ANTENNA LOCATION ................................................................. 15 4. RECIPES FOR TISSUE SIMULATING LIQUIDS ........................................................ 16 5. SYSTEM VALIDATION ................................................................................................ 19 5.1 TEST PROCEDURE ................................................................................................... 19 5.2 VALIDATION RESULTS .............................................................................................. 20 5.3 SYSTEM VALIDATION UNCERTAINTIES .................................................................. 21 6. TEST RESULTS .......................................................................................................... 22 6.1 TEST PROCEDURES ................................................................................................. 22 6.2 CONDUCTED POWER ............................................................................................... 24 6.3 DESCRIPTION OF TEST CONDITION....................................................................... 24 6.4 MEASURED SAR RESULT ......................................................................................... 25 6.5 POWER DRIFT TABLE ............................................................................................... 26 6.6 SAR LIMITS.................................................................................................................27 7. INFORMATION ON THE TESTING LABORATORIES ................................................ 28 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA110608E03 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jul. 19, 2011 Report No.: SA110608E03 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Wireless N USB Adapter (Refer to item 2.1 for more details) MODEL: DWA-140 (Refer to item 2.1 for more details) BRAND: D-LINK APPLICANT: D-Link Corporation TESTED: Jul. 14, 2011 TEST SAMPLE: MASS-PRODUCTION STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 Issue 4 (March 2010) The above equipment (model: DWA-140) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jul. 19, 2011 Andrea Hsia / Specialist APPROVED BY : , DATE:Jul. 19, 2011 Gary Chang / Assistant Manager Report No.: SA110608E03 5 Report Format Version 4.0.0 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT EUT Wireless N 150 USB Adapter (Refer to NOTE for more details) MODEL NO. DWA-140 (Refer to NOTE for more details) FCC ID KA2WA140B3 IC ID 4216A-WA140B3 POWER SUPPLY 5Vdc (host equipment) MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b:11.0/ 5.5/ 2.0/ 1.0Mbps 802.11g: 54.0/ 48.0/ 36.0/ 24.0/ 18.0/ 12.0/ 9.0/ 6.0Mbps 802.11n: up to 300.0Mbps OPERATING FREQUENCY 2412 ~ 2462MHz NUMBER OF CHANNEL 11 for 802.11b, 802.11g, 802.11n (20MHz) 7 for 802.11n (40MHz) MAXIMUM SAR (1g) 0.900W/kg ANTENNA TYPE Metal antenna with -0.3dBi gain Printed ant…

Text truncated - open the document above for the full version.

Report No.: RF110608E03 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110608E03 MODEL NO.: DWA-140 FCC ID: KA2WA140B3 RECEIVED: June 08, 2011 TESTED: June 08 to 15, 2011 ISSUED: July 28, 2011 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110608E03 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................15 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................16 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS...................................................................................................20 4.2 RADIATED EMISSION MEASUREMENT.............................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................22 4.2.2 TEST INSTRUMENTS..........................................................................................23 4.2.3 TEST PROCEDURES..........................................................................................25 4.2.4 DEVIATION FROM TEST STANDARD.................................................................25 4.2.5 TEST SETUP.......................................................................................................26 4.2.6 EUT OPERATING CONDITIONS.........................................................................27 4.2.7 TEST RESULTS...................................................................................................28 4.3 6dB BANDWIDTH MEASUREMENT....................................................................57 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................57 4.3.2 TEST INSTRUMENTS..........................................................................................57 4.3.3 TEST PROCEDURE.............................................................................................57 4.3.4 DEVIATION FROM TEST STANDARD.................................................................57 4.3.5 TEST SETUP.......................................................................................................57 4.3.6 EUT OPERATING CONDITIONS.........................................................................57 4.3.7 TEST RESULTS...................................................................................................58 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................62 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................62 4.4.2 INSTRUMENTS....................................................................................................62 4.4.3 TEST PROCEDURES..........................................................................................62 Report No.: RF110608E03 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................62 4.4.5 TEST SETUP.......................................................................................................62 4.4.6 EUT OPERATING CONDITIONS.........................................................................62 4.4.7 TEST RESULTS...................................................................................................63 4.5 POWER SPECTRAL DENSITY MEASUREMENT…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (BELOW 1GHz) 3 RADIATED EMISSION TEST (ABOVE 1GHz)

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (SAR Test Set Up Photos) Vertical back Vertical front Horizontal down Horizontal up Tip edge 2 Antenna Location Test Set Up
