KA2WA160A1Xtreme N Dual Band USB Adapter

2 D-Link DWA-160 User Manual Table of Contents Product Overview ........................................................ 3 Package Contents.................................................... 3System Requirements ............................................. 3Introduction .............................................................. 4Features................................................................... 5Hardware Overview ................................................. 6 Installation.................................................................... 7 Getting Started ........................................................ 7 Remove Existing Installations ............................ 7Disable Other Wireless Adapters ....................... 8 Wireless Installation Considerations...................... 10Adapter Installation ................................................ 11 Configuration ............................................................. 17 D-Link Wireless Connection Manager ................... 17 Wireless Networks ........................................... 18Wi-Fi ® Protected Setup (WPS)......................... 19 My Wireless Networks ..................................... 22 Add Profile ................................................... 23Modify Profile............................................... 24 Support ............................................................ 25About ............................................................... 26 Connect to a Wireless Network ................................ 27 Using Windows ® Vista ™ .......................................... 27 Using Windows XP ................................................ 29 Wireless Security....................................................... 30 What is WPA ™ ? ...................................................... 30 Configure WPA/WPA2 ™ -Personal .......................... 31 Using the D-Link Connection Manager ............ 31Using Windows Vista ....................................... 33Using the Windows XP Utility........................... 35 Configure WPA/WPA2-Enterprise .......................... 37 Using the D-Link Connection Manager ............ 37 Configure 802.1x (RADIUS) .................................. 38 Using the D-Link Utility .................................... 38 Troubleshooting......................................................... 39Wireless Basics ......................................................... 43 Wireless Modes ..................................................... 47 Networking Basics .................................................... 48 Check your IP address .......................................... 48 Windows XP/2000 Users ................................. 48Windows Vista Users ....................................... 48 Statically Assign an IP address ............................. 49 Windows XP/2000 Users ................................. 49Windows Vista Users ....................................... 50 Technical Specifications........................................... 51Contacting Technical Support .................................. 52Warranty ..................................................................... 53Registration................................................................ 59 Table of Contents 3 D-Link DWA-160 User Manual Section 1 - Product Overview • D-Link DWA-160 Xtreme N ™ Dual Band USB Adapter • Cradle• Manual and Warranty on CD• D-Link Wireless Connection Manager on CD• Quick Installation Guide System Requirements • A computer or laptop with an available USB 2.0 port• Windows ® Vista ™ , 2000 (Service Pack 4) or XP (Service Pack 2) • CD-ROM Drive• 300MHz processor and at least 64MB of RAM• A draft 802.11n or 802.11g or 802.11a access point or wireless router Product Overview Package Contents 4 D-Link DWA-160 User Manual Section 1 - Product Overview Introduction The DWA-160 Xtreme N ™ Dual Band USB Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Instead of stringing Ethernet cables to your PC or dismantling your desktop computer case, the DWA-160 can enable Draft 802.11n wireless connectivity by simply utilizing your desktop or notebook PC’s USB port.Powered by Xtreme N ™ Dual Band technology, the DWA-160 provides a faster wireless connection and superior reception than 802.11a or 802.11g*. The DWA-160 is designed for use in bigger homes and for those that demand higher networking, and its 5GHz Mediaband helps avoid interference by providing a clearer wireless band for signals than existing 802.11g products. Maximize wireless performance by connecting this USB Adapter to a Xtreme N ™ Dual Band Media router or an Xtreme N ™ Gaming router, and stay connected from virtually anywhere in the home. This USB Adapter supports WPA ™ and WPA2 ™ encryption to prevent outside intrusion and protect your personal information from being exposed.D-Link’s Quick Setup Wizard guides you step-by-step through the installation process. You’ll be able to configure this USB Adapter without having to call the teenager from down the street to help you. The D-Link Wireless Manager is included with this product to keep track of all your most frequently accessed networks.Compact in size, robust in speed the DWA-160 adapter is great for travel and a convenient solution for providing high performance wireless connectivity to your desktop or notebook PC. Enjoy the many benefits of wireless connectivity today! * Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and Draft 802.11n specifications. Actual data through put will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and netw ork overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. 5 D-Link DWA-160 User Manual Section 1 - Product Overview Features • Compact size for placement anywhere.• Convenience of Plug & Play…

Text truncated - open the document above for the full version.

No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114,Taiwan, R .O . C GENERAL DECLARATION We,D-Link Co. declares that device does not have "Ad Hoc on non-US frequencies" while applying for the follow product. FCC ID: KA2WA160A 1 If you have any questions regarding the authorization, please don't hesitate t o contact us. Thank you! Sincerely yours, I )3/, Jeffrey Kuo / Vice Presidet D-Link Co. Tel: 886-2-66000123#581 0 Fax: 886-2-5550998 8 E -mail: [email protected] w

No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114,Taiwan, R .O. C Power of Attorney To whom it may concern : We, the undersigned D-Link Co. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in theFCC Part 15C approval and any communication needed with the national authority for the model DWA-160. Any and all acts carried out by ADT on our behalf shal l have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely.yours, Jeffrey Kuo / Vice resident D-Link Co. Tel: 886-2-66000123#5810 Fax: 886-2-55509988 E -mail: jeffrey_kuo@dlink .com.tw

No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114,Taiwan, R .O. C Federal Communications Commission Authorization and Evaluation Division Confidentiality Reques t FCC ID: KA2WA160AI Pursuant to Sections 0.457 and 0 .459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outline d below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public . The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors . The Applicant understands that pursuant to Rule 0 .457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Jeffrey Kuo / Vice Présid nt D-Link Co. Tel: 886-2-66000123#581 0 Fax: 886-2 -55509988 E-mail: jeffrey_ [email protected]

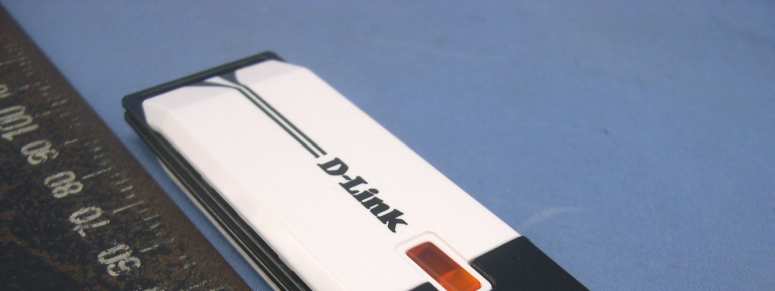

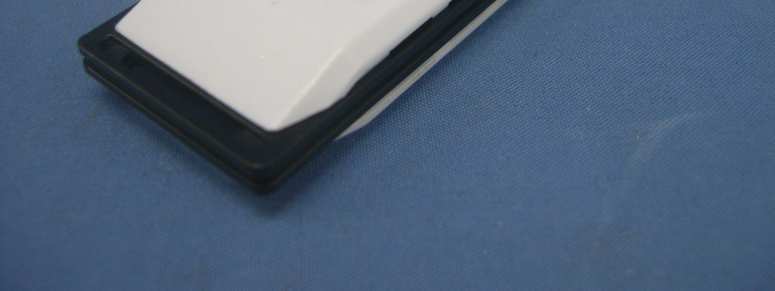

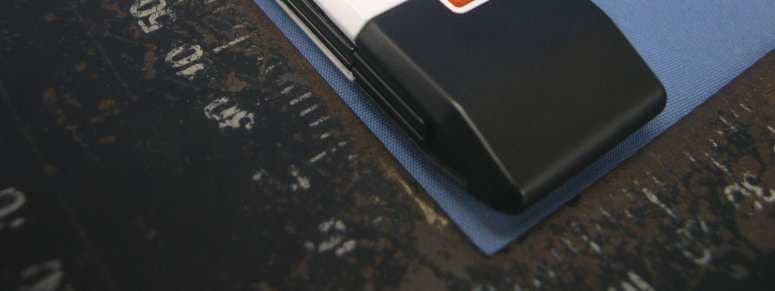

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID： KA2WA160A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 3 Page 4 Page 5

FCC ID: KA2WA160A1 Report No. 961108H01 Technical Description This device is a Xtreme N Dual Band USB Adapter operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 11Mbps for 11b; 54Mbps for 11a/b; 130Mbps for Draft 802.11n (20MHz); 270Mbps for Draft 802.11n (40MHz). The transmitter of the EUT is powered from host equipment. 1. There are two antennas provided to this EUT, please refer to the following table: No. Antenna Type For 2.4GHz Gain (dBi) For 5GHz Gain (dBi) Antenna Connector 1 PCB Print 0.7 0.5 NA 2 PCB Print 0.7 0.5 NA 2. The EUT incorporates a MIMO function with 802.11a, 802.11b, 802.11g, draft 802.11n. Physically, the EUT provides two completed transmit and two completed receivers. 3. The EUT is 2 * 2 spatial MIMO (2Tx & 2Rx) without beam forming function. The antenna configurations are two transmitter antennas and two receiver antennas, as there are 2 PCB Print antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 2 antennas. 11bg and legacy 11a mode is limited to single transmitter mode only. 4. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 5. The EUT complies with draft 802.11n standards and backwards compatible with 802. 11a, 802.11b, 802.11g products. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. FCC ID: KA2WA160A1 Report No. 961108H01 FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=152mm MSL 5800MHz D=155mm 2 MSL 5800MHz D=150mm MSL 5800MHz D=150mm 3 Date/Time: 2008/1/17 11:55:16 Test Laboratory: Advance Data Technology NC6000-11b-Ch1-M01 DUT: Xtreme N Dual Band USB Adapter ; Type: DWA-160 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 6 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.4 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.16, 4.16, 4.16) ; Calibrated: 2007/11/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2007/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.771 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.0 V/m Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 0.710 mW/g; SAR(10 g) = 0.359 mW/g Maximum value of SAR (measured) = 0.772 mW/g 4 Date/Time: 2008/1/17 12:20:02 Test Laboratory: Advance Data Technology NC6000-11b-Ch6-M01 DUT: Xtreme N Dual Band USB Adapter ; Type: DWA-160 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.96 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 6 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.4 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.16, 4.16, 4.16) ; Calibrated: 2007/11/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2007/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Mid Channel 6/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.42 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.6 V/m Peak SAR (extrapolated) = 2.85 W/kg SAR(1 g) = 1.32 mW/g; SAR(10 g) = 0.662 mW/g 5 Date/Time: 2008/1/17 12:58:48 Test Laboratory: Advance Data Technology NC6000-11b-Ch11-M01 DUT: Xtreme N Dual Band USB Adapter ; Type: DWA-160 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 6 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.4 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.16, 4.16, 4.16) ; Calibrated: 2007/11/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2007/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 High Channel 11/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.698 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.639 mW/g; SAR(10 g) = 0.320 mW/g Maximum value of SAR (measured) = 0.687 mW/g 6 Date/Time: 2008/1/17 13:24:07 Test Laboratory: Advance Data Technology NC6000-11g-Ch1-M02 DUT: Xtreme N Dual Band USB Adapter ; Type: DWA-160 ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.94 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 6 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.4 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.16, 4.16, 4.16) ; Calibrated: 2007/11/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2007/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 53 ; Postprocessing SW: SEMCAD, V1.8 Build 172 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.789 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.5 V/m Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.728 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.786 mW/g 7 Date/Time: 2008/1/17 13:40:16 Test Laboratory: Advance Data Technology NC6000-11g-Ch6-M02 DUT: Xtreme N Dual Band USB Adapter ; Type: DWA-160 ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: BPSK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.96 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 6 mm (The bottom side of the EUT to the Phantom) Antenna type : Printed Antenna ; Air temp. : 22.4 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.16, 4.16, 4.16) ; Calibrated: 2007/11/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2007/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report no.: SA961108H01 1 Report Format Version 2.0.6 SAR TEST REPORT REPORT NO.: SA961108H01 MODEL NO.: DWA-160 RECEIVED: Nov. 08, 2007 TESTED: Jan. 17 ~ Jan. 20, 2008 ISSUED: Jan. 23, 2008 APPLICANT : D-Link Co. ADDRESS : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No.47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 60 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA961108H01 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION .........................................................................................................3 2. GENERAL INFORMATION .........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................6 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................7 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................10 3. DESCRIPTION OF SUPPORT UNITS .....................................................................14 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS..................................15 4.1. DESCRIPTION OF ANTENNA LOCATION ...............................................................15 4.2. DESCRIPTION OF ASSESSMENT POSITION ........................................................16 4.3. DESCRIPTION OF TEST MODE ..............................................................................17 4.4. SUMMARY OF TEST RESULTS ...............................................................................19 5. TEST RESULTS........................................................................................................23 5.1 TEST PROCEDURES ...............................................................................................23 5.2 MEASURED SAR RESULTS ....................................................................................25 5.3 SAR LIMITS...............................................................................................................36 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................37 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................46 6. SYSTEM VALIDATION .............................................................................................47 6.1 TEST EQUIPMENT ...................................................................................................47 6.2 TEST PROCEDURE .................................................................................................48 6.3 VALIDATION RESULTS ............................................................................................50 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................51 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES ........................................52 7.1. PROBE CALIBRATION UNCERTAINTY...................................................................52 7.2. ISOTROPY UNCERTAINTY .....................................................................................53 7.3. BOUNDARY EFFECT UNCERTAINTY.....................................................................53 7.4. PROBE LINEARITY UNCERTAINTY ........................................................................54 7.5. READOUT ELECTRONICS UNCERTAINTY ............................................................54 7.6. RESPONSE TIME UNCERTAINTY ..........................................................................54 7.7. INTEGRATION TIME UNCERTAINTY......................................................................55 7.8. PROBE POSITIONER MECHANICAL TOLERANCE ...............................................56 7.9. PROBE POSITIONING .............................................................................................56 7.10. PHANTOM UNCERTAINTY ......................................................................................57 7.11. DASY4 UNCERTAINTY BUDGET (FOR 2.4GHz) ....................................................58 7.12. DASY4 UNCERTAINTY BUDGET (FOR 5 ~ 6GHz) .................................................59 8. INFORMATION ON THE TESTING LABORATORIES .............................................60 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA961108H01 3 Report Format Version 2.0.6 1. CERTIFICATION PRODUCT: Xtreme N Dual Band USB Adapter MODEL: DWA-160 BRAND: D-Link APPLICANT: D-Link Co. TESTED : Jan. 17 ~ Jan. 20, 2008 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 IEEE 1528-2003 The above equipment (model: DWA-160) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jan. 23, 2008 Rennie Wang / Senior Specialist TECHNICAL ACCEPTANCE : , DATE:Jan. 23, 2008 Responsible for RF Stanely Hsu / Senior Engineer APPRO…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
