KA2WA162A1Wireless N900 Dual Band USB Adapter DWA-162
D-Link Corporation
Click to zoom
Application Details
- Equipment Class
- DTS - Digital Transmission System
- Date of Grant
- Feb 03, 2013
- Application Purpose
- Original Equipment
- Date of Application
- Feb 03, 2013
- Equipment Note
- Wireless N900 Dual Band USB Adapter DWA-162
- Frequency Range
- 5755.00000000 - 5795.00000000
- Company
- D-Link Corporation
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
2 D-Link DWA-162 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United Stat es or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.Copyright © 2012-2013 by D-Link Systems, Inc.All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission fr om D-Link Systems, Inc. Revision Date Description 1.0 December 19, 2012 t*OJUJBMSFMFBTFGPS3FWJTJPO" Preface 3 D-Link DWA-162 User Manual Table of Contents Preface ................................................................................ 2 .BOVBM3FWJTJPOT .......................................................................... 2 Trademarks ..................................................................................... 2 Product Overview .............................................................. 4 Package Contents ......................................................................... 4 4ZTUFN3FRVJSFNFOUT ................................................................. 4 Introduction ................................................................................... 5 Features ............................................................................................ 6 Hardware Overview ..................................................................... 7 Installation ......................................................................... 8 Getting Started .............................................................................. 8 3FNPWF&YJTUJOH*OTUBMMBUJPOT .......................................... 8 Disable Other Adapters ...................................................... 9 Wireless Installation Considerations ....................................11 Adapter Installation ...................................................................12 Connect to a Wireless Network ....................................... 15 Wi-Fi ® Protected Setup (WPS) .................................................15 Windows® 8 ...................................................................................16 Windows® 7 ...................................................................................18 Windows Vista® ............................................................................20 Windows® XP ................................................................................22 Troubleshooting .............................................................. 24 Wireless Basics ................................................................. 27 Wireless Modes ............................................................................31 Networking Basics ........................................................... 32 Check your IP address ...............................................................32 Windows® XP Users ............................................................32 Windows® 7/Vista® Users..................................................32Windows® 8 Users ...............................................................32 Statically Assign an IP Address ..............................................33 Windows® XP Users ............................................................33 Windows® 7/ Vista® Users .................................................34 Windows® 8 Users ...............................................................35 Technical Specifications .................................................. 36Contacting Technical Support ........................................ 37Warranty ........................................................................... 38Registration ..................................................................... 44 Table of Contents 4 D-Link DWA-162 User Manual Section 1 - Product Overview D-Link DWA-162 Wireless N900 Dual Band USB Adapter System Requirements t 8JOEPXT¥ 7JTUB¥ PS91 CJU t$%30.%SJWF NVTUTVQQPSUNN.JOJ$% t "OO H PSBXJSFMFTTOFUXPSLt .#IBSEESJWFTQBDFt "OBWBJMBCMF64#QPSU Product Overview Package Contents Quick install GuideMini CD with drivers and softwareMicro USB Cable 5 D-Link DWA-162 User Manual Section 1 - Product Overview Introduction The DWA-162 Wireless N900 Dual Band USB Adapter is a convenient wireless connectivity solution for desktop or notebook PCs. Ins tead of stringing &UIFSOFUDBCMFTUPZPVS1$PSEJTNBOUMJOHZPVSEFTLUPQDPNQVUFSDBTF UIF%8"DBOFOBCMFOXJSFMFTTDPOOFDUJWJUZCZ TJNQMZVUJMJ[JOH your desktop or notebook PC’s USB port.Powered by Wireless N900 Dual Band technology, the DWA-162 provides a faster wireless connection and superior reception than 802.11a or 802.11g*. The DWA-162 is designed for use in bigger homes and for those that demand higher networking, and its 5GHz Mediaband helps avoid interference by providing a clearer wireless band for signals than existing 802.11g products. Maximize wireless performance by connecting this USB Adapter to a Wireless N Dual Band Media router or an Wireless N Gaming router, and stay connected from virtually anywhere in the home. This USB Adapter supports WPA ™ and WPA2 ™ encryption to prevent outside intrusion and protect your personal information from being exposed. .BYJNVNXJSFMFTTTJHOBMSBUFEFSJWFEGSPN*&&&4UBOEBSEB HBOEOTQFDJöDBUJPOT"DUVBMEBUBUISPVHIQVUXJMMWBSZ/FUXPSLDPOEJUJPOTBOEFOWJSPONFOUBMGBDUPST JODMVEJ OH WPMVNFPGOFUXPSLUSBóD CVJMEJOHNBUFSJBMTBOEDPOTUSVDUJPO B OEOFUXPSLPWFSIFBE MPXFSTBDUVBMEBUBUISPVHIQVUSBUF&OWJSP ONFOUBMDPOEJUJPOTXJMMBEWFSTFMZBòFDUXJSFMFTTTJHOBMSBOHF 6 D-Link DWA-162 User Manual Section 1…
Text truncated - open the document above for the full version.
ID Label/Location Info
Made in China P/N: CWA162NA.....A1 FCC ID: KA2WA162A1 IC: 4216A-WA162A1 IC Model No.: DWA-162A1 DWA-162

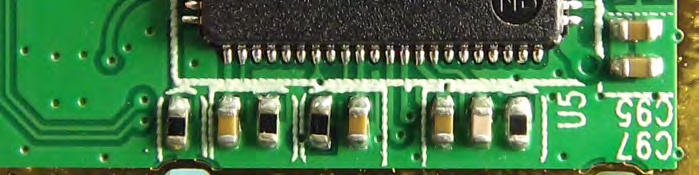

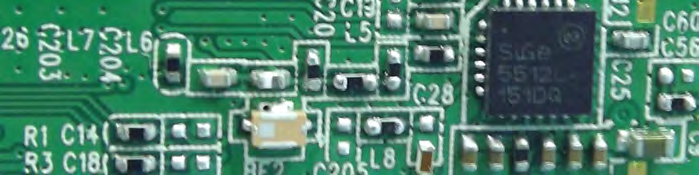

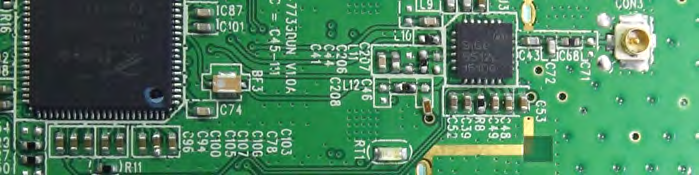

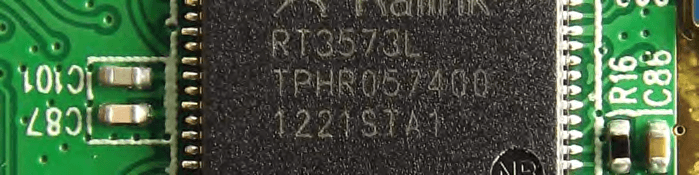

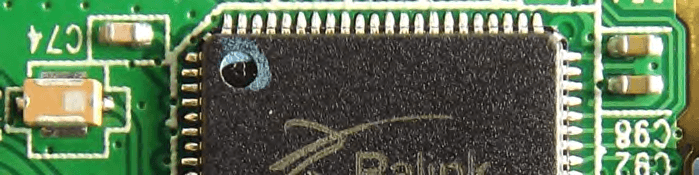

Internal Photos
FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B2 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B3 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B4 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B5 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B6 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B7 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B8 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B9 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B10 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B11 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N0725 SPORTON International Inc. PAGE NUMBER : B12 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Jan. 29, 2013 FAX : 886-3-327-0973
RF Exposure Info
FCC RADIO TEST REPORT Report No. : FR2N0725 SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC RADIO TEST REPORT Report No. : FR2N0725 SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 FCC RADIO TEST REPORT Report No. : FR2N0725 SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure-(2.4G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 Uncorrelated 18.59 N/A b 3 3 Uncorrelated 21.91 N/A g 1 1 Uncorrelated 18.59 N/A g 3 3 Uncorrelated 21.24 N/A n (HT20) 1 1 Uncorrelated 17.64 N/A n (HT20) 3 3 Uncorrelated 21.34 N/A n (HT40) 1 1 Uncorrelated 17.56 N/A n (HT40) 3 3 Uncorrelated 21.28 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 18.59 - - - 18.59 2.00 20.59 0.02279 11B-20M 3 17.24 17.04 17.12 - 21.91 2.00 23.91 0.04889 11G-20M 1 18.59 - - - 18.59 2.00 20.59 0.02279 11G-20M 3 16.61 16.34 16.44 - 21.24 2.00 23.24 0.04191 11N2.4G-20M 1 17.64 - - - 17.64 2.00 19.64 0.01831 11N2.4G-20M 3 17.07 16.11 16.46 - 21.34 2.00 23.34 0.04289 11N2.4G-40M 1 17.56 - - - 17.56 2.00 19.56 0.01798 11N2.4G-40M 3 17.07 16.03 16.35 - 21.28 2.00 23.28 0.04230 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC RADIO TEST REPORT Report No. : FR2N0725 SPORTON INTERNATIONAL INC. Page No. : 4 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure-(5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 15.71 N/A a 3 3 Correlated 19.92 N/A n (HT20) 1 1 Uncorrelated 14.52 N/A n (HT20) 3 3 Uncorrelated 18.58 N/A n (HT40) 1 1 Uncorrelated 14.28 N/A n (HT40) 3 3 Uncorrelated 17.59 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Chain- Port 3 - Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A5.8G-20M 1 15.71 - - - 15.71 2.00 17.71 0.01174 11A5.8G-20M 3 15.33 14.49 15.56 - 19.92 2.00 21.92 0.03097 11N5.8G-20M 1 14.52 - - - 14.52 2.00 16.52 0.00893 11N5.8G-20M 3 13.75 13.61 14.05 - 18.58 2.00 20.58 0.02273 11N5.8G-40M 1 14.28 - - - 14.28 2.00 16.28 0.00845 11N5.8G-40M 3 13.08 12.68 12.67 - 17.59 2.00 19.59 0.01808 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC RADIO TEST REPORT Report No. : FR2N0725 SPORTON INTERNATIONAL INC. Page No. : 5 of 6 TEL : 886-3-327-3456 Repor…
Text truncated - open the document above for the full version.
Test Report
FCC Test Report Report No. : FR2N0725AC SPORTON INTERNATIONAL INC. Page No. : 1 of 91 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless N900 Dual Band USB Adapter Brand Name : D-LINK Model No. : DWA-162 FCC ID : KA2WA162A1 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant Manufacturer : D-Link Corporation No. 289, Xinhu 3rd Rd., Neihu District, Taipei City 11494, Taiwan The product sample received on Oct. 27, 2012 and completely tested on Dec. 12, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2N0725AC SPORTON INTERNATIONAL INC. Page No. : 2 of 91 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories and Support Equipment ................................................................................................. 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 12 3.1 AC Power-line Conducted Emissions .............................................................................................. 12 3.2 6dB Bandwidth ................................................................................................................................ 15 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 24 3.5 Transmitter Radiated Bandedge Emissions ..................................................................................... 27 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 37 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 90 APPENDIX A. TEST PHOTOS .................................................................................................................. A6 APPENDIX B. PHOTOGRAPHS OF EUT ................................................................................................ B13 FCC Test Report Report No. : FR2N0725AC SPORTON INTERNATIONAL INC. Page No. : 3 of 91 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.15MHz 29.08 (Margin 26.92dB) - AV 50.85 (Margin 15.15dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.69 / 40M: 36.04 500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 29.23 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: -7.53 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.94MHz: 29.94dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 69.00 (Margin 5.00dB) - PK 52.93 (Margin 1.07dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 7311MHz 50.96 (Margin 3.04dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR2N0725AC SPORTON INTERNATIONAL INC. Page No. : 4 of 91 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR2N0725AC Rev. 01 Initial issue of report Jan. 29, 2013 2500-2690 FCC Test Report Report No. : FR2N0725AC SPORTON INTERNATIONAL INC. Page No. : 5 of 91 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency R…
Text truncated - open the document above for the full version.
Test Report
FCC Test Report Report No. : FR2N0725AI SPORTON INTERNATIONAL INC. Page No. : 1 of 73 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Wireless N900 Dual Band USB Adapter Brand Name : D-LINK Model No. : DWA-162 FCC ID : KA2WA162A1 Standard : 47 CFR FCC Part 15.247 Operating Band : 5725 MHz – 5850 MHz Equipment Class : DTS Applicant Manufacturer : D-Link Corporation No. 289, Xinhu 3rd Rd., Neihu District, Taipei City 11494, Taiwan The product sample received on Oct. 27, 2012 and completely tested on Dec. 12, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2N0725AI SPORTON INTERNATIONAL INC. Page No. : 2 of 73 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories and Support Equipment ................................................................................................. 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 12 3.1 AC Power-line Conducted Emissions .............................................................................................. 12 3.2 6dB Bandwidth ................................................................................................................................ 15 3.3 RF Output Power ............................................................................................................................ 18 3.4 Power Spectral Density ................................................................................................................... 24 3.5 Transmitter Radiated Bandedge Emissions ..................................................................................... 27 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 35 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 72 APPENDIX A. TEST PHOTOS .................................................................................................................. A6 APPENDIX B. PHOTOGRAPHS OF EUT ................................................................................................ B13 FCC Test Report Report No. : FR2N0725AI SPORTON INTERNATIONAL INC. Page No. : 3 of 73 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.15MHz 29.08 (Margin 26.92dB) - AV 50.85 (Margin 15.15dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth [MHz] 20M: 17.75 / 40M: 36.20 500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 27.56 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: -14.85 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 5867.97MHz: 29.57dB Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 1m]: 11570.0MHz 73.42 (Margin 2.52dB) - PK 61.02 (Margin 10.12dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR2N0725AI SPORTON INTERNATIONAL INC. Page No. : 4 of 73 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR2N0725AI Rev. 01 Initial issue of report Jan. 29, 2013 FCC Test Report Report No. : FR2N0725AI SPORTON INTERNATIONAL INC. Page No. : 5 of 73 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) …
Text truncated - open the document above for the full version.
Test Setup Photos
FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N0725AN SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
Contact Information
Applicant
Brett Adair(General Counsel)
Test Firm
Sporton International Inc.Alex Chen
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 4 | 15C | 5.75 GHz - 5.79 GHz | 364.00 mW |
