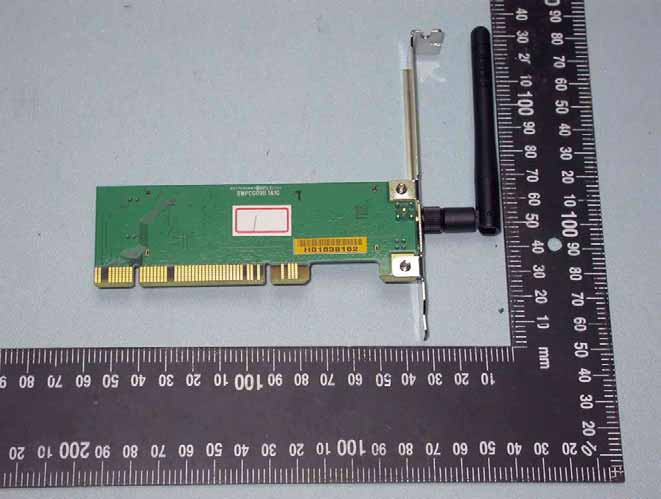

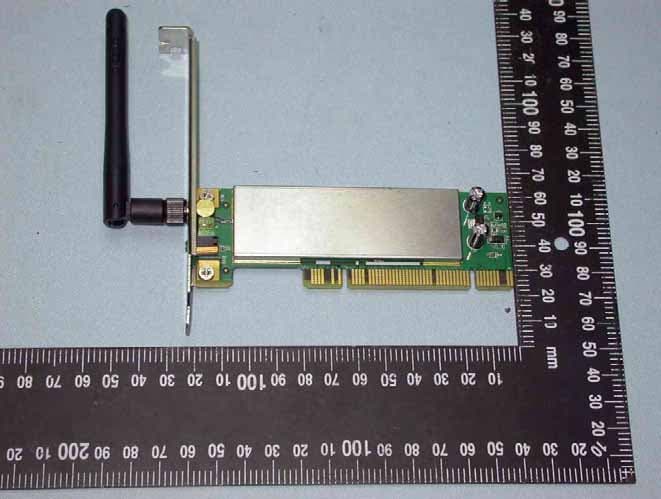

KA2WA510A1Wireless PCI Adapter

2D-Link DWA-510 Quick Install Guide Manual, software, and warranty on CD Package Contents D-Link DWA-510 Wireless PCI Adapter • A desktop computer with an available 32-bit PCI slot • Windows ® 2000 or XP • 300MHz processor and at least 64MB of RAM • An 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc networking mode.) System Requirements If any of the above items are missing, please contact your reseller. 5D-Link DWA-510 Quick Install Guide Adapter Installation Warning:Do NOT install the DWA-510 PCI Adapter into your computer before installing the driver software from the D-Link CD. Turn on the computer and Insert the D-Link DWA-510 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the other Windows operating systems. If the CD Autorun function does not automatically start on your computer, go to Start>Run. In the run box type “D:\Drivers\setup.exe” (where D: represents the drive letter of your CD-ROM drive). When the autorun screen appears, clickInstall Drivers. DWA-510 DWA-510 DWA-510 DWA-510 DWA-510\ DWA-510 DWA-510 DWA-510 DWA-510 DWA-510 DWA-510 DWA-510 DWA-510 9D-Link DWA-510 Quick Install Guide Connect to a Wireless Network The D-Link DWA-510 uses the Con guration Utility as the management software. The utility provides the user an easy interface to change any settings related to the wireless adapter. After you have completed the installation of the DWA-510 and whenever you start the computer, the Con guration Utility starts automatically and the system tray icon is loaded in the toolbar. Clicking on the utility icon will start the Con. If you are using Windows ® XP, please skip to page 11. This window will allow you to see available wireless networks in your area. Simply click the network (SSID) you want to connect to and click theConnect button. 10D-Link DWA-510 Quick Install Guide If you are attempting to connect to a secure network, You must supply the encryption key that is on the router or access point you are trying to connect to. Please refer to the manual on the CD for more information on Wireless Security. If the network you are connecting to is using WEP, enter the WEP key for the network and clickOK. If the network you are connecting to is using WPA-PSK, enter the passphrase for the network and clickOK. $ ,INK7$! 1UICK)NSTALL'UIDE 7INDOWS § 80USERSMAYUSETHEBUILT INWIRELESSUTILITY4HEFOLLOWING INSTRUCTIONSAREFOR3ERVICE0ACKUSERS )FYOUAREUSING7INDOWS §  YOUMUSTUSETHE$ ,INKUTILITY0LEASE REFERTOPAGE )FYOURECEIVETHE7IRELESS.ETWORKS $ETECTEDBUBBLE CLICKONTHECENTER OFTHEBUBBLETOACCESSTHEUTILITY 7INDOWS § 80#ONlGURATION5TILITY 9OUMAYALSORIGHT CLICKONTHE WIRELESSCOMPUTERICONINYOUR SYSTEMTRAYLOWER RIGHTCORNER NEXTTOTHETIME 3ELECT6IEW !VAILABLE7IRELESS.ETWORKS D-Link DWA-510 Quick Install Guide $ ,INK7$! 1UICK)NSTALL'UIDE 4HEUTILITYWILLDISPLAYANYAVAILABLEWIRELESSNETWORKSINYOURAREA#LICKON ANETWORKANDCLICKTHE#ONNECTBUTTON 2EFERTOTHE7IRELESS 3ECURITYSECTIONINTHEMANUALFORINFORMATIONON CONNECTINGTOASECURENETWORK )FYOUWANTTOUSETHE$ ,INKUTILITYINSTEADOFTHE7INDOWS § 80WIRELESS UTILITY REFERTOTHENEXTPAGE D-Link DWA-510 Quick Install Guide $ ,INK7$! 1UICK)NSTALL'UIDE )FYOUWANTTOUSETHE$ ,INKWIRELESSUTILITYYOUMUSTDISABLETHE7INDOWS § 80WIRELESSUTILITY 2IGHT CLICKONTHEWIRELESSCOMPUTERICONINYOURSYSTEMTRAYLOWERRIGHT CORNERNEXTTOTHETIME 3ELECT6IEW!VAILABLE7IRELESS.ETWORKS $ISABLING4HE7INDOWS § 805TILITY )NTHE#HOOSEA7IRELESS.ETWORKWINDOWCLICK#HANGE!DVANCED3ETTINGS ONTHELEFTSIDEBELOW2ELATED4ASKS D-Link DWA-510 Quick Install Guide $ ,INK7$! 1UICK)NSTALL'UIDE )NTHE7IRELESS.ETWORK#ONNECTION0ROPERTIESWINDOW UNCHECK5SE 7INDOWSTOCONlGUREMYWIRELESSNETWORKSETTINGSANDTHENCLICK/+ 9OUCANNOWUSETHE$ ,INK7IRELESS5TILITYTOCONlGUREYOURWIRELESS ADAPTER D-Link DWA-510 Quick Install Guide $ ,INK7$! 1UICK)NSTALL'UIDE .OTES 7$! ?1)'?$#!.?%.?#3INDD0- D-Link DWA-510 Quick Install Guide $ ,INK7$! 1UICK)NSTALL'UIDE 4ECHNICAL3UPPORT $ ,INKSWEBSITECONTAINSTHELATESTUSERDOCUMENTATIONANDSOFTWARE UPDATESFOR$ ,INKPRODUCTS #ANADIANCUSTOMERSCANCONTACT$ ,INK4ECHNICAL3UPPORTTHROUGHOUR WEBSITEORBYPHONE #ANADA 4ELEPHONE    4WENTYFOURHOURSADAY SEVENDAYSAWEEK 7ORLD7IDE7EB HTTPSUPPORTDLINKCA % MAIL SUPPORT DLINKCA 6ERSION 2EVISED #OPYRIGHTÚ$ ,INK#ORPORATION$ ,INK.ETWORKS )NC!LLRIGHTSRESERVED$ ,INK THE$ ,INKLOGOAREREGISTEREDTRADEMARKS OF$ ,INK#ORPORATIONORITSSUBSIDIARIESINTHE5NITED3TATESANDOTHERCOUNTRIES/THERTRADEMARKSARETHEPROPERTYOFTHEIR RESPECTIVEOWNERS-AXIMUMWIRELESSSIGNALRATEBASEDON)%%%3TANDARDGSPECIlCATIONS!CTUALDATATHROUGHPUTWILL VARY.ETWORKCONDITIONSANDENVIRONMENTALFACTORS INCLUDINGVOLUMEOFNETWORKTRAFlC BUILDINGMATERIALSANDCONSTRUCTION AND NETWORKOVERHEADLOWERACTUALDATATHROUGHPUTRATE0RODUCTSPECIlCATIONS SIZEANDSHAPEARESUBJECTTOCHANGEWITHOUTNOTICE ANDACTUALPRODUCTAPPEARANCEMAYDIFFERFROMTHATDEPICTEDONTHEPACKAGING6ISITWWWDLINKCOMFORMOREDETAILS D-Link DWA-510 Quick Install Guide Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited warranty for its product only to the person or entity that originally purchased the product from: •D-Link or its authorized reseller or distributor and •Products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an APO or FPO. Limited Warranty: D-Link warrant…

Text truncated - open the document above for the full version.

D-Link Corporation No.289,Sinhu 3rd Rd .,Neihu District,Taipei City 114,Taiwan,R.O . C Date: February 12, 2007 Compliance Certification Service s Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b .a . Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization , including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own . We, the undersigned, hereby certify that we are not subject to a denial of federal benefits , that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S .C . 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g . testing, inspection, assessment, surveillance, reassessment) and resolution of complaints ; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d)Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statemen t regarding our product certification which the Certification Division may consider misleading or unauthorized; e)Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division ; Use certification only to indicate the products are certified as being in conformity with specified standards ; Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product's compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j ) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, \sAsl'j\--cAw J .C . Liao / President D-Link Corp. Tel: +886-2-6600-0123#6600 Fax:+882-2-55509988 E -mail : [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. f) g )

D-Link Corporation No.289,Sinhu 3rd Rd.,Neihu District,Taipei City 114,Taiwan,R.O. C February 12, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: KA2WA510AI Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1.Schematics 2.Operational Description 3.Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public . The public disclosure of these matter s might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, J .C . Liao / President D-Link Corp. Tel: +886-2-6600-0123#6600 Fax:+882-2-55509988 E -mail: [email protected]

Compliance Certification Services Inc. Report No.70207009 Page 1 of 6

Label Location

Compliance Certification Services Inc. Report No.70207009 Page 2 of 6 Compliance Certification Services Inc. Report No.70207009 Page 3 of 6 Compliance Certification Services Inc. Report No.70207009 Page 4 of 6 Compliance Certification Services Inc. Report No.70207009 Page 5 of 6 Compliance Certification Services Inc. Report No.70207009 Page 6 of 6

FORM No. F1055-B Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPU 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse RF Antenna Cable Assembly Omni-directional 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum 1 2 RF Antenna Assembly P/NO :C037-510695-A SPEC : 2.4GHz 12/ 12/15/2005 3 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C037-510695-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C037-510695-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 8

Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 1 of 71 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For Wireless PCI Adapter Model : DWA-510 Trade Name : D-Link Issued for D-Link Corporation No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 2 of 71 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 4 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 5 5.1 FACILITIES .......................................................................................................................... 5 5.2 EQUIPMENT ........................................................................................................................ 5 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 5 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 6 6. CALIBRATION AND UNCERTAINTY .................................................................................... 7 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 7 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 7 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 9 8.1 6dB BANDWIDTH ................................................................................................................ 9-14 8.2 99% BANDWIDTH ............................................................................................................... 15-20 8.3 MAXIMUM PEAK OUTPUT POWER ................................................................................. 21-26 8.4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................. 27-28 8.5 AVERAGE POWER............................................................................................................... 29-30 8.6 POWER SPECTRAL DENSITY ............................................................................................ 31-36 8.7 CONDUCTED SPURIOUS EMISSION................................................................................ 37-41 8.8 RADIATED EMISSIONS ...................................................................................................... 42 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 42-45 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 46 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 47-52 8.8.4 RESTRICIED BAND EDGES...................................................................................... 53-60 8.9 POWERLINE CONDUCTED EMISSIONS .......................................................................... 61-64 9. ANTENNA REQUIREMENT .................................................................................................... 65 9.1 STANDARD APPLICABLE................................................................................................... 65 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 65 APPENDIX SETUP PHOTOS....................................................................................................... 66-71 Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 3 of 71 1. TEST REPORT CERTIFICATION Applicant D-Link Corporation Address No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Equipment Under Test Wireless PCI Adapter Model DWA-510 Trade Name D-Link Tested Date February 01 ~ 26, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 4 of 71 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless PCI Adapter Model Number DWA-510 Frequency Range IEEE 802.11b/g : 2412MHz to 2462MHz IEEE 802.11b : 20.86dBm Transmit Power IEEE 802.11g : 19.96dBm Channel Spacing IEEE 802.11b/g : 5MHz Channel Number IEEE 802.11b/g : 11 Channels IEEE 802.11b : 11, 5.5, 2, 1 Mbps Tran…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 66 of 71 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 67 of 71 Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 68 of 71 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 69 of 71 Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 70 of 71 RF PORT COUNTED MEASURE SETUP Compliance Certification Services Inc.FCC ID KA2WA510A1 Report No.50622007-RP1 Page 71 of 71 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
