KA2WA520A1Wireless PCI Adapter

Manual D-Link AirPlus Xtreme G DWA-520 Building Networks for People TM Wireless PCI Adapter Rev. A1 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Wireless Basics .................................................................................... 6 Getting Started...................................................................................... 9 Using the Configuration Utility.............................................................. 12 Networking Basics.............................................................................. 26 Troubleshooting................................................................................... 39 Technical Specifications...................................................................... 44 Contacting Technical Support.............................................................. 46 Warranty and Registration................................................................... 47 3 Package Contents System Requirements: Windows XP/2000/Me/98SE ! A computer or laptop with an available 32-bit PCI slot ! At least 32 MB of memory and a 300 MHz processor ! An 802.11g or 802.11b Access Point (for Infrastructure mode), or another 802.11g or 802.11b wireless adapter (for Ad-Hoc, Peer-to- Peer networking mode). ! Contents of Package: D-Link AirPlus Xtreme G DWA-520 Wireless PCI Adapter Manual and Drivers on CD Quick Installation Guide If any of the above items are missing, please contact your reseller. ! ! ! TM 4 Introduction The DWA-520 has the newest, strongest, and most advanced security features available today. When used with other 802.11 WPA/WPA2 (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA/WPA2: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA/WPA2 uses TKIP to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the older WEP encryption req- uired the keys to be changed manually.) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server* verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. For home users that will not incorporate a RADIUS server in their network, the security for the DWA-520, used in conjunction with other WPA/WPA2-compatible 802.11 prod- ucts still be much stronger than ever before. Utilizing the Pre Shared Key mode of WPA/WAP2 the DWA-520 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configurationmenu. No longer will you have to manually input a new WEP key freque- ntly to ensure security. With the DWA-520, you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. * Not all servers can provide Authentication. The D-Link AirPlus Xtreme G DWA-520 Wireless PCI Adapter is an 802.11g high- performance, wireless adapter that supports high-speed wireless networking at home, at work or in public places. Unlike most network cards, the DWA-520 provides data transfers at up to 54 Mbps. The 802.11g standard is backwards compatible with 802.11b products. TM 5 Features & Benefits ! Fully compliant with the 802.11b standard and interoperable with all existing 802.11b-compliant and 802.11g compliant devices ! Operates in the 2.4GHz frequency range ! Maximum reliability, throughput and connectivity with automatic data rate switching ! High Performance 32-bit PCI - The high capacity PCI interface utilized by the DWA-520 ensures optimal performance in transmitting a wireless signal within the desktop computer. By utilizing a standard PCI 2.2 interface, the DWA-520 ensures a wide range of compatibility with motherboards used by PC manufac- turers ! Quick and Easy Installation- The DWA-520 installs quickly and easily into a standard PCI 2.2 slot in a desktop computer. By following the simple steps outlined in the Quick Installation Guide, you can connect to an available wire- less network in a matter of seconds Stronger Security than ever before with WPA/WPA2 - Wi-Fi Protected Access authorizes and identifies users based on a secret key that changes automatically at regular intervals, for example: ! ! TKIP (Temporal Key Integrity Protocol), in conjunction with a RADIUS server, changes the temporal key every 10,000 packets, ensuring greater security Pre-Shared Key mode means that the home user, without a RADIUS server, will obtain a new security key every time he or she connects to the network, vastly improving the safety of communications on the net- work ! Extra Protection - 802.1x Authentication in conjunction with the RADIUS server verifies the identity of wireless clients wishing to gain access to the WLAN ! Provides a measure of security for the information transmitted over a wireless network with high data encryption at 64-, 128-, and 152-bit WEP ! Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode ! ! User-friendly configuration and diagnostic utilities Five times faster - achieve data transfer speeds up to 54 Mbps; up to 5x faster than conventional 802.11b networks, when used with other 802.11g devices ! ! Provides a simple and inexpensive way to connect your desktop com- puter to a wireless network at home, at the office, or in public places 6 Wireless Basics D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless netw…

Text truncated - open the document above for the full version.

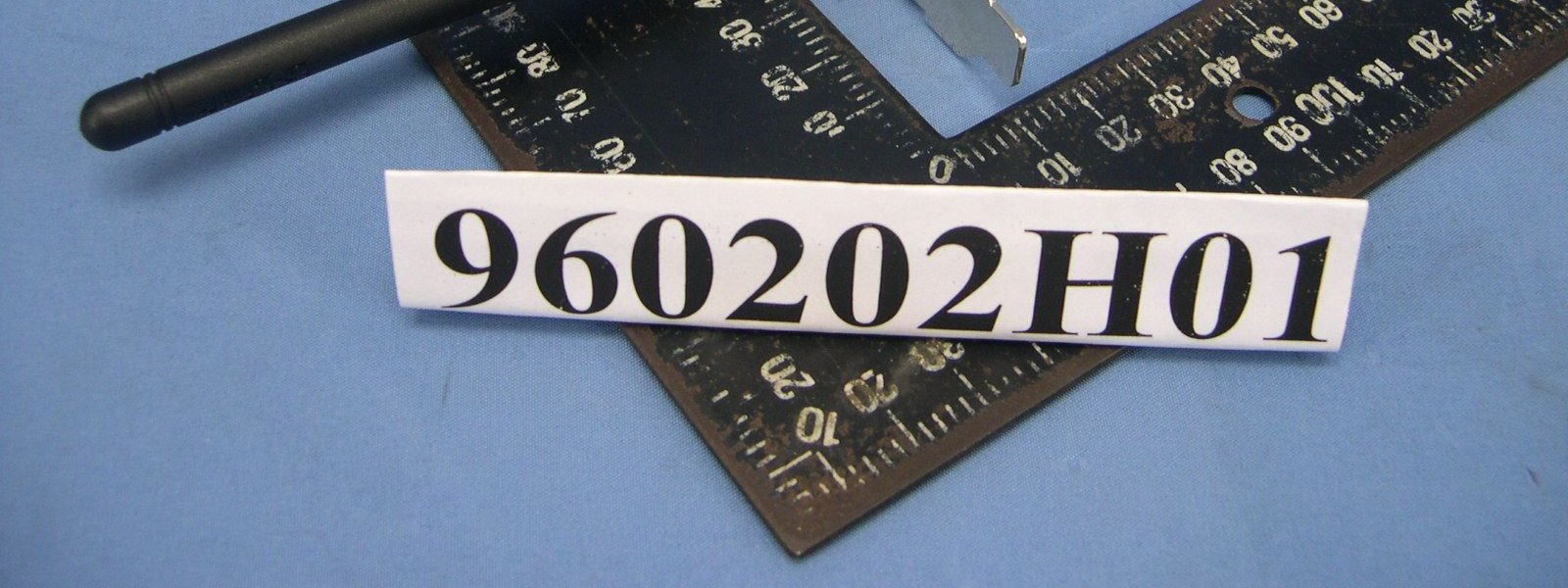

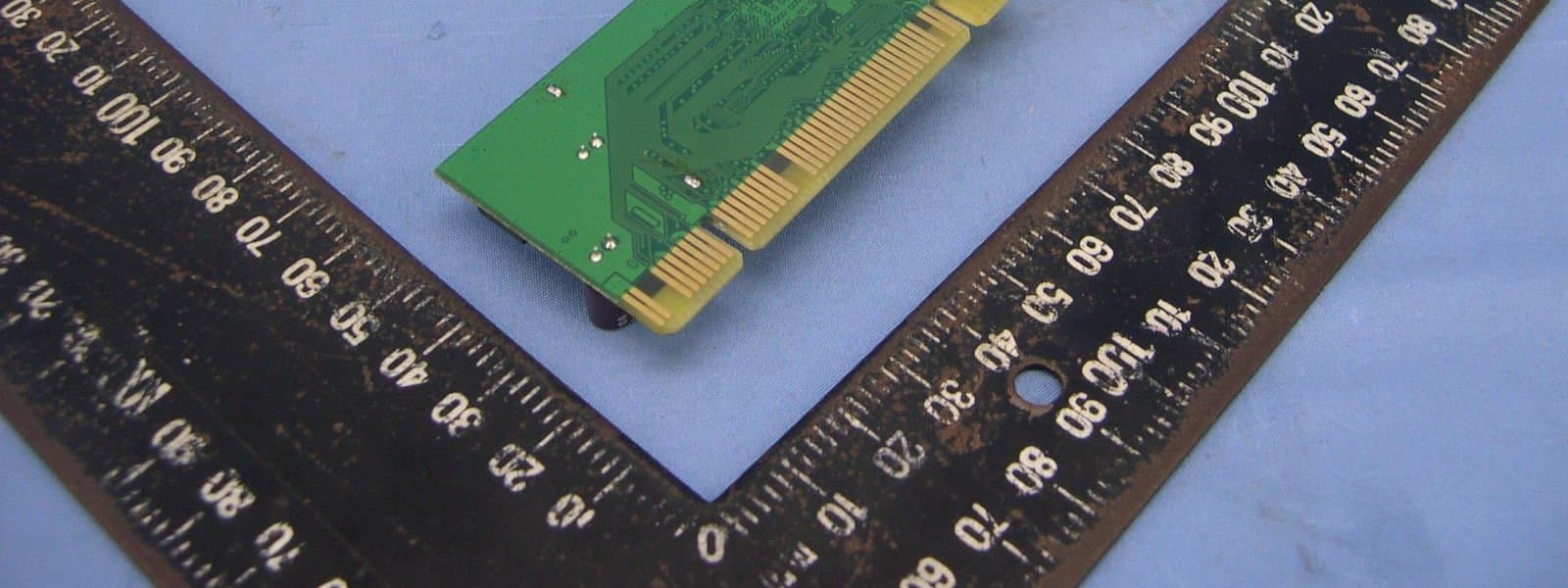

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID：KA2WA520A1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: KA2WA520A1 Report No. RF60202H01 Operational Description This device is a Wireless PCI Adapter, the maximum data rate could be up to 54Mbps (Turbo mode: up to 108Mbps) which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless PCI Adapter) is powered by host equipment. The antenna used in this product is dipole antenna. The other instruction, please have a look at the users manual.

Report No.: SA960202H01 1 RF EXPOSURE REPORT REPORT NO.: SA960202H01 MODEL NO.: DWA-520 FCC ID: KA2WA520A1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960202H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960202H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960202H01 4 6. Test Results 6.1 Antenna Gain The antenna used in this product is Dipole Antenna with SMA Plug Reverse connector. The maximum Gain of the antenna is 1.8dBi 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 53.703 0.016 1.0 6 2437 54.325 0.016 1.0 11 2462 61.094 0.018 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 83.753 0.025 1.0 6 2437 163.305 0.049 1.0 11 2462 75.858 0.023 1.0 6(Turbo) 2437 154.525 0.047 1.0

Report No.: RF960202H01 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960202H01 MODEL NO.: DWA-520 RECEIVED: Feb. 02, 2007 TESTED: Feb. 15 to March 29, 2007 ISSUED: April 02, 2007 APPLICANT: D-Link Corporation ADDRESS: No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960202H01 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................10 3.5 DESCRIPTION OF SUPPORT UNITS........................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4 TEST TYPES AND RESULTS.....................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2 TEST INSTRUMENTS.................................................................................13 4.1.3 TEST PROCEDURES.................................................................................14 4.1.4 TEST SETUP..............................................................................................14 4.1.5 EUT OPERATING CONDITIONS................................................................15 4.1.6 TEST RESULTS..........................................................................................16 4.2 RADIATED EMISSION MEASUREMENT...................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2 TEST INSTRUMENTS.................................................................................21 4.2.3 TEST PROCEDURES.................................................................................22 4.2.4 TEST SETUP..............................................................................................23 4.2.5 EUT OPERATING CONDITIONS................................................................23 4.2.6 TEST RESULTS..........................................................................................24 4.3 6DB BANDWIDTH MEASUREMENT..........................................................45 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................45 4.3.2 TEST INSTRUMENTS.................................................................................45 4.3.3 TEST PROCEDURE....................................................................................46 4.3.4 TEST SETUP..............................................................................................46 4.3.5 EUT OPERATING CONDITIONS................................................................46 4.3.6 TEST RESULTS –DSSS.............................................................................47 4.3.7 TEST RESULTS-OFDM..............................................................................49 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................52 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........52 4.4.2 TEST INSTRUMENTS.................................................................................52 Report No.: RF960202H01 3 Report Format Version 2.0.5 4.4.3 TEST PROCEDURES.................................................................................53 4.4.4 TEST SETUP..............................................................................................53 4.4.5 EUT OPERATING CONDITIONS................................................................53 4.4.6 TEST RESULTS – DSSS............................................................................54 4.4.7 TEST RESULTS –OFDM.............................................................................55 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................56 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................56 4.5.2 TEST INSTRUMENTS.................................................................................56 4.5.3 TEST PROCEDURE....................................................................................57 4.5.4 TEST SETUP..............................................................................................57 4.5.5 EUT OPERATING CONDITIONS................................................................57 4.5.6 TEST RESULTS –DSSS.............................................................................58 4.5.7 TEST RESULTS –OFDM.............................................................................60 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT..............63 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT ............................................................................................................63 4.6.2 T…

Text truncated - open the document above for the full version.

Report No.: RF960202H01 51 Report Format Version 2.0.5 802.11g Turbo OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 965hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 6 2437 32.6 0.5 PASS CH6 Report No.: RF960202H01 52 Report Format Version 2.0.5 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 10037 Aug. 15, 2007 Agilent SIGNAL GENERATOR E8257C MY43321031 July 26, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 Jun. 21, 2007 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960202H01 53 Report Format Version 2.0.5 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the peak response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUT or S.G OSCILLOSCOPE Detector Report No.: RF960202H01 54 Report Format Version 2.0.5 4.4.6 TEST RESULTS – DSSS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 28deg. C, 62%RH, 965hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 53.703 17.30 30 PASS 6 2437 54.325 17.35 30 PASS 11 2462 61.094 17.86 30 PASS Report No.: RF960202H01 55 Report Format Version 2.0.5 4.4.7 TEST RESULTS –OFDM 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 965hPa TESTED BY Eric Lin CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 83.753 19.23 30 PASS 6 2437 163.305 22.13 30 PASS 11 2462 75.858 18.80 30 PASS 802.11g Turbo OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 965hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 6 2437 154.525 21.89 30 PASS Report No.: RF960202H01 56 Report Format Version 2.0.5 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960202H01 57 Report Format Version 2.0.5 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUT SPECTRUM ANALYZER Report No.: RF960202H01 58 Report Format Version 2.0.5 4.5.6 TEST RESULTS –DSSS 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 965hPa TESTED BY Tony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -7.73 8 PASS 6 2437 -8.08 8 PASS 11 2462 -8.40 8 PASS CH1 Report No.: RF960202H01 59 Report Format Version 2.0.5 CH6 CH11 Report No.: RF960202H01 60 Report Format Version 2.0.5 4.5.7 TEST RESULTS –OFDM 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 20deg. C, 56%RH, 965hPa TESTED BY Rex Huang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 1 2412 -9.38 8 PASS 6 2437 -5.79 8 PASS 11 2462 -10.46 8 PASS CH1 Report No.: RF960202H01 61 Report Format Version 2.0.5 CH6 CH11 Report No.: RF960202H01 62 Report Format Version 2.0.5 802.11g Turbo OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 12Mbps INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 18deg. C, 62%RH, 965hPa TESTED BY Eric Lin CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 6 2437 -8.34 8 PASS CH6 Report No.: RF960202H01 63 Report Format Version 2.0.5 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100037 Aug. 15, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band ed…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
