KA2WA552A1D-Link DWA-552 Xtreme N Desktop Adapter

D-Link DWA-55 User Manual Table of Contents Product Overview ........................................................3 Package Contents .....................................................3 System Requirements ...............................................3 Introduction ...............................................................4 Features ....................................................................5 Hardware Overview ...................................................6 LEDs ......................................................................6 Installation ....................................................................7 Getting Started ..........................................................7 Remove Existing Installations ................................7 Disable Other Wireless Adapters ...........................8 Wireless Installation Considerations .......................10 Adapter Installation .................................................11 Configuration .............................................................15 D-Link Wireless Connection Manager .....................15 Wireless Networks ...............................................16 My Wireless Networks ..........................................17 Support.................................................................20 About ....................................................................21 Windows ® XP Configuration Utility ..........................22 Disabling The Windows ® XP Utility .......................23 Wireless Security .......................................................25 What is WEP? .........................................................25 What is WPA? ..........................................................26 Configure WEP........................................................27 Using the D-Link Wireless Connection Manager ..27 Using the Windows ® XP Utility..............................29 Configure WPA/WPA2 Passphrase .........................31 Using the D-Link Wireless Connection Manager ..31 Using the Windows ® XP Utility..............................33 Configure WPA/WPA2 .............................................35 Using the D-Link Wireless Connection Manager ..35 Troubleshooting .........................................................36 Wireless Basics .........................................................41 Networking Basics ....................................................46 Check your IP address ............................................46 Statically Assign an IP address ...............................47 Technical Specifications ...........................................48 Contacting Technical Support ..................................49 Warranty .....................................................................50 Registration ................................................................56 Table of Contents D-Link DWA-55 User Manual Section 1 - Product Overview • D-Link DWA-552 Xtreme N™ Desktop Adapter • Manual and Warranty on CD • D-Link Wireless Connection Manager on CD System Requirements • A desktop computer with an available PCI slot • Windows ® 2000 (Service Pack 4) or XP (Service Pack 2) • 300MHz processor and at least 64MB of RAM • A draft 802.11n or 802.11g access point (for Infrastructure mode), or another draft 802.11n or 802.11g wireless adapter (for Ad-Hoc networking mode). Product Overview Package Contents D-Link DWA-55 User Manual Section 1 - Product Overview Introduction The D-Link Xtreme N™ Desktop Adapter (DWA-552) is a Draft 802.11n client device that delivers unrivaled wireless performance for your desktop computer. With the DWA-552, you can add or upgrade your Desktop PC’s wireless connectivity without having to purchase a new computer. Once connected, access your network’s high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy digital phone calls, gaming, downloading, and video streaming. Powered by Xtreme N™ technology, the DWA-552 provides a faster wireless connection and superior reception than 802.11g*. The DWA-552 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by connecting this desktop adapter to a Xtreme N ™ Router and stay connected from virtually anywhere in the home. This adapter supports WEP, WPA, and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. The D-Link Xtreme N™ DWA-552 is a powerful 32-bit desktop adapter that installs quickly and easily into desktop computers. Like all D-Link wireless adapters, the DWA-552 can be used in ad-hoc mode to connect directly with other cards for peer-to-peer file sharing or in infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home network. The DWA-552 features robust security to help protect the wireless network from intruders, complying with the latest wireless networking security protocols, including WEP encryption and Wi-Fi Protected Access (WPA) support for WPA2-PSK. The DWA-552 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for those networks most often accessed. • Maximum wireless signal rate derived from IEEE Standard 80.11g and draft 80.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. 5D-Link DWA-55 User Manual Section 1 - Product Overview • Faster Wireless Networking* - Enable wireless connectivity on your Desktop PC computer with the DWA-552. With the performance of D-Link’s Xtreme N ™ line of wireless products, the DWA-552 d…

Text truncated - open the document above for the full version.

D-L*nk No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O .C . TEL. :+ 886-2-66000123 FAX:+ 886-2-55509988 FCC ID: KA2WA552A 1 Federal Communications Commissio n Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0 .457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0 .457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, J .0 L o / President TEL . :+ 886-2-66000123 # 6600 FAX:+ 886-2-55509988 E -mail: jc_ [email protected]

DLink No.289, Sinhu 3rd Rd ., Neihu District, Taipei City 114, Taiwan, R.O .C . TEL. :+ 886-2-66000123 FAX:+ 886-2-55509988 AUTHORIZATION LETTER To whom it may concern : We, the undersigned D-Link Corporationhereby authorize Advance Dat a Technology Corp . (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C and any communication needed with the national authority . Any and all acts carried out by ADT on our behalf shall have th e same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate t o contact us. Thank you! Sincerely yours, J .0 Liao / Presiden t TEL. :+ 886-2-66000123 # 6600 FAX:+ 886-2-55509988 E-mail: [email protected]

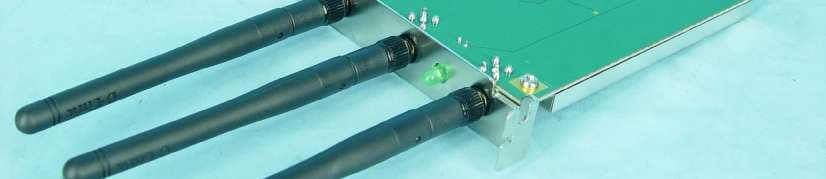

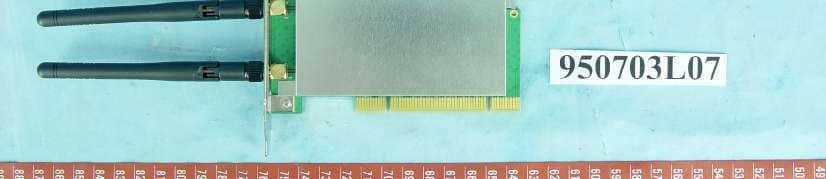

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: KA2WA552A1 Label Location

Page 3 Page 4 Page 5

FCC ID: KA2WA552A1 Report No.: RF950703L07 OPERATIONAL DESCRIPTION This device is a D-Link DWA-552 Xtreme N™ Desktop Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: KA2WA552A1 Report No: SA950703L07 1 RF EXPOSURE REPORT REPORT NO.: SA950703L07 MODEL NO.: DWA-552 OEM MODEL NO.: DWA-547 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: KA2WA552A1 Report No: SA950703L07 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500......F/3006 1500-100,000......56 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: KA2WA552A1 Report No: SA950703L07 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION This device is fixed inside the host equipment. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: KA2WA552A1 Report No: SA950703L07 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 40.64440.55140.36516.0916.0816.06 62437 71.77971.28570.95818.5618.5318.51 112462 50.58250.48650.35017.0417.0317.02 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 )) LIMIT OF POWER DENSITY (mW/CM 2 ) 12412 121.56020.8480.0381.0 62437 214.02223.3050.0671.0 112462 151.41821.8020.0481.0 FCC ID: KA2WA552A1 Report No: SA950703L07 5 802.11g OFDM MODULATION: PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 45.29045.08244.77116.5616.5416.51 62437 56.88556.75456.36417.5517.5417.51 11246236.05835.97535.72715.5715.5615.53 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 )) LIMIT OF POWER DENSITY (mW/CM 2 ) 12412135.14321.3080.0431.0 62437170.00322.3050.0541.0 112462 107.76020.3250.034 1.0 FCC ID: KA2WA552A1 Report No: SA950703L07 6 DRAFT 802.11n (20MHz) OFDM modulation - TRIPLE TX PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 32.21132.13731.76915.0815.0715.02 62437 57.01656.75456.36417.5617.5417.51 112462 28.70828.51028.24914.5814.5514.51 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 )) LIMIT OF POWER DENSITY (mW/CM 2 ) 12412 96.11719.8280.0301.0 62437 170.13422.3080.0541.0 112462 85.46719.3180.0271.0 FCC ID: KA2WA552A1 Report No: SA950703L07 7 DRAFT 802.11n (40MHz) OFDM modulation - TRIPLE TX PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12422 14.32214.28914.15811.5611.5511.51 42437 28.70828.51028.18414.5814.5514.50 72452 14.35514.28914.19111.5711.5511.52 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 )) LIMIT OF POWER DENSITY (mW/CM 2 ) 12422 42.76916.3110.0131.0 42437 85.40219.3150.0271.0 72452 42.83516.3180.0141.0

Report No.: RF950703L071Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950703L07 MODEL NO.: DWA-552 OEM MODEL NO.: DWA-547 RECEIVED: Jun. 27, 2006 TESTED: Jun. 27 ~ Jul. 20, 2006 ISSUED: Aug. 18, 2006 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No.47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 136 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950703L072Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION...............................................................................................4 2.SUMMARY OF TEST RESULTS.......................................................................5 2.1 MEASUREMENT UNCERTAINTY....................................................................5 3.GENERAL INFORMATION...............................................................................6 3.1GENERAL DESCRIPTION OF EUT..................................................................6 3.2DESCRIPTION OF TEST MODES...................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...............................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.....................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................11 3.4DESCRIPTION OF SUPPORT UNITS............................................................11 4.TEST TYPES AND RESULTS.........................................................................12 4.1CONDUCTED EMISSION MEASUREMENT..................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................12 4.1.2TEST INSTRUMENTS....................................................................................12 4.1.3TEST PROCEDURES....................................................................................13 4.1.4DEVIATION FROM TEST STANDARD...........................................................13 4.1.5TEST SETUP..................................................................................................14 4.1.6EUT OPERATING CONDITIONS....................................................................14 4.1.7TEST RESULTS.............................................................................................15 4.2RADIATED EMISSION MEASUREMENT.......................................................33 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................33 4.2.2TEST INSTRUMENTS....................................................................................34 4.2.3TEST PROCEDURES....................................................................................35 4.2.4DEVIATION FROM TEST STANDARD...........................................................35 4.2.5TEST SETUP..................................................................................................36 4.2.6EUT OPERATING CONDITIONS....................................................................36 4.2.7TEST RESULTS.............................................................................................37 4.36dB BANDWIDTH MEASUREMENT..............................................................62 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................62 4.3.2TEST INSTRUMENTS....................................................................................62 4.3.3TEST PROCEDURE.......................................................................................62 4.3.4DEVIATION FROM TEST STANDARD...........................................................62 4.3.5TEST SETUP..................................................................................................63 4.3.6EUT OPERATING CONDITIONS....................................................................63 4.3.7TEST RESULTS.............................................................................................64 4.4MAXIMUM PEAK OUTPUT POWER..............................................................84 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT................84 4.4.2INSTRUMENTS..............................................................................................84 4.4.3TEST PROCEDURES....................................................................................84 4.4.4DEVIATION FROM TEST STANDARD...........................................................84 4.4.5TEST SETUP..................................................................................................85 4.4.6EUT OPERATING CONDITIONS....................................................................85 4.4.7TEST RESULTS.............................................................................................86 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................90 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT........................90 4.5.2TEST INSTRUMENTS....................................................................................90 4.5.3TEST PROCEDURE.......................................................................................90 4.5.4DEVIATION FROM TEST STANDARD...........................................................90 4.5.5TEST SETUP..................................................................................................91 Report No.: RF950703L073Report Format Version 2.0.4 4.5.6EUT OPERATING CONDITION....................................…

Text truncated - open the document above for the full version.

Report No.: RF950703L0781Report Format Version 2.0.4 FOR CHAIN 1: CH 1 CH 4 Report No.: RF950703L0782Report Format Version 2.0.4 CH 7 FOR CHAIN 2: CH 1 Report No.: RF950703L0783Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950703L0784Report Format Version 2.0.4 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 AGILENT SIGNAL GENERATOR E8257CMY43320668Dec. 07, 2006 DIGITAL RT OSCILLOSCOPE TDS1012C037299Nov. 28, 2006 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2.Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950703L0785Report Format Version 2.0.4 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6. EUT or S.G OSCILLOSCOPE DETECTOR Report No.: RF950703L0786Report Format Version 2.0.4 4.4.7 TEST RESULTS 802.11b DSSS MODULATION: TRIPLE TX: MODULATION TYPE DBPSK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 40.64440.55140.36516.0916.0816.06 62437 71.77971.28570.95818.5618.5318.51 112462 50.58250.48650.35017.0417.0317.02 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412 121.56020.848 30PASS 62437 214.02223.305 30PASS 112462 151.41821.802 30PASS Report No.: RF950703L0787Report Format Version 2.0.4 802.11g OFDM MODULATION: TRIPLE TX: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 45.29045.08244.77116.5616.5416.51 62437 56.88556.75456.36417.5517.5417.51 112462 36.05835.97535.72715.5715.5615.53 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412 135.14321.308 30PASS 62437 170.00322.305 30PASS 112462 107.76020.325 30PASS Report No.: RF950703L0788Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: TRIPLE TX: MODULATION TYPE BPSK TRANSFER RATE 7.2Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 32.21132.13731.76915.0815.0715.02 62437 57.01656.75456.36417.5617.5417.51 112462 28.70828.51028.24914.5814.5514.51 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412 96.11719.828 30PASS 62437 170.13422.308 30PASS 112462 85.46719.318 30PASS Report No.: RF950703L0789Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: TRIPLE TX: MODULATION TYPE BPSK TRANSFER RATE 15Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu PEAK POWER OUTPUT (mW)PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12422 14.32214.28914.15811.5611.5511.51 42437 28.70828.51028.18414.5814.5514.50 72452 14.35514.28914.19111.5711.5511.52 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12422 42.76916.311 30PASS 42437 85.40219.315 30PASS 72452 42.83516.318 30PASS Report No.: RF950703L0790Report Format Version 2.0.4 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950703L0791Report Format Version 2.0.4 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6. SPECTRUM ANALYZER EUT Report No.: RF950703L0792Report Format Version 2.0.4 4.5.7 TEST RESULTS 802.11b DSSS MODULATION: TRIPLE TX: MODULATION TYPE DBPSK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 0.1230.1210.120-9.09-9.17-9.22 62437 0.2390.2370.222-6.22-6.25-6.54 112462 0.1570.1570.148-8.05-8.14-8.29 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412 0.364-4.39 8PASS 62437 0.698-1.56 8PASS 112462 0.462-3.35 8PASS Report No.: RF950703L0793Report Format Version 2.0.4 FOR CHAIN 0: CH 1 CH 6 Report No.: RF950703L0794Report Format Version 2.0.4 CH 11 FOR CHAIN 1: C…

Text truncated - open the document above for the full version.

Report No.: RF950703L07101Report Format Version 2.0.4 CH 6 CH 11 Report No.: RF950703L07102Report Format Version 2.0.4 FOR CHAIN 2: CH 1 CH 6 Report No.: RF950703L07103Report Format Version 2.0.4 CH 11 Report No.: RF950703L07104Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: TRIPLE TX: MODULATION TYPE BPSK TRANSFER RATE 7.2Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28deg.C, 67%RH, 991hPa TESTED BY Lori Chiu RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12412 0.0430.0420.043-13.68-13.76-13.71 62437 0.0770.0760.073-11.14-11.22-11.34 112462 0.0390.0390.038-14.11-14.12-14.23 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412 0.128-8.928 8PASS 62437 0.226-6.459 8PASS 112462 0.116-9.355 8PASS Report No.: RF950703L07105Report Format Version 2.0.4 FOR CHAIN 0: CH 1 CH 6 Report No.: RF950703L07106Report Format Version 2.0.4 CH 11 FOR CHAIN 1: CH 1 Report No.: RF950703L07107Report Format Version 2.0.4 CH 6 CH 11 Report No.: RF950703L07108Report Format Version 2.0.4 FOR CHAIN 2: CH 1 CH 6 Report No.: RF950703L07109Report Format Version 2.0.4 CH 11 Report No.: RF950703L07110Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: TRIPLE TX: MODULATION TYPE BPSK TRANSFER RATE 15Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 63%RH, 991hPa TESTED BY Lori Chiu RF POWER LEVEL IN 3kHz BW (mW) RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1CHAIN 2CHAIN 0CHAIN 1CHAIN 2 12422 0.0090.0080.008-20.59-20.83-20.86 42437 0.0180.0180.017-17.54-17.55-17.71 72452 0.0090.0080.008-20.60-20.78-20.86 CHANNEL CHANNEL FREQUENCY (MHz) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12422 0.025-16.020 8PASS 42437 0.053-12.757 8PASS 72452 0.025-16.020 8PASS Report No.: RF950703L07111Report Format Version 2.0.4 FOR CHAIN 0: CH 1 CH 4 Report No.: RF950703L07112Report Format Version 2.0.4 CH 7 FOR CHAIN 1: CH 1 Report No.: RF950703L07113Report Format Version 2.0.4 CH 4 CH 7 Report No.: RF950703L07114Report Format Version 2.0.4 FOR CHAIN 2: CH 1 CH 4 Report No.: RF950703L07115Report Format Version 2.0.4 CH 7 Report No.: RF950703L07116Report Format Version 2.0.4 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO.CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF950703L07117Report Format Version 2.0.4 4.6.3 TEST PROCEDURE a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW = VBW = 100kHz; Average RBW = 1MHz, VBW = 10Hz) NOTE: The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10Hz for Average detection (AV) at frequency above 1GHz. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6. Report No.: RF950703L07118Report Format Version 2.0.4 4.6.6 TEST RESULTS The spectrum plots a…

Text truncated - open the document above for the full version.
