D-Link DWA-55 User Manual Table of Contents Product Overview ........................................................3 Package Contents .....................................................3 System Requirements ...............................................3 Introduction ...............................................................4 Features ....................................................................5 Hardware Overview ...................................................6 LEDs ......................................................................6 Installation ....................................................................7 Getting Started ..........................................................7 Remove Existing Installations ................................7 Disable Other Wireless Adapters ...........................8 Wireless Installation Considerations .......................10 Adapter Installation .................................................11 Configuration .............................................................17 D-Link Wireless Connection Manager .....................17 Wireless Networks ...............................................18 My Wireless Networks ..........................................19 Support.................................................................22 About ....................................................................23 Connect to a Wireless Network ................................24 Using Windows Vista ® .............................................24 Using Windows ® XP ................................................26 Wireless Security .......................................................27 What is WPA ™ ? .......................................................27 Configure WPA ™ /WPA2 ™ -Personal ..........................28 Using the D-Link Utility .........................................28 Using Windows Vista ® ..........................................30 Using Windows ® XP .............................................32 Configure WPA ™ /WPA2 ™ -Enterprise .......................34 Using the D-Link Utility .........................................34 Configure 802.1x (RADIUS) ....................................35 Using the D-Link Utility .........................................35 Troubleshooting .........................................................36 Wireless Basics .........................................................41 Networking Basics ....................................................46 Check your IP address ............................................46 Windows ® XP/2000 Users ....................................46 Windows Vista ® Users ..........................................46 Statically Assign an IP address ...............................47 Windows ® XP/2000 Users ....................................47 Windows Vista ® Users ..........................................48 Technical Specifications ...........................................49 Contacting Technical Support ..................................50 Warranty .....................................................................51 Registration ................................................................57 Table of Contents D-Link DWA-55 User Manual Section 1 - Product Overview • D-Link DWA-552 Xtreme N™ Desktop Adapter • Three (3) Antennas • Manual and Warranty on CD • D-Link Wireless Connection Manager on CD System Requirements • A desktop computer with an available PCI slot • Windows Vista ® , XP (Service Pack 2), or 2000 (Service Pack 4) • 300MHz processor and at least 64MB of RAM Product Overview Package Contents D-Link DWA-55 User Manual Section 1 - Product Overview Introduction The D-Link Xtreme N™ Desktop Adapter (DWA-552) is a Draft 802.11n client device that delivers unrivaled wireless performance for your desktop computer. With the DWA-552, you can add or upgrade your Desktop PC’s wireless connectivity without having to purchase a new computer. Once connected, access your network’s high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy digital phone calls, gaming, downloading, and video streaming. Powered by Xtreme N™ technology, the DWA-552 provides a faster wireless connection and superior reception than 802.11g*. The DWA-552 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by connecting this desktop adapter to a Xtreme N ™ Router and stay connected from virtually anywhere in the home. This adapter supports WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed. The D-Link Xtreme N™ DWA-552 is a powerful 32-bit desktop adapter that installs quickly and easily into desktop computers. Like all D-Link wireless adapters, the DWA-552 can be used in ad-hoc mode to connect directly with other cards for peer-to-peer file sharing or in infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home network. The DWA-552 features robust security to help protect the wireless network from intruders, complying with the latest wireless networking security protocols, including Wi-Fi Protected Access (WPA/WPA2) support. The DWA-552 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for those networks most often accessed. • Maximum wireless signal rate derived from IEEE Standard 80.11g and draft 80.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. 5D-Link DWA-55 User Manual Section 1 - Product Overview • Faster Wireless Net…

Text truncated - open the document above for the full version.

1D-Link DWA-55 User Manual Section  - Configuration My Wireless Networks The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a network using the Wireless Networks page, a profile will automatically be created. New Button: Modify: Click New to create a new wireless network profile (refer to page 20). Click Modify to edit a current profile (refer to page 21). Click Delete to remove a profile. Click Activate to use a profile. Allow up to 30 seconds to connect to the wireless network. The Profile Details section will display information about the wireless network such as the network name (SSID) and if the network is secured. Delete: Activate: Profile Details: 0D-Link DWA-55 User Manual Section  - Configuration Add Profile You may add a new network by clicking the New button from the My Wireless Networks page. Profile Name: SSID: Enter a name for your profile (e.g. Home, Office, Coffee Shop). Enter the SSID of the wireless network. Select the network type. If you are connecting to a wireless router or access point, select Infrastructure. If you are connecting to another wireless client such as an adapter, select Ad-Hoc. Select the type of security used. Please refer to the Wireless Security section for more information. Click OK to save your settings. Network Type: Set Security: OK Button: 1D-Link DWA-55 User Manual Section  - Configuration Modify Profile You may edit an existing profile by clicking the Modify button from the My Wireless Networks page. Profile Name: SSID: Enter a name for your profile (e.g. Home, Office, Coffee Shop). Displays the SSID of the network. Displays the network type. Select the type of security used. Please refer to the Wireless Security section for more information. Click OK to save your settings. Network Type: Set Security: OK Button: D-Link DWA-55 User Manual Section  - Configuration Support If you need help, click the Support button. A panel will appear to the right of the utility which will display information about the utility. D-Link DWA-55 User Manual Section  - Configuration The About screen gives you information about the Firmware and Utility Versions of the DWA-552. About D-Link DWA-55 User Manual Section  - Configuration Connect to a Wireless Network Using Windows Vista ® Windows Vista ® users may use the built-in wireless utility. If you are using another company’s utility or Windows ® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows Vista ® utility as seen below. Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select Connect to a network. If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility. or The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 5D-Link DWA-55 User Manual Section  - Configuration Enter the same security key or passphrase that is on your router and click Connect. It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router. D-Link DWA-55 User Manual Section  - Configuration Connect to a Wireless Network Using Windows ® XP Windows ® XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service Pack 2 users. If you are using another company’s utility or Windows ® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows ® XP utility as seen below. Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select View Available Wireless Networks. If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility. or The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check the TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DWA-55 User Manual Section  - Wireless Security Wireless Security This section will show you the different levels of security you can use to protect your data from intruders. The DWA-552 offers the following types of security: • WPA/WPA2-Personal • WPA/WPA2-Enterprise • 802.1x (RADIUS) What is WPA ™ ? WPA, or Wi-Fi ® Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy). The 2 major improvements over WEP: • Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard instead of TKIP. • User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-specific MAC address, which is relatively simple to be sniffed out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network. WPA/WPA2-Personal uses a passphrase or key to authenticate your wireless connection. The key is an alpha-num…

Text truncated - open the document above for the full version.

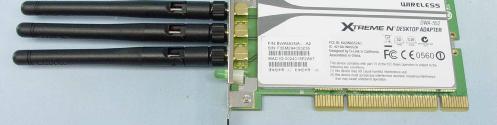

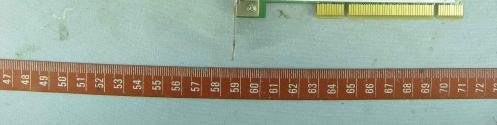

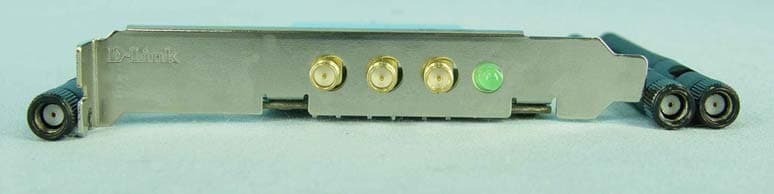

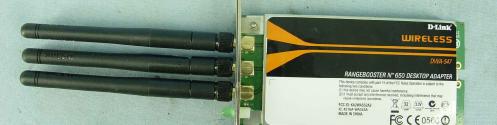

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

DWA-552 DESKTOP ADAPTER DESKTOP ADAPTER TM TM 98mm 53mm R=3 FCC ID: KA2WA552A3 IC: 4216A-WA552A Designed by D-Link in California. Assembled in China. This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: KA2WA552A3 Label Location

Page 3 Page 4 Page 5

FCC ID: KA2WA552A3 Report No.: RF971016L12A Reference No.: 990129L03 Operational Description This device is a D-Link DWA-552 Xtreme N TM Desktop Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA971016L12A Report Format Version 3.0.1 Reference No.: 990129L03 1 RF EXPOSURE REPORT REPORT NO.: SA971016L12A MODEL NO.: DWA-552, DWA-547 FCC ID:KA2WA552A3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA971016L12A Report Format Version 3.0.1 Reference No.: 990129L03 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA971016L12A Report Format Version 3.0.1 Reference No.: 990129L03 3 4. TEST RESULTS 802.11b: POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (MW/CM2) LIMIT OF POWER DENSITY (MW/CM2) 1 2412 16.53 16.56 90.268 19.56 0.028 1.000 6 2437 16.59 16.57 90.998 19.59 0.029 1.000 11 2462 16.55 16.52 90.060 19.55 0.028 1.000 802.11g: POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (MW/CM2) LIMIT OF POWER DENSITY (MW/CM2) 1 2412 23.08 23.05 405.072 26.08 0.128 1.000 6 2437 23.12 23.07 407.884 26.11 0.129 1.000 11 2462 22.59 22.14 345.233 25.38 0.109 1.000 802.11n (20MHz): POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 23.04 23.08 404.608 26.07 0.128 1.000 6 2437 23.07 23.11 407.413 26.10 0.128 1.000 11 2462 22.09 22.07 322.873 25.09 0.102 1.000 802.11n (40MHz): POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 TOTAL POWER (mW) TOTAL POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 24.08 23.59 484.418 26.85 0.153 1.000 4 2437 25.03 25.07 639.786 28.06 0.202 1.000 7 2452 22.55 22.54 359.360 25.56 0.113 1.000

Report No.: RF971016L12A 1 Report Format Version 3.0.1 Reference No.: 990129L03 FCC TEST REPORT REPORT NO.: RF971016L12A MODEL NO.: DWA-552 (Refer to item 3.1 for more details) RECEIVED: Oct. 16, 2008 TESTED: Oct. 20 ~ Nov. 25, 2008 ISSUED: Feb. 02, 2010 APPLICANT: D-Link Corporation ADDRESS: 17595 Mt. Herrmann, Fountain Valley, CA 92708, U.S.A. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 97 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF971016L12A 2 Report Format Version 3.0.1 Reference No.: 990129L03 TABLE OF CONTENTS 1. CERTIFICATION ......................................................................................................... 4 2. SUMMARY OF TEST RESULTS................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................. 5 3. GENERAL INFORMATION ......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT............................................................................ 6 3.2 DESCRIPTION OF TEST MODES.............................................................................. 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST......................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................. 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS...................................................................... 10 4. TEST TYPES AND RESULTS ................................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ................................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT .............................................. 11 4.1.2 TEST INSTRUMENTS .............................................................................................. 12 4.1.3 TEST PROCEDURES ............................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................... 13 4.1.5 TEST SETUP ............................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS.............................................................................. 14 4.1.7 TEST RESULTS ........................................................................................................ 15 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 31 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................... 31 4.2.2 TEST INSTRUMENTS .............................................................................................. 31 4.2.3 TEST PROCEDURES ............................................................................................... 32 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................... 32 4.2.5 TEST SETUP ............................................................................................................ 33 4.2.6 EUT OPERATING CONDITIONS.............................................................................. 33 4.2.7 TEST RESULTS ........................................................................................................ 34 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................ 36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................... 36 4.3.2 TEST INSTRUMENTS .............................................................................................. 36 4.3.3 TEST PROCEDURE ................................................................................................. 36 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................... 36 4.3.5 TEST SETUP ............................................................................................................ 37 4.3.6 EUT OPERATING CONDITIONS.............................................................................. 37 4.3.7 TEST RESULTS ........................................................................................................ 38 4.4 MAXIMUM OUTPUT POWER................................................................................... 54 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ................................... 54 4.4.2 TEST INSTRUMENTS .............................................................................................. 54 4.4.3 TEST PROCEDURES ............................................................................................... 54 Report No.: RF971016L12A 3 Report Format Version 3.0.1 Reference No.: 990129L03 4.4.3 DEVIATION FROM TEST STANDARD ..................................................................... 55 4.4.4 TEST SETUP ............................................................................................................ 55 4.4.5 EUT OPERATING CONDITIONS.............................................................................. 55 4.4.6 TEST RESULTS ............................................................................…
