KA2WA566A1WIRELESS N 300 PCIe

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Operations in the 5.15-5.25GHz / 5.470 ~ 5.725GHz band are restricted to indoor usage only. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This product will be used for indoor operations. The band from 5600-5650MHz will be disabled by the software during the manufacturing and cannot be changed by the end user. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Operation in the 5.15-5.25GHz band is restricted to indoor usage only.

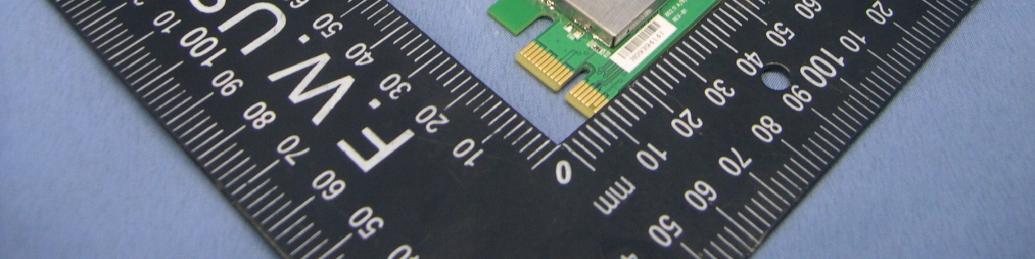

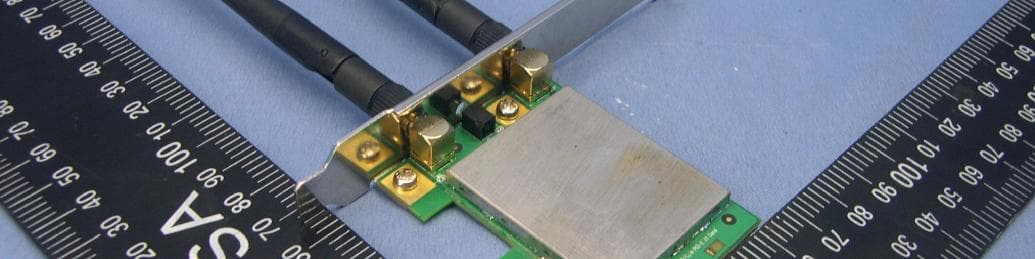

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

LABEL Location

Sheet 1 OF 1 1 : 1 A DWA-566 Label 15-Nov-10 15-Nov-10 15-Nov-10 Ping Hsieh Richard Zuo Dio Peng N O T E S : ^ O u tlin e an d apertu re Cu t-To o lin g +-0.15 m m . 44.62 36. 62

Page 3 Page 4 Page 5

Report No.: SA110617E04 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110617E04 MODEL NO.: DWA-566 FCC ID: KA2WA566A1 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. Report No.: SA110617E04 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110617E04 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110617E04 Original release Aug. 26, 2011 Report No.: SA110617E04 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: WIRELESS N 300 PCIe BRAND NAME: D-Link MODEL NO.: DWA-566 TEST SAMPLE: MASS-PRODUCTION APPLICANT: D-Link Corporation STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: DWA-566) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Aug. 26, 2011 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Aug. 26, 2011 ( May Chen, Deputy Manager ) Report No.: SA110617E04 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN There are two antennas provided to this EUT, please refer to the following table: Transmitter Circuit Brand Model Gain (dBi) include cable loss Antenna Type Connector Chain (0) WHA YU GROUP C037-511105-A (SSR-02561) 2 Dipole SMA Plug Straight / Reverse Chain (1) WHA YU GROUP C037-511105-A (SSR-02561) 2 Dipole SMA Plug Straight / Reverse The EUT incorporates CDD function with 802.11a, 802.11b, 802.11g Report No.: SA110617E04 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 221.0 5 20 0.139 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 442.6 5 20 0.278 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 502.5 2 20 0.158 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 347.7 2 20 0.110 1.00 Report No.: SA110617E04 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 302.7 5 20 0.190 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 306.7 2 20 0.097 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 5795 355.8 2 20 0.112 1.00 Report No.: SA110617E04 Report Format Version 4.0.0 8 For 15.407(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240, 5260-5320, 5500-5700 109.3 5 20 0.069 1.00 Directional gain = gain of antenna element + 10 log (# of TX antenna elements) Effective Legacy Gain (dBi)=5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-524…

Text truncated - open the document above for the full version.

Report No.: RF110617E04 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110617E04 MODEL NO.: DWA-566 FCC ID: KA2WA566A1 RECEIVED: June 17, 2011 TESTED: June 22 to July 07, 2011 ISSUED: Aug. 26, 2011 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 131 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110617E04 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................18 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............21 4.1 CONDUCTED EMISSION MEASUREMENT........................................................21 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................21 4.1.2 TEST INSTRUMENTS..........................................................................................21 4.1.3 TEST PROCEDURES..........................................................................................22 4.1.4 DEVIATION FROM TEST STANDARD.................................................................22 4.1.5 TEST SETUP.......................................................................................................23 4.1.6 EUT OPERATING CONDITIONS.........................................................................23 4.1.7 TEST RESULTS...................................................................................................24 4.2 RADIATED EMISSION MEASUREMENT.............................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................26 4.2.2 TEST INSTRUMENTS..........................................................................................27 4.2.3 TEST PROCEDURES..........................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD.................................................................28 4.2.5 TEST SETUP.......................................................................................................29 4.2.6 EUT OPERATING CONDITIONS.........................................................................29 4.2.7 TEST RESULTS...................................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT....................................................................59 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................59 4.3.2 TEST INSTRUMENTS..........................................................................................59 4.3.3 TEST PROCEDURE.............................................................................................59 4.3.4 DEVIATION FROM TEST STANDARD.................................................................59 4.3.5 TEST SETUP.......................................................................................................59 4.3.6 EUT OPERATING CONDITIONS.........................................................................59 4.3.7 TEST RESULTS...................................................................................................60 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................64 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................64 4.4.2 INSTRUMENTS....................................................................................................64 4.4.3 TEST PROCEDURES..........................................................................................64 Report No.: RF110617E04 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................64 4.4.5 TEST SETUP.......................................................................................................64 4.4.6 EUT OPERATING CONDITIONS.........................................................................64 4.4.7 TEST RESULTS...................................................................................................65 4.5 POWER SPECTRAL DENSITY MEASUREMENT.............…

Text truncated - open the document above for the full version.

Report No.: RF110617E04-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110617E04-1 MODEL NO.: DWA-566 FCC ID: KA2WA566A1 RECEIVED: June 17, 2011 TESTED: June 22 to July 07, 2011 ISSUED: Aug. 26, 2011 APPLICANT: D-Link Corporation ADDRESS: No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 135 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110617E04-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION...........................................................................................5 2. SUMMARY OF TEST RESULTS...................................................................6 2.1 MEASUREMENT UNCERTAINTY................................................................7 3. GENERAL INFORMATION...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT..............................................................8 3.2 DESCRIPTION OF TEST MODES..............................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................16 3.4 DESCRIPTION OF SUPPORT UNITS........................................................17 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................18 4. TEST TYPES AND RESULTS.....................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT..............................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................19 4.1.2 TEST INSTRUMENTS................................................................................19 4.1.3 TEST PROCEDURES.................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD.......................................................20 4.1.5 TEST SETUP..............................................................................................21 4.1.6 EUT OPERATING CONDITIONS................................................................21 4.1.7 TEST RESULTS..........................................................................................22 4.2 RADIATED EMISSION MEASUREMENT...................................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................24 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS25 4.2.3 TEST INSTRUMENTS................................................................................26 4.2.4 TEST PROCEDURES.................................................................................27 4.2.5 DEVIATION FROM TEST STANDARD.......................................................27 4.2.6 TEST SETUP..............................................................................................28 4.2.7 EUT OPERATING CONDITION..................................................................28 4.2.8 TEST RESULTS..........................................................................................29 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.......................................73 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT.....................73 4.3.2 TEST INSTRUMENTS................................................................................73 4.3.3 TEST PROCEDURE...................................................................................73 4.3.4 DEVIATION FROM TEST STANDARD.......................................................73 4.3.5 TEST SETUP..............................................................................................74 4.3.6 EUT OPERATING CONDITIONS................................................................74 4.3.7 TEST RESULTS..........................................................................................75 4.4 PEAK POWER EXCURSION MEASUREMENT.........................................90 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.......................90 4.4.2 TEST INSTRUMENTS................................................................................90 4.4.3 TEST PROCEDURE...................................................................................90 4.4.4 DEVIATION FROM TEST STANDARD.......................................................90 4.4.5 TEST SETUP..............................................................................................91 4.4.6 EUT OPERATING CONDITIONS................................................................91 4.4.7 TEST RESULTS..........................................................................................92 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT...........................98 Report No.: RF110617E04-1 3 Report Format Version 4.0.0 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT.........98 4.5.2 TEST INSTRUMENTS................................................................................98 4.5.3 TEST PROCEDURES.................................................................................98 4.5.4 DEVIATION FROM TEST STANDARD................…

Text truncated - open the document above for the full version.

Report No.: RF110617E04-2 1 Report Format Version 4.0.0 DFS TEST REPORT REPORT NO.: RF110617E04-2 MODEL NO.: DWA-566 FCC ID: KA2WA566A1 RECEIVED: June 17, 2011 TESTED: July 20, 2011 ISSUED: Aug. 26, 2011 APPLICANT : D-Link Corporation ADDRESS : No.289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110617E04-2 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION...........................................................................................4 2. EUT INFORMATION.....................................................................................5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT...........................5 2.2 EUT SOFTWARE AND FIRMWARE VERSION............................................5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT..........................5 2.4 EUT MAXIMUM CONDUCTED POWER......................................................6 2.5 EUT MAXIMUM E.I.R.P. POWER.................................................................7 2.6 TRANSMIT POWER CONTROL (TPC).........................................................7 2.7 STATEMENT OF MAUNFACTURER............................................................8 3. U-NII DFS RULE REQUIREMENTS.............................................................9 3.1 WORKING MODES AND REQUIRED TEST ITEMS....................................9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS.................................10 4. TEST & SUPPORT EQUIPMENT LIST.......................................................13 4.1 TEST INSTRUMENTS................................................................................13 4.2 DESCRIPTION OF SUPPORT UNITS........................................................13 5. TEST PROCEDURE...................................................................................14 5.1 BV-ADT DFS MEASUREMENT SYSTEM:..................................................14 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL:.....................15 5.3 DEVIATION FROM TEST STANDARD.......................................................16 5.4 CONDUCTED TEST SETUP CONFIGURATION........................................16 5.4.1 CLIENT WITHOUT RADAR DETECTION MODE.......................................16 6. TEST RESULTS..........................................................................................17 6.1 SUMMARY OF TEST RESULTS.................................................................17 6.2 DETAIL TEST RESULTS.............................................................................18 6.2.1 TEST MODE: DEVICE OPERATING IN CLIENT WITHOUT RADAR DETECTION MODE...................................................................................18 6.2.1.1 DFS DETECTION THRESHOLD................................................................18 6.2.1.2 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME......19 6.2.1.3 NON- OCCUPANCY PERIOD....................................................................20 7. INFORMATION ON THE TESTING LABORATORIES................................23 8. APPENDIX-A..............................................................................................24 9. APPENDIX B - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB......................................................25 Report No.: RF110617E04-2 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF110617E04-2 Original release Aug. 26, 2011 Report No.: RF110617E04-2 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: WIRELESS N 300 PCIe BRAND NAME: D-Link MODEL NO.: DWA-566 TEST SAMPLE: MASS-PRODUCTION APPLICANT: D-Link Corporation TESTED: July 20, 2011 STANDARDS: FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment (Model: DWA-566) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Aug. 26, 2011 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Aug. 26, 2011 ( May Chen, Deputy Manager ) Report No.: RF110617E04-2 5 Report Format Version 4.0.0 2. EUT INFORMATION 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT TABLE 1: OPERATING FREQUENCY BANDS AND MODE OF EUT OPERATING FREQUENCY RANGE OPERATIONAL MODE 5250~5350MHz 5470~5725MHz Client without radar detection and ad hoc function ̧ ̧ 2.2 EUT SOFTWARE AND FIRMWARE VERSION TABLE 2: THE EUT SOFTWARE/FIRMWARE VERSION NO. PRODUCT MODEL NO. SOFTWARE/FIRMWARE VERSION 1 WIRELESS N 300 PCIe DWA-566 Driver Version: 9.2.0.234 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT TABLE 3: ANTENNA LIST ANT No. Brand Model Gain (dBi) include cable loss Antenna Type Connector 1 WHA YU GROUP C037-511105-A (SSR-02561) 2 Dipole SMA Plug Straight / Reverse 2 WHA YU GROUP C037-511105-A (SSR-02561) 2 Dip…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Client without radar detection mode (Radar injected into Master) UUT Master

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
